Electric Vacuum Sewage Truck of Saic Yuejin

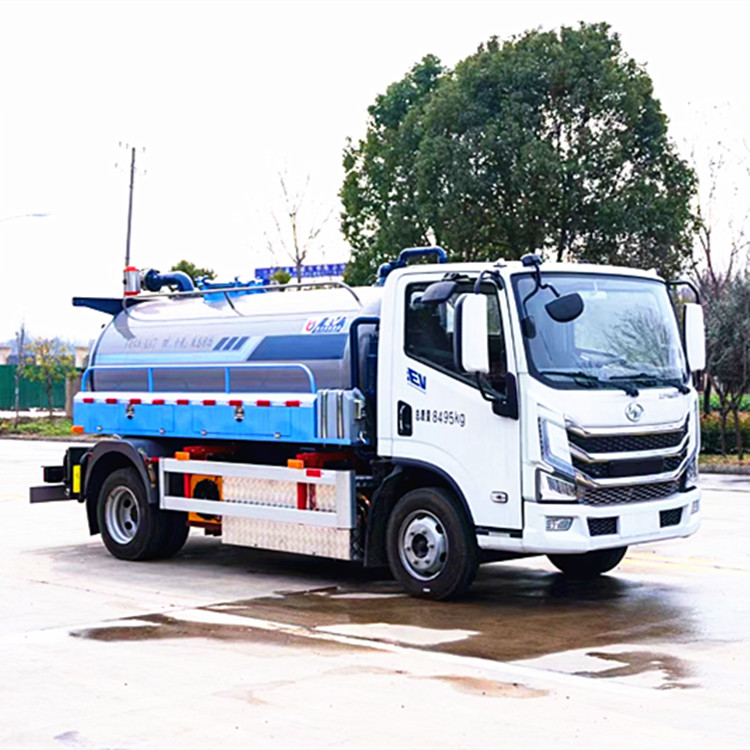

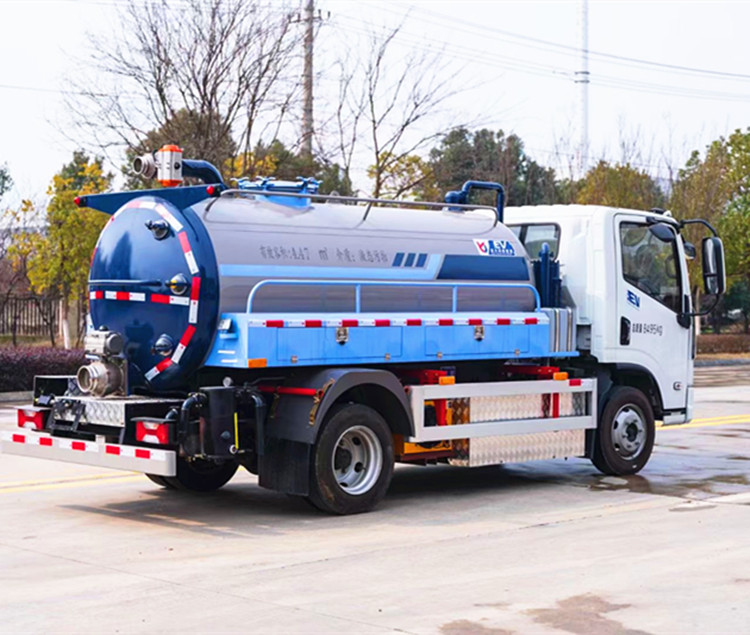

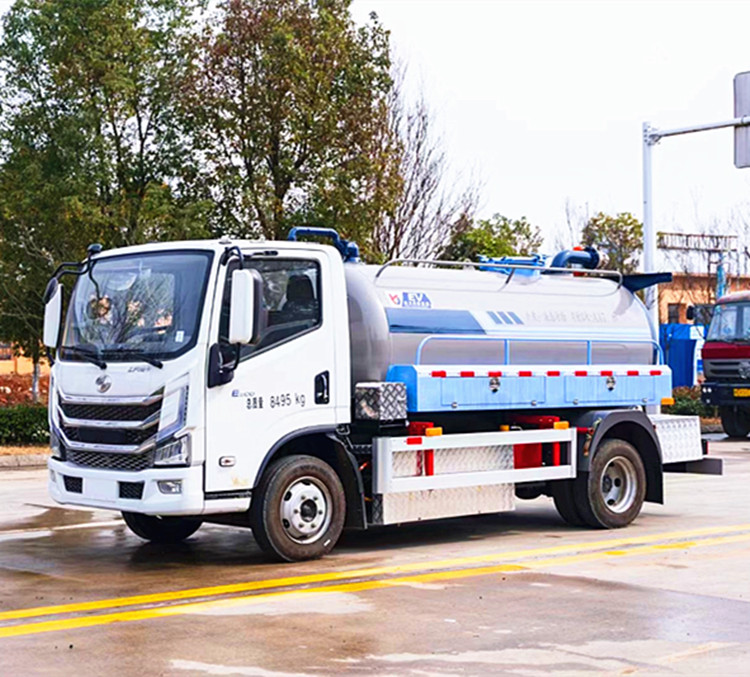

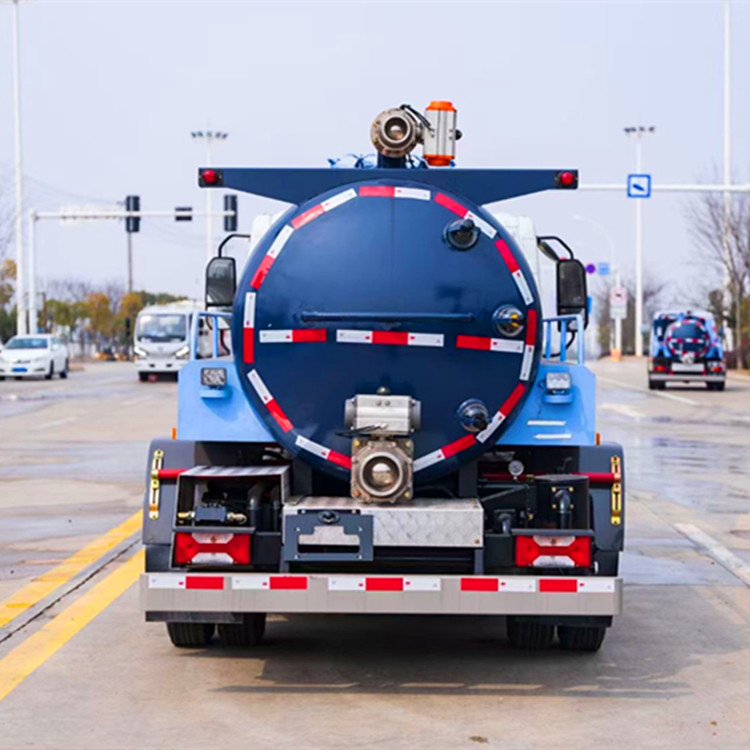

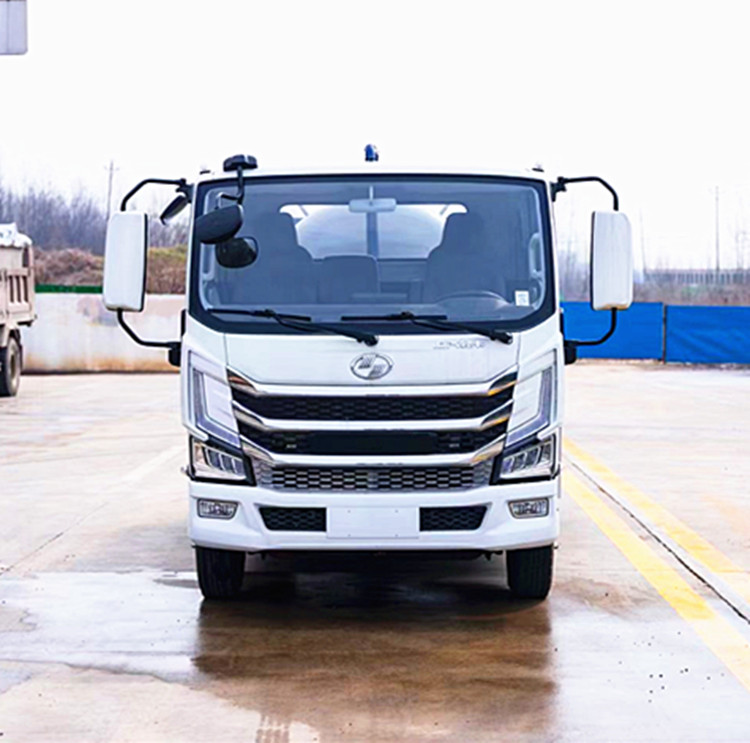

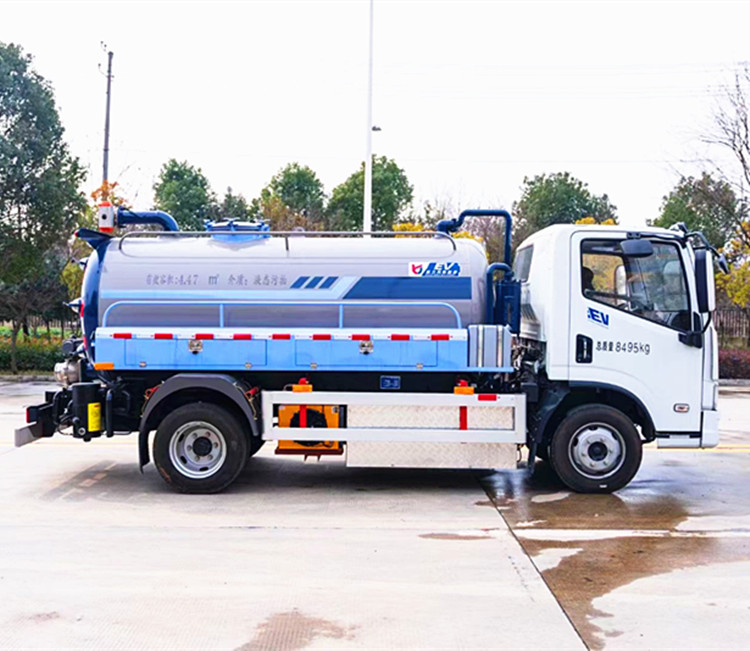

                   Saic Yuejin electric vacuum sewage truck is introduced

Name of vehicle manufacturer

 Saic Yuejin

Vehicle brand/vehicle name

 ace

 Sewage Suction Truck

Body color

Optional

Engine brand

 power-driven

Horsepower

160 horsepower

Vehicle size

5900*2170*2750mm

Tank volume

 5m³

Tire specifications

 7.00R16

Number of tyres

 6

Wheelbase（mm）

 3308（Optional）

Number of axes

2

Form of steering

 The steering wheel

Total mass (kg)

 9995

Quality of equipment(kg)

 5150

Number of persons allowed to ride in the cab (person)

3

Maximum design speed (km/h)

 90

Configuration of tank body parameters

The water tank adopts the national standard 4mm thick carbon steel plate, the high-pressure cleaning part adopts the new product Fuuv215 flow rate, 20MPa high-pressure pump, 60m diameter 19 high-pressure pipe. The tank is made of national standard 5mm thick carbon steel plate, standard equipped with Shandong SK-9 full-sealed water circulation pump, anti-overflow valve, according to the manure pipe, with an 8m suction pipe with a quick joint of yin and Yang End, the back cover is opened by hydraulic pressure.

The electric suction truck has the following characteristics:

• Electric suction truck performance
• Power and endurance: Equipped with permanent magnet synchronous motor, rated/peak power up to 55/110kw, battery using lithium iron phosphate battery, 57.6kwh of electricity, mileage 265km, charging time 1.5h under constant velocity method.
• Chassis design: self-developed special chassis, integrated design and production with the top, reserved assembly space and interface, using 510L/610L high-strength beam steel and electrophoretic anticorrosion technology, the frame is strong and corrosion resistant.
• Operation ability of Vacuum Sewer Truck
• Suction system: 50qzxdh-45/7000 single stage rotary vane oil seal pump, wide working pressure range, can be directly started under atmospheric pressure, pumping rate 45l/s, the maximum vacuum degree -0.093mpa.
• Tank design: The tank is made of high-quality high-strength carbon steel material, the thickness is 4mm, and there is a wave prevention mechanism inside, which reduces the impact of the water in the tank during operation, enhances the rigidity, and adopts the international standard electrophoresis with high temperature baking paint process for anti-corrosion.
• Sewage Suction Truck safety and convenience
• Safety configuration: equipped with pressure relief valve, full tank alarm device and a variety of voice prompts and music alarms to prevent misoperation, optional anti-sliding slope, tire pressure monitoring, electric power steering and other functions.
• Convenient operation: the vehicle has the function of suction and strong discharge, adopts the can bus control system, realizes speed control and tailgate opening and closing through the silicone panel, and hydraulically drives the tailgate.
• Sewage Truck application field
• It is suitable for municipal drainage system maintenance, sewage treatment plant operation, construction site waste treatment, and can also be used for rural toilet transformation, livestock farm sewage, urban flood control and disaster reduction.
