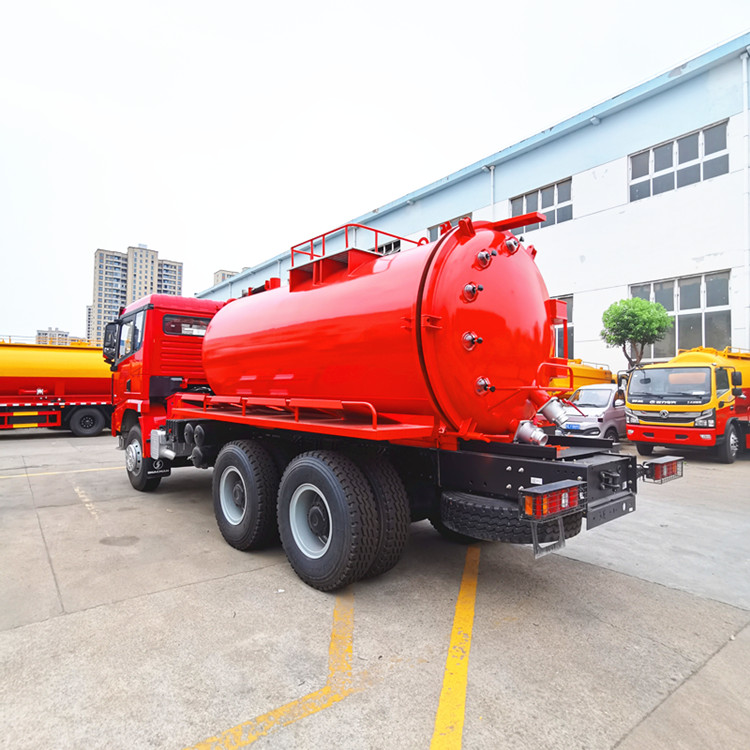

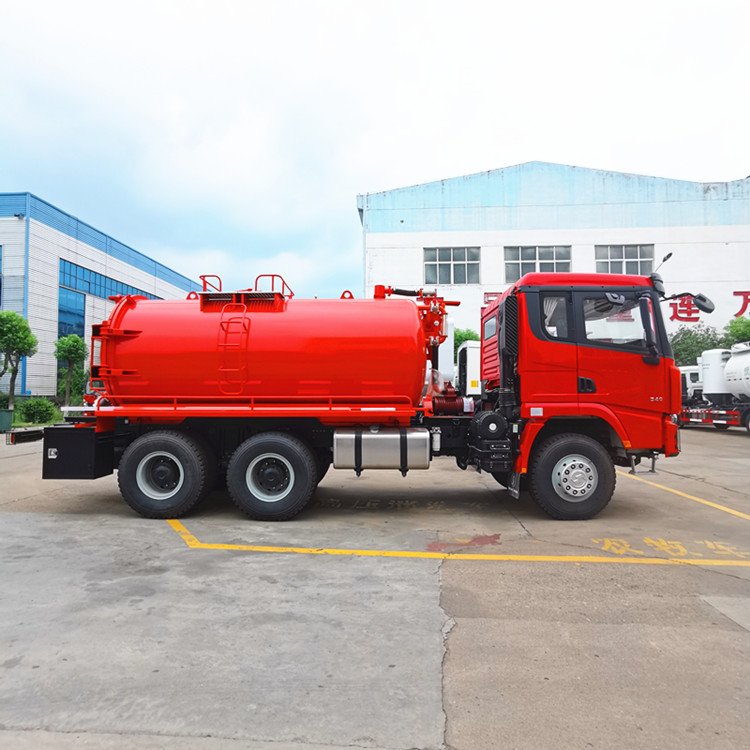

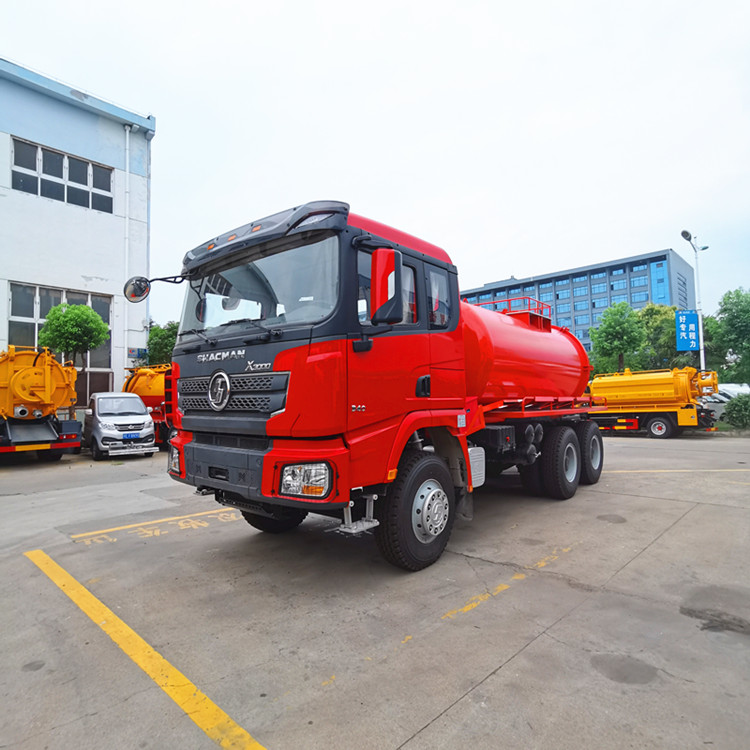

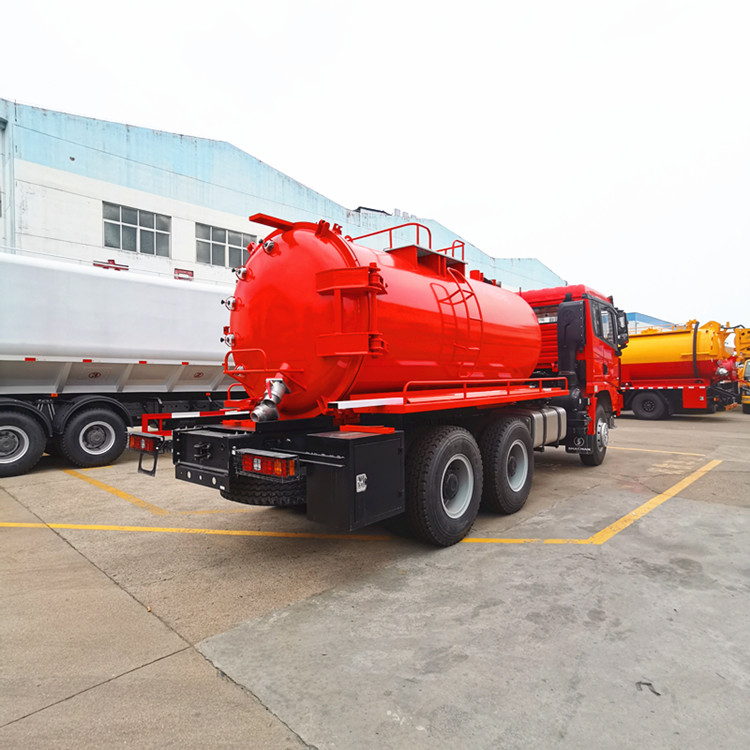

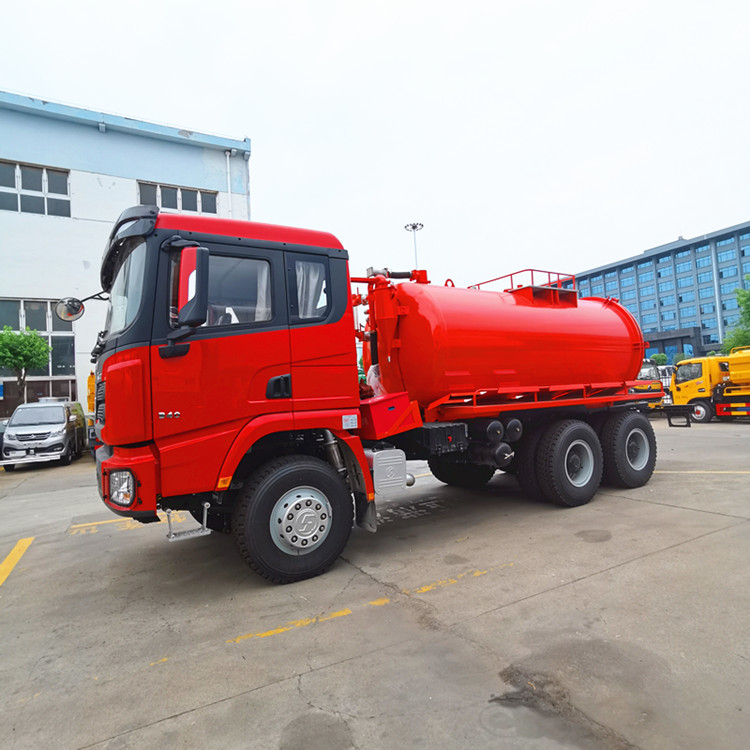

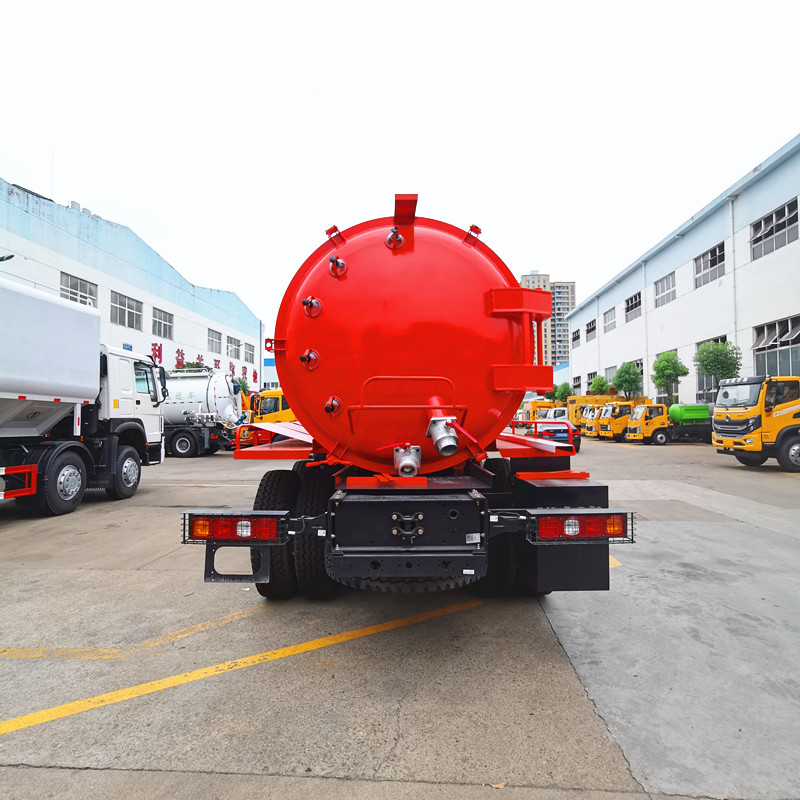

Parameter Settings of SHACMAN 10cbm Sewage Suction Truck

SHACMAN vacuum suction truck is a special environmental sanitation vehicle with excellent performance. Below is its detailed introduction:

1. Septic Tank Truck Chassis Configuration

• Cab: M3000 cab, spacious, good visibility, equipped with hydraulic suspension, air main seat, electric air conditioning, electric摇动 window machine, etc., improving driving comfort.
• Engine: Common models include Weichai 300hp WP7.300E61 and Weichai 350hp WP8.350E62, featuring strong power to meet different working conditions while complying with National Sixth Emission Standards.
• Transmission: Equipped with Fast Big 8-speed or 12-speed transmission, smooth shifting, easy operation, adaptable to various driving speeds and load conditions.
• Axle: Front axle is 5.5 tons or 7.3 tons, rear axle is 11.5 tons single-stage rear axle or 13 tons wheel reduction axle, providing strong load-bearing capacity to ensure vehicle stability during suction operations.
• Tire: Typically chooses 11.00R20 or 12.00R20 steel wire tires, offering good wear resistance and strong grip to adapt to different road conditions.

2. sewer pump truck Top Configuration

• Tank Body: Volume generally ranges from 20 to 34 cubic meters, with tank body and head thickness mostly at 8mm, made of Q235 carbon steel plate. Some tanks may also feature a stainless steel bottom plate, and carbon steel platform guardrails are set on both sides of the top to enhance robustness and service life.
• Suction Pump: Can be equipped with engines such as Weichai 420 horsepower with 258 water circulation pumps, offering powerful suction to efficiently pump various types of sludge, sewage, and debris.
• High-Pressure Cleaning System: Some vehicles are equipped with high-pressure cleaning functions, using Pinf 330 liters per minute and 350 liters per minute high-pressure pumps, with 60-100 meters of high-pressure pipes and nozzles of different specifications, suitable for dredging and cleaning of sewage and pipeline sediments.
• Others: The vehicle is also equipped with visual pollution windows, anti-overflow valves, water and gas separators, multi-way reversing valves, and other devices to ensure normal vehicle operation and operational safety.

3. Sewer Septic Truck Functional Features

• Strong Suction: Can operate in a high vacuum state, capable of sucking large amounts of sand, bricks, diapers, and other debris, suitable for various complex environment suction operations.
• Multipurpose: Equipped with both suction and high-pressure cleaning functions, it can be widely used in urban sewer cleaning, rainwater wells, septic tanks, and pipeline dredging and cleaning, effectively improving work efficiency and conserving manpower and material resources.
• Easy Operation: The control switch is centrally installed in the rear operation box, allowing all operations to be completed within the operation box, integrating electrical and hydraulic operations. The high night rotating operation lamp can rotate 180 or 360 degrees up and down, facilitating operation in different environments.
