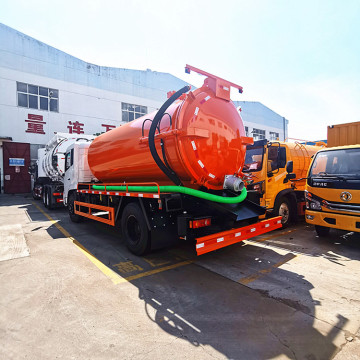

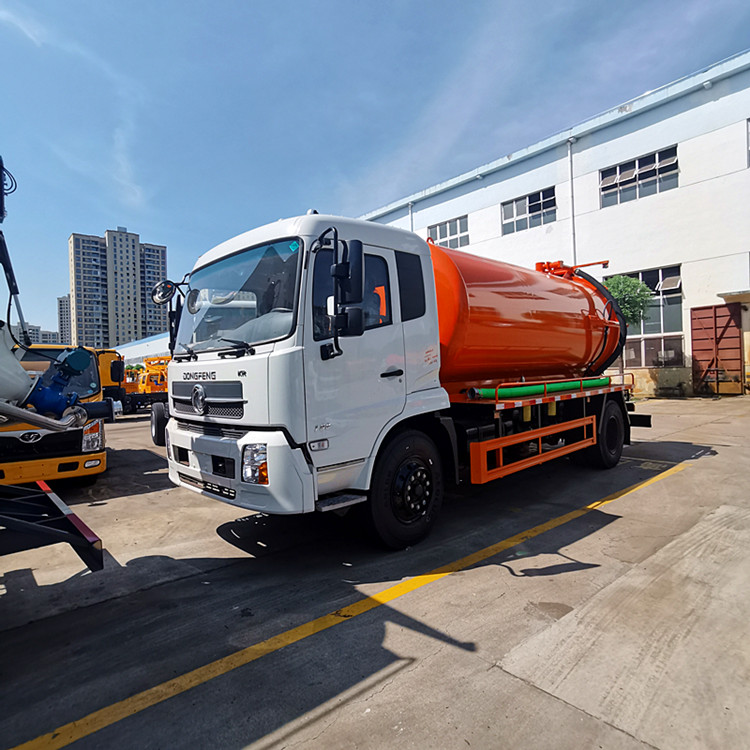

Dongfeng Tianjin 15CBM Vacuum Sewage Suction Truck Introduction

Basic Parameters of the Vehicle

Configuration of Tank Body Parameters

The water tank adopts the national standard 4mm thick carbon steel plate, the high-pressure cleaning part adopts the new product Fuuv215 flow rate, 20MPa high-pressure pump, 60m diameter 19 high-pressure pipe. The tank is made of national standard 5mm thick carbon steel plate, standard equipped with Shandong SK-9 full-sealed water circulation pump, anti-overflow valve, according to the manure pipe, with an 8m suction pipe with a quick joint of yin and Yang End, the back cover is opened by hydraulic pressure.

Parameter Configuration of Dongfeng Tianjin 15CBM Suction Truck

1. sewage vacuum pump truck Chassis Configuration

• Engine: Common Cummins 210 HP, 230 HP and other models, such as B6.2NS6B210, B6.2NS6B230 engine, meet Euro 6 emission standards (can be customized Euro 3, Euro 5 emission standard).
• Gearbox: Dongfeng 6-speed gearbox or Faster 8-speed gearbox, with multiple gears and smooth shifting, can adapt to different working conditions and driving speeds.
• Axle: Front axle 4.5 tons, rear axle 9 tons or 10 tons, strong carrying capacity, to ensure the stability and reliability of the vehicle in the suction operation.
• Tires: Generally equipped with 10.00R20 steel wire tires or 275/80R22.518PR tires, good wear resistance, strong grip, can adapt to various road conditions.

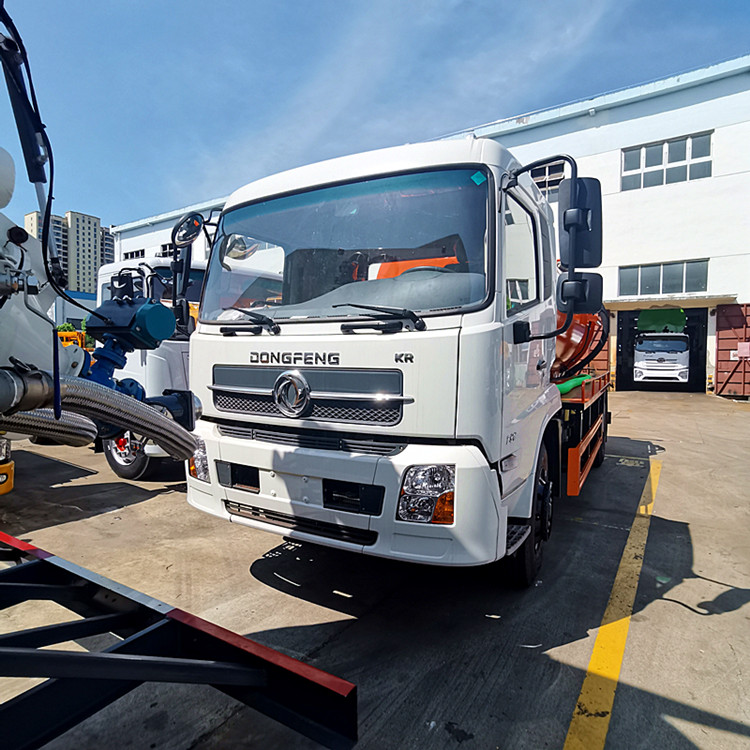

• Cab: Adopt Dongfeng semi-cab, equipped with air conditioning, central control lock, electric doors and Windows, multi-function instrument panel, cruise control speed, etc., improve driving comfort and convenience.

2. Vacuum Sewer Truck Configuration

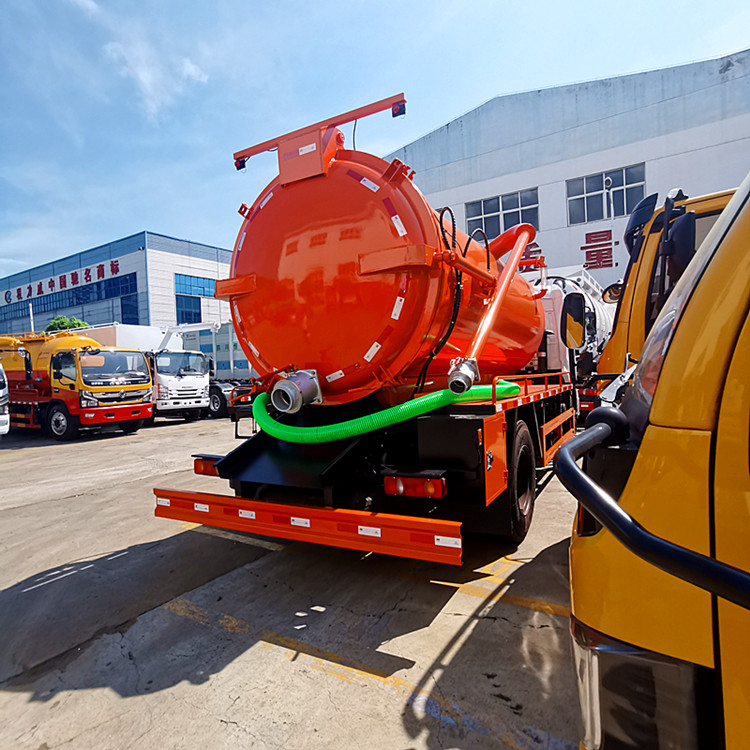

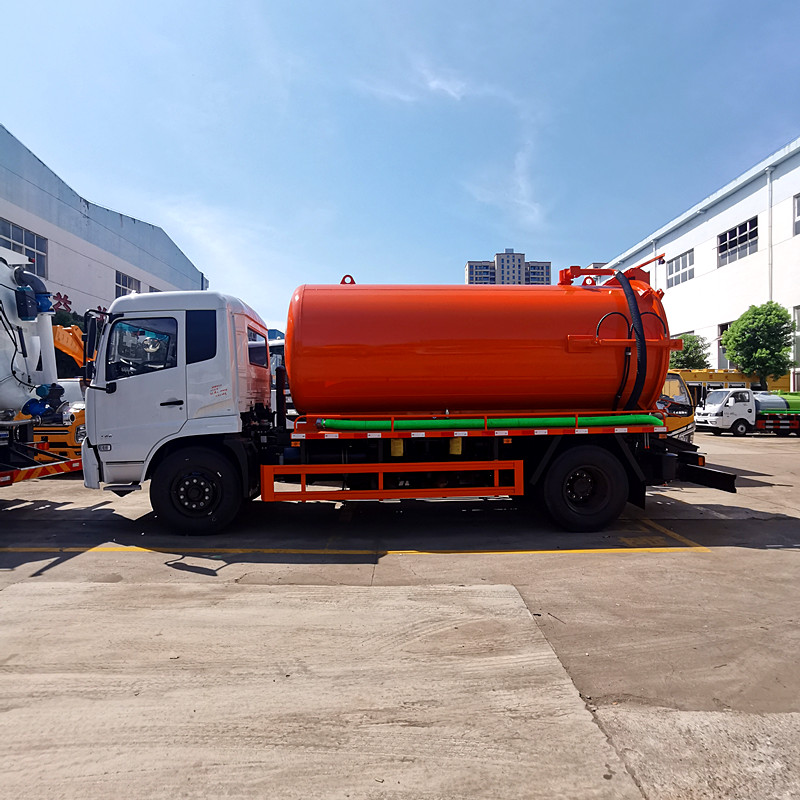

• Tank body: The volume of the tank is about 15 square, mostly made of Q235 carbon steel plate, the thickness is 5mm to 8mm, the top of the tank has a filling port, the tail has 150 sewage valve, some tanks with lifting function, the back cover with hydraulic opening, easy to dump dirt.
• Suction pump: Can be equipped with SK-15, SK-30 water circulation pump or new Yuchai 160 horsepower ZG3600 Roots vacuum unit, etc., strong suction, can effectively pump all kinds of sewage, sludge and so on.
• High pressure cleaning system: Some vehicles are equipped with high pressure cleaning function, such as Tianjin Shuangyao 215 flow, 22mpa high pressure pump, or Pinfu 330 liter flow high pressure pump, with about 100 meters of high pressure pipe and 10 nozzles, can be used to dredge and clean sewage, pipeline sediment, etc.
• Others: Equipped with visual pollution window, overflow valve, water and gas separator, oil and gas separator, multi-way reversing valve, hydraulic system, etc., the vehicle is not overweight, can be on the blue and yellow card.
