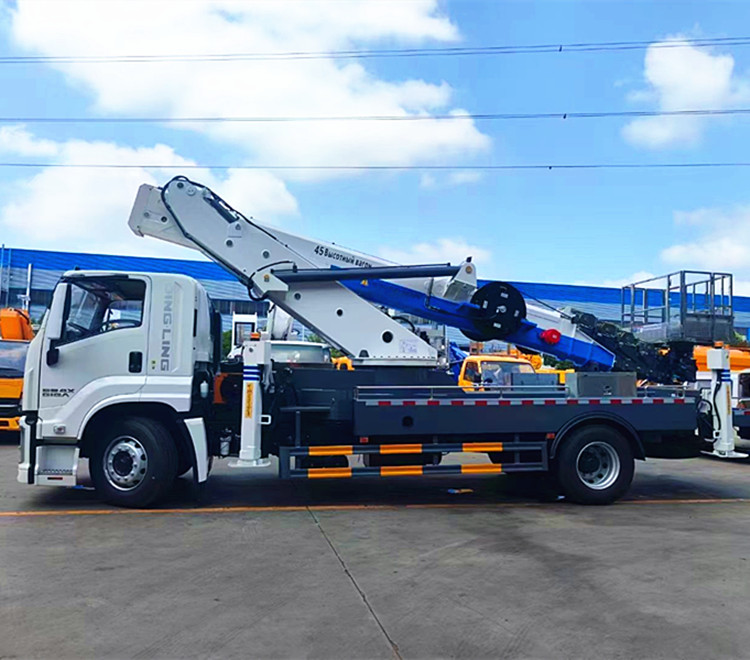

Isuzu 45 m Aerial Bucket Truck Parameter Settings

Chassis Configuration

Top Configuration

• The maximum operating height can reach 45 meters.
• The large operating platform can carry 200KG (up to 3 people).
• The operating platform can rotate 360°.
• The whole vehicle steel structural parts are made of high-strength materials, ensuring light weight, high strength, high toughness, and high reliability.
• Equipped with an imported electro-hydraulic proportional valve group and advanced CAN bus control system, along with wireless remote control, providing safer and more convenient operation.
• The vehicle is equipped with a 5-inch LCD screen that displays the length of the detection arm, elevation angle, platform height, and working height in real time.
• The boom adopts the leading 7-section full-chain telescopic structure in China and can also be optionally equipped with a wire rope telescopic structure for safer and more stable work.
• Front V after H type legs, horizontal leg telescopic, wider horizontal span, stronger safety and stability, and equipped with "soft leg" protection function (optional). Can be operated simultaneously or separately to adapt to various working conditions.
• Main supporting hydraulic and electrical parts: imported load-sensitive proportional valve, balance valve, CAN bus control system produced by renowned domestic and foreign manufacturers.
• The hanging basket is made of high-strength aluminum alloy, making it less prone to damage, corrosion-resistant, and lightweight, enhancing its load-bearing capacity.
• Hexagonal working arm, synchronous telescopic, compact structure, high working efficiency, and large working range.
• Built-in telescopic cylinder, double chain telescopic mechanism, making it easier to observe fault points and facilitating maintenance.
• The entire vehicle's electrical system uses a CAN bus control system, ensuring neat and simple wiring.
• The vehicle has two operation modes: wireless remote control operation (optional) and operation from within the hanging basket, ensuring safe and reliable operation with high work efficiency.
• The operation platform can be equipped with a 220V mains interface, allowing the use of daily power tools without being affected by the power consumption of the working environment.

Introduction to Isuzu 45-meter aerial work vehicle

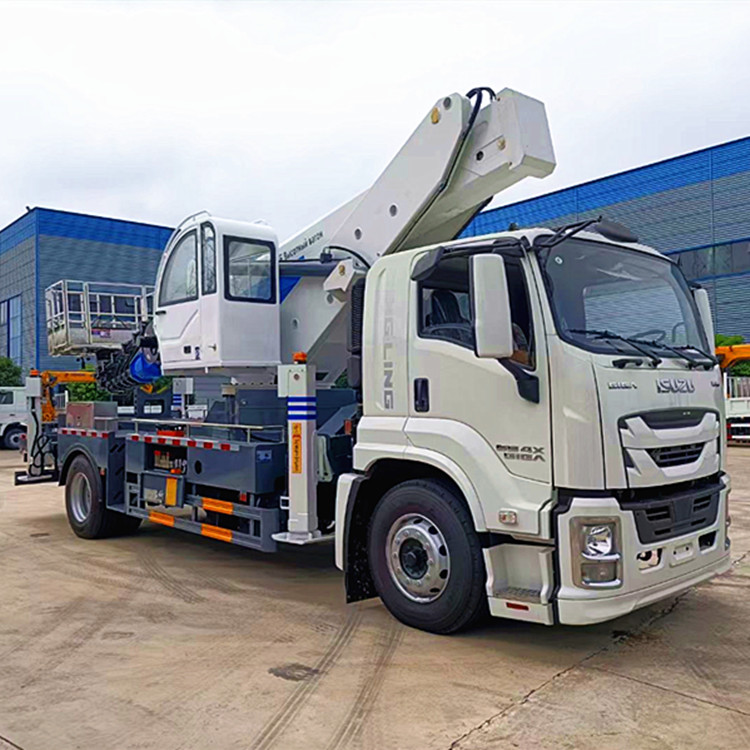

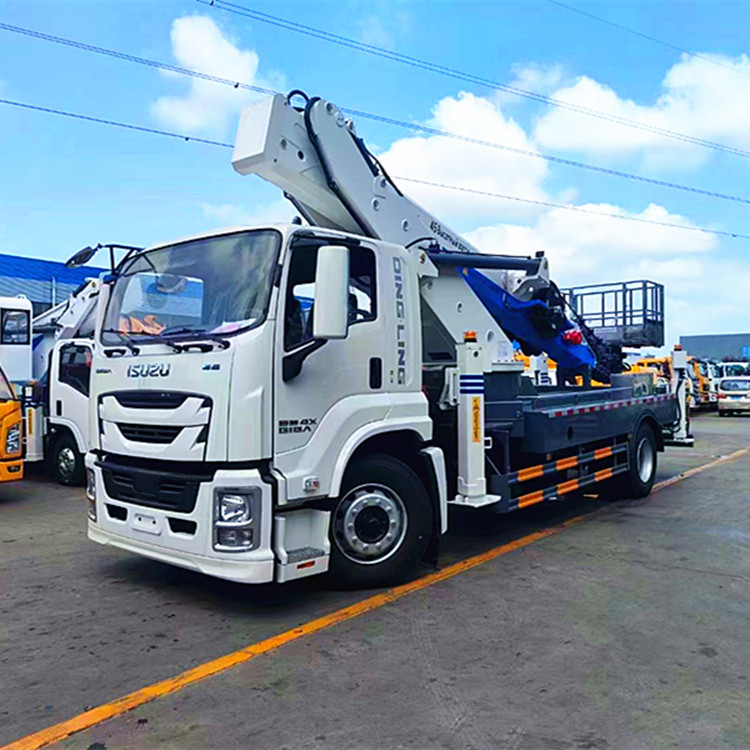

1. Bucket Truck Chassis
   • Power Configuration: Equipped with advanced Isuzu electronic control engines, such as the Keizu Isuzu giant KA chassis with 205 HP and 6-speed transmission.
   • Bearing Capacity: Some models are equipped with 2.5t wide I-beams, 4.8 tons of stamped welded axle housings, with strong rear axle bearing capacity (front axle 2-2.5 tons, rear axle 4-4.8 tons).
   • Comfort: Double-row non-turning cab, car-like interior, equipped with heating and cooling air conditioning, standard power steering, etc., providing a comfortable driving environment.
2. Operation Performance of Aerial Bucket Truck

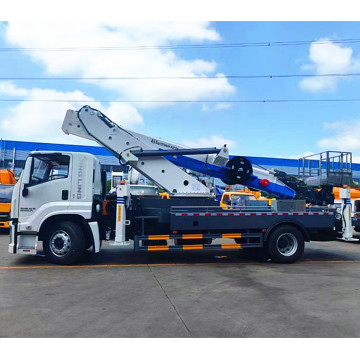

   • Lifting Height and Boom Structure: The working height can reach up to 45 meters, and the boom is mostly a seven-section octagonal telescopic boom using high-strength steel, such as high-strength steel plate HQ60/5.0 for the boom.

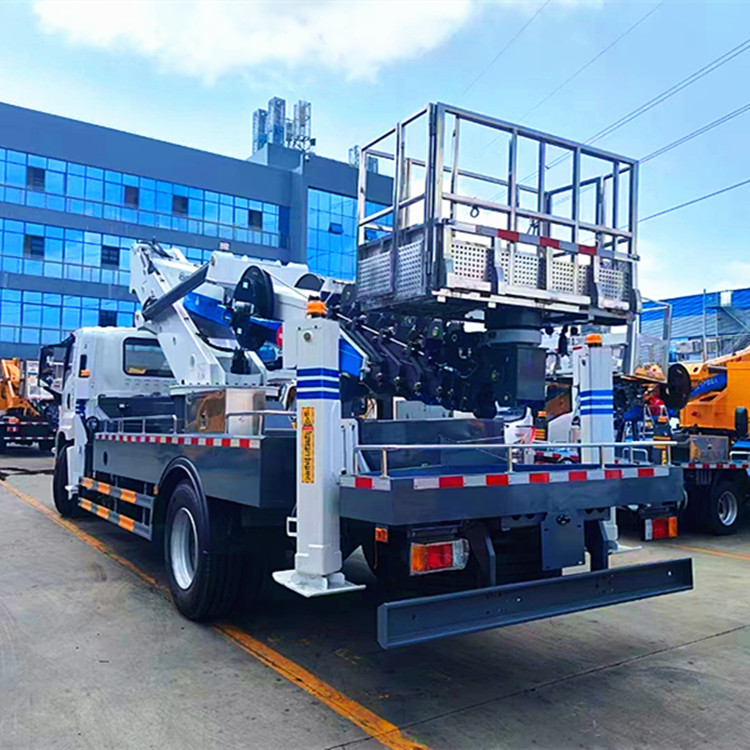

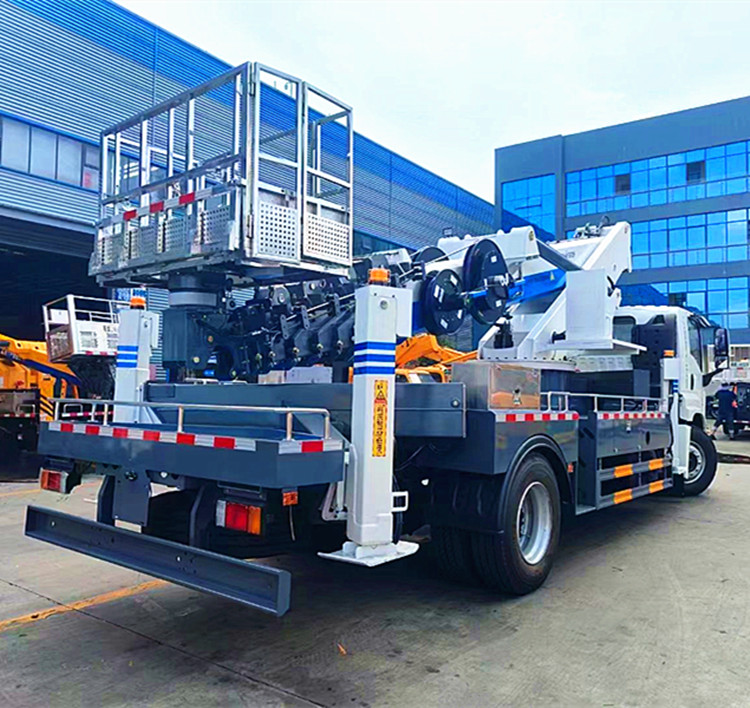

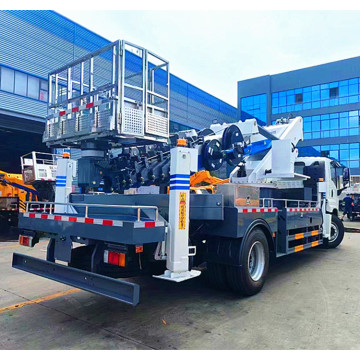

   • Working Platform: The working platform is rear-mounted, convenient for personnel, and some models are equipped with a 3.2m aluminum alloy large hanging basket.
   • Turning Function: The lifting arm can turn 360 degrees, and the turntable and the working bucket can be operated independently.
3. Insulated Bucket Truck Safety Performance

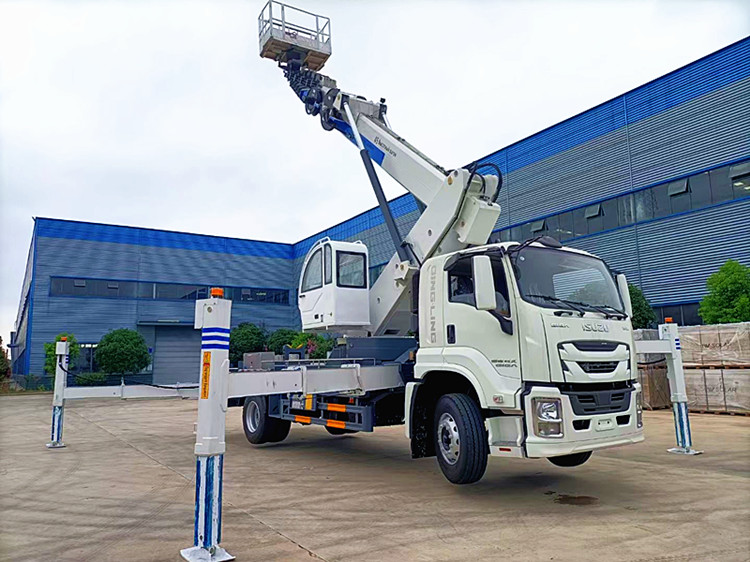

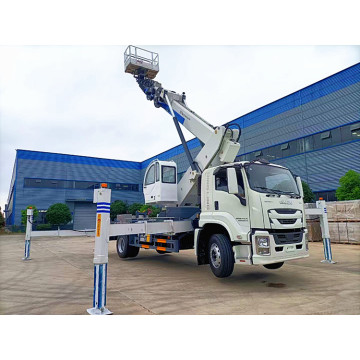

   • Stability Device: Equipped with H-type hydraulic legs, which can be operated simultaneously or individually, providing a large span, good stability; the vehicle is designed to meet international safety standards and is equipped with stabilizers and anti-skid devices.
   • Safety System: Features a cylinder check-back device, leg check-back device, on/off interlock device, and other safety protection systems.
4. Operation Control of Telescopic Bucket Truck
   • Remote Control: Optional wireless remote control technology allows one-handed completion of all active operations, providing flexible operation in narrow working environments.
   • Action Speed and Smoothness: Two options for leg retraction speed, with a total retraction time of less than 70 seconds at high speed; boom expansion and amplitude change speed is fast, and compound actions can be achieved.
5. Other Aspects of Aerial Work Vehicle
   • Maintenance Cost: The vehicle design is reasonable, with parts that are versatile, easy to replace and repair, and the manufacturer provides a perfect after-sales service system.
