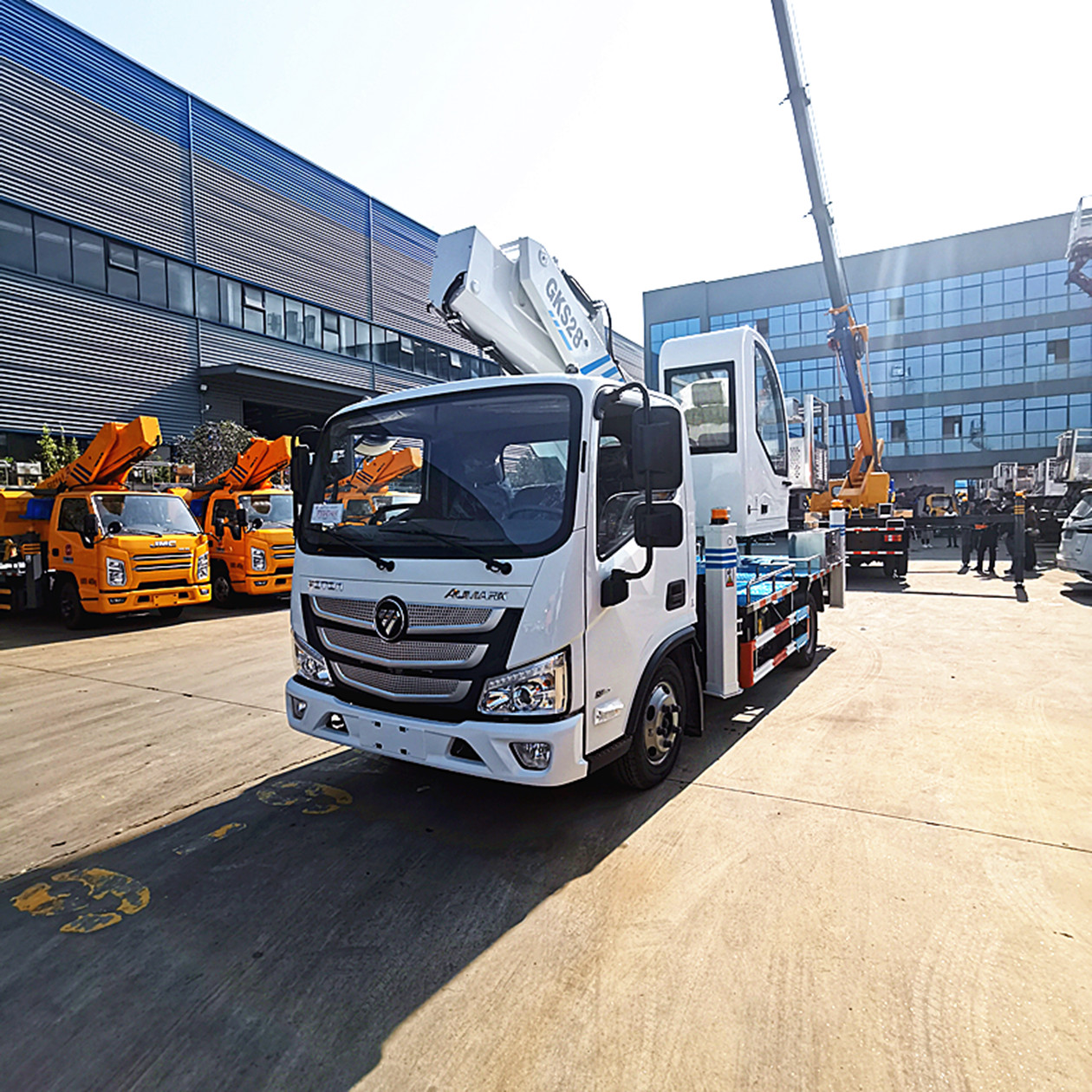

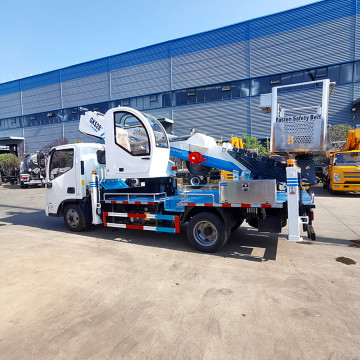

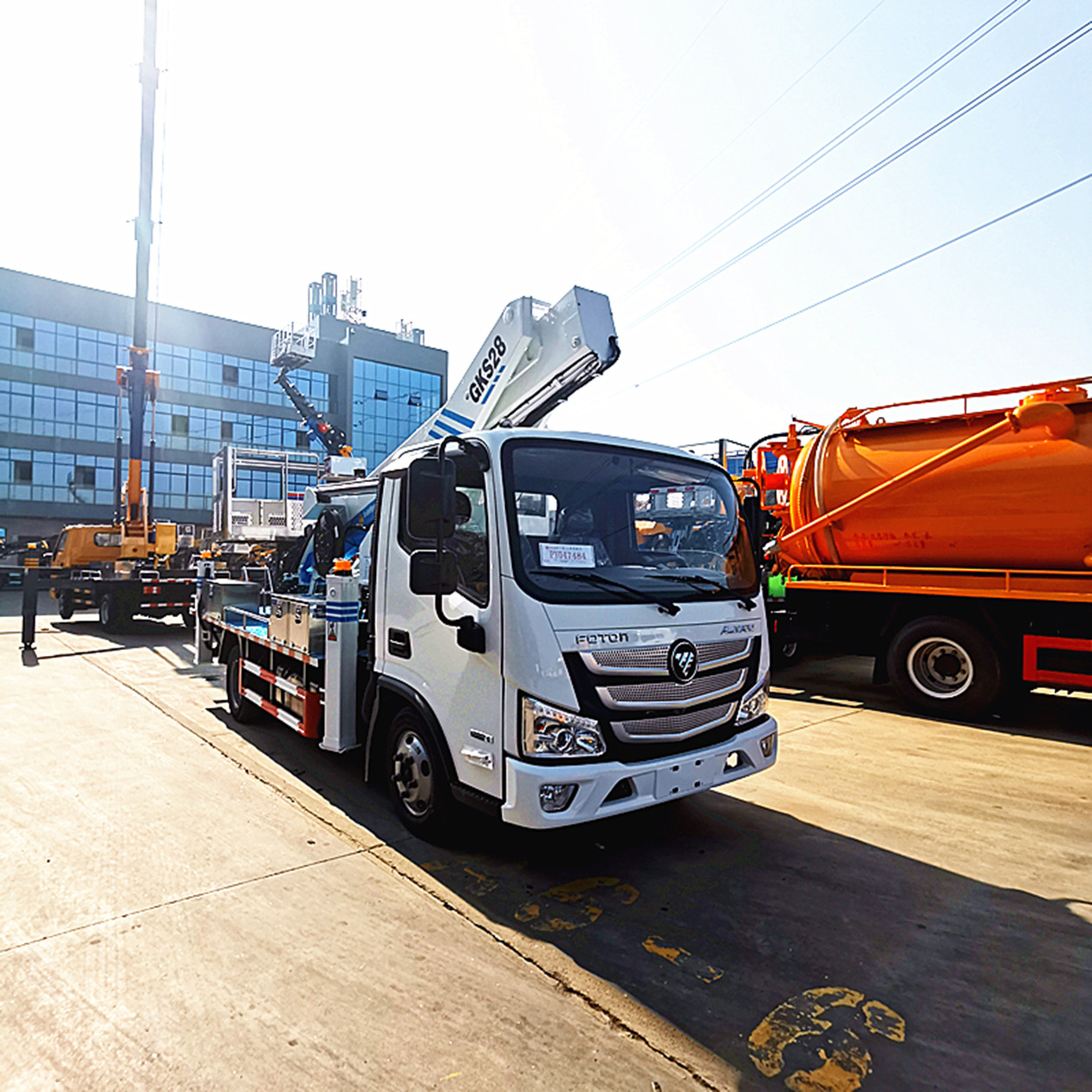

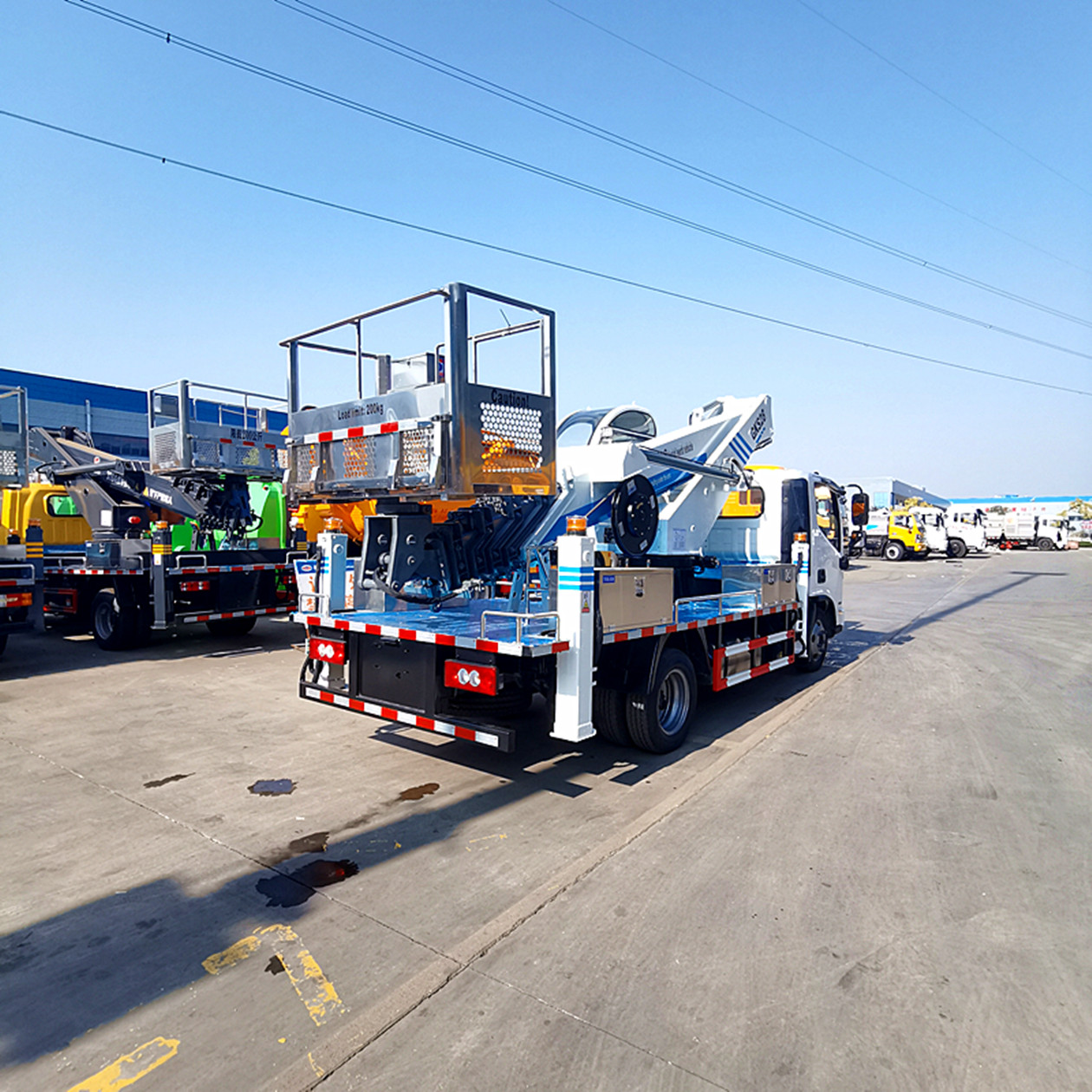

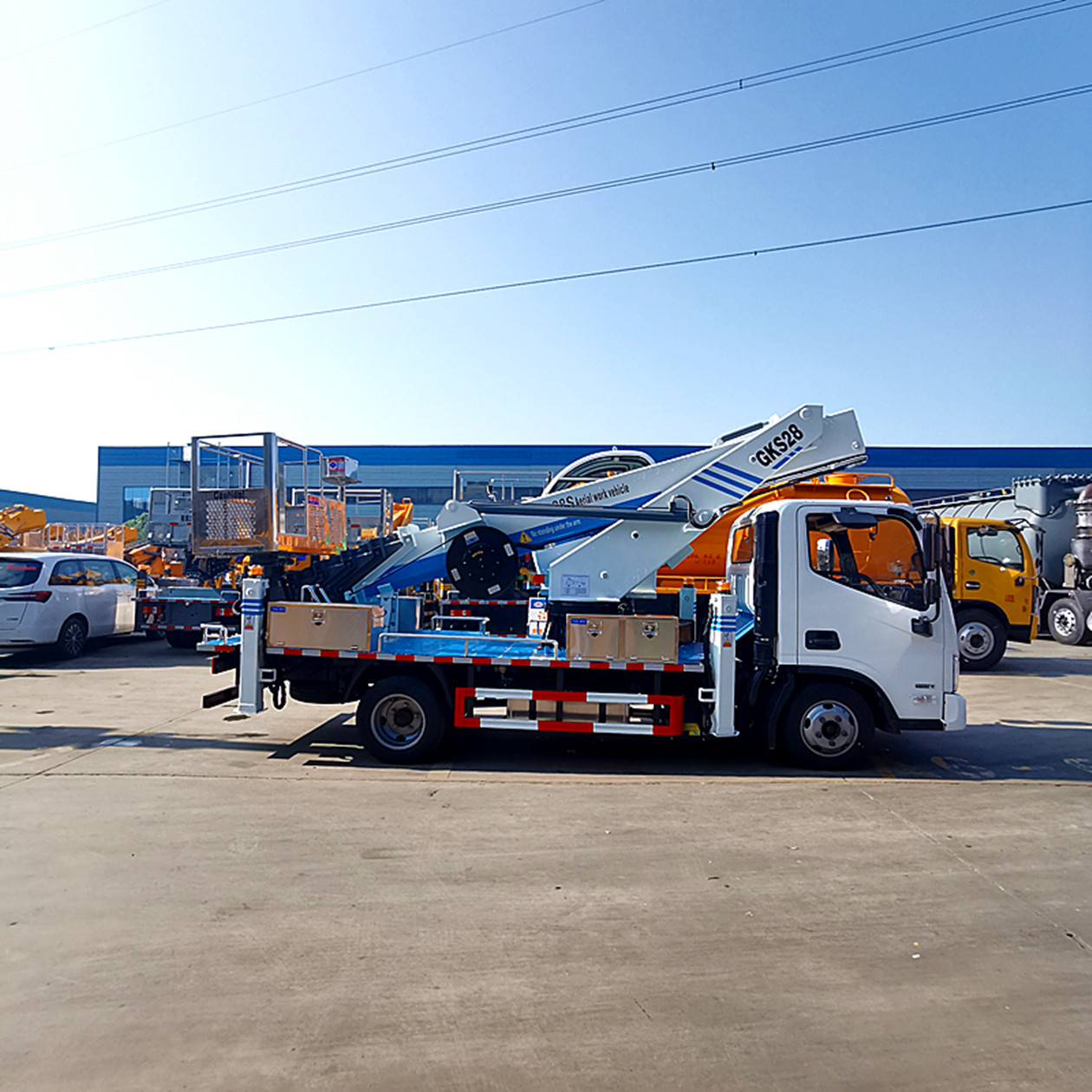

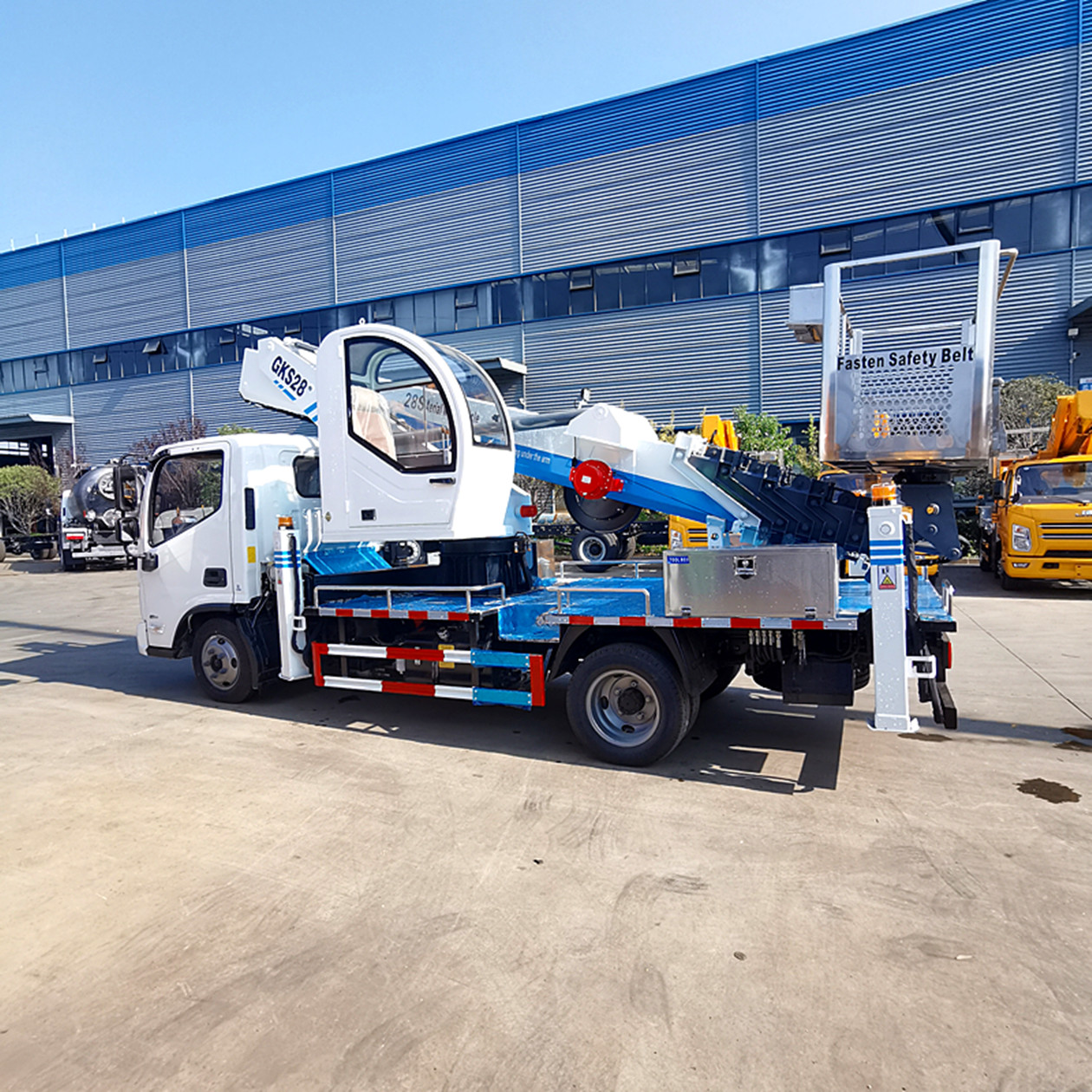

Foton 28m Aerial Work Vehicle with Copilot

Parameter Configuration of Foton 28m Telescopic Arm Aerial Work Vehicle

Bucket Trucks Chassis Configuration:

Foton original chassis, equipped with Cummins 131 HP National Six diesel engine (2.8L displacement / 95KW power), five-speed manual transmission, original air conditioning, power steering, ABS, hydraulic brakes, and other standard features.

Telescopic Bucket Truck Top Part:

1. Basic Configuration:

• The working height is selected according to user requirements.
• The working bucket load is limited to 200Kg.
• Hydraulic 360-degree full rotation.
• Three folding arms.
• Single hydraulic lifting cylinder.
• Two-way balance valve.
• Electromagnetic control valve system.
• One-ton telescopic hook.
• Four hydraulic cylinder telescopic legs with two-way hydraulic locks.
• The legs can be manually operated or one-way controlled.

2. Selection:

In general, the optional configuration is basically the same as the standard configuration, but the cylinder is sometimes specified by the user, and according to the special requirements of the user, whether to install an emergency power unit and a toolbox.

Product Characteristics

1. The working arm of the aerial work vehicle is hexagonal 7-section retractable, with a large working area and can adapt to various working conditions.
2. The transmission adopts full hydraulic transmission, the bucket and the turntable each have a set of operating systems, to achieve the upper and lower dual position operation, the turntable operation is preferred to the bucket operation, remote control operation.

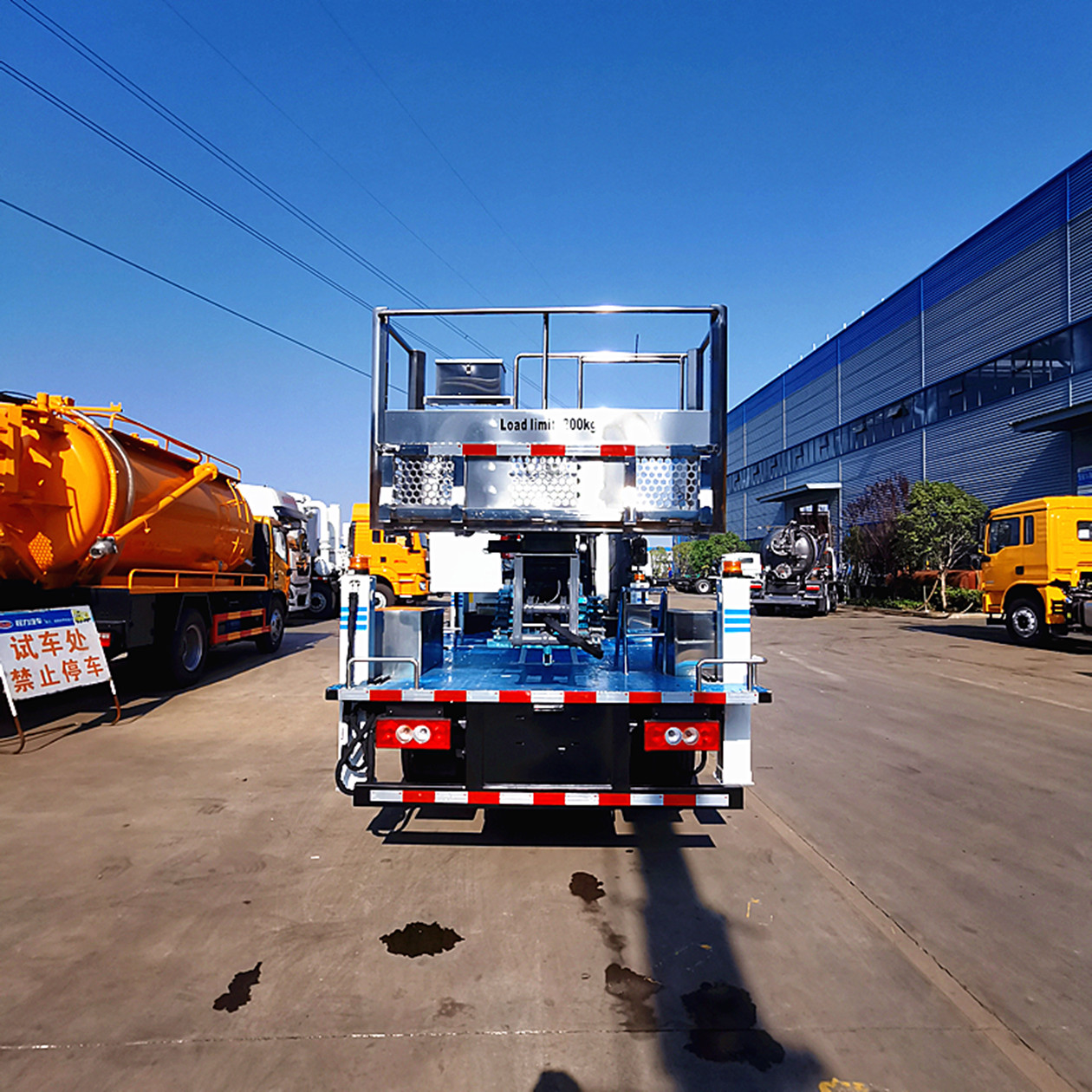

3. The maximum load of the working bucket can reach 200kg.
4. Can be installed power unit, that is, when the main car fails, this power unit can be used for emergency, and it can also realize the extension of the arm, the extension of the leg, and the operation is flexible.
5. Four hydraulic legs are respectively installed two-way hydraulic locks. Its function is to ensure that the leg will not shrink by itself after being put down; Prevent the "soft leg" phenomenon caused by leakage failure of hydraulic or pneumatic pipeline when the leg is working, so that the leg loses its function, resulting in serious accidents. The leg control valve is manual and the four legs can be controlled separately.
6. The vehicle hydraulic 360 degree full rotation, control switch for electronic control.

Electric Control System of Aerial Work Vehicle

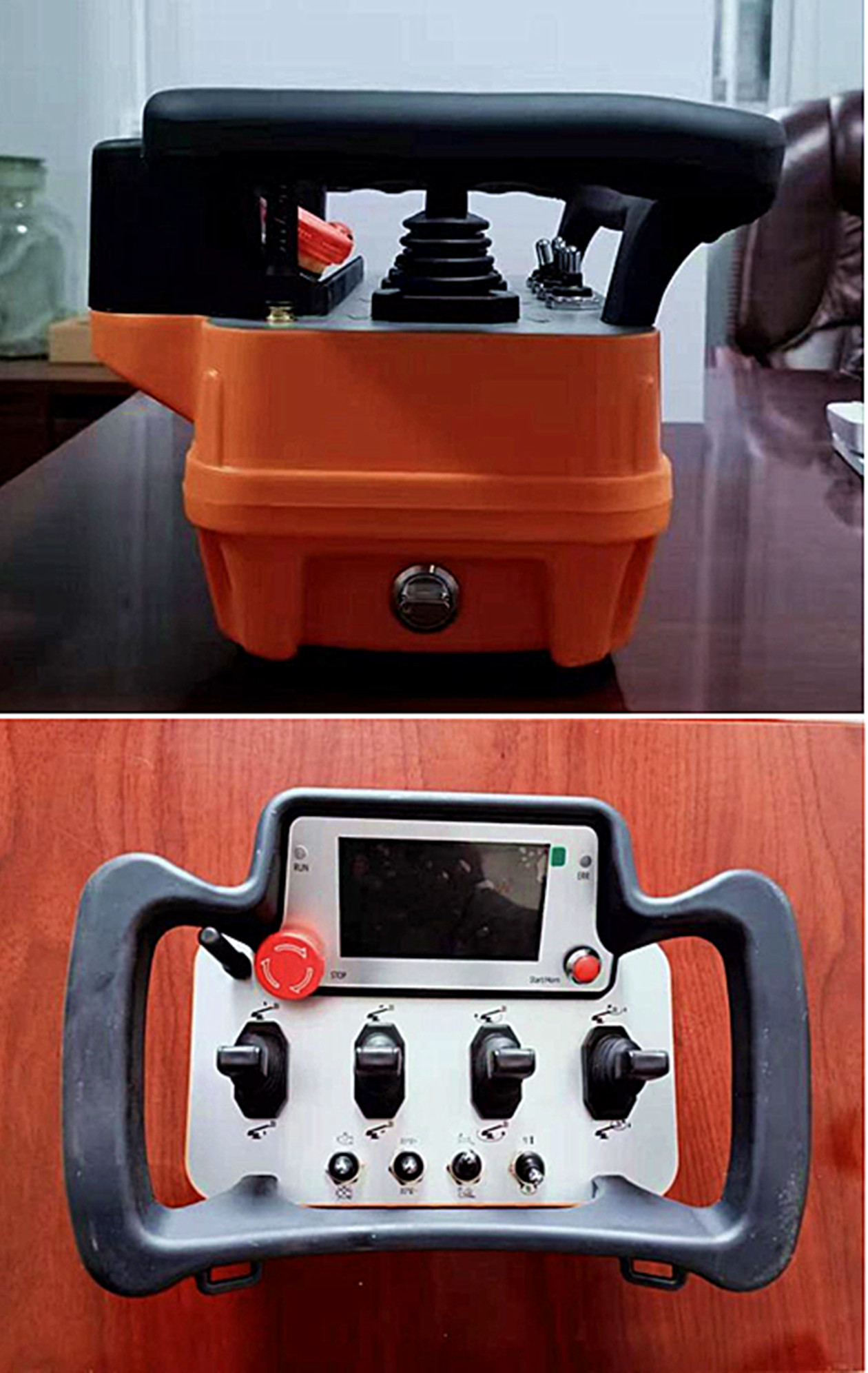

• Wireless remote control operation.
• Computer control, automatic limiting, dangerous work alarm, excellent safety performance. Exit display, real-time display of vehicle operating conditions.
• The vehicle electric appliance adopts CAN bus control system, the line is neat and simple. The vehicle has three operations: platform operation, but also on the ground with wired or wireless operation, more convenient observation of the working space, safe and reliable, high work efficiency.

Aerial Work Car Components

An aerial work car is composed of two parts: chassis and jacket. The chassis can be selected from various brands such as Sinotruk HOWo, Dongfeng, FAW, JMC, SHACMAN, etc. The chassis can be customized according to customer needs. The top part can also be customized according to customer needs.
