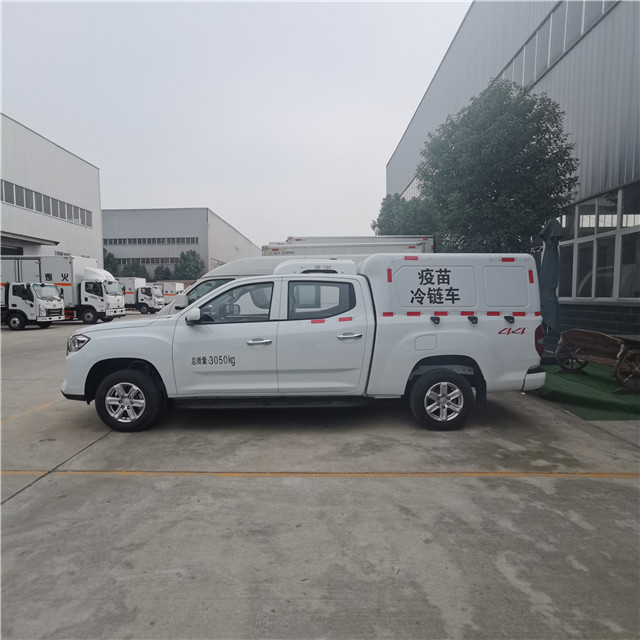

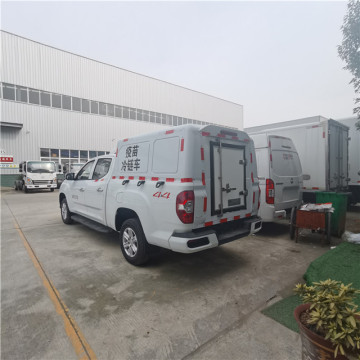

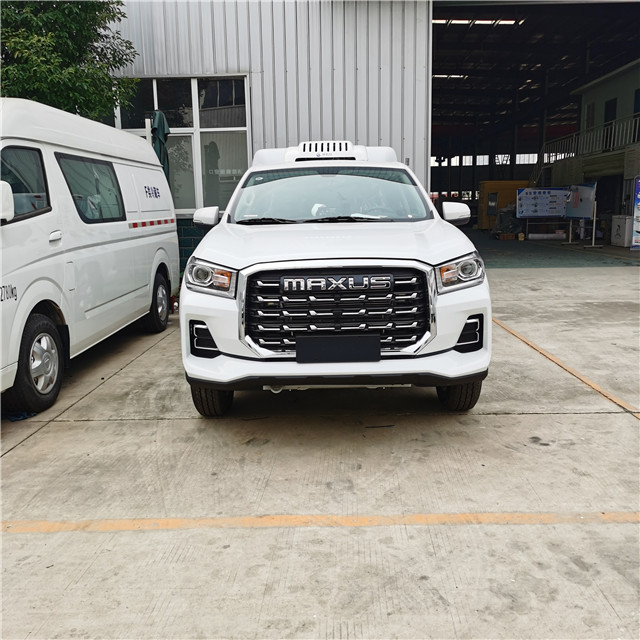

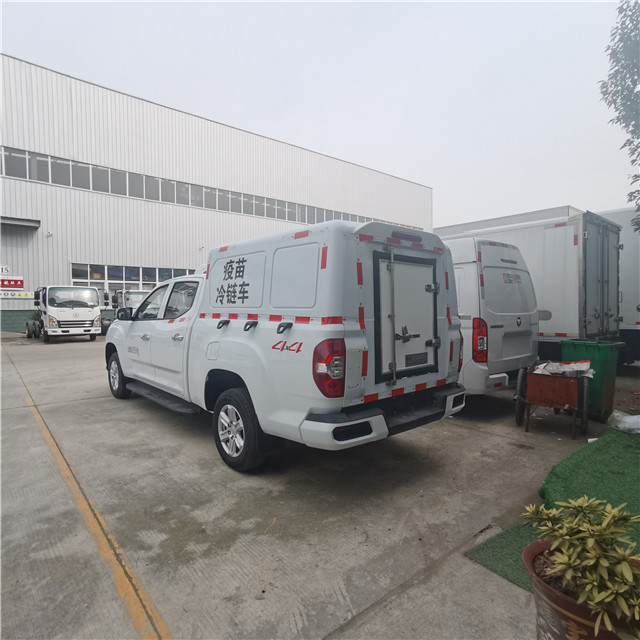

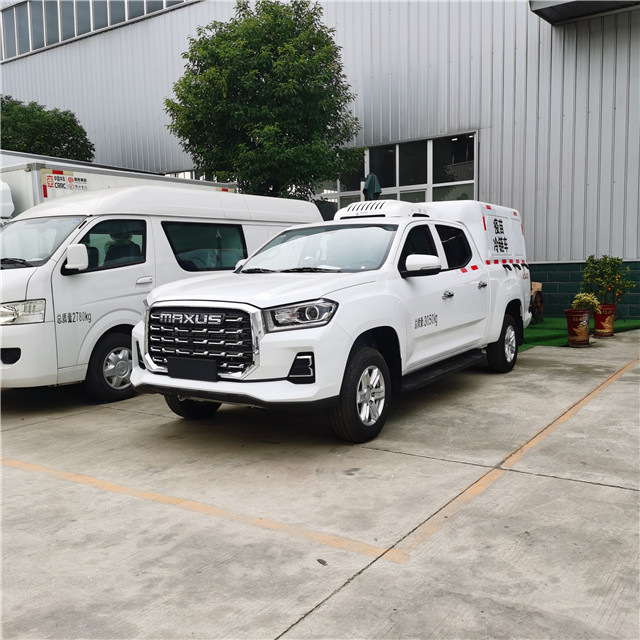

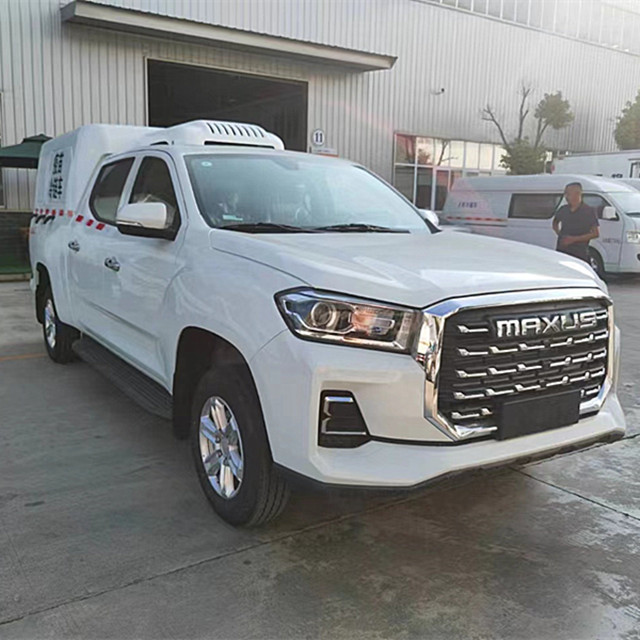

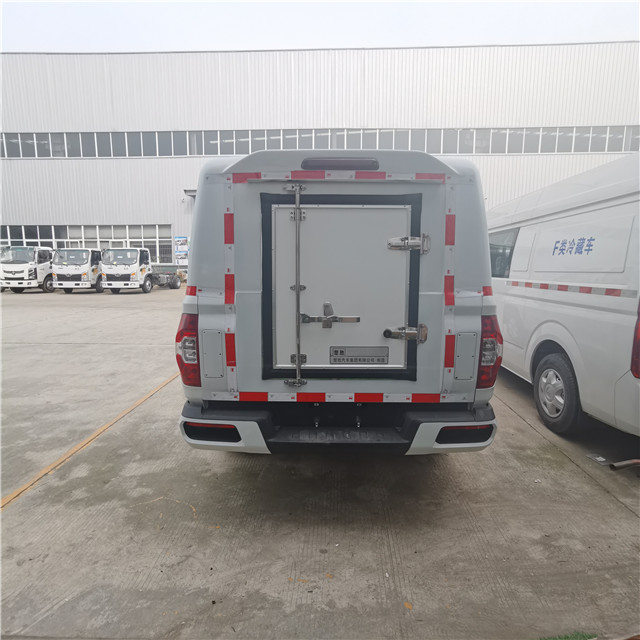

Introduction to Saic Chase 4x4 Pickup Refrigerated Truck

Box Volume

2.37m³

Box Size

1680x1370x1030

Box Body Material

Glass fiber reinforced plastic, steel pipe, plastic extrusion board, stainless steel

Vehicle Size

5680x1900x1809

Thickness of the Box Body

80mm

Type of Fuel

Diesel fuel

Tire Specifications

195／75R16LT 10PR

Emission Standards

Euro six

Transmission

6th gear (Optional automatic)

Engine

SAIC 143 horsepower

Current Condition

Customisation

Standard Issue

Vehicle Top 0 -15 degrees refrigeration unit, Stainless Steel Box outside FRP, five-side ventilation slot, temperature and humidity recorder, (68263256, in line with GSP requirements), stainless steel handle lock

Select the Configuration

Optional imported refrigeration unit

Chassis Configuration

Using the original SAIC Chase chassis, carrying SAIC 163 horsepower country six diesel engine (2.0L displacement 120KW power), six-gear manual transmission, original air conditioning, remote control key, direction assist, ABS, oil brake, other standard.

Top Installation

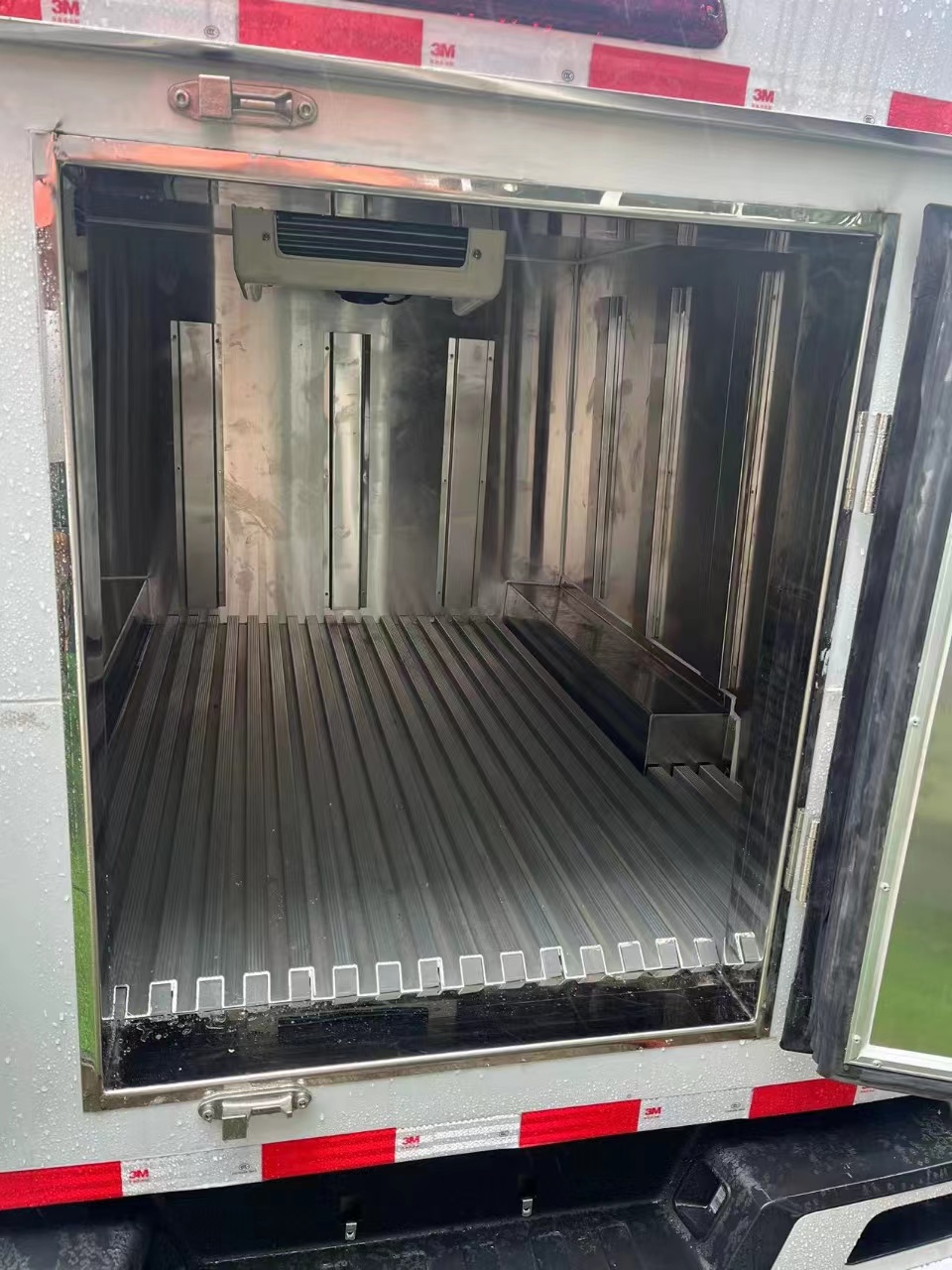

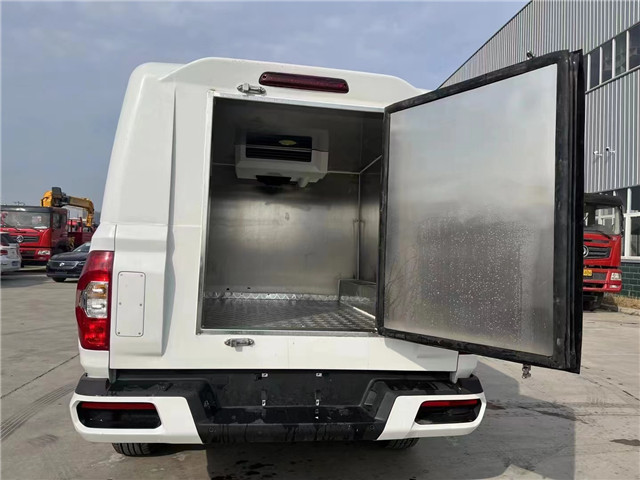

Chengli refrigerated car body for the outer glass steel plate, stainless steel, the middle 8cm thick high-density polyurethane extrusion plate vacuum negative pressure molding, box frame using the latest technology, steel wood beam insulation technology, heat preservation performance is better, the box body stainless steel external glass fiber reinforced plastic, five-side ventilation slot, temperature and humidity recorder, (68263257, in line with GSP requirements), door frame, lock, handle parts made of stainless steel, rust-proof, corrosion-resistant, durable.

Refrigeration Equipment

Refrigeration equipment can be imported or Chinese brand quality units. Commonly used imported refrigeration units are the United States cold King, Carrier; Chinese quality unit brands are Kelly, Huatai, Yide and so on.

Advantages of Pickup Refrigerated Truck:

• High Flexibility: Pickup truck body is relatively small, in urban roads, rural roads and other complex road conditions can be more easily driven and turned, can reach some large refrigerated vehicles difficult to enter the place, such as narrow streets, small farmers' markets, to facilitate the accurate distribution of goods.
• Multi-functional Use: It has the function of refrigerated transportation, can be used to transport all kinds of items that need to be kept low temperature, such as food, medicine, etc., and retains the characteristics of pickup truck loading, the back of the carriage can be loaded with some refrigerated items related supporting equipment or other non-refrigerated goods, to achieve a multi-purpose car.
• Low Acquisition Costs: Compared with large professional Refrigerated Trucks, the price of pickup trucks is usually much lower, for some small businesses, individual businesses or users who first set foot in the refrigerated transport business, the purchase of pickup trucks with less financial pressure, can carry out refrigerated transport business at a lower cost.
• Low Cost of Use: Pickup trucks generally use small refrigerated units, relatively small power, fuel consumption and power consumption is relatively low compared to large refrigerated vehicles. Moreover, the maintenance cost of pickup models is also relatively close to the people, the price of parts is relatively cheap, the maintenance network is widely distributed, the maintenance is more convenient and fast, and the use cost can be effectively reduced.
• Personalized Customization Convenience: The refit of pickup truck is relatively flexible, and users can customize the internal structure, cooling temperature, loading space, etc. of the refrigerated compartment according to their actual needs. For example, the compartments, shelves and other facilities in the refrigerated compartment can be adjusted according to the type and quantity of goods transported to improve space utilization and transportation efficiency.
