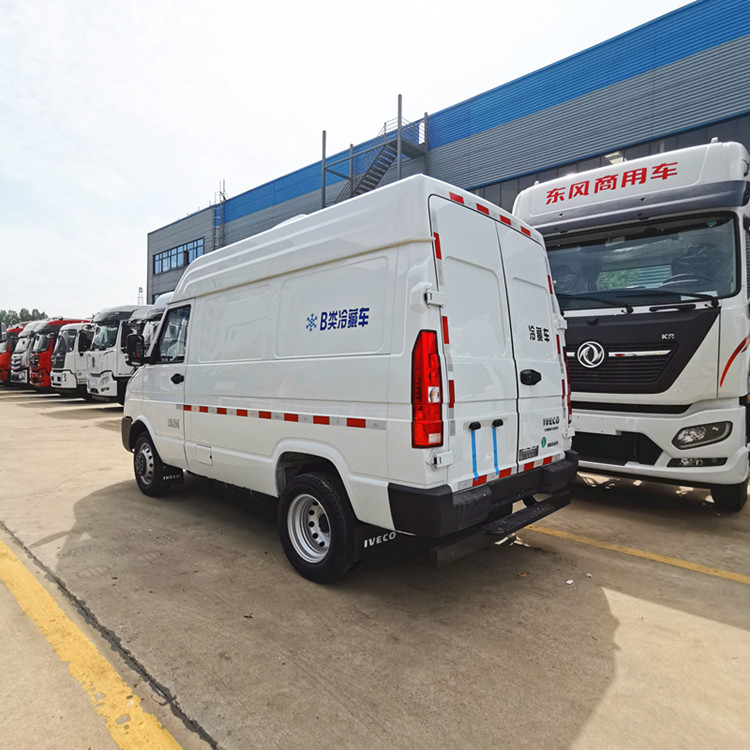

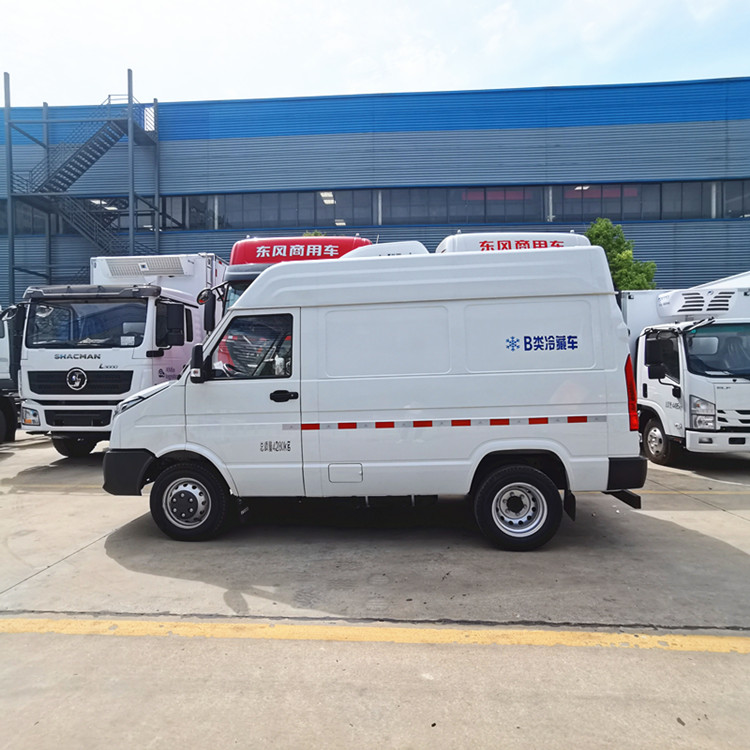

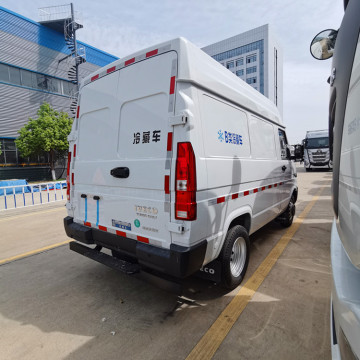

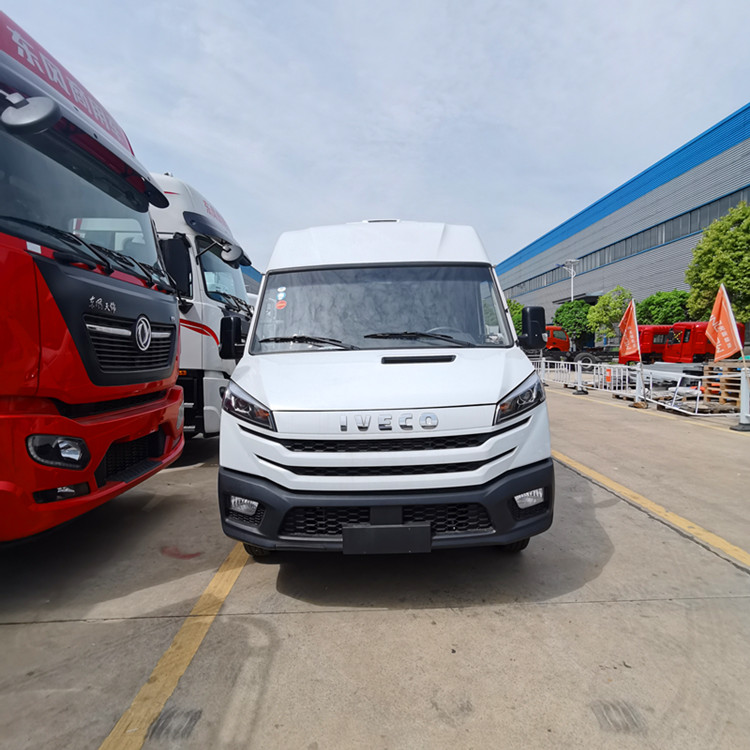

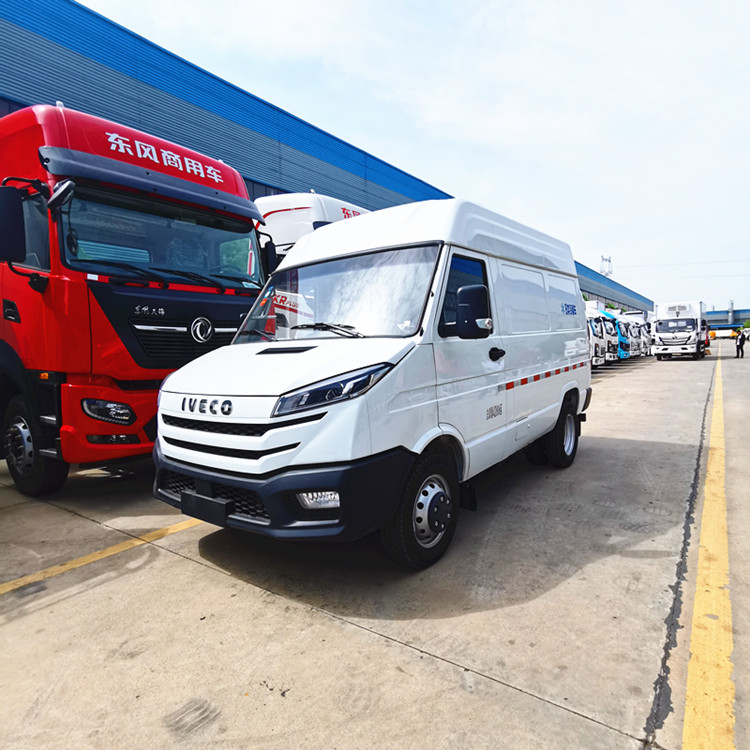

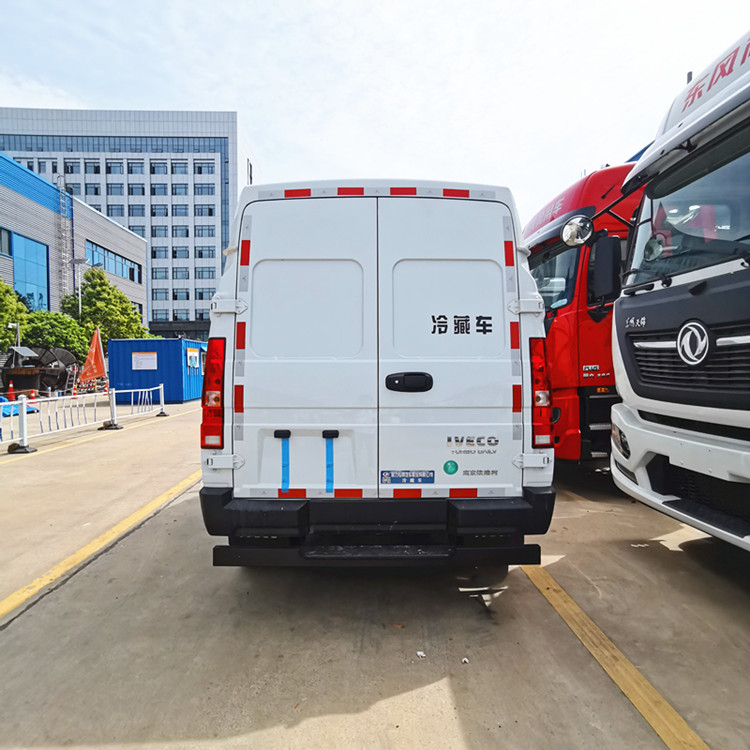

Iveco Bread Refrigerated Truck

Iveco bread refrigerated truck is a common cold chain transport vehicle. Below is its detailed introduction:

1. Iveco Bread Refrigerated Trucks Model and Size

• Short-axle model: The vehicle size is generally 4850-4875mm × 2000mm × 2735-2800mm. The body size is about 2100-2150mm × 1580-1640mm × 1480-1550mm, and the volume is about 4.6-5.5 cubic meters.
• Long-axis model: The vehicle size is about 5980-5995mm × 2000mm × 2595-2800mm. The body size is roughly 3320-3360mm × 1620-1640mm × 1550-1560mm, and the volume can reach 8.5-8.6 cubic meters.

2. Iveco Refrigerator Truck Chassis Configuration

Equipped with Iveco Sofam series diesel engines, common engines with 2.5L displacement (122 HP) or 2.8L displacement (130 HP). Equipped with Iveco 5-speed manual transmission, rear twin design to increase the load capacity of the vehicle. The use of non-bearing girder, double cross-arm torsion bar spring independent front axle, spring plate rear axle. It is also equipped with original air conditioning, power steering, electric doors and windows, ABS, oil brakes, front and rear solid disc brakes, and other configurations.

3. freezer truck Box Configuration

The body adopts international general bridge insulation advanced technology, such as vacuum adsorption, hydraulic adsorption integrated molding production line, sandwich composite bonding, insulation performance reaches the national A-level standard. The interior and exterior panels are made of domestic high-quality fiberglass steel, the middle insulation layer is xPS extruded polystyrene board, the floor is made of aluminum pattern plate, and the door strip is made of labyrinth rubber seal strip. The car body accessories include stainless steel door lock hinges, stainless steel door frame and hinge, and energy-saving LED lights in the car.

4. refrigerated box truck Refrigeration Unit

Can choose refrigeration units from brands such as Hanxue, Huatai, Kelley, Kaisei, Asiana, Carrier, Cold King, etc. The temperature can be adjusted between -15℃ to -5℃. Some models can also be equipped with temperature and humidity recorders, ventilation grooves, guide rails, meat hooks, and other configurations.

5. Bread Refrigerated Truck Performance Advantages

• Strong Power: The Iveco Sofam series diesel engines provide stable and powerful power output, adapting to various complex road conditions.
• Good Carrying Capacity: The rear twin design gives a total mass of about 4280kg, with a rated load mass generally more than 1 ton, meeting the needs of more cargo transportation.
• Good Thermal Insulation Performance: The body is made of high-quality thermal insulation materials, effectively preventing the introduction of external heat and ensuring the stability of internal temperature.
• Excellent Cooling Effect: The refrigeration unit can quickly reduce the body temperature and accurately control the temperature to meet the temperature requirements of different goods.
• Wealth of Safety Configurations: Equipped with an ABS anti-lock braking system, front and rear disc braking, etc., to ensure the stability and safety of vehicle braking.
• High Comfort: The cab of some models is equipped with electric windows, remote control keys, central control locks, original cooling, heating, and air conditioning, reducing driving fatigue.
• Flexible and Convenient: The vehicle looks like bread and has a relatively small body, which can be flexibly shuttling through urban roads and narrow areas for urban distribution.
