DONGFENG electric refrigerated truck

Configure parameters for DONGFENG electric refrigerated truck

   Box volume
18m³

    Box size
4080x2100x2100mm

 Box body material
Glass fiber reinforced plastic, steel pipe, plastic extrusion board, stainless steel

Vehicle size
5995x2250x3220mm

 The thickness of the box body
    80mm

  Type of fuel
  Diesel fuel

Tire specifications
7.00R16

Battery capacity
     100.46kwh

    Gearbox
   Automatic transmission

  The engine
    156 horsepower

   Present condition
   Customisation

Dongfeng electric Refrigerated Trucks has a variety of models, the following is its main introduction:

1. Type and size of electric freezer truck
• Most of the 4.2-meter light truck models, such as the Dongfeng Capt EV350 PRO, the body length is 5.995 meters,
the width is 2.2-2.26 meters, the height is about 3.24 meters, the wheelbase is 3308mm, and the cargo box volume
can reach about 18 square meters, which can meet the needs of urban distribution and short-distance cold chain transportation.

2. Electric refrigerated box truck chassis configuration
• Power system: Equipped with permanent magnet synchronous motor, power 115-156 horsepower range,
strong power, can adapt to different road conditions.
• Battery: Equipped with Ningde times lithium iron phosphate battery, capacity 81.14-107kWh, high energy density,
good safety performance, strong endurance, such as Dongfeng Capt 4 meters 2 new energy F class refrigerator truck equipped
with 107 degrees battery, full load and full operation conditions of 280 kilometers.
• Others: 7.00R16 steel tires, standard air brake, multi-functional steering wheel, LCD instrument,
driving control door lock, original air conditioning, etc., some models have cruise control, aviation seats, etc., good driving experience.

3. New energy refrigerated truck installation configuration

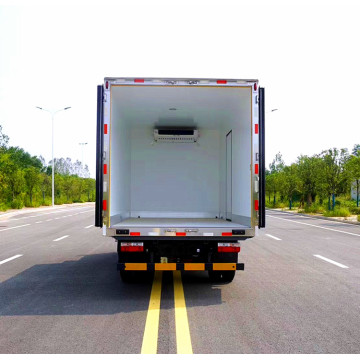

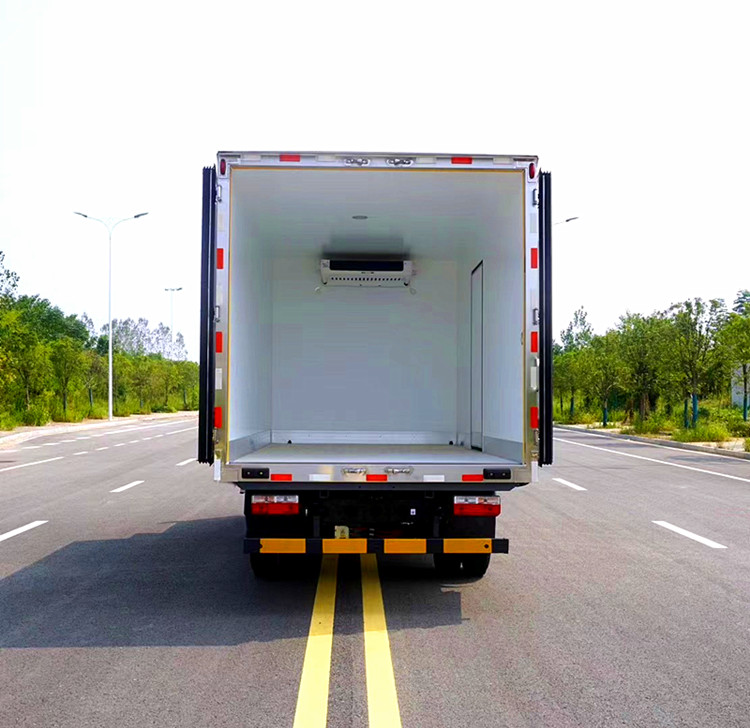

• refrigerated box: The body is made of glass steel inside and outside, and the middle is filled
with imported polyurethane extruded board. The vacuum negative pressure molding process is used,
and the heat preservation and sealing performance are good, which can effectively keep the temperature stable in the carriage.
• Car body details: aluminum alloy pattern plate at the bottom of the car body, door rain-proof design and labyrinth rubber seal,
stainless steel door lock and thickened rear door hinge lock, durable and well sealed, the car body is also equipped with LED lighting.

4. Electric refrigerated truck application scenario
• It is mainly suitable for urban cold chain distribution, such as short-distance transportation of fresh fruits,
vegetables, meat, seafood, dairy products and other foods, and can also be used for refrigerated transportation
of pharmaceuticals to ensure the quality of goods.
