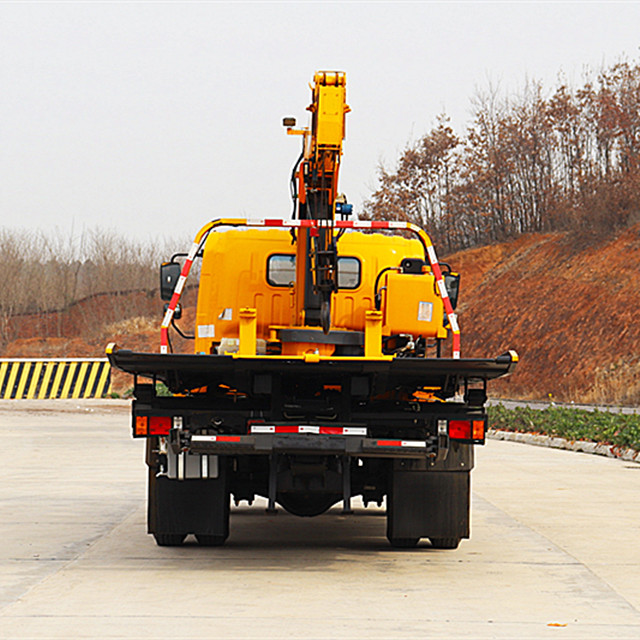

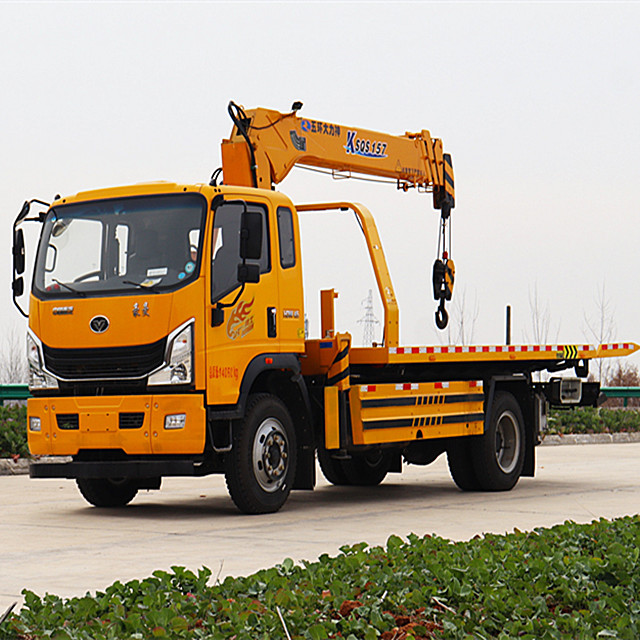

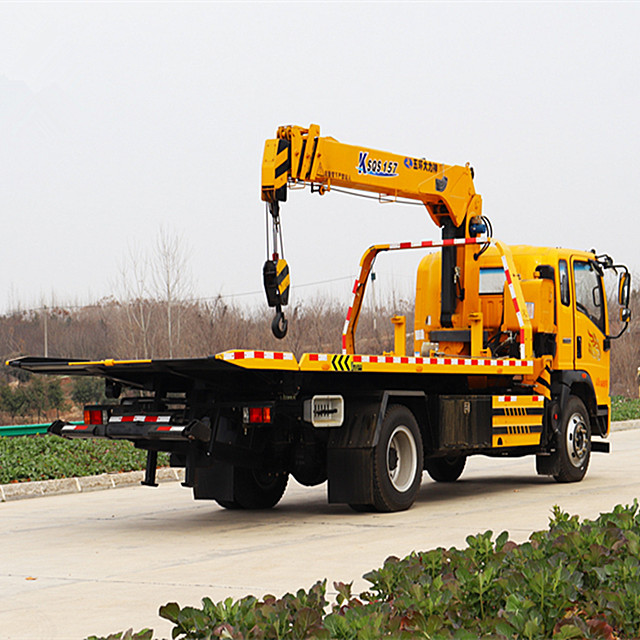

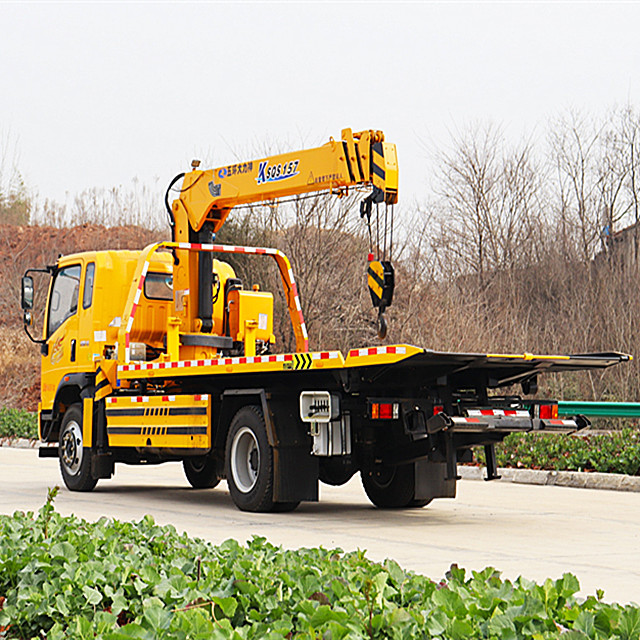

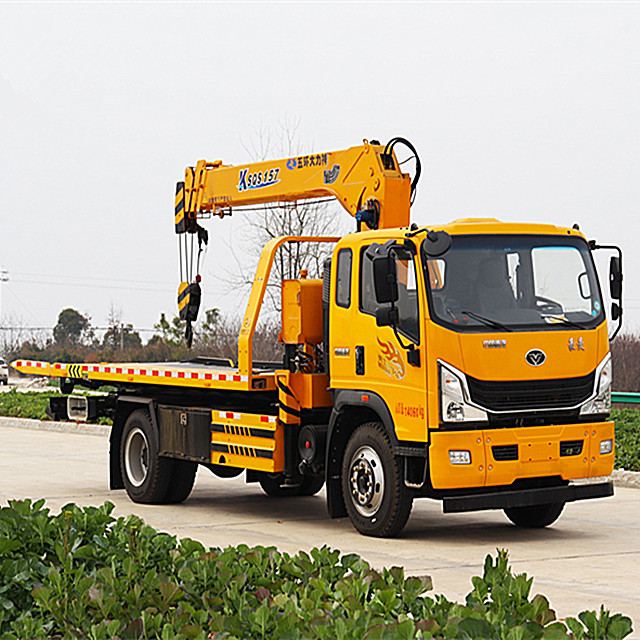

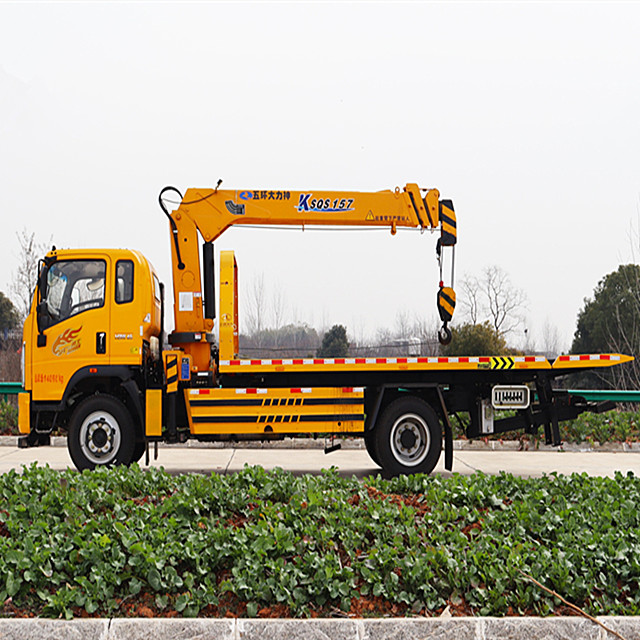

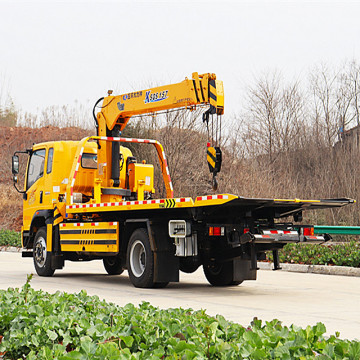

5-Ton Crane Flatbed Tow Truck by Sinotruk

Sinotruk flatbed Tow Truck with 5 tons crane Set parameters

Cab

Cab with sleeping berth, 3 seater, with air-conditioner

Chassis

• Brand: Sinotruk Howo
• Drive type: 4x2, left hand drive
• Transmission: 5 forward gear, 1 reverse, manual mechanical type
• Braking System: Hydraulic brake
• Tire: 8.25R20, 6+1 (spare)
• Wheelbase: 4400mm
• Front axle/rear axle: 4ton / 16 ton

Engine

• Model: YUchai
• Horse Power: 118kw / 160hp (Euro 2)
• Fuel type: Diesel
• Engine Size: 2970ml

Dimension & Weight

• Overall dimension (L*W*H): Approx 8590*2550*3230mm
• Gross Weight: Approx 11995g
• Curb weight: Approx 8900kg

Upper body

Flat bed size: 7000*2450mm

Top configuration: 6 tons of top, 6 tons of hoist, 6 mm thick pattern plate, imported hydraulic parts, 6 tons of three-section rear bracket arm, flat plate sinking, the total length of the board is 8 meters (mainboard 7 meters, 1.2 meters of hydraulic turnover tail plate), one set of support sockets, two pairs of tow forks, one set of tire holding device, binding land strip, auxiliary car, two auxiliary gas pipes, alarm lights, hand washing water tank, the girder tail is reinforced, and the crane with a capacity of 5 tons is equipped.

There are a variety of models and configurations of SinoTRUK Hauman wrecker with crane, and the following are some common models:

1. Sinotruk Haoman small one tow two wrecker Truck With Crane

• Chassis configuration: Equipped with Weichai 170 HP engine, Fast 8-speed high and low gear transmission, 750 steel tires, wheelbase 3650, optional 825 steel tires.
• Top configuration: The whole car is equipped with a 4-ton crane, the front is equipped with two hydraulic rear legs, and the top is 8 tons of one-piece pattern plate, the board is 5.6 meters long and 2.4 meters wide, and is equipped with 6 tons of winching. The tail is a turning plate, through the shaft hinge, and the rear tow arm hangs the main beam. Sinotruk Hauman yellow card with lifting wrecker.

2. Truk Hauman 8-ton Wrecker Tow Truck crane

• Tow Truck Chassis configuration: Equipped with Weichai 190 HP engine, Fast small 8-speed transmission with high and low gear switch, 900 tires, wheelbase 4.5 meters.
• Flatbed Tow Truck Top configuration: 6.3-ton four-arm crane with a working radius of 11 meters and lifting height of 13 meters. The length of the board can reach 5 meters 6 meters, the width is 2 meters 55, 6 tons of top, 6 tons of bracket, bilateral linkage lever, standard handwashing pot, equipped with 60 thousand cattle winch.

• flat bed tow truck Chassis configuration: Heavy truck chassis, Weichai 190 HP engine, PipeFITt eight-speed transmission with synchronizer, wheelbase 4.7 meters, tires 900, the original thickened double girder, 153 bearing rear axle, the original exhaust brake function.
• Wrecking Truck Top configuration: heavy-duty eight-ton top, plate length 6 meters 1, width 2 meters 55, hydraulic turnover of the tail with a pass shaft, the whole car is equipped with a sinking top, the height of the plate from the ground is only 1.2 meters. The hoist part is a 6.3-ton four-section crane of Changxing, with a arm length of 12 meters and a lifting height of 13.5 meters.
