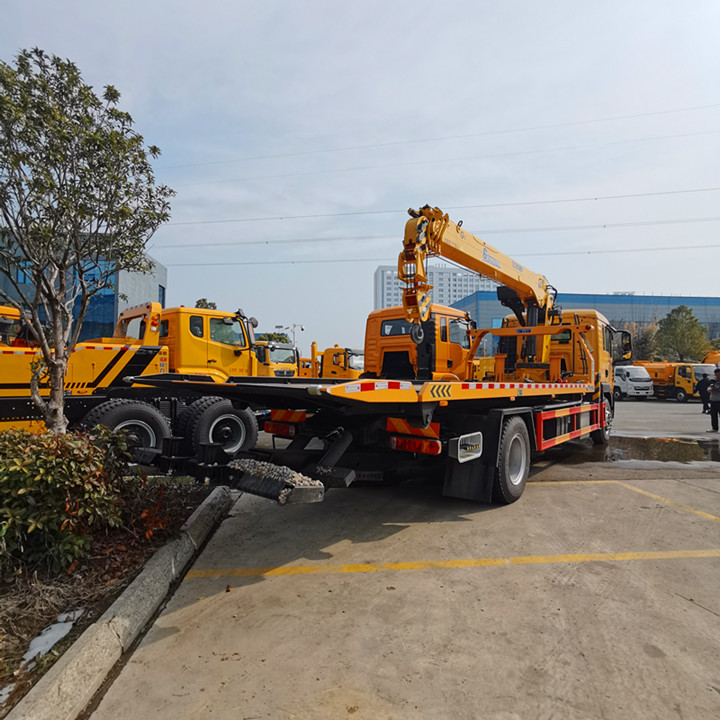

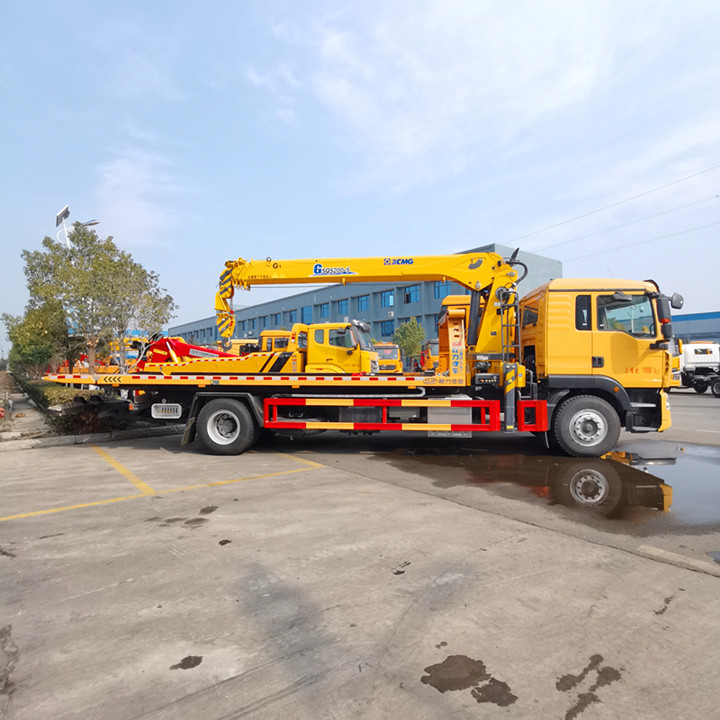

Sinotruk HOWo 10 Tons Flatbed Truck with Crane Introduction

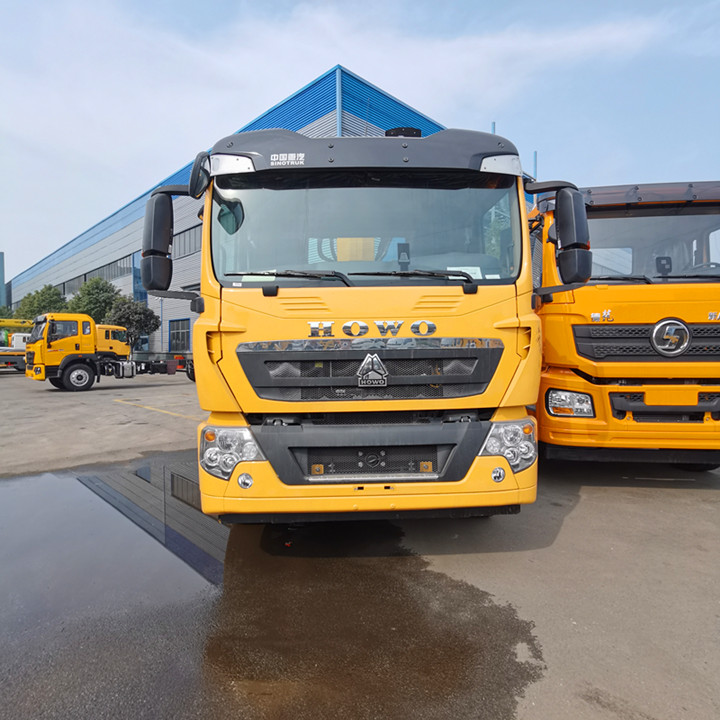

Cab

Row half cab with sleeping berth, 3 seater, with air-conditioner

Chassis

• Brand: Sinotruk Howo
• Drive Type: 4x2 left hand drive
• Transmission: 8 forward gears, 1 reverse, manual mechanical type
• Braking System: Hydraulic brake
• Tire: 11.00R20, 6+1 (spare)
• Wheelbase: 5800mm
• Front Axle/Rear Axle: 5.5T/8T

Engine

• Model: WP6H2270E61
• Horse Power: 199kw/270hp (Euro 6)
• Fuel Type: Diesel oil
• Engine Size: 6220ml

Dimension & Weight

• Overall Dimension (L*W*H): Approx 10530*2550*3900mm
• Gross Weight: Approx 18000kg
• Curb Weight: Approx 16500kg

Upper Body

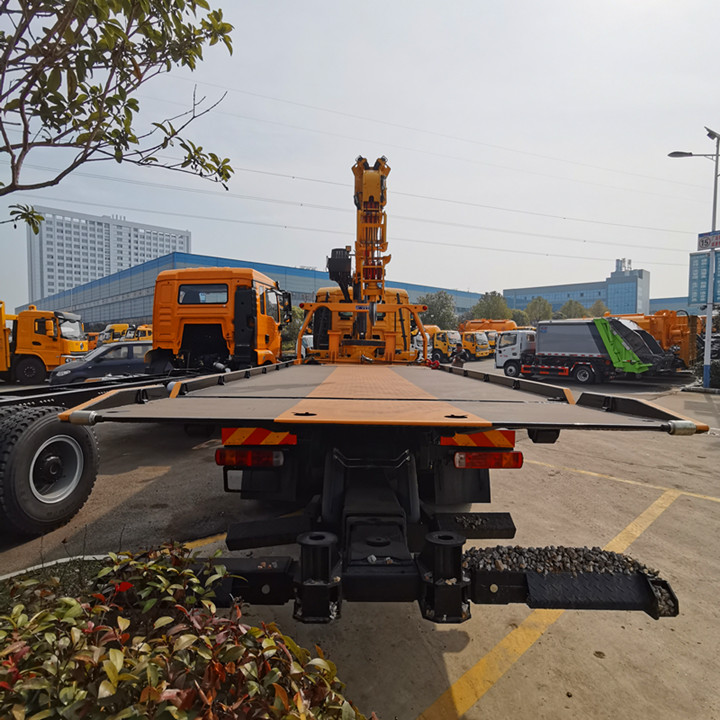

• Flat Bed Size: 8000x2450mm
• Top Standard: 10 tons of top, 10 tons of hoist, 6 mm thick pattern plate, imported hydraulic parts, 10 tons of three-section rear bracket arm, flat plate sinking, the total length of the board is 8 meters (mainboard 7.8 meters, 1.2 meters of hydraulic turnover tail plate), one set of support sockets, two pairs of tow forks, one set of tire holding device, binding land strip, auxiliary car, two auxiliary gas pipes, alarm lights, hand washing water tank, the girder tail is reinforced, and the crane with a capacity of 8 tons is equipped.

Introduction of Sinotruk HOWO TX 4x2 Wrecker Truck with Crane

1. Flatbed Tow Truck Chassis Configuration

• Engine: It can be equipped with Weichai WP series engines, such as Weichai WP4.6NQ220E61 (220 HP engine), or Man Technology MC07 series inline six engine outputting 251 HP, Man Machine 270 HP, Germany Man 310 HP, and other different power engines, meeting the national six emission standards.
• Cab: HOWo TX row semi-sleeping structure or four-point suspension cab, semi-high roof design, top with storage, tachograph, etc., the sleeping berth is about 1 meter wide, the internal space is more spacious and comfortable.
• Transmission: Equipped with heavy truck 8-speed transmission with high and low gear or 10-speed automatic transmission.
• Wheelbase: Common wheelbase is 5800mm, 6000mm, 6100mm, etc.
• Tires: 10.00R20 steel tires or 1000 steel tires are used.

2. Crane Tow Truck Loading Configuration

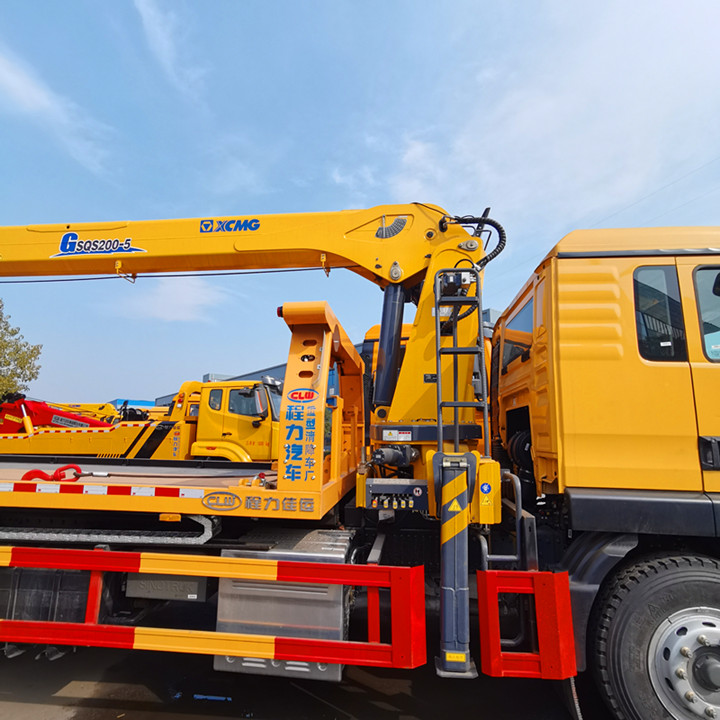

• Crane: It can be equipped with Xugong 10T M double pump 4-section crane, working radius 13.5 meters; or Trinity Palfinger 10-ton four-arm crane with a working radius of 14.3 meters; there are also models equipped with Veyron 8-ton four-section crane, and the board length is generally about 7.5 meters.
• Wrecker Truck Plate: The total length of the board is about 7.6 meters, the solid narrow frame is perforated, and 8 thick high-quality pattern plates are adopted. The main board is more than 6 meters long and the tail plate is more than 1 meter long.
• Bracket: 16 tons rear bracket, two hexagonal lifting arms, three brackets, split carriage.
• Winch: Double 8-ton winch or 15-ton winch.
• Others: Double-sided linkage operation device, equipped with four sets of steel forks, a set of steel plate lug drag fork, etc.
