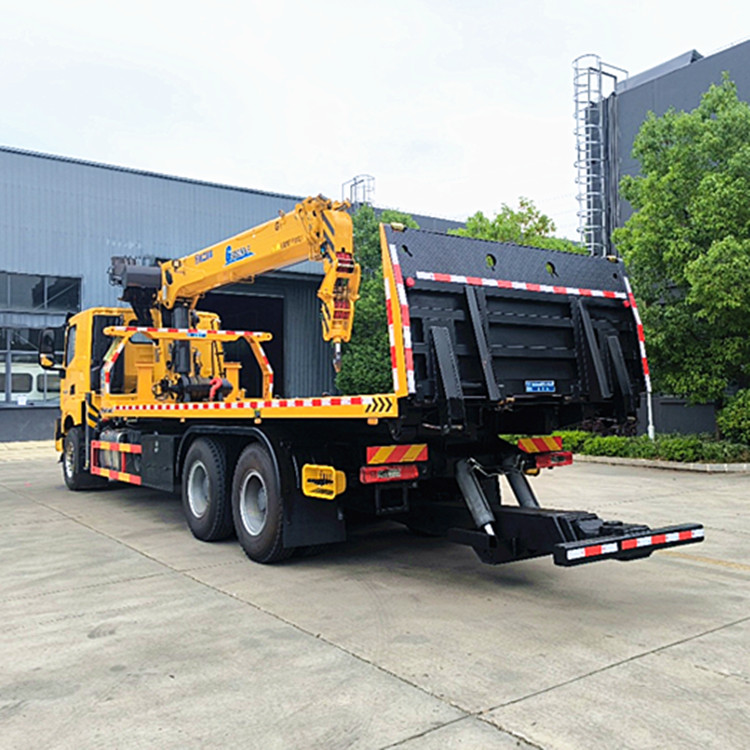

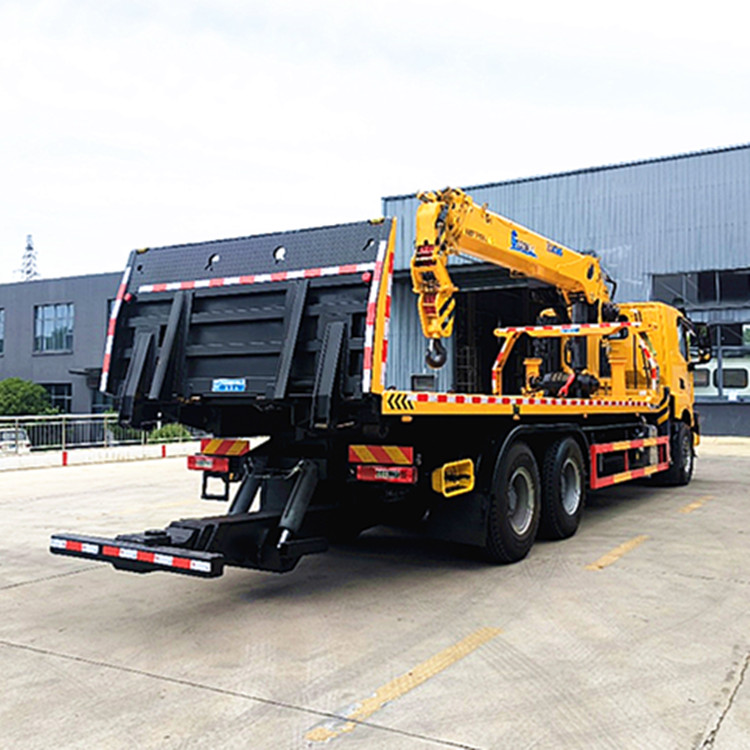

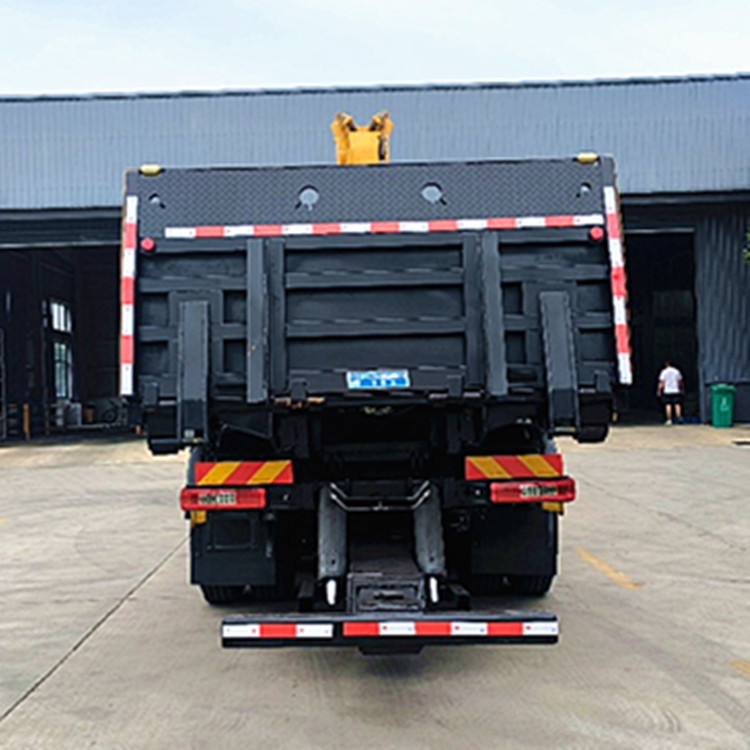

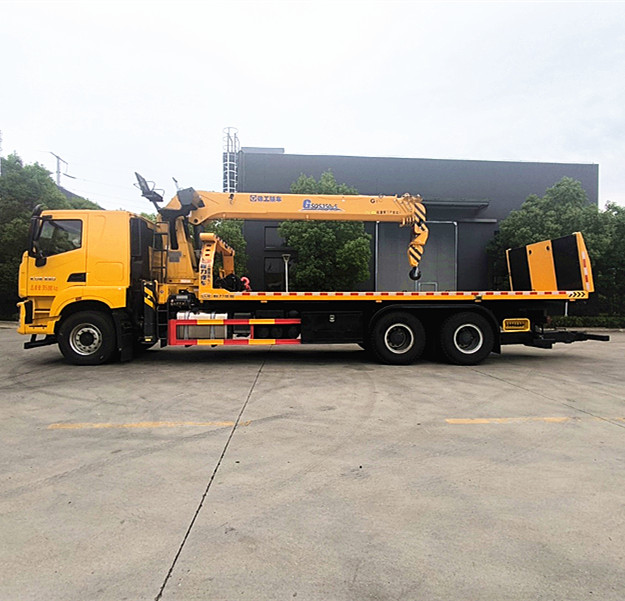

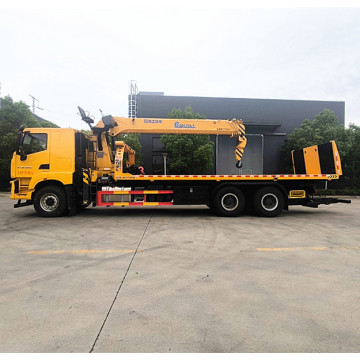

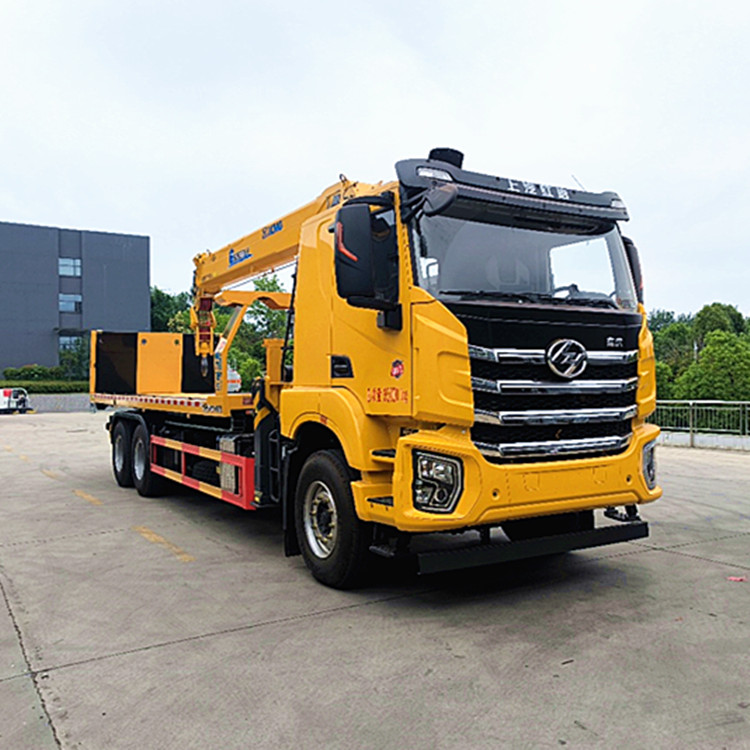

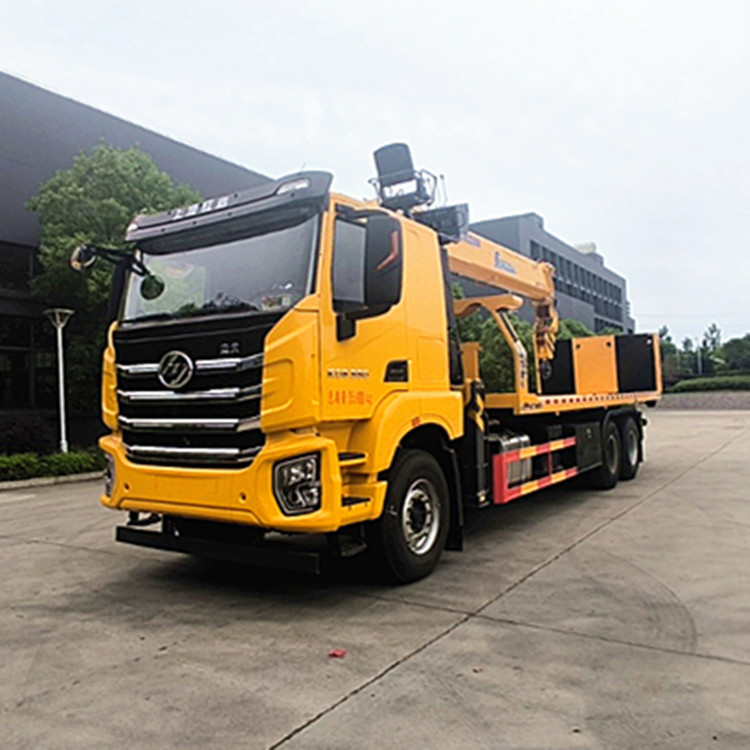

Saic Hongyan 6x4 wrecker
Truck With Crane Saic Hongyan 6x4 wrecker truck with crane introduce
Cab Row half cab with sleeping berth, 2 seater, with air-conditioner
Chassis Brand: SAIC Iveco Hongyan
Drive type: 6x4 left hand drive
Transmission: 10 forward gear, 1 reverse, manual mechanical type
Braking System: Hydraulic brake
Tire: 12.00R20, 10+1 (spare)
Wheelbase: 6000+1400mm
Front axle/rear axle: 7.5 T / 16T
Engine Model: YCK08-350-60
Horse Power: 257kw / 350hp (Euro 6)
Fuel type: Diesel oil
Engine Size: 7698ml
Dimension & Weight Overall dimension (L*W*H): Approx 12360*2550*3880mm
Gross Weight: Approx 35000kg
Curb weight: Approx 23850kg
Upper body Flat bed size: 9000x2450mm
Top standard: 18 tons of top, 15 tons of hoist, 6 mm thick pattern plate, imported hydraulic parts, 18 tons of three-section rear bracket arm, flat plate sinking, the total length of the board is 9 meters (mainboard 7.8 meters, 1.2 meters of hydraulic turnover tail plate), one set of support sockets, two pairs of tow forks, one set of tire holding device, binding land strip, auxiliary car, two auxiliary gas pipes, alarm lights, hand washing water tank, the girder tail is reinforced, and the crane with a capacity of 12 tons is equipped.
There are many models of SAIC Hongyan wrecker truck with crane, and the following are some common models for you:
- Jishi C6 4x2 towing integrated wrecker
- Chassis configuration: JES C6 flat top cab, 6000 wheelbase, 300 HP 10 litre engine, Fast 10 speed transmission, 16 tons double reduction cast axle, frame 305×8+ 4, 400 L fuel tank, 12.00R20PR18 tires.
- Top configuration: 16 tons top, inlet valve, two hexagonal boom, three brackets, split carriage, double-side linkage operation device, two 8-ton winch, 35 meters steel wire rope, with four sets of steel forks, etc.
- Jiehu 6x4 Crane Tow Truck
- Chassis configuration: Total mass 35000KG, Jiehu flat top standard long cab, 2300mm ultra wide body, with single sleeper, Yuchai 350 horsepower engine, 12 speed transmission, front axle 7.5 tons, rear axle 16 tons heavy duty two-stage wheel reduction axle, front tire 385/65R22.5, rear tire 12.00R20 18PR, 980-865/305*80(8+8+4) Original three-layer super frame.
- Top configuration: 18 tons top, 15 tons winding, 6 mm thick pattern plate, imported hydraulic parts, 18 tons three-section rear bracket arm, plate sinking, 9 meters in total length, equipped with Xugong G series 14 tons five-section crane, lifting height of 21.5 meters, working radius of 19.5 meters.
- Luxury 6x4 Flatbed Tow Truck with crane
- Chassis configuration: Yuchai 350 HP engine, Faster 12 speed transmission, front 385 vacuum tires, rear 1200 steel tires, with sunroof, electric mirrors, original reversing image, multi-functional steering wheel, original 3 layer thickened girder, 7.5 tons front axle, double 16 tons rear axle.
- Top configuration: The crane can be loaded with 14 tons of Xugong five-section arms, etc., the top adopts the latest technology of Chu Sheng, 18 tons of flat 18-ton boom, 8MM thick high-quality pattern plate with holes, the full set of the top adopts the early process of shot blasting sand blasting, electrophoretic rust prevention treatment, and a 15 tons medium hydraulic winch.
- Jepao H6 row semi-cab luxury obstacle tow truck crane
- Chassis configuration: Front axle 6.5 tons, 1000 steel tires, wheelbase 5 meters 8 meters, through 3 layers of straight girder, rear axle 11.5 tons, Yuchai 240 horsepower engine, Faster 8 speed transmission, 24 volt double battery, electronic fuel pump.
- Top configuration: All ten tons of top, back load 12 tons, plate length 7 meters 2 meters, width 2 meters 55 meters, hydraulic turnover of the tail with the shaft, Italy Hyde's multi-way valve, ten tons of three section rear bracket, six thick pattern plates, 14 mm (16MM slip) solid steel frame, ten tons of middle hoist, Changxing's eight tons of four section crane, arm length 13.5 meters, Lifting height 15.5 meters.
- Jepao H6 row semi-cab luxury obstacle tow truck crane
- Chassis configuration: Front axle 6.5 tons, 1000 steel tires, wheelbase 5 meters 8 meters, through 3 layers of straight girder, rear axle 11.5 tons, Yuchai 240 horsepower engine, Faster 8 speed transmission, 24 volt double battery, electronic fuel pump.
- Top configuration: All ten tons of top, back load 12 tons, plate length 7 meters 2 meters, width 2 meters 55 meters, hydraulic turnover of the tail with the shaft, Italy Hyde's multi-way valve, ten tons of three section rear bracket, six thick pattern plates, 14 mm (16MM slip) solid steel frame, ten tons of middle hoist, Changxing's eight tons of four section crane, arm length 13.5 meters, Lifting height 15.5 meters.
