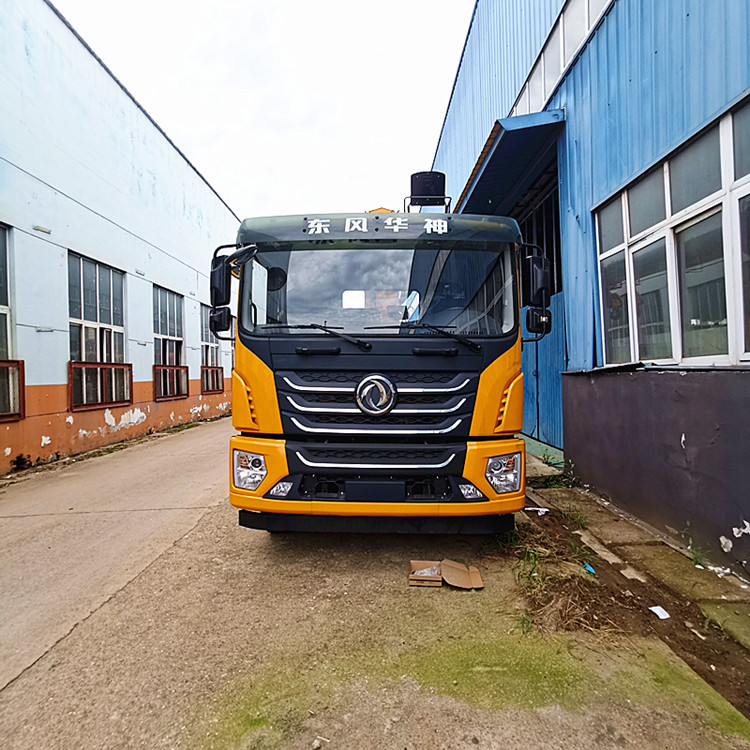

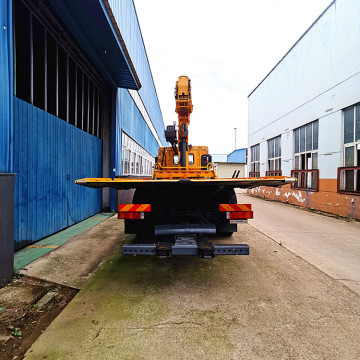

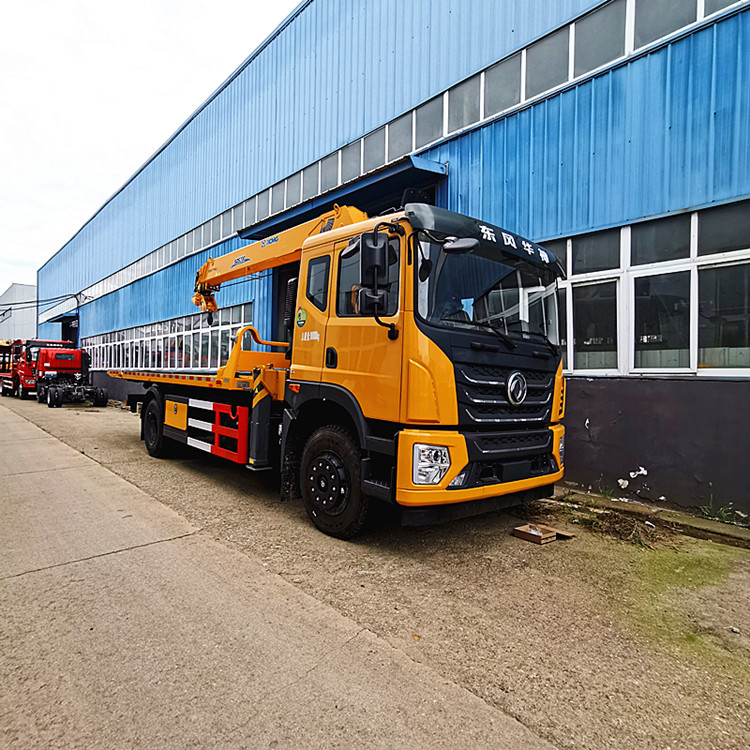

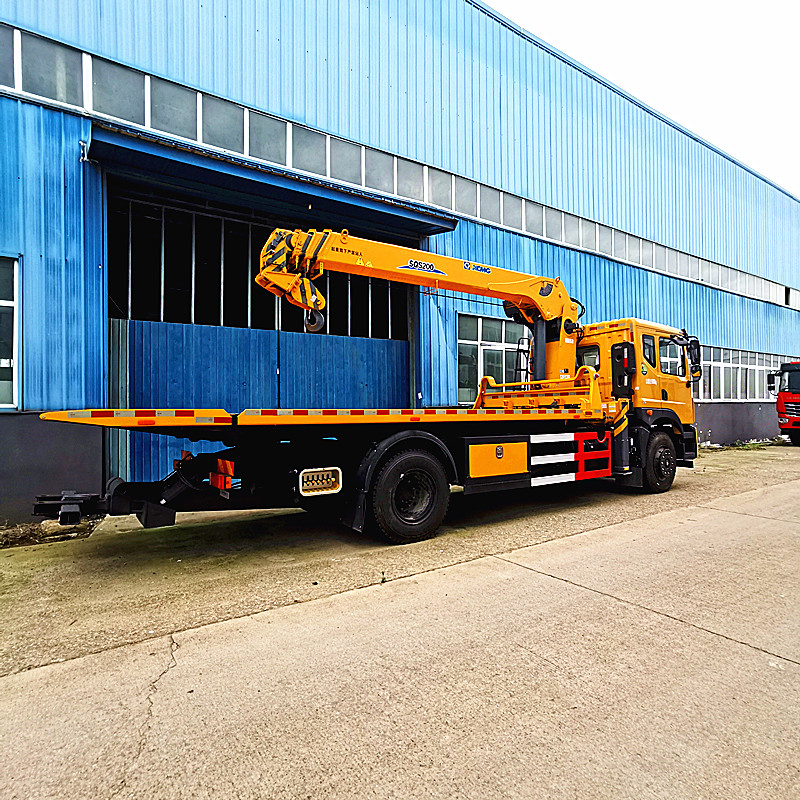

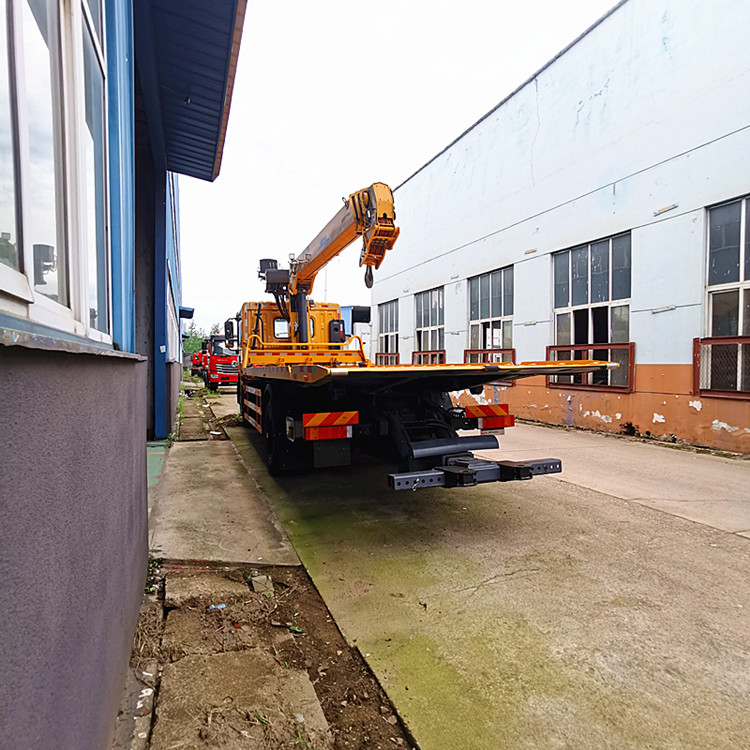

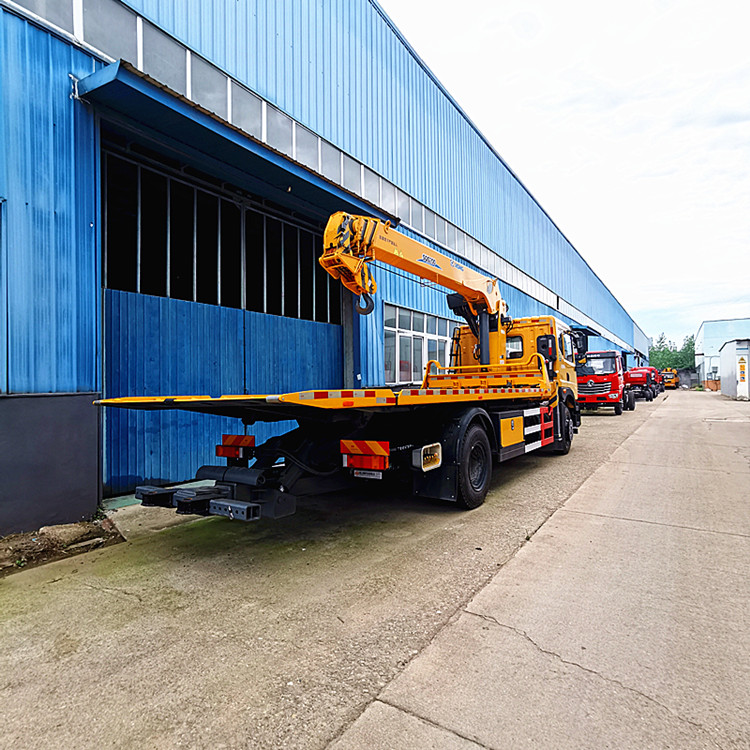

8-Ton Flatbed Tow Truck with Crane

      DONGFENG Huashen flat bed Truck With Crane parameter configuration

Vehicle parameter configuration

Dongfeng Flatbed Tow Truck with crane introduction:

1. Wrecker Tow Truck Chassis configuration

• Cab: T5 luxury cab, spacious and comfortable.
• Engine: Equipped with Yuchai YCS06220-60 engine, powerful power, output power can reach 220 HP, meet the national six emission standards (engine optional).
• Transmission: Matching Shaanxi gear small eight-speed transmission, smooth shift, high transmission efficiency.
• Axle and girder: Equipped with 5.5T/10T front and rear Bridges, 300 straight three-layer girder, strong bearing capacity, can adapt to complex obstacle clearance and lifting operations.
• Tire: Choose 10.00R20 steel wire tire, good wear resistance, strong grip.

2. Crane Tow Truck mount configuration

• Plate size: About 7.2-7.4 meters long, 2.55 meters wide, made of high-strength pattern plate, non-slip and high bearing capacity.
• Obstacle clearing device: Equipped with 8 tons of winch, 8 tons of 3 section rear bracket and hydraulic folding tail plate, which can realize the traction, towing and support fixing of the faulty vehicle.
• Crane: 8 tons or 10 tons of well-known brands can be installed, such as Xugong 8 tons double pump crane, arm length up to 13 meters.

3. recovery truck with crane features

• Operation control: Standard imported Hyde multi-way valve, using bilateral linkage operation, easy and flexible operation, can accurately control the clearing and lifting action.
• Application scenario: It is suitable for road rescue, quick cleaning of faulty vehicles and obstacles at the scene of traffic accidents, and can also be used for lifting operations, such as carrying heavy objects at construction sites, ports and other places.

4. Wrecker truck after-sales service

• Chassis service: Enjoy the "three requirements and eight commitments" of SinotruK family service, including active and enthusiastic service, rapid response scheduling, integrity management, etc., as well as a number of guarantees such as document review time limit, spare parts call on time, and technical support response.
