Cheng Li Electric Sweeper Truck with Fog Cannon - Parameter Configuration
Electronic Control
Import Parts Assembly Intelligent Controller (China)
Batteries
48V150AH (Super Power/day maintenance free battery / can be customized according to user requirements)
Motor
AC brushless differential motor
Charger
Portable Smart Charger waterproof type
Charging Time
3-6 hours (discharge rate is 100%)
Technical Parameters
- Rated Crew: 1
- Dimensions: 3000*2200*2100MM
- Power Source: 48V
- Walking Speed: 0-12KM/H
- AC Drive Motor Power: 3000W
- Minimum Turning Radius: 45
- Charging Time: (3-6)h
- Maximum Climb: >25°
- Weight: 1200KG
- Braking Distance: ≤4m
- Working Hours: 6-8H
- Sweep Width: 200MM---2200MM
- Bin Capacity: 240L
- Main Brush Width: 800MM
- Rolling Brush Motor: 1000W
- Work Efficiency: 15000-30000㎡/H
- Water Tanks: 380L
- Operating Power: Master brush + Fan + Side brush + Dust + Drum Motor + Hydraulic motor = 1200+500X2+100x4+50x2+800+800
Body System
- Seats: Sponge + High rebound PU leather fabric
- Body: Aluminum alloy (frame, beam, side guard plate) + Steel Frame + engineering plastic parts
- Electronic Control Circuit: GB integrated waterproof wire harness
- Instrument: Combination instrument panel electricity voltage display
- Rearview Mirror: Yes
- Lights and Signals: Combined headlights, combined rear lights, engineering warning lights, electric horn and reversing buzzer
- Parking Sensors: Yes
- Work Control Mode: Automatic control system, one button start
- The Steering Wheel: The steering wheel of a car
Chassis System
- Power Transmission System: All-floating drive axle of stepless transmission system
- Steering System: Four-way adjustment direction string, gear direction machine
- Front and Rear Bridges and Suspension: Load-bearing front axle
- Brake System: Disc brake
- Tires: Solid rubber tire 400-10
- Four Fans - Four Vibrating Dust: With overheat protection
- Fully automatic operation, equipped with imported electronic control system, the system has over-current, under-voltage protection, reverse half-speed and other functions.
- The main brush edge brush 3 seconds full linkage promotion, the double fan vacuuming effect is good.
- Removable double filter element, with electric vibrating dust device and vacuum cleaning system, clean thoroughly.
- Four-wheel disc brake plus mechanical hand brake, garbage automatic lifting.
- Electronic automatic shift drive to achieve long-distance field operation.
- With 240L garbage can, quick and convenient replacement, effectively improve work efficiency.
- Open-door driving type, equipped with wiper, metal fan, multi-angle adjustment seat, large air-filled vacuum tires, comprehensive improvement of driving comfort.
- Front lighting, convenient for night operation; water tank capacity of 380L full atomization spraying.
- Optional air conditioning for high-replacement lithium-ion batteries.
- LED digital display behind the body, can be customized display content, such as: left and right turn arrows, XX will be subtitles, mobile ad

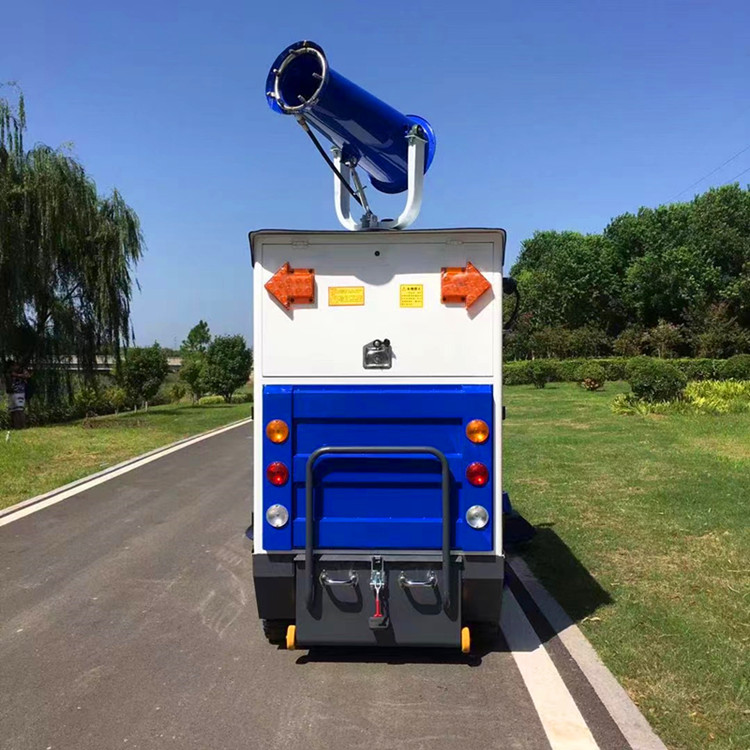

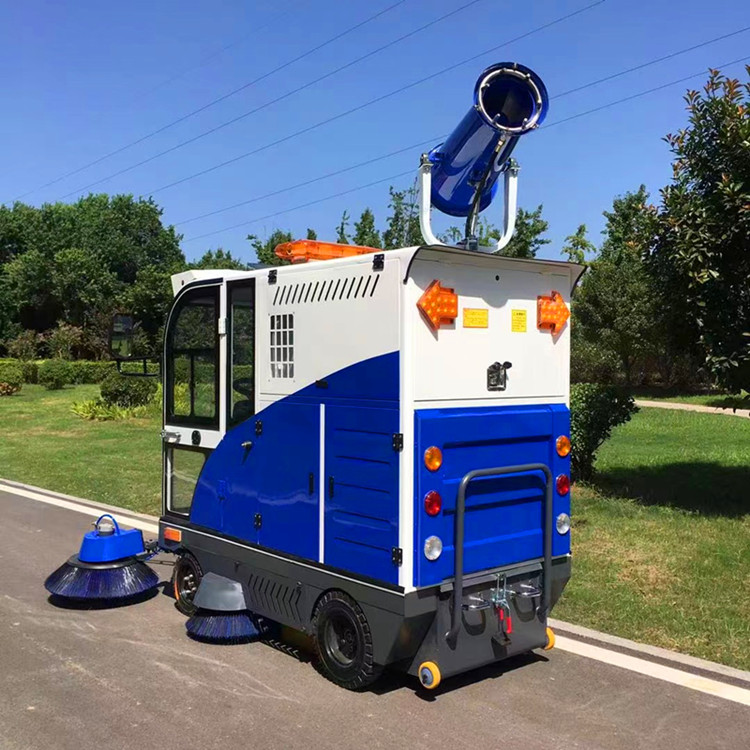

- Fog Gun can be selectively installed for dust suppression and flushing.
