Home > Products > Road Cleaning > Sweeper Truck > DONGFENG 22CBM Sweeper Truck





View the big picture

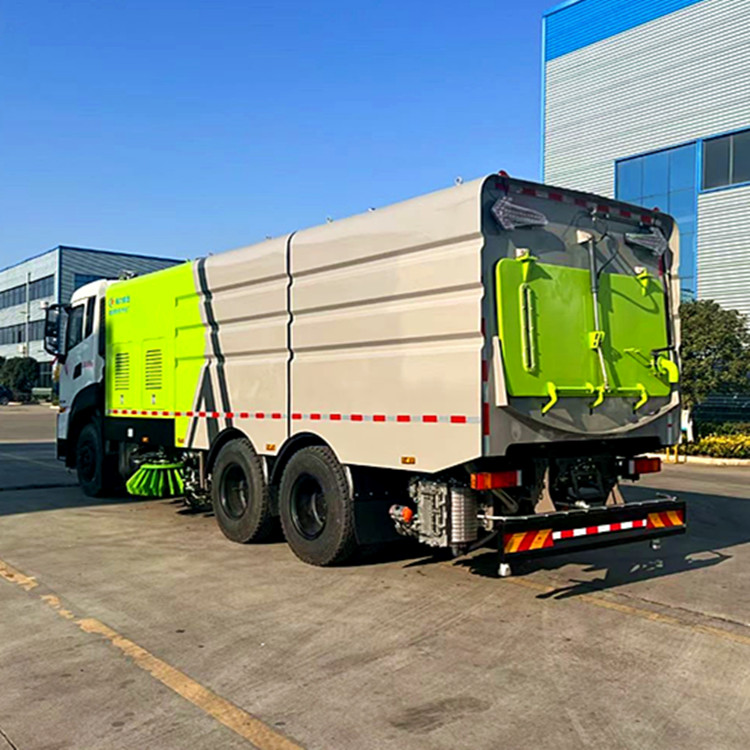

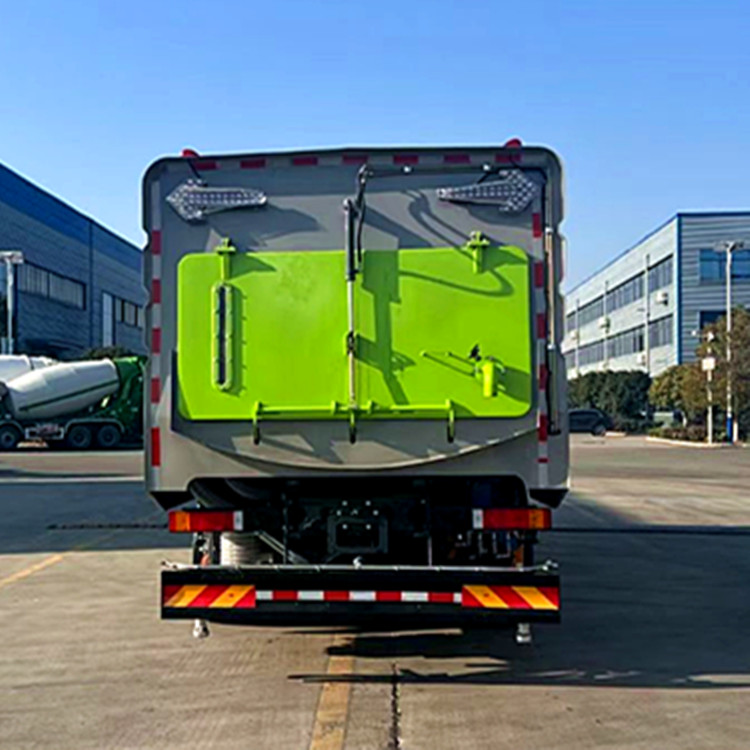

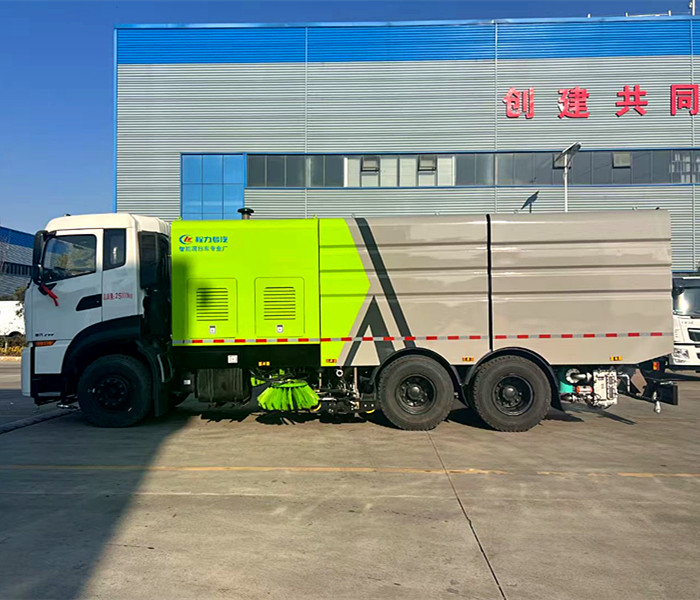

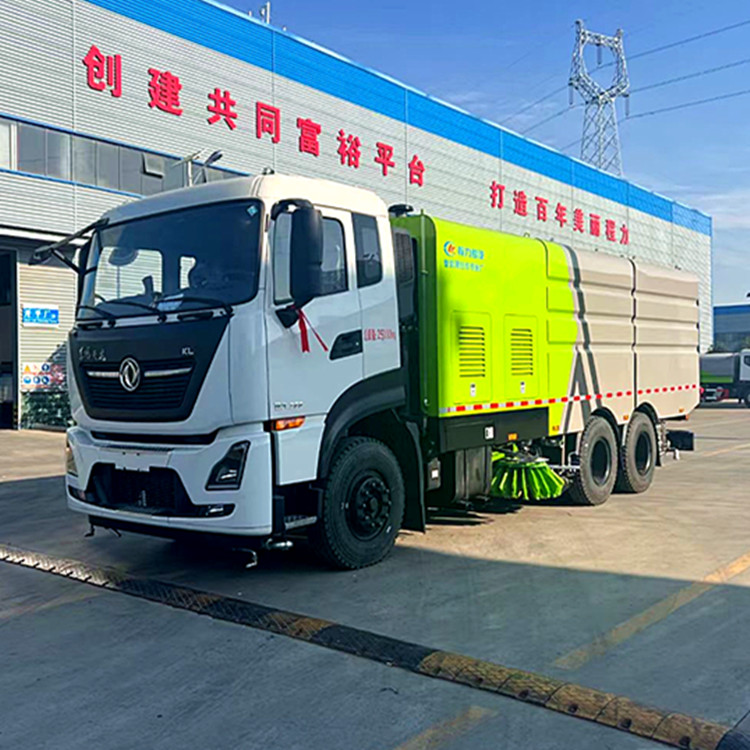

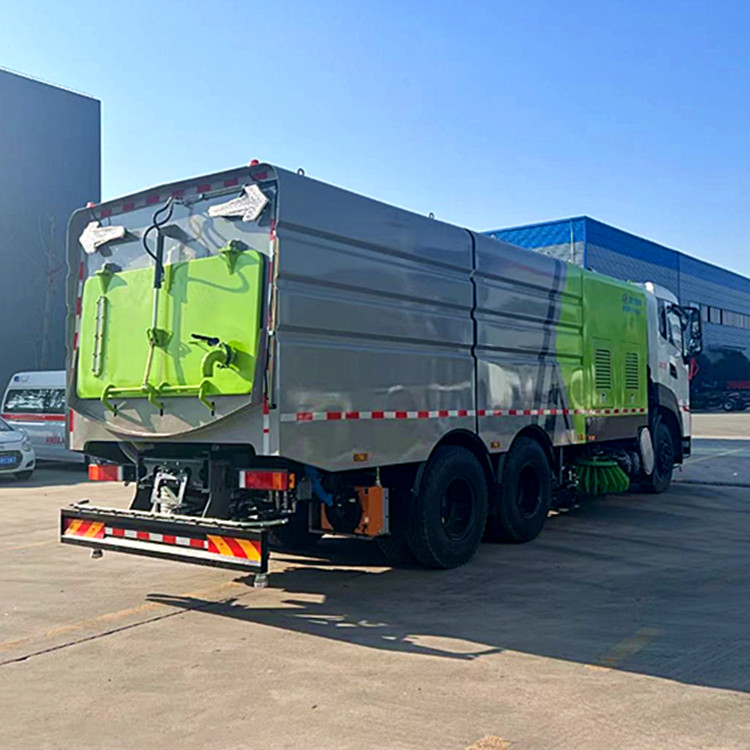

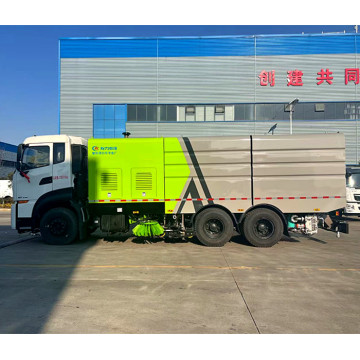

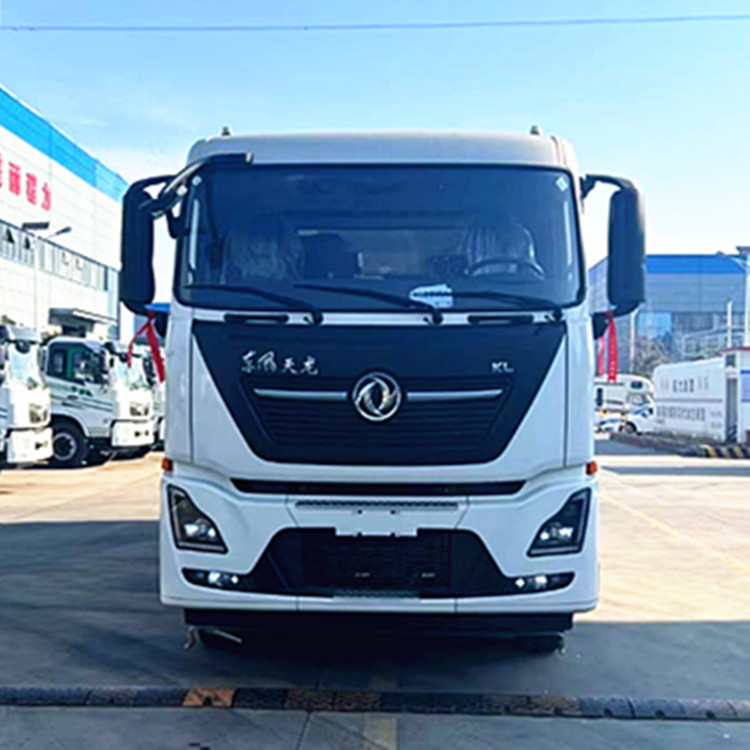

DONGFENG 22CBM Sweeper Truck

Name: DONGFENG 22CBM Sweeper Truck
Brand: Cheng Li Automobile Group
Price: 74500 USD
Rating: 5.0 (12 reviews)

Unit Price:

USD 74500 - 75000 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Old And New: New

Gearbox Type: Manual

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 10200*2520*3300mm

Box Volume: 22cbm

Total Mass: 25000kg

Curb Weight: 14330kg

Seating: 3

Wheelbase: 4350+1350mm

Number Of Tires: 10

Tyre Size: 11.00R20

Horse-powe: 290HP

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

DONGFENG 22CBM Sweeper Truck

Parameter Configuration of DONGFENG 22CBM Sweeper Truck

Vehicle Basic Information

Overall Dimensions (L x W x H) mm	1020025203300
Wheelbase (mm)	4350+1350
Tyre	11.00R20 18PR
Number of Tires	10 (including 1 spare)
Front Wheel Track (mm)	2010
Rear Wheel Track (mm)	1860/1860
Rated Occupant	3
Front/ Rear Overhang (mm)	1500/3000
Approach Angle	17°
Departure Angle	25°
Ground Clearance (mm)	320
Rated Load Mass (kg)	10540
Service Quality (kg)	14330
Maximum Total Mass (kg)	25000

Chassis Configuration

Dongfeng cleaning vehicle is an excellent performance of the sanitation operation vehicle. Below is a detailed introduction:

Adopts Dongfeng Sky Dragon original chassis, 6×4 drive, d310 flat head standard roof cab.
Equipped with Dongfeng Cummins ISD245-50/ISD270-50 electronically controlled high-pressure common rail engines with 245 HP/270 HP.
Wheelbase: 4350+1350(mm).

Top Configuration

Operating Equipment: 2 sweep plates, suction nozzle, Cummins auxiliary engine, Sanyo motor, German original imported high-pressure water pump, front spray, side spray, middle spray, rear spray, side wash car water gun, dustbin self-cleaning device, etc.
Box: 12 cubic meters of stainless steel water tank, 9 cubic meters of stainless steel dustbin, equipped with anti-overflow or low water level alarm device.

Technical Parameters of the Road Sweeping Vehicle

Vehicle Model: CLW5250TXSD5
Total Mass: 25000kg
Rated Load Mass: 7370kg
Repair Mass: 17500kg
External Dimension: 10050×2500×3390mm
Maximum Cleaning Width: 3.5m
High Pressure Washing Height ≥21m

Features of road sweeper truck

Multiple Operation Functions: Road Cleaning, washing, high-pressure cleaning, curb washing, garbage collection, sewage recycling, high-pressure spraying, and road separation wall cleaning.
Multi-functional Operation: Integrates road sweeping, high-pressure washing, spray dust removal, garbage collection, and sewage recycling functions to perform various operations like road cleaning, washing, and curb cleaning.
Efficient Cleaning: Centralized operation devices like middle vertical sweep and middle wide suction nozzle ensure continuous and smooth operations like scrubbing, washing, and absorbing sewage. Less splash, high sewage absorption rate, large cleaning width, and high efficiency.
