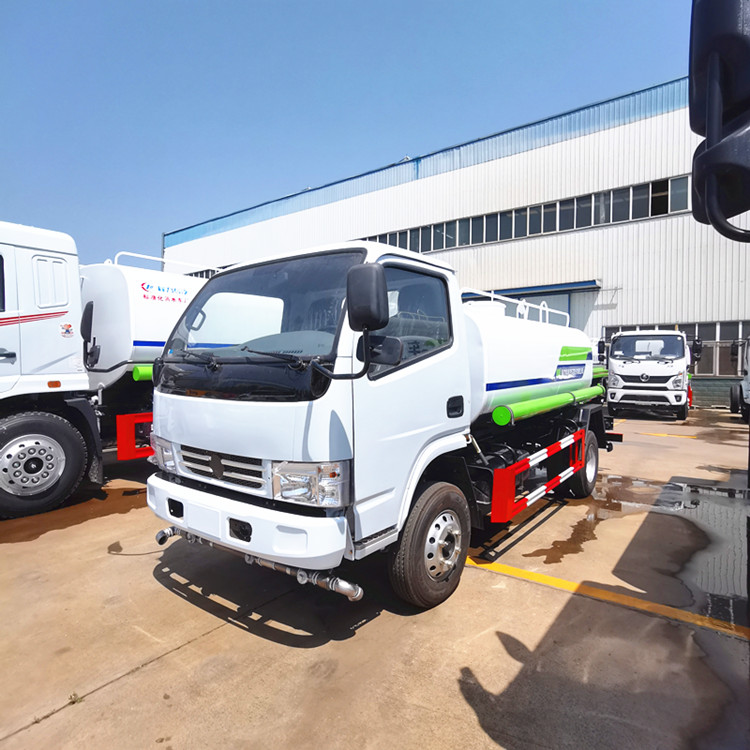

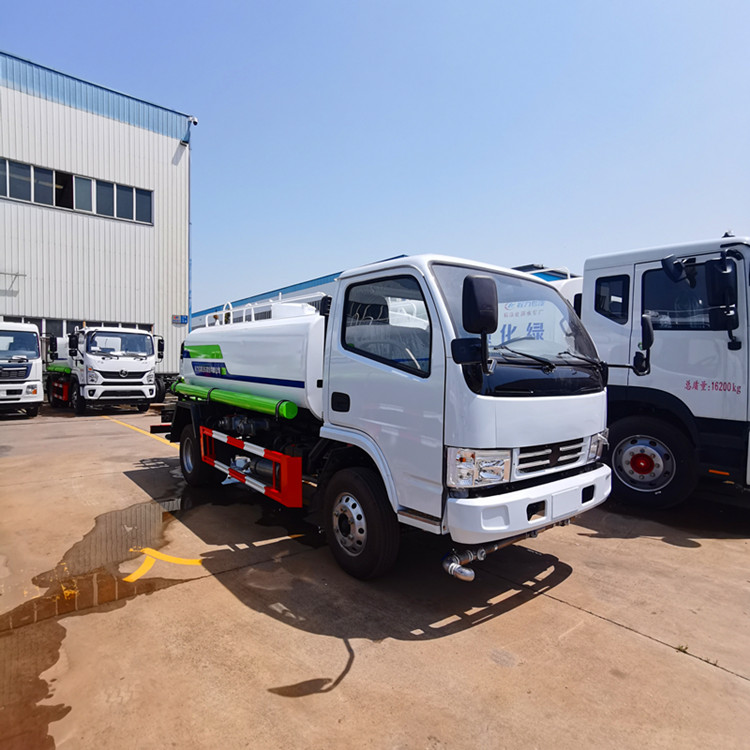

Dongfeng Duolika Small 3-5CBM Water Tank Sprinkler Truck

European Three DONGFENG Dorika Small Water Tank Truck Parameter Configuration

1. water tanker Chassis Configuration:

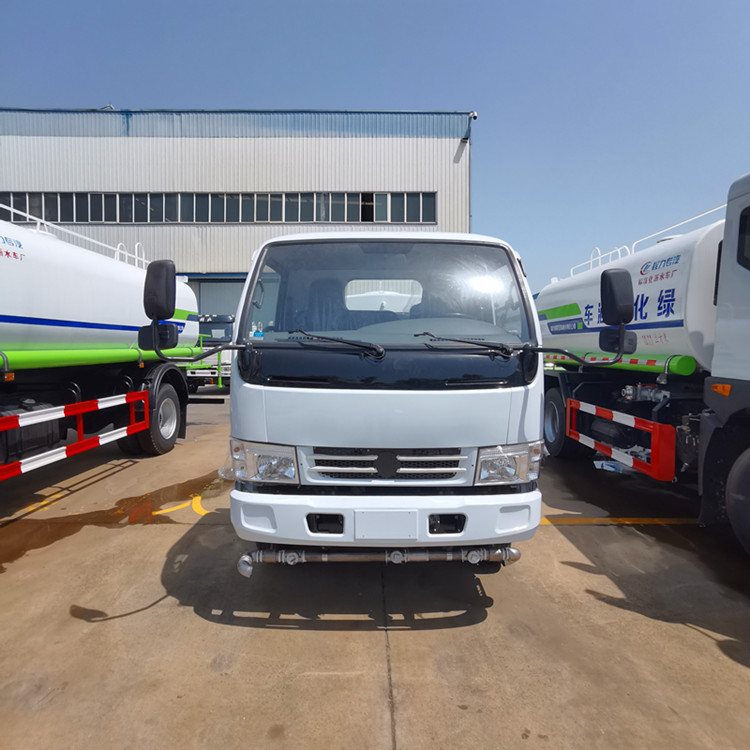

   • Often equipped with Dongfeng D6 series new cab, wheelbase 3308mm, some models equipped with full diesel 136 horsepower, Yuchai 140 horsepower, and other diesel engines, providing strong power to meet various working conditions.
   • Equipped with Wanliyang 5 or 6-speed transmission, ensuring smooth shifting and easy operation while improving fuel economy.
   • Fitted with 7.00R16 steel tires, offering strong bearing capacity and good durability to adapt to diverse road conditions.
   • The vehicle also includes air brakes, power steering, ABS anti-lock system, central control lock, power windows, remote control keys, enhancing both safety and comfort during driving.

2. water truck Top Configuration:
   • Tank volume 5 cubic meters, made from 4-5mm thick Q235 carbon steel material, formed by a large plate rolling machine, with high strength. The front and rear of the tank head are processed using plasma CNC cutting and then spun into shape.
   • Equipped with a nationally certified high-power specialized sprinkler pump, featuring self-suction and self-discharge functions, along with a self-flow valve, fire coupling, and filtration device.

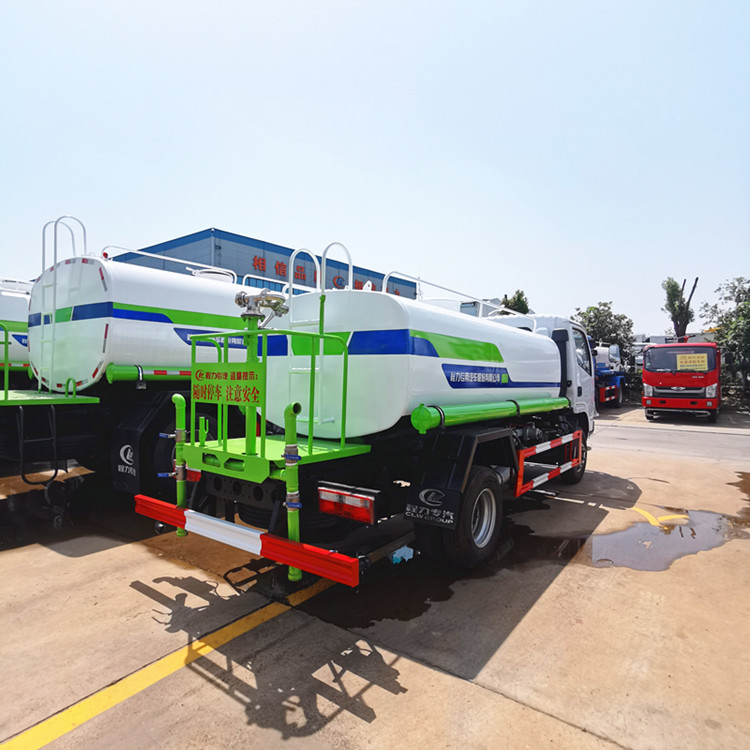

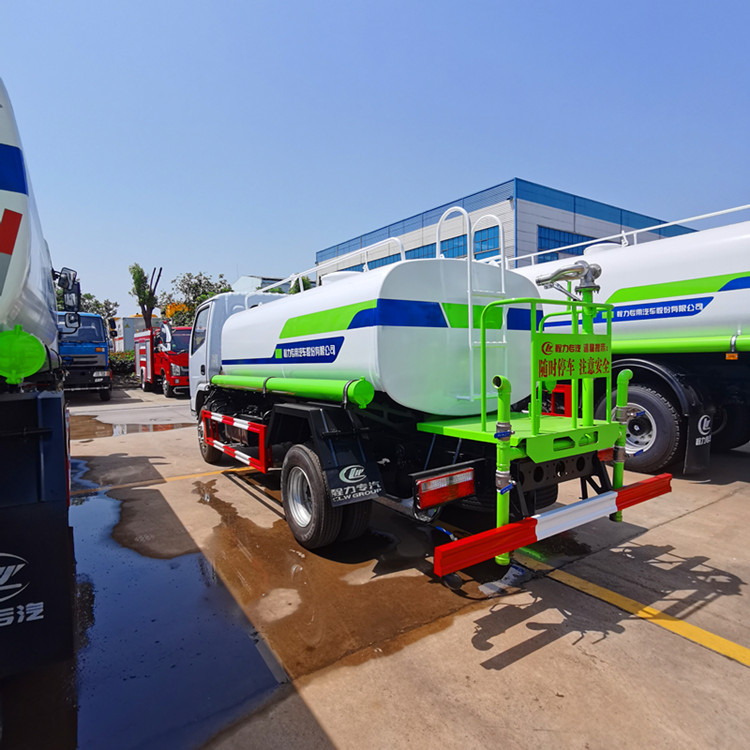

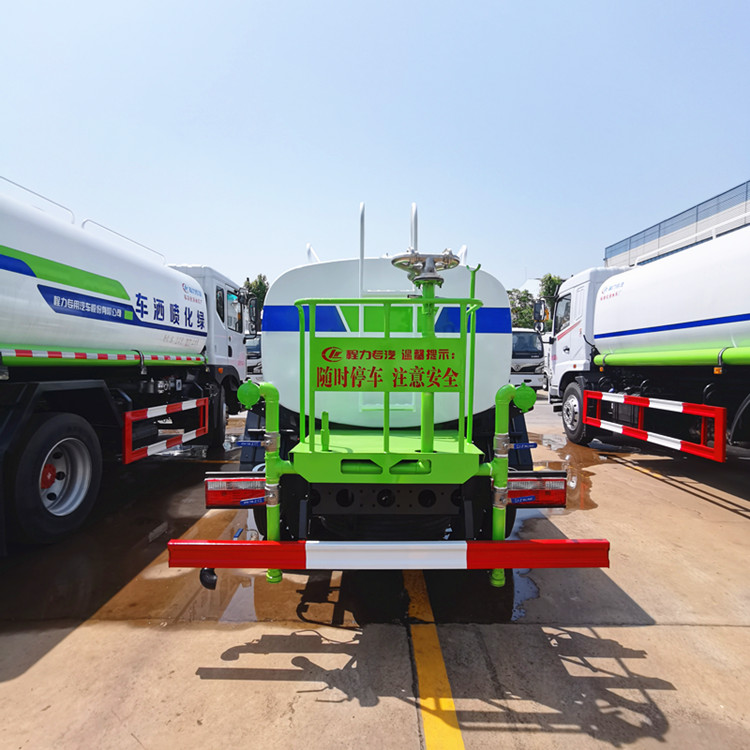

   • Standard features include front, rear, and side spraying, as well as a rear working platform with a green sprinkling anti-aircraft cannon. The sprinkler can rotate 360 degrees and adjust continuously to provide various rain patterns such as direct impact, heavy rain, light rain, drizzle, and fog to meet different spraying requirements.

3. Sprinkler Truck Performance:
   • Compact design with a short wheelbase, ensuring excellent mobility and suitability for narrow streets, residential areas, and other complex road conditions.
   • The tank undergoes anti-corrosion treatment and shot peening processes to effectively prevent rust and extend its service life.
   • When fully loaded, the vehicle maintains a stable center of gravity, ensuring smooth travel, and effective braking and steering performance without being affected by liquid impacts during driving.

4. Application Scenarios:
   • Widely used in municipal sanitation for washing urban roads, dust suppression, and maintaining cleanliness to improve air quality.
   • Suitable for landscaping purposes, including irrigation of trees, green belts, lawns, and pesticide spraying for pest control.
   • Can also be utilized in factory and mining enterprises for road dust suppression, emergency firefighting, and other tasks.
