Basic Info
Old And New: New
Gearbox Type: Manual
Emission Standards: Euro 5, Euro 3
Fuel: Diesel
Place Of Origin: China
Vehicle Size: 11050x2550x3900mm
Box Size: 9600x2450x2450mm
Total Mass: 22000kg
Curb Weight: 19000kg
Seating: 3
Wheelbase: 1950+4000+1400mm
Number Of Tires: 12
Tyre Size: 11.00R20
Horse-powe: 465HP
Brake System: Air brake
Product Description
| Name of Vehicle Manufacturer | Sinotruk Shandeka |
|---|---|
| Vehicle Brand/Vehicle Name | Ace Mobile Kitchen Cooking Truck |
| Body Color | Optional |
| Engine Brand | German Man Power |
| Horsepower | 350 horsepower |
| Type of Fuel | Diesel fuel |
| Displacement and Power (ml/kw) | 6870 188 |
| Emission Standards | Optional |
| Vehicle Size | 12000x2500x3980mm |
| Dimensions of Cargo Compartment | 9600x2450x2500mm |
| Number of Leaf Springs (Leaf) | 11/11+9 |
| Number of Tyres | 12 |
| Tire Specifications | 295/80R22.5 |
| Wheelbase (Front/Back) (mm) | 1900 1850 |
| Wheelbase (mm) | (Optional) |
| Axle Load (kg) | 5600/9910 |
| Number of Axes | 4 |
| Form of Steering | The steering wheel |
| Total Mass (kg) | 31000 |
| Quality of Equipment (kg) | 30000 |
| Rated Load Mass (kg) | X |
| Utilization Coefficient of Load Mass | X |
| Number of Persons Allowed to Ride in the Cab (person) | 3 |
| Maximum Design Speed (km/h) | 110 |
| Project | Unit | Notes |
|---|---|---|
| Box Body Material | 1 | The box is made of stainless steel plate with outer cold plate and middle fire-proof heat insulation plate. The box is 5 cm thick |
| The Floor Material | 1 | Aluminum patterned skid plate |
| Expansion of the Box Body | 1 | Positive cab side hydraulic expansion with 360 * 60 cm air windows (4 legs) |
| Back Door | 1 | The rear door of the box body can be made into left-right open or up-lift type |
| Pedals | 1 | The rear part of the box body is provided with a rotating pedal |
| Sky Light | 3 | Sky light for the electric skylight (can be modified according to customer needs) |
| Exhaust System | 1 | Stainless steel exhaust system, three electric exhaust fans |
| Water Tanks | 2 | 1 water purification tank, 1 sewage tank |
| Fuel Tank | 1 | The roof is fitted with an aluminum fuel tank |
| Circuit, Water | 1 | |
| Lighting | 4 | Box Body 2 led ceiling light, box body outside two LED lights |
| Booster Pump | 1 | Booster pump |
| Sales Window | 1 | Can be modified according to user needs |

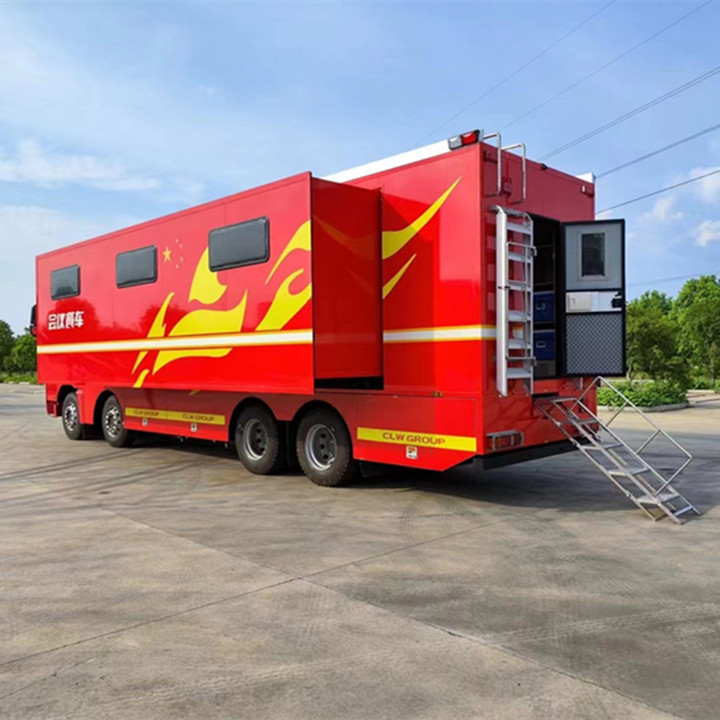

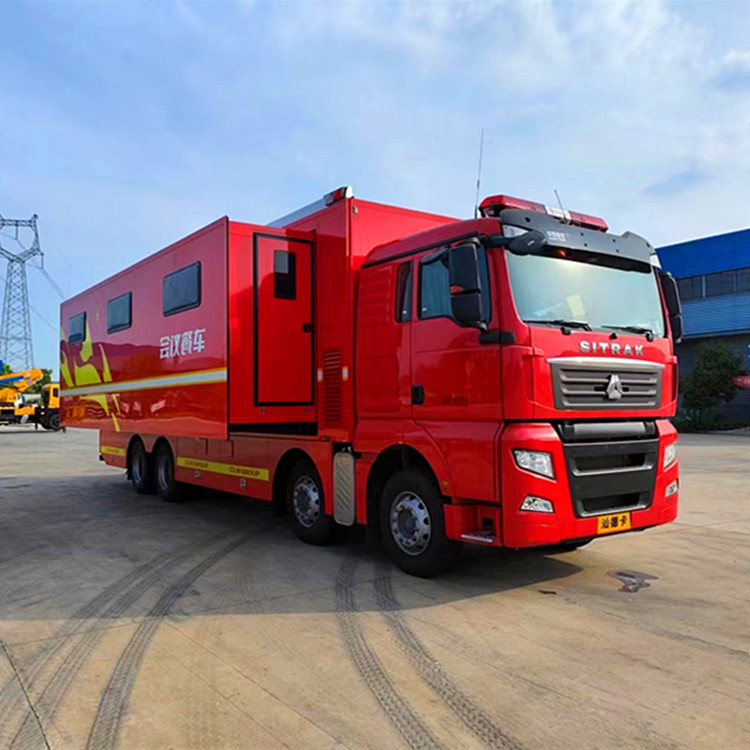

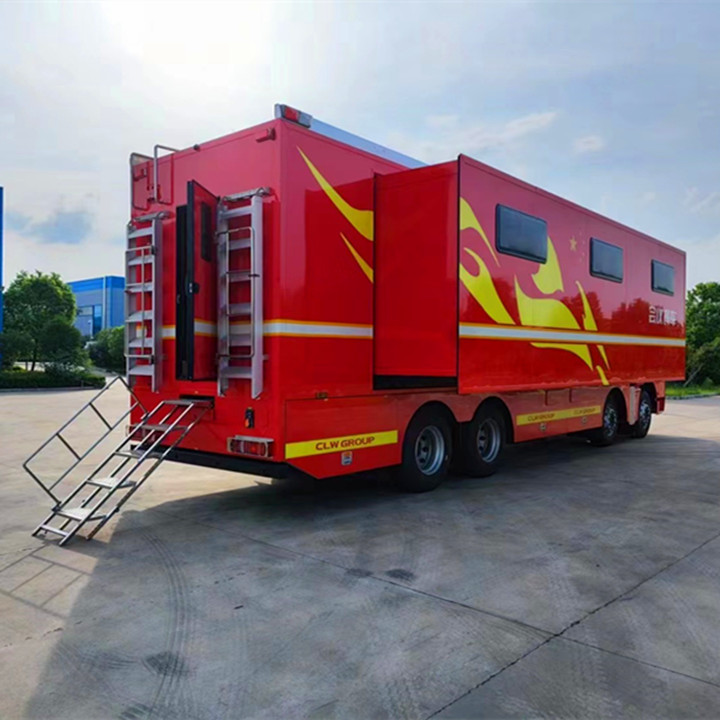

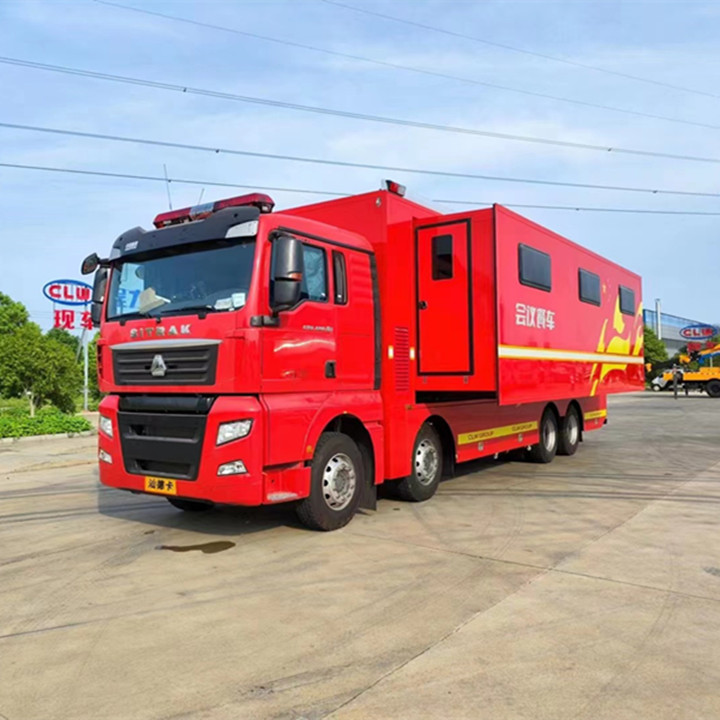

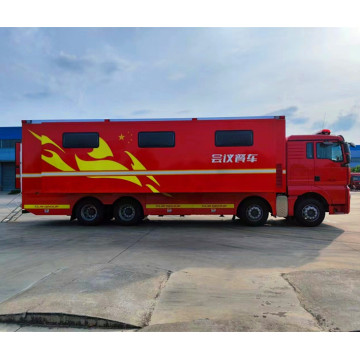

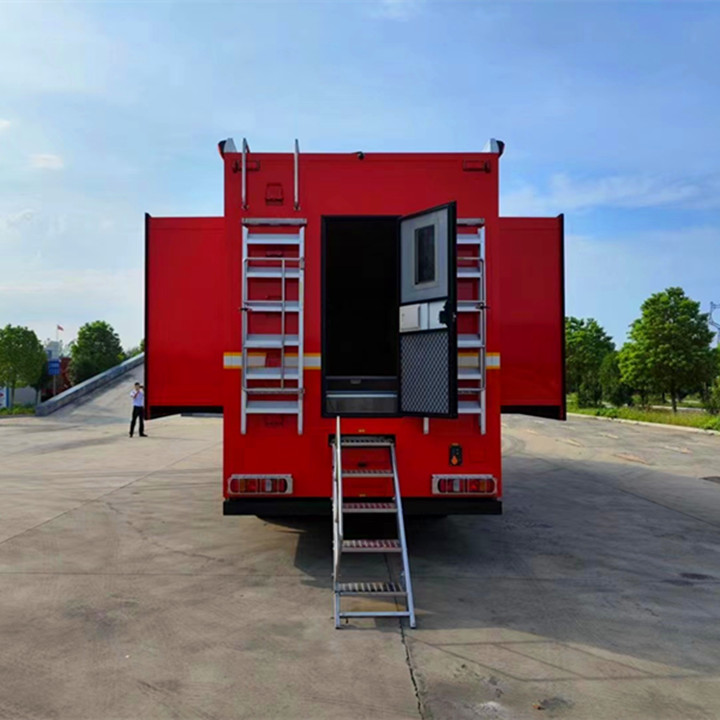

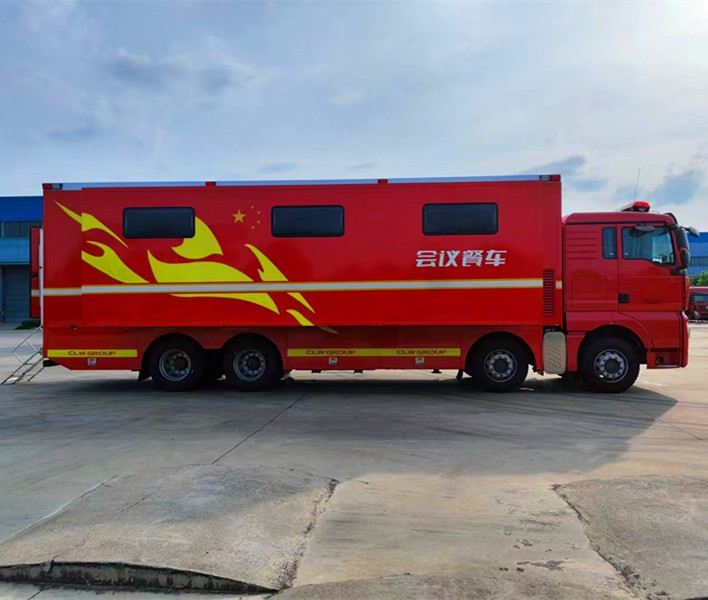

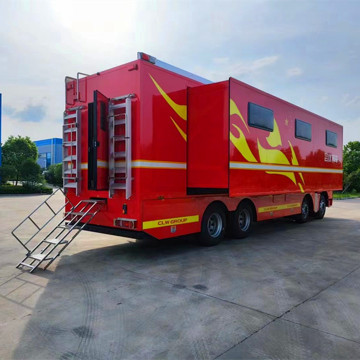

8x4 Heavy Duty truck Shantou Deka is a food truck modified based on the 8x4 chassis of heavy duty truck Shantou Deka. The following will be introduced from the chassis performance, top configuration, functional layout and other dimensions:
Strong power: such as Shantou Deka G7H 8x4 truck, equipped with MC11.44-59 series national five engine, maximum power 440 horsepower, maximum torque 2100N.m; There are also models equipped with Weichai WP10.5H engines, which meet the National Six emission requirements, with a maximum power of 460 HP and a maximum torque of 2110N.m.
Chassis and suspension excellent: front steering with lightweight suspension configuration, double parallel axle common 4 spring parabolic steel plate suspension, both lightweight and reliable load capacity, can also provide 8 bag air suspension configuration. Tire quality: The whole car uses aluminum alloy rims with 295/80R22.5 "race wheel tires" low rolling resistance energy-saving tires, wear resistance and low driving noise.
Material: The body plate is usually made of 2mm aluminum plate on the outer wall, 1.5mm stainless steel plate on the inside, steel skeleton on the inside and polyurethane filling, which has the characteristics of light weight, high strength, sound insulation and so on.
Expansion design: The left and right sides of the car body are designed with up and down expansion plates, which can effectively expand the use area and meet the dining and operation needs in different scenes.
Cooking area: Equipped with staple food stove, stir-fry stove, stew stove and other stove equipment, there is also a range hood to ensure a good cooking environment, in addition, there is enough space for multiple chefs to work at the same time.
Washing area: Equipped with a large capacity water tank to ensure the needs of kitchen water, at the same time, there is a centralized sewage collection system into the sewage tank, equipped with washing ponds, sinks and other facilities to meet the needs of food cleaning and tableware washing.
Cutting area: There is a spacious conditioning table, which is convenient for the chef to cut and prepare the ingredients.
Mixing area: can be placed a variety of seasonings, convenient for the chef to use in the cooking process.
Steamed rice area: equipped with steamed rice equipment, such as steam box, to meet the needs of a large number of rice or other staple food cooking.
Frozen storage area: freezer, refrigerator and other freezing and refrigeration equipment for storing ingredients and food.
It can be widely used in military and police fields such as army, public security special service, firefighting, etc., to provide food security for field duty personnel; It is also suitable for commercial activities, such as food festivals, auto shows, outdoor exhibitions, etc., and can also be used in tourist attractions to provide catering services for tourists.
Product Categories : Catering Vehicle > Food Truck
