Configure Parameters for DONGFENG Small Food Truck

Vehicle Details

• Name of vehicle manufacturer: Dongfeng
• Vehicle brand/vehicle name: Ace, Mobile food truck
• Body color: Optional
• Engine brand: Liuzhou Power
• Horsepower: 113 horsepower
• Type of fuel: Gasoline fuel
• Displacement and power (ml/kw): 1499 / 83
• Vehicle size: 5820x1900x2900mm
• Dimensions of cargo compartment: 3740x1810x1860mm
• Tire specifications: 175R14LT
• Number of tyres: 6
• Wheelbase (mm): 3000
• Form of steering: Steering wheel
• Total mass (kg): 3495
• Quality of equipment (kg): 2240
• Number of persons allowed to ride in the cab (person): 2
• Maximum design speed (km/h): 90

Dongfeng Tuyi Sales Truck is a practical multi-functional commercial vehicle. Below is its detailed introduction:

1. Basic Information of Cooking Truck

• Vehicle size: 5300×1790×2700mm, 5820×1900×2920mm, etc., interior size 3740×1810×1860mm, 3600×1760×1840mm, etc.; the size of different configuration models varies slightly.
• Vehicle wheelbase: Options include 2600mm, 3000mm, etc.; different wheelbases affect vehicle handling and interior space.
• Vehicle mass: Approximately 2,570kg, total mass approximately 3,495kg.
• Tire specifications: Typically equipped with 175R14LT 8PR, 185R15, and other specifications.

2. Mobile Shop Truck Chassis Configuration

• Engine: Options include 1.5L, 1.6L naturally aspirated gasoline engines and 2.3L diesel engines; the maximum power of the 1.5L engine reaches 112 HP, and the 1.6L engine has a maximum power of 51kW. The power output is stable and meets daily sales needs.
• Transmission: Equipped with a 5-speed manual transmission, smooth shifting, easy operation, and high reliability.
• Chassis structure: Uses an axletube-type front axle, 780mm-wide longitudinal beams, with strong load-bearing capacity and good stability.

3. Kitchen Truck Box Configuration

• Material structure: The box uses a rectangular square tube skeleton and cold plate skin structure; the flip panel is made of inner and outer color steel plates with a high-performance insulation board in between; the side panels are all composite, ensuring both robustness and lightweighting while maintaining good thermal insulation performance.

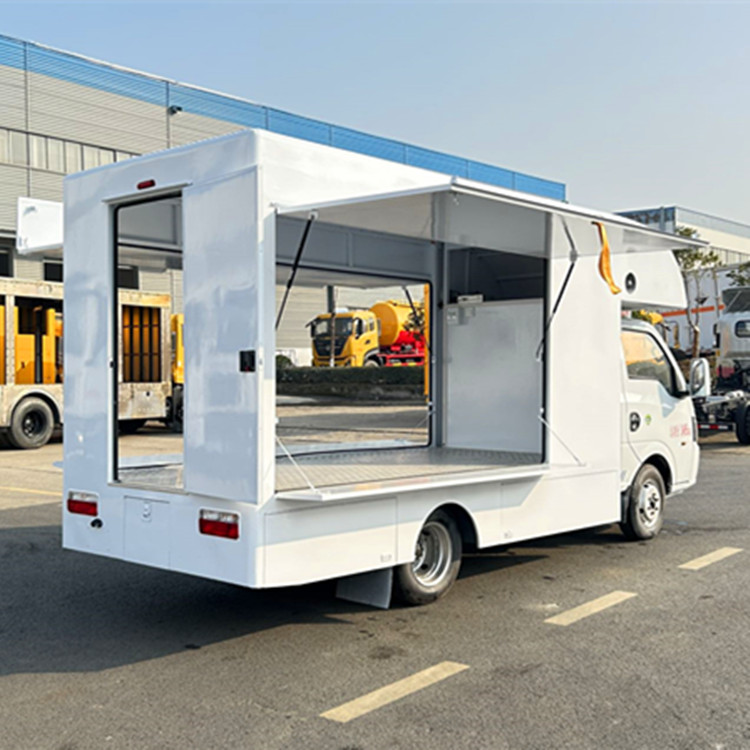

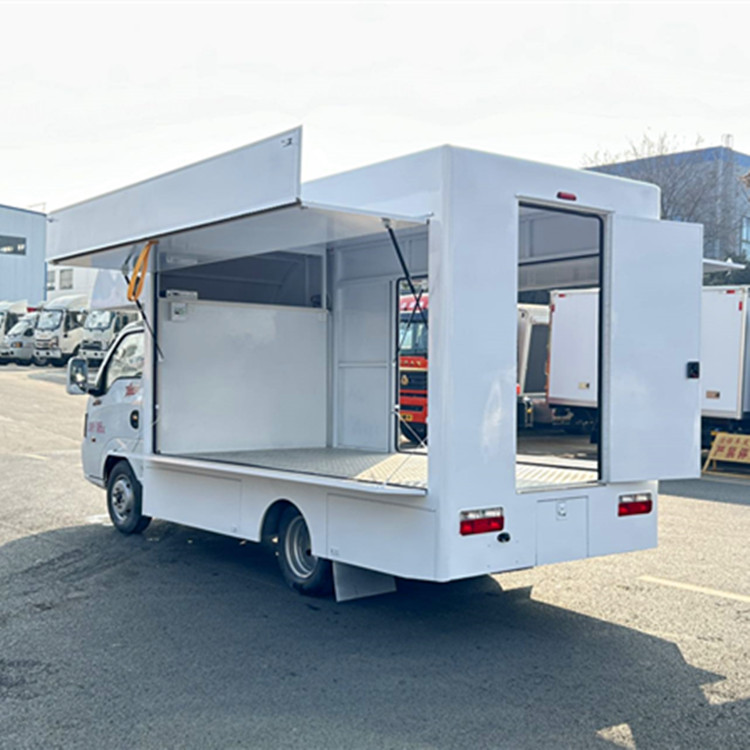

• Functional design: The box is mostly designed with a duck-bill forehead, featuring storage functions; some models have movable hydraulic or electric wingspans that allow the three sides to open up to 90° to form a sunshade and rain sales space, or an optional forehead bed with a ventilation window. The vehicle is equipped with five-hole sockets, LED light strips, external mains interface devices, speakers, etc., and can also customize containers, operating platforms, freezers, and other equipment as needed.

4. Interior and Configuration of Burger Truck

• Interior design: The center console has a modern design aesthetic,告别ing the simple image of traditional minivans. Some models come equipped with daytime running lights, multifunctional steering wheels, central control door locks, electric doors and windows, fixed-speed cruise, Bluetooth phones, original air conditioning, and ABS, enhancing driving comfort and convenience.
• Other configuration: Some models also feature large space storage cabinets in the upper cab, automatic charging, charge and discharge protection switches, step expansion ladders, etc., making them highly practical.
