DONGFENG 13 Meter Folding Arm aerial work vehicle Parameter Configuration

Chassis Configuration

Top Configuration

The working height is selected according to user requirements, the working bucket load is limited to 200Kg, the hydraulic 360 degree full rotation, three folding arms, single hydraulic lifting cylinder, two-way balance valve, electromagnetic control valve system, a ton of telescopic hook, four hydraulic cylinder telescopic legs, with two-way hydraulic lock, the legs can be manually operated or one-way control.

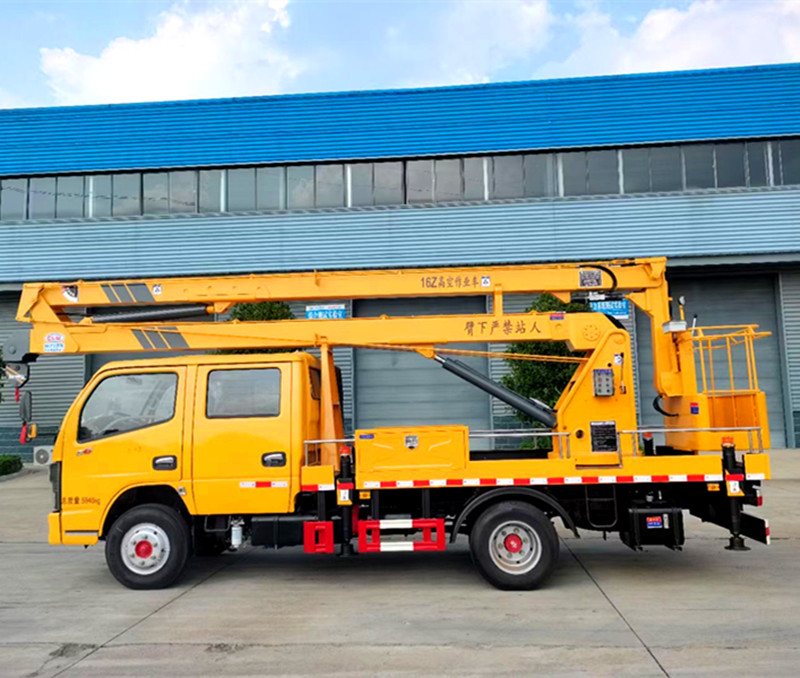

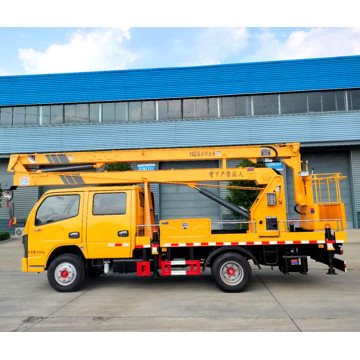

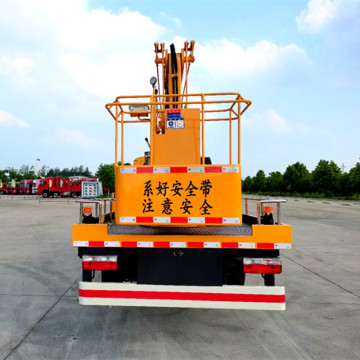

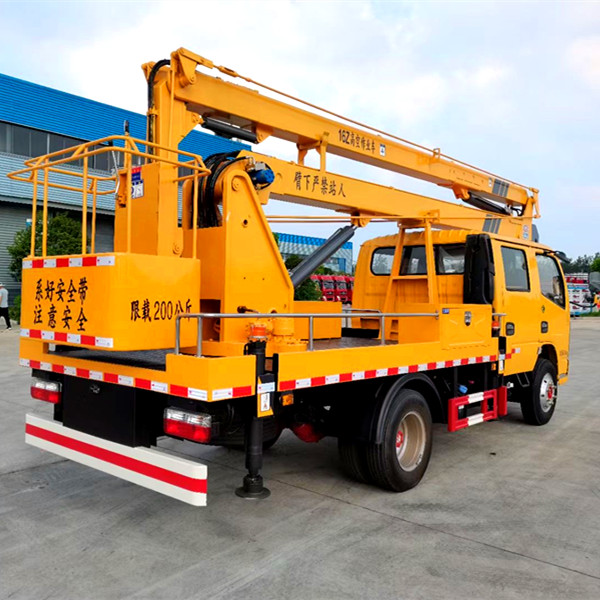

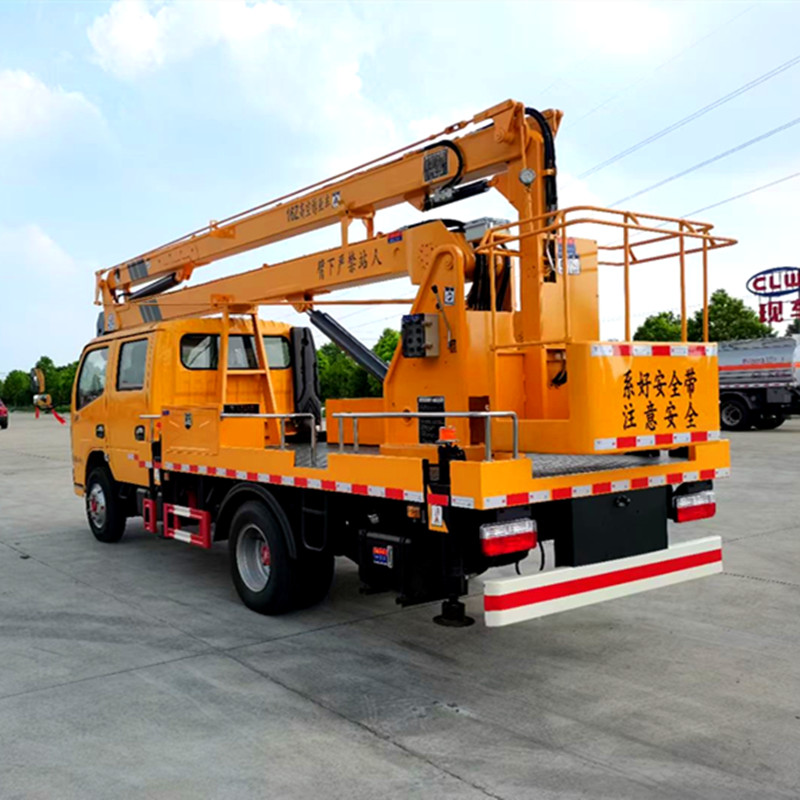

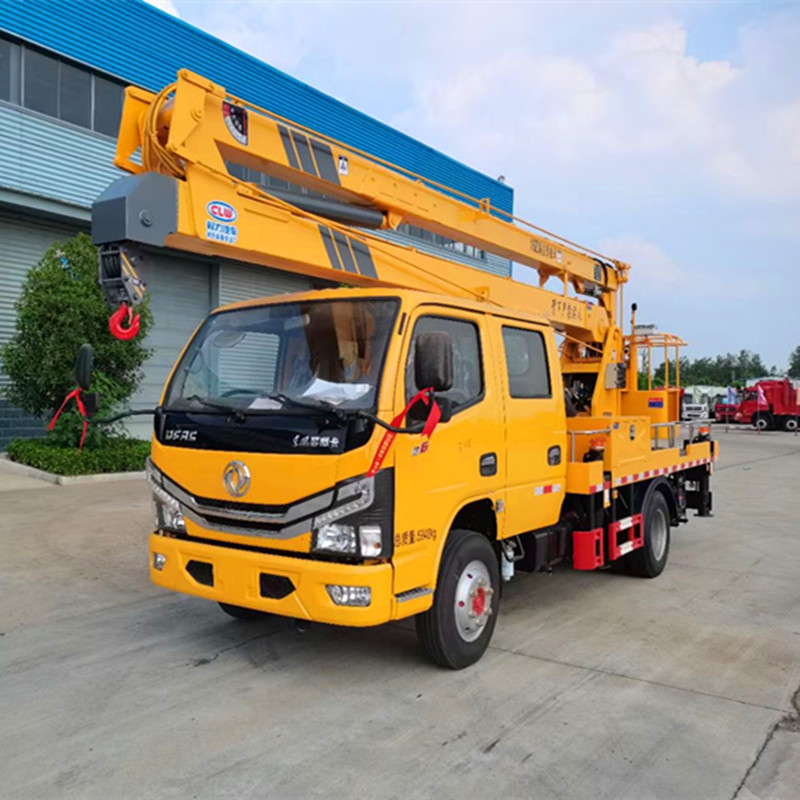

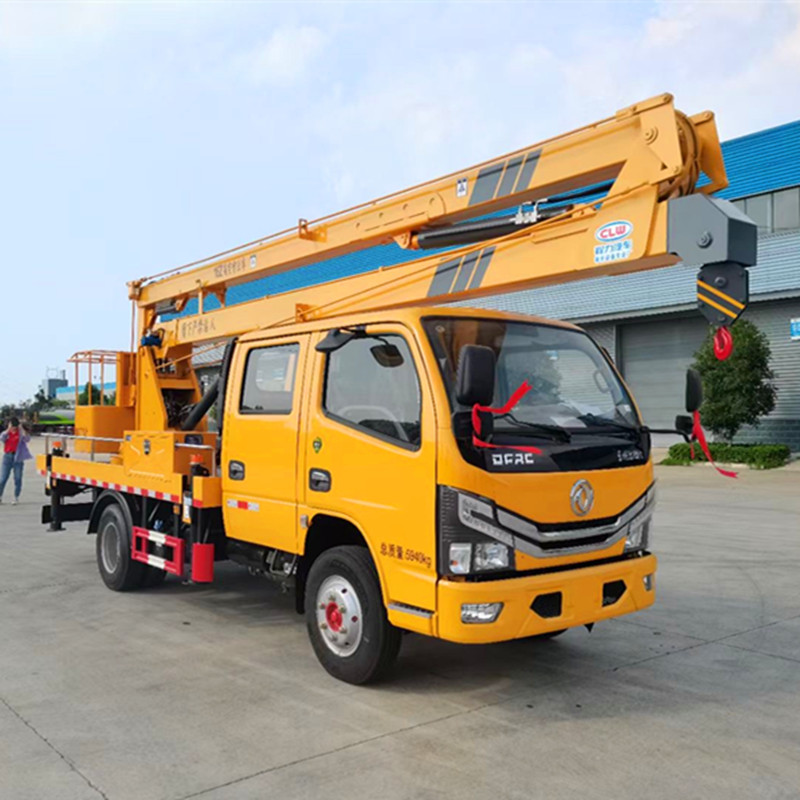

Dongfeng Dorika Folding Arm Aerial Work Vehicle Introduction

1. Basic Parameters of the Bucket Truck

• Chassis: Dongfeng Dorica chassis, such as EQ1075SJ3CDF and other models, strong bearing capacity, can adapt to a variety of road conditions.
• Engine: Common Yuchai YCY24140-60 engine, national six emission standards, fuel for diesel, the maximum power of 103kw (140ps), powerful and economical.
• Dimensions: about 8080×2000×3150mm, wheelbase 3308mm, repair mass 5500kg, total mass 5630kg, maximum speed 110km/h.
• Tire size: Generally 7.00R16.

2. Operation Performance of aerial bucket truck

• Lifting Height: The working height can reach 16 meters, which can meet the needs of most low-altitude to middle-altitude operations, such as urban street lamp maintenance, building exterior wall cleaning, etc.
• Boom Structure: Folding three-section arm, compact structure, good mobility, large operating range, can cross obstacles, can rotate 360 degrees, flexible in small spaces or complex environments.
• Working Bucket: The maximum bearing capacity is 200kg, internal operating rod or electronically controlled operating valve, automatic leveling of the working platform, external pull rod forced balance, to ensure the safety of operators and operation convenience.

3. Operation and Safety of Aerial Work Vehicle

• Dual Operation: There are two sets of independent operating devices, two modes of operation rod and electric control are optional, turntable, work bucket double station operation, the operator can be controlled on the ground or in the work bucket.
• Leg Mechanism: H-type leg, long span and good stability, can be independently or linked telescopic, equipped with leg alarm flashing light, leg and working arm interlock to prevent misoperation.
• Safety Device: Equipped with hydraulic system overload protection, cylinder safety self-locking, anti-tipping device, etc. Work bucket with overload limiter to ensure safe operation.

4. Application Fields of Aerial Work Truck

• Widely used in municipal engineering, electric power repair, street lamp maintenance, garden maintenance, building construction, advertising installation and other industries.
