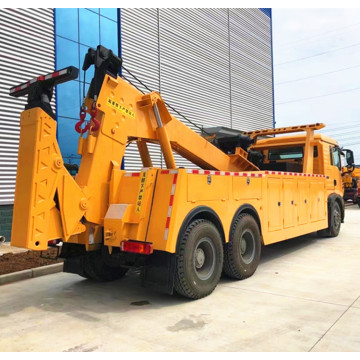

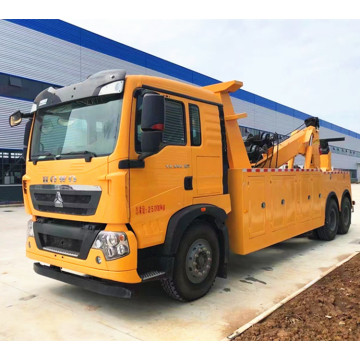

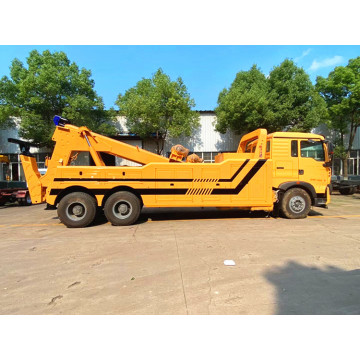

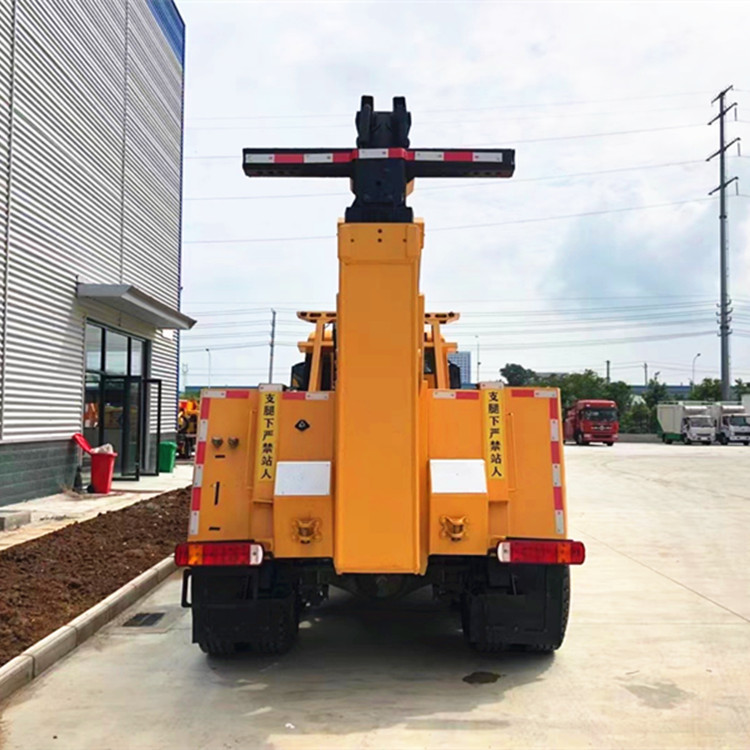

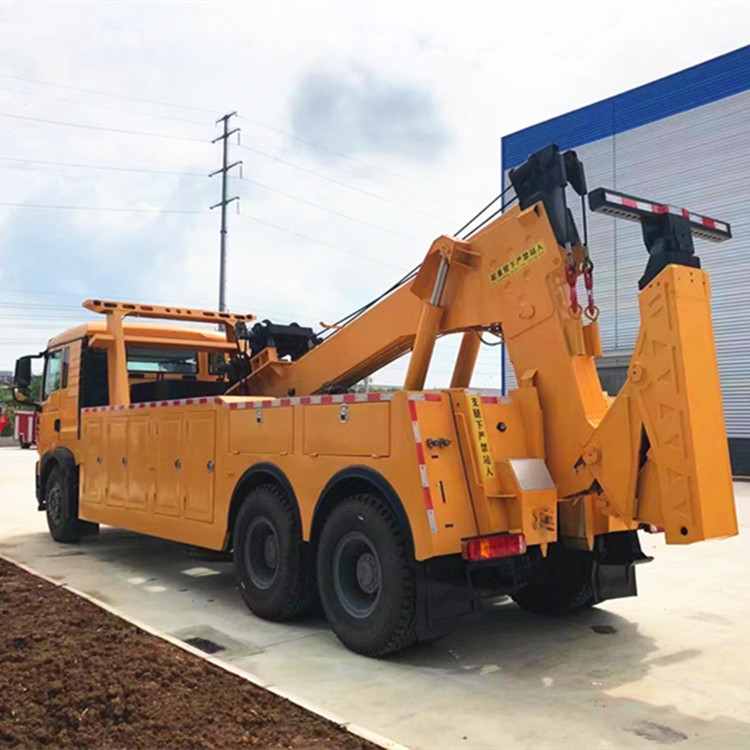

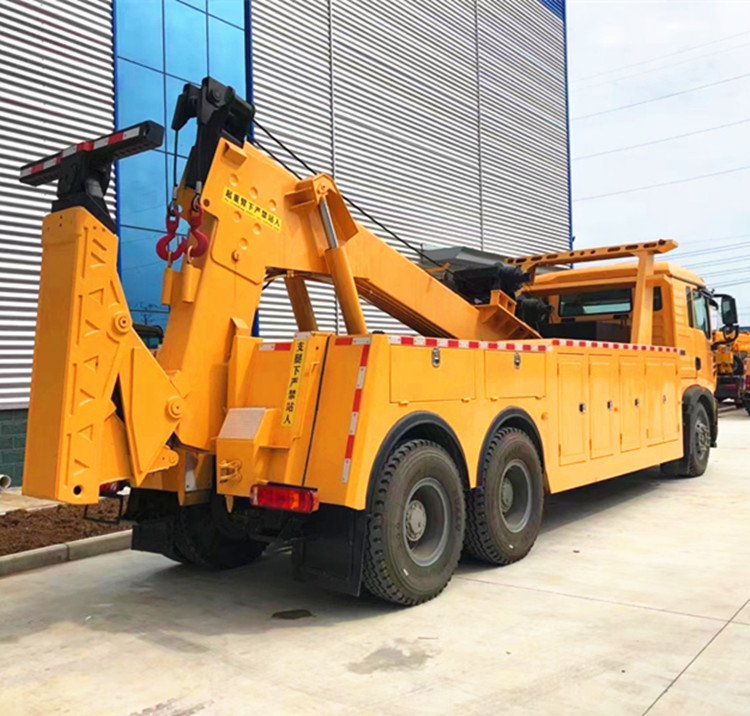

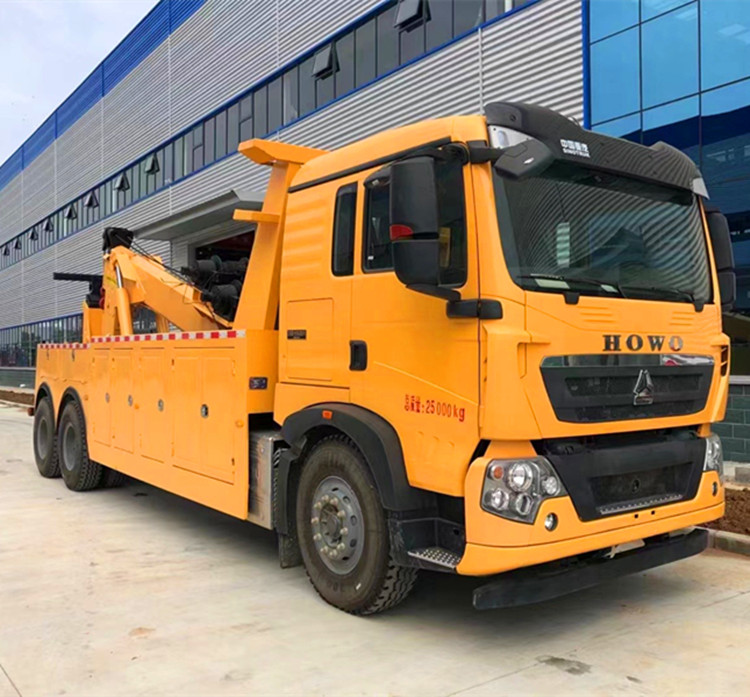

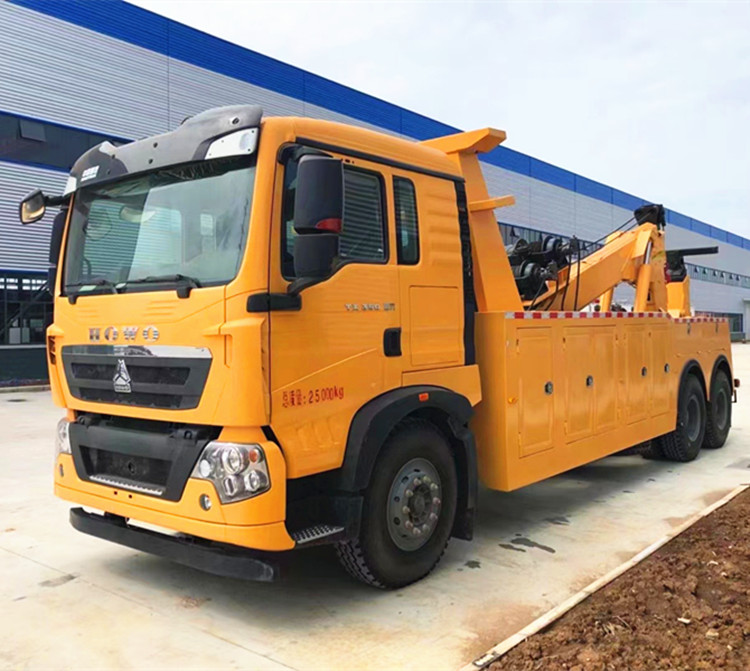

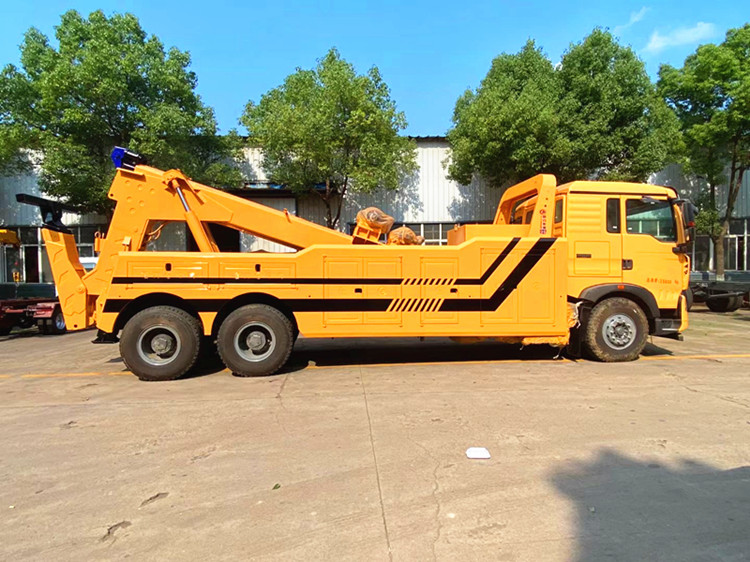

20-Ton Sinotruk Howo Tow Truck

Description of the Sinotruk Howo 20 tons wrecker truck

Cab

Row half cab with sleeping berth, 3 seater, with air-conditioner

Chassis

• Brand: Sinotruk Howo
• Drive type: 6x4 left hand drive
• Transmission: 10 forward gear, 1 reverse, manual mechanical type
• Braking System: Hydraulic brake
• Tire: 12.00R20, 10+1 (spare)
• Wheelbase: 5800+1350 mm
• Front axle/rear axle: 5.5 T / 11.5T

Engine

• Model: WP8.350E61
• Horse Power: 257kw / 350hp (Euro 6)
• Fuel type: Diesel oil
• Engine Size: 7800ml

Dimension & Weight

• Overall dimension (L*W*H): Approx 10580*2550*3120mm
• Gross Weight: Approx 25000kg
• Curb weight: Approx 21000kg

Upper body

Top standard: 20T20D top, combined top, inlet valve, two-section hexagon type boom, 20 three-section bracket, split carriage, double-side linkage operation device, two ten-ton hydraulic hoist, 45 meters steel wire rope, diameter of 18MM, with four sets of steel fork, a set of fork sleeve, a set of steel plate lug fork, a set of tire holding device. A long line of engineering lights. One set of auxiliary lights, one set of auxiliary gas pipe assembly, and two binding chains;

Cheng Li 20 tons Tow Truck is a powerful road rescue vehicle, the following is its main introduction:

• Wrecker Truck chassis and power: It is usually equipped with Shaanxi Automobile Delong M3000 and other chassis, equipped with Weichai 350hp engine and powerful power, and equipped with Fast 12-speed transmission, the gear shift is smooth and can adapt to various complex road conditions.
• Wrecker Tow Truck loading configuration: with 20 tons lifting boom, double 10 tons lifting, 20 tons three-section rear tow boom, complete vehicle electrophoretic paint process, strong anti-rust ability, beautiful and durable appearance.
• Features of heavy duty wrecker: It can be used to lift accidents or faulty vehicles with the lifting arm, and also to tow and lift vehicles with the rear tow arm, which can realize integrated tow and lifting operation with high working efficiency. It is suitable for expressway, urban road and other occasions, and can quickly clean up faults, accidents and illegal vehicles to ensure smooth road.
• Operation mode of Wrecking tow Truck: Obtain the chassis power through the force extractor, and operate the control rods such as leg, bracket arm and lifting arm to complete the corresponding actions. Some vehicles can be equipped with wireless remote control device for more convenient operation.
• Safety and auxiliary equipment: equipped with warning lights, straps, training wheels, etc., to ensure the safety of operation and the fixed rescue vehicle.
