Isuzu 8x4 Heavy Duty Wrecker Truck Parameter Settings

Vehicle Parameter Configuration

Vehicle brand/vehicle name: Clw

Wrecker Tow Truck:

Engine brand: Isuzu Power

Horsepower: 400 horsepower

Type of fuel: Diesel fuel

Displacement and power (ml/kw): 12400 / 295

Emission standards: Optional

Crane type: X

Vehicle size: 11575*2550*3480mm

Number of tyres: 12

Tire specifications: 12.00R20

Number of axes: 4

Form of steering: The steering wheel

Total mass (kg): 31000

Quality of equipment(kg): 25600

Number of persons allowed to ride in the cab (person): 3

Maximum design speed (km/h): 100

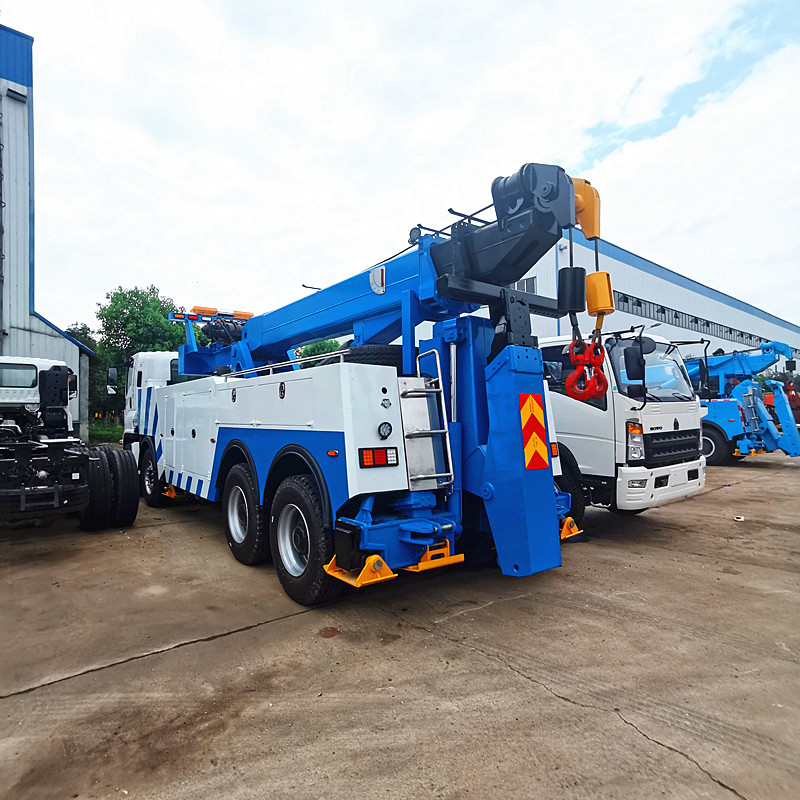

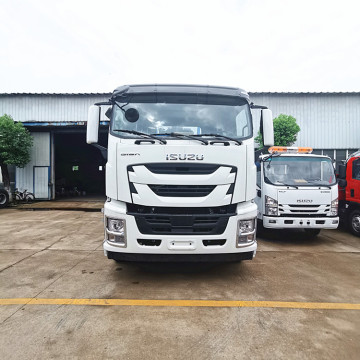

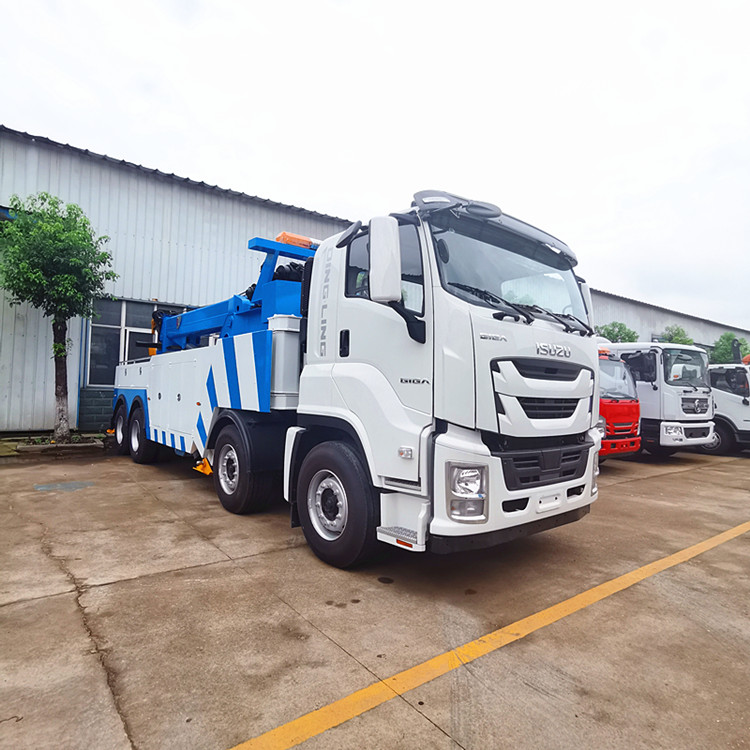

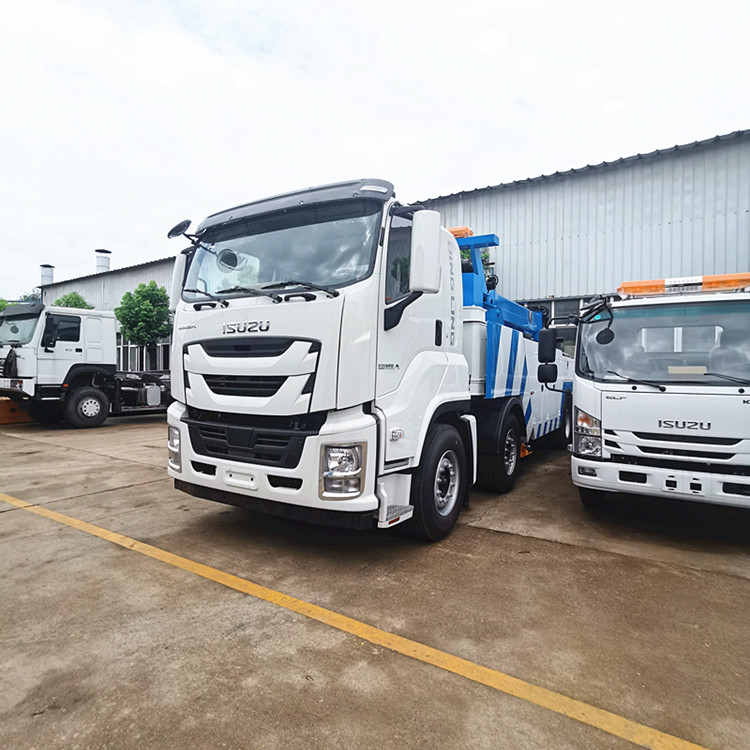

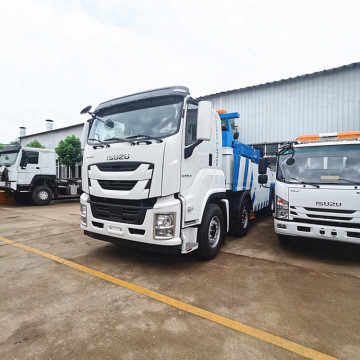

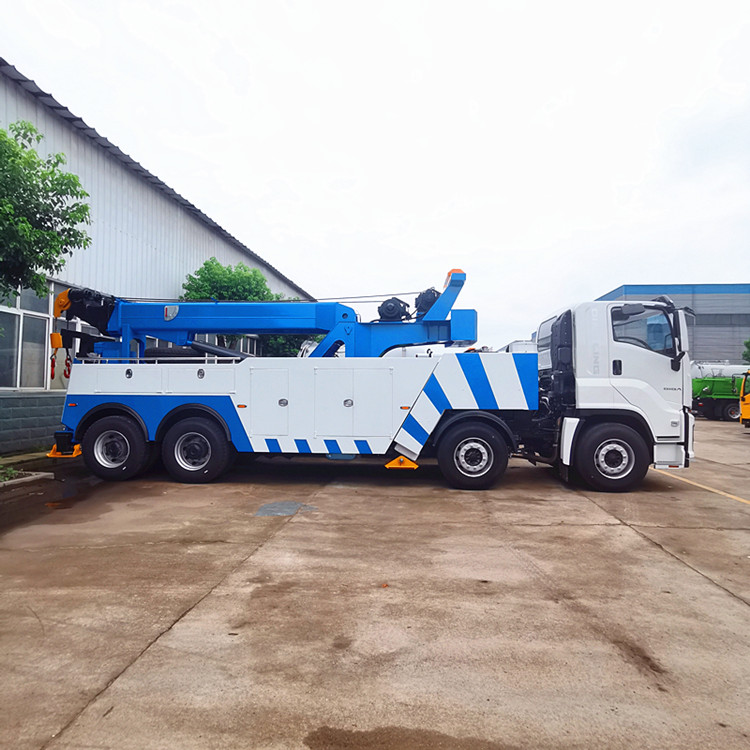

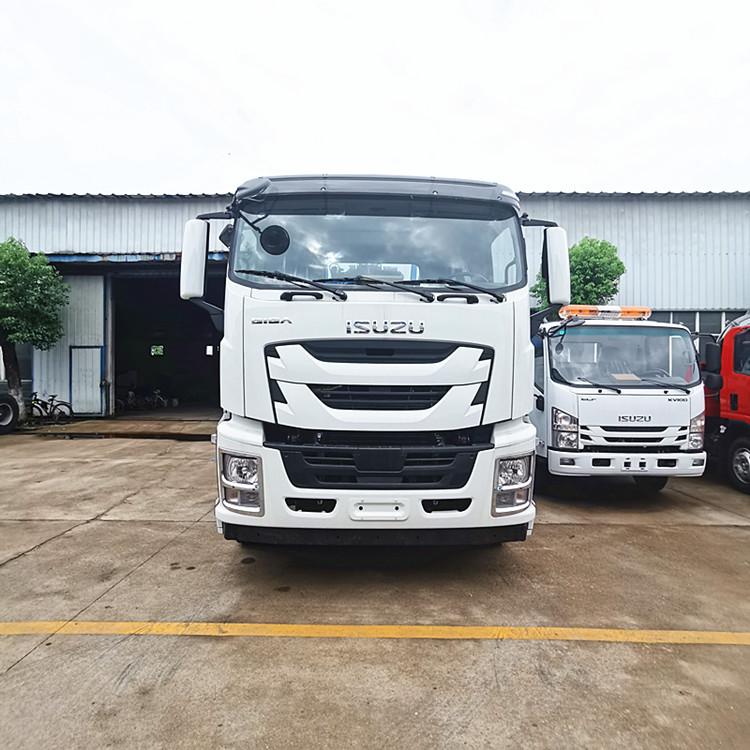

Isuzu 8x4 Towing Integrated Wrecker Truck Introduction:

1. Isuzu Giant 8x4 Tow Truck Chassis Performance: The 8x4 drive form provides strong driving force and load capacity, suitable for a variety of complex road conditions and heavy duty obstacle clearing tasks, to ensure stability and safety when pulling and lifting heavy objects.

2. Power system: Equipped with Isuzu high-performance engine, powerful power, output power and torque can meet the high requirements of vehicle power during obstacle clearance operations, to ensure that the vehicle can still run efficiently under full load and complex conditions.

3. Isuzu Wrecker Truck Boom System: equipped with professional-grade boom, with large lifting weight and working radius. The lifting arm can be rotated 360 degrees and can be flexibly hoisted at different angles and positions, easily lifting accident vehicles or heavy objects.

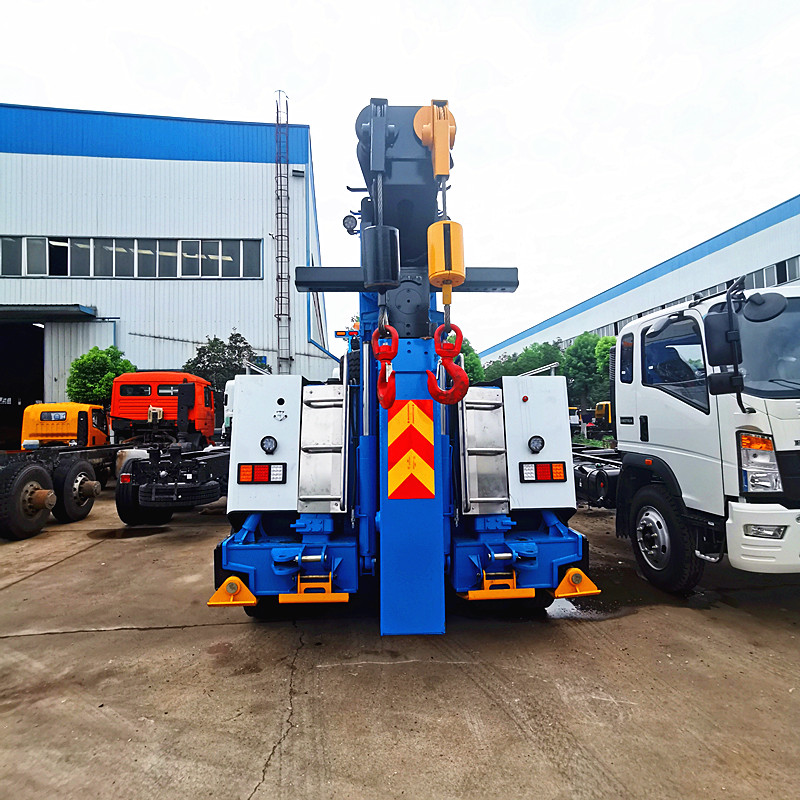

4. Heavy Duty Towing Truck Lift Traction Device: The rear lift towing system has a strong lifting ability and traction force, which can quickly and stably lift and pull the faulty vehicle to the designated place, and is equipped with adjustable brackets and fixed devices to adapt to different models and sizes of vehicles.

5. Road Wrecker Truck Hydraulic System: Using advanced hydraulic technology, hydraulic components are reliable in quality and stable in performance. The system provides a powerful power output to ensure smooth, fast execution of the boom, lift and traction actions, with good control accuracy.

6. Wrecking Truck Compartment and Loading: Compartment space is spacious, can be used to store a variety of cleaning tools and equipment, such as steel wire rope, pulley, jack, etc., easy access, improve working efficiency. The carriages are made of high-strength steel, which is durable and has good corrosion and impact resistance.

7. Control System: The vehicle is equipped with intelligent electronic control system, simple and convenient operation, which can realize the precise control of the boom, lifting, traction and other functions, and has a variety of safety protection functions, such as overload protection, limit protection, etc., to prevent misoperation and accidents.
