Dongfeng Hydraulic 12 Tons

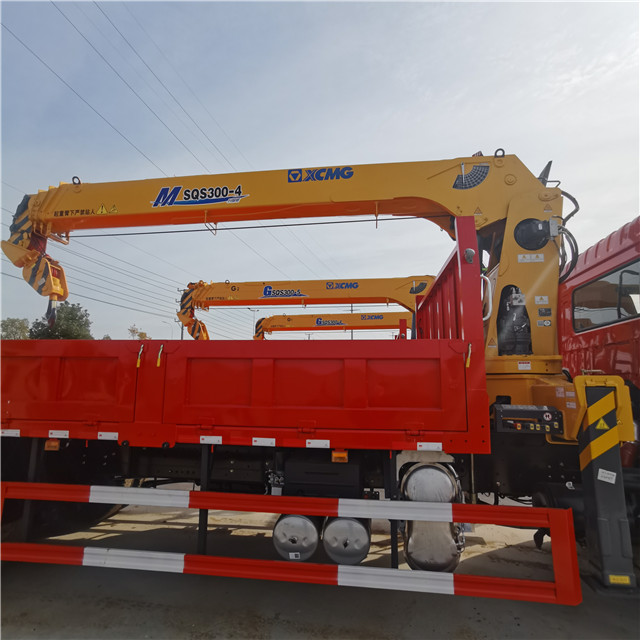

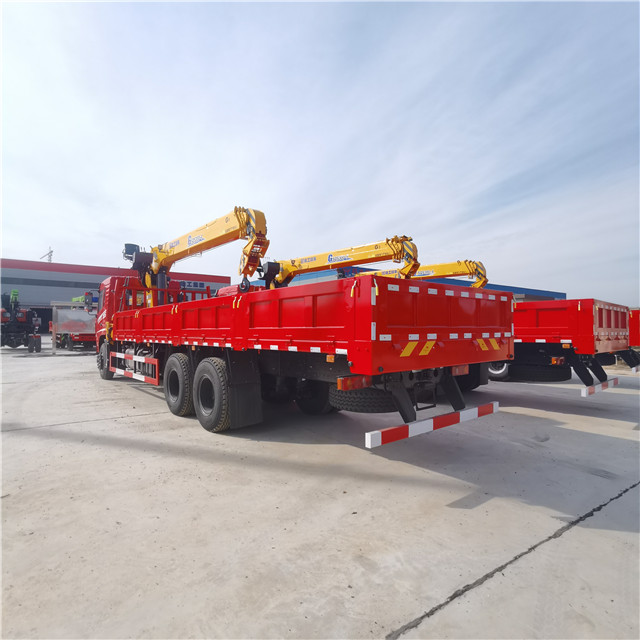

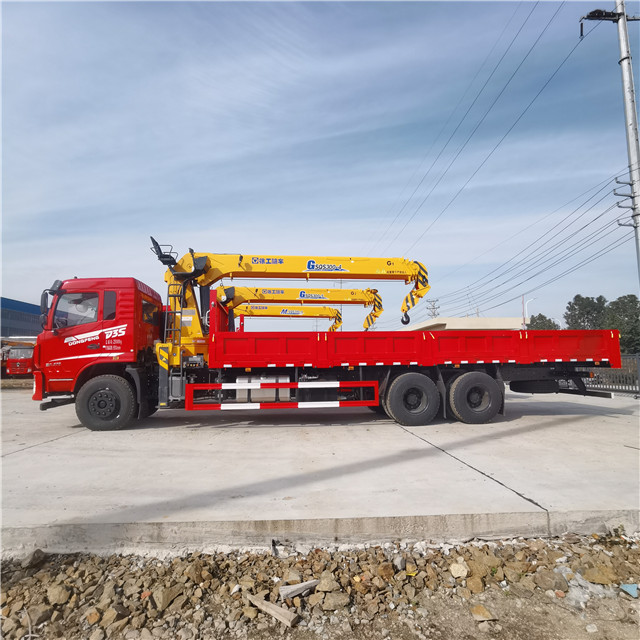

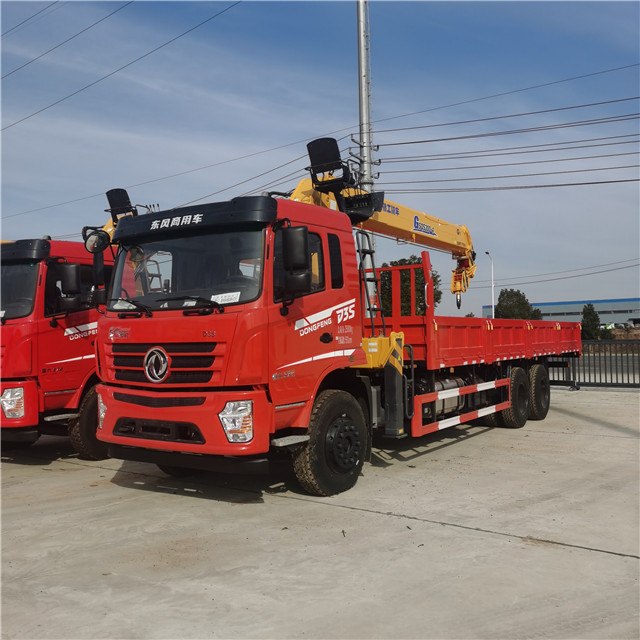

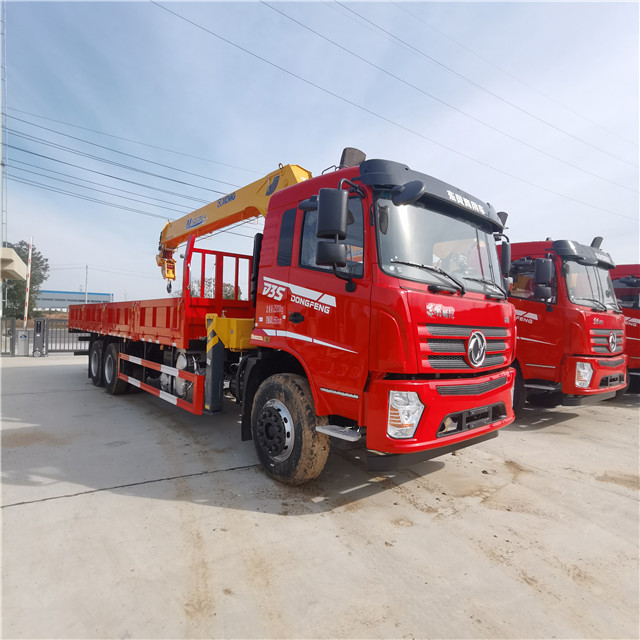

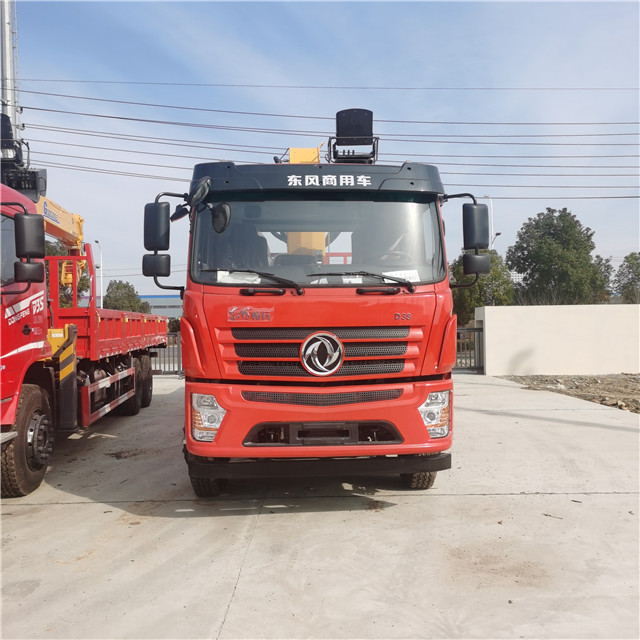

Truck Mounted Crane Dongfeng Hydraulic 12 Tons Truck Mounted Crane Introduction
Dongfeng rear eight-wheel truck crane is a type of specialized vehicle widely used in engineering construction, logistics transportation, municipal operations, and other fields. Below is its relevant introduction.
- Power System: Typically equipped with high-horsepower diesel engines, such as Yuchai, Cummins, and other brands. These engines provide strong power, meeting the demands of lifting operations and vehicle driving. Common options include Yuchai 270 horsepower and Cummins 290 horsepower, featuring large torque, excellent climbing ability, and heavy-load starting capability, allowing adaptation to various complex working environments.
- Chassis Structure: Solid chassis design with a general frame of 300 straight three-layer girders. Some areas may have four layers of reinforcement to ensure the carrying capacity and stability of the vehicle. The front axle typically exceeds 5 tons, while the rear axle is a double rear axle with a carrying capacity of up to 10 tons or more, providing sufficient support for the crane and cargo.
- Wheelbase: Long wheelbase, generally 4750mm+1350mm and above. This design not only enhances vehicle stability but also offers ample installation space for the hoist and cargo box, ensuring greater stability during driving.
- Tires: Equipped with steel tires of 11.00R20 and higher specifications, offering excellent wear resistance, load capacity, and grip, suitable for various road conditions.
- Other Configurations: Standard features include electric windows, aluminum alloy gas tanks, ABS, power steering, and air brakes. Some models can also be optionally equipped with airbag seats, central locking, two-point suspension, multifunctional steering wheels, multimedia systems, 360° reversing cameras, and other comfort and safety configurations.
- Crane Brand: Compatible with multiple crane brands, including Chengli, Xugong, Sany, Changxing, Tengyu, etc. Users can select based on their requirements and budget. Different brands offer varying performance, quality, and pricing.
- Lifting Capacity: Generally, the lifting capacity of Dongfeng rear eight-wheel truck cranes ranges from 10 to 16 tons. Some models can accommodate larger tonnage cranes, subject to chassis load-bearing capacity and relevant regulations. Cranes have high lifting heights and extensive operational ranges, meeting most engineering needs.
- Boom Form: Available in straight-arm and fold-arm designs. Straight-arm cranes offer a large working radius, ideal for operations in relatively open environments like roads and construction sites. Fold-arm cranes have smaller working radii, flexible joints, and easier operation, making them suitable for narrower spaces such as warehouses and factories.
3. Container Part:
- Size: Cargo box lengths typically range from 7 to 8.5 meters, widths from 2.3 to 2.5 meters, and heights from 0.5 to 0.6 meters, depending on the chassis model and user preferences. The cargo box is usually made of high-strength steel plates, offering excellent load-bearing capacity and durability.
- Structure: The cargo box structure is robust and can be customized based on user needs, such as adding bars or protective nets, to meet the transportation requirements of various goods.
4. Application Scenario:
Dongfeng eight-wheel truck cranes are extensively used in power construction, municipal construction, infrastructure projects, steel structure construction, equipment installation, forestry logging, landscaping, and other industries.
