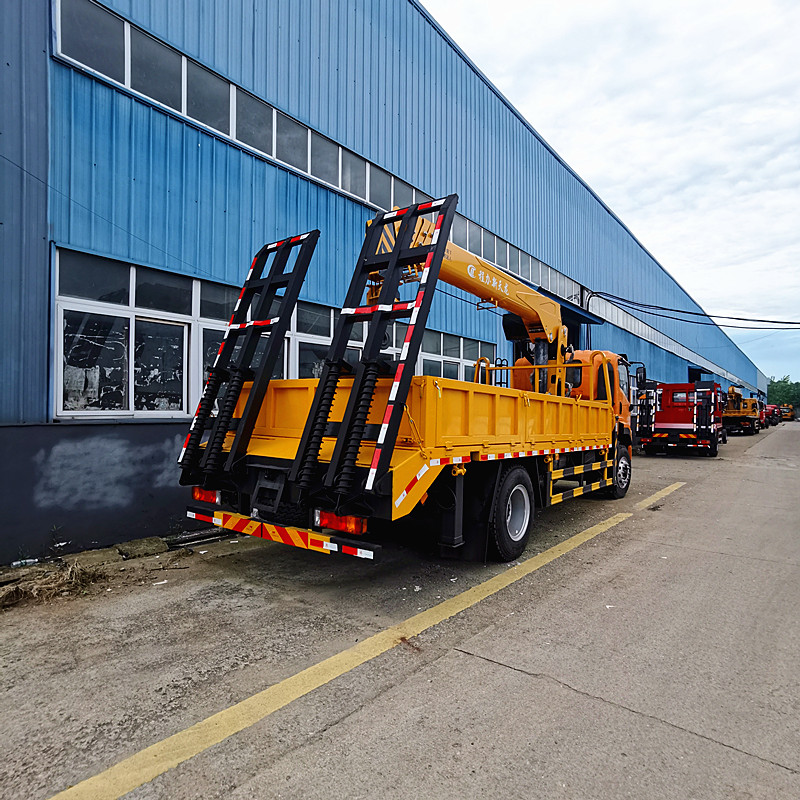

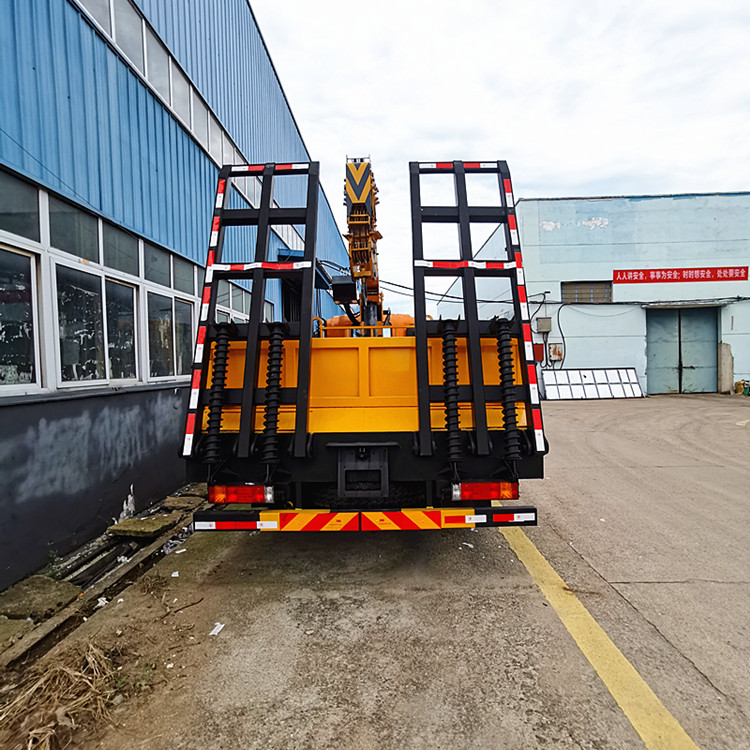

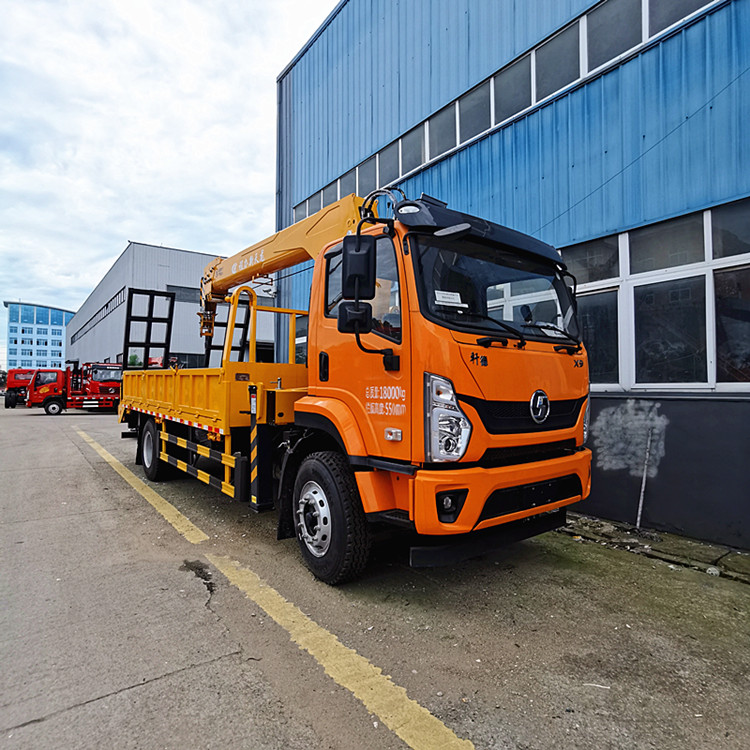

SHACMAN 8 Ton Truck Mounted Crane with Ladder Introduction

Shaanxi automobile crane is a special vehicle that combines the lifting function with the transportation function. The following is its main introduction:

1. telescopic truck mounted crane Chassis:
   • Chassis model: The common chassis model is SX1189BP6511, etc.
   • Power configuration: Usually equipped with Yuchai engine, such as Yuchai 200 horsepower engine, the power is relatively strong, can meet the power needs of vehicle driving and lifting operations. Some models also have other horsepower ranges to choose from, such as Yuchai 240 HP. The gearbox generally adopts the Fast 8-speed gearbox with smooth shifting, which can adapt to different road conditions and operation scenarios.
   • Axle and tires: Equipped with 5t front axle and 10t rear axle (some high-configuration models can reach 11.5t rear axle), the carrying capacity is strong. Most of the tires are 1000R20 steel wire tires, which have good wear resistance and grip.
   • Girder structure: 280mm 8+4+6 straight-through three-layer girder or 280mm straight-through three-layer C-type all-wrapped girder structure can provide good support and stability for the vehicle to ensure the safety of the vehicle during lifting operations.

2. Truck With Crane Cab Configuration:

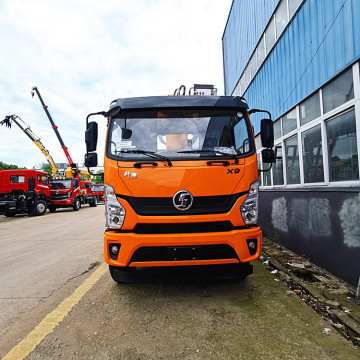

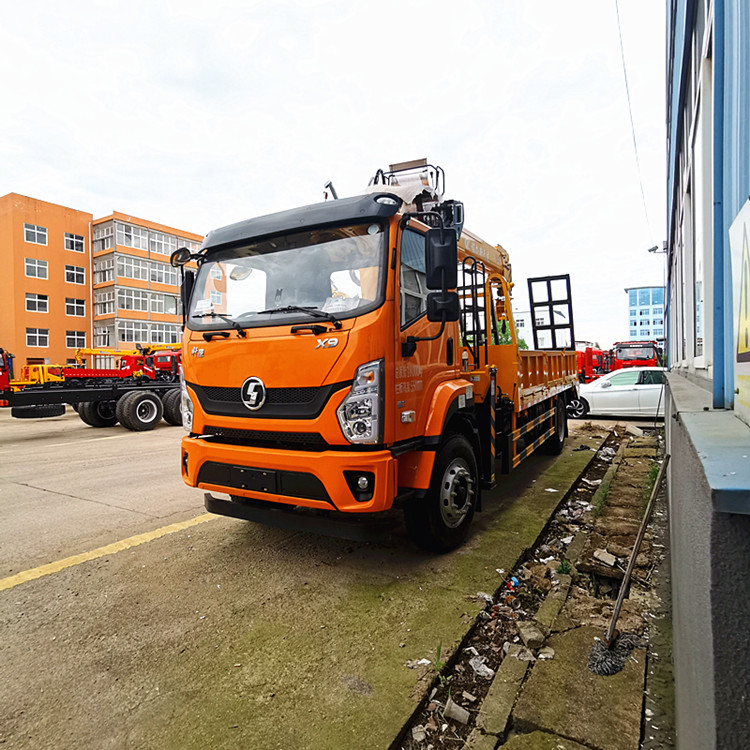

   • The cab of X9 is more luxurious, equipped with airbag seats, which can provide the driver with a comfortable driving experience and reduce the fatigue of driving for a long time. The multi-functional steering wheel (with cruise control) is convenient for the driver to operate during the driving process, improving the convenience and safety of driving.
   • The original air conditioning can provide a comfortable driving environment for drivers in different climatic conditions. Other configurations include driving recorders, electric doors and Windows, 4-in-1 remote keys, LED daytime running lights, central lock, 7-inch multimedia screen (with reversing image), etc. These configurations not only improve the comfort of the vehicle, but also enhance the safety and ease of operation of the vehicle.

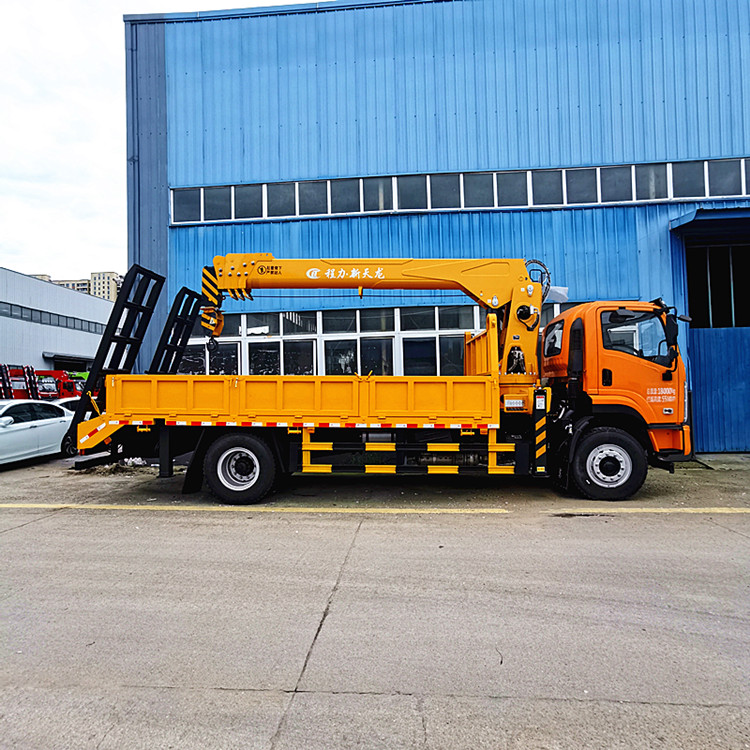

3. Truck Mounted Knuckle Boom Crane Part:
   • Crane brand: Can be equipped with a variety of brands of cranes, such as Chengli, Changxing, Sany Palfinger, Xugong and so on. Different brands of cranes vary in performance, quality and price, and users can choose according to their needs and budgets.
   • Crane parameters: Taking the common 8-ton crane as an example, the large lifting torque can reach 200kN·m, the large lifting mass is 8000kg, the length of the large overhang arm is about 13 meters, the large lifting height is about 15-16.5 meters, and the turning Angle is 360 degrees.
   • Leg structure: The leg structure is generally double cavity telescopic square leg, leg span is large, can provide good stability and support for lifting operations.

4. truck crane Size and Cargo Box:
   • Vehicle size: The length of the vehicle is generally about 9000mm, the width is about 2550mm, and the height is between 550mm-600mm according to different configurations.
   • Container size: The container length is usually 6100mm, 6200mm or 6300mm and other options, the width is 2450mm, the height is 550mm or 600mm. The cargo box can be customized according to the needs of users, such as the use of cold riveting process of the cargo box, while ensuring light weight, but also to ensure the strength and carrying capacity of the vehicle.

5. Price Range: According to different configuration and crane brand, the price of Shaanxi auto crane is different. Please contact us for specific parameter configuration and price.
