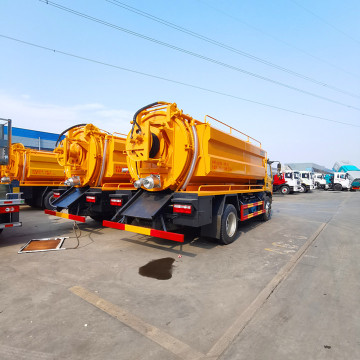

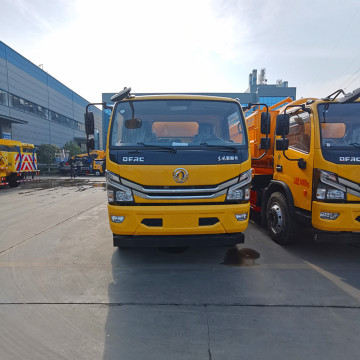

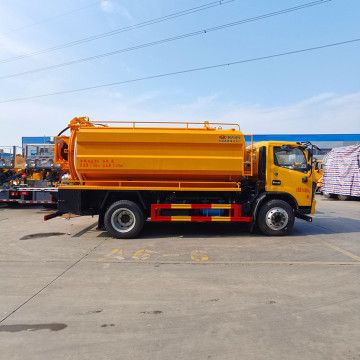

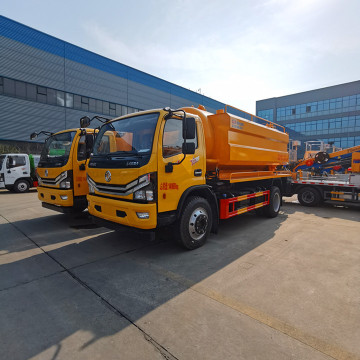

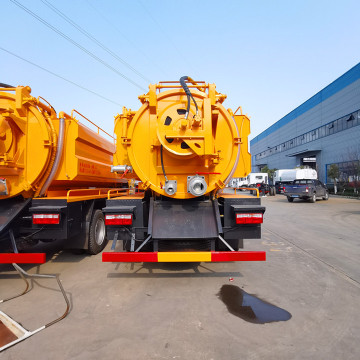

Cheng Li 9 CBM Cleaning Suction Truck

Cheng Li 9 cbm cleaning suction truck
                         Cheng Li 9 cbm cleaning suction truck introduction Name of vehicle manufacturer  DONGFENG Vehicle brand/vehicle name  ace  Cleanning Sewage Suction Truck Body color  Optional Engine brand yuchai Power Horsepower 160 horsepower Type of fuel  Diesel fuel Displacement and power (ml/kw)  2970  118 Emission standards  Optional     Vehicle size 7300*2360*3160mm Tank volume  9m³ Tire specifications)  8.25R20 Number of tyres  6 Wheelbase（mm）  3308（Optional） Number of axes 2 Form of steering   The steering wheel Total mass (kg)   14060 Quality of equipment(kg)   8230 Number of persons allowed to ride in the cab (person)  3 Maximum design speed (km/h)   90                                        Configuration of tank body parameters The water tank adopts the national standard 4mm thick carbon steel plate, the high-pressure cleaning part adopts the new product Fuuv215 flow rate, 20MPa high-pressure pump, 60m diameter 19 high-pressure pipe. The tank is made of national standard 5mm thick carbon steel plate, standard equipped with Shandong SK-9 full-sealed water circulation pump, anti-overflow valve, according to the manure pipe, with an 8m suction pipe with a quick joint of yin and Yang End, the back cover is opened by hydraulic pressure. Dongfeng Dorika cleaning suction truck is an efficient sanitation special vehicle. 1.sewer pump truck chassis • It generally uses the Dongfeng Dorica D7 series chassis. This chassis has reliable quality, good stability and strong bearing capacity.The engine is full of power, which can provide sufficient power support for various operations of the vehicle in the process of operation, ensuring that the vehicle can smoothly drive and work under different road conditions. • The wheelbase of the chassis is usually between 3800 and 4700mm, which makes the center of gravity distribution of the vehicle more reasonable and smoother to drive. 2.Septic Tank Truck top part  • Cleaning tank: The tank body is made of high-quality carbon steel material, the thickness is about 4-6mm, the volume is 4-6 cubic meters. Its interior has been specially treated to effectively prevent rust and corrosion, and is equipped with a liquid level gauge, which can easily observe the liquid level in the tank. • Suction tank: the volume is generally 6-10 cubic meters, the tank is also carbon steel material, high strength, can withstand a certain pressure. The shape design of the tank is reasonable, which is conducive to the flow and complete discharge of the medium during the fouling process. 3. High-pressure cleaning system for sewer pump truck • Equipped with high-power high-pressure cleaning pump, the pressure can reach 20-28MPa, the flow rate can reach 130-240L /min. Strong pressure can effectively flush all kinds of stubborn stains and blocked pipes, such as oil, sediment and other sediments in urban sewers. • The length of the high-pressure cleaning pipe is generally about 60-100 meters, the material is wear-resistant and corrosion resistant, and there are various types of nozzles, such as fan nozzles for large-area washing, and column nozzles for strong impact blocking points. 4. Vacuum suction system • Equipped with high performance vacuum pump, fast pumping rate, high vacuum degree. The sewage and sludge can be quickly sucked into the suction tank, and the suction operation can be easily handled for a longer distance or a larger depth. • The suction pipe is generally equipped with two pieces, the length is about 8-10 meters, and the pipe mouth is equipped with a filter screen and other devices to prevent large debris from entering the damaged equipment. 5.sewage vacuum truck performance advantages • High working efficiency: cleaning and suction can be carried out at the same time, which greatly reduces the working time and improves the working efficiency. For example, when cleaning a long sewer, you can wash while suction, uninterrupted operation. • Easy to operate: the vehicle's operating system is designed to be humanized, and the layout of various control buttons is reasonable, and the operator can master it through simple training. 6. Scope of vacuum septic truck • It is mainly used for the cleaning and dredging of urban sewers and stormwater pipes by the municipal sanitation department, and it is also suitable for the cleaning of septic tanks and sewage Wells in factories, residential areas and other places to keep environmental sanitation and pipes unblocked.
