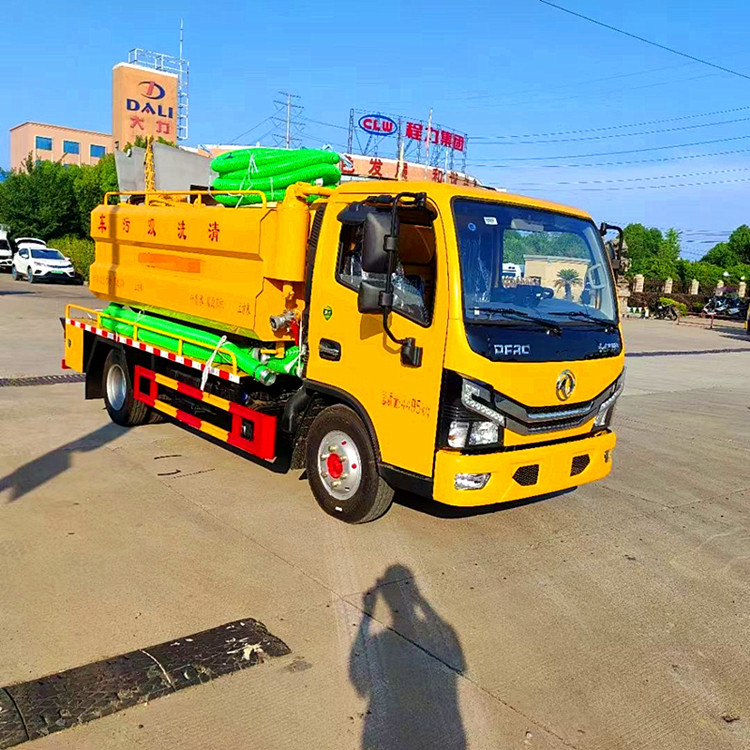

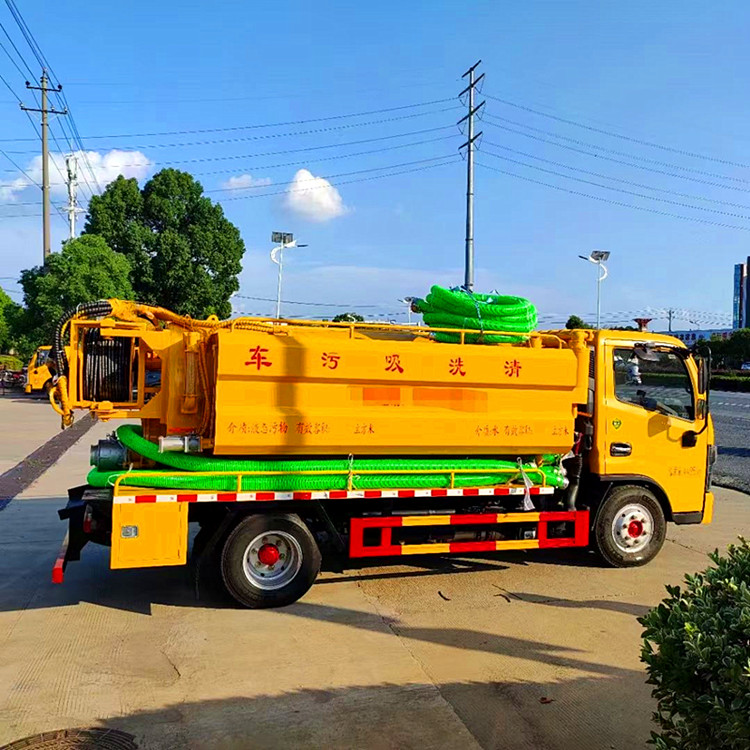

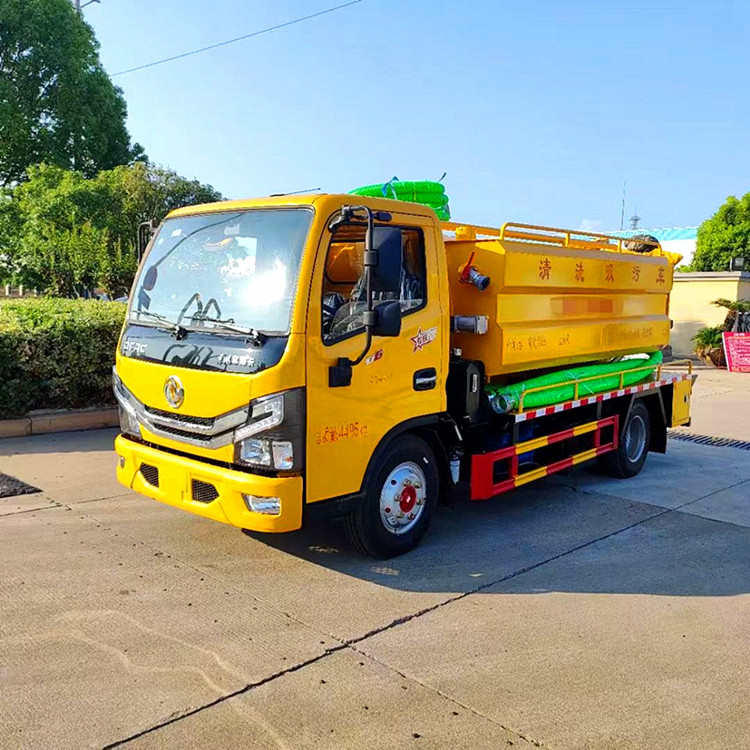

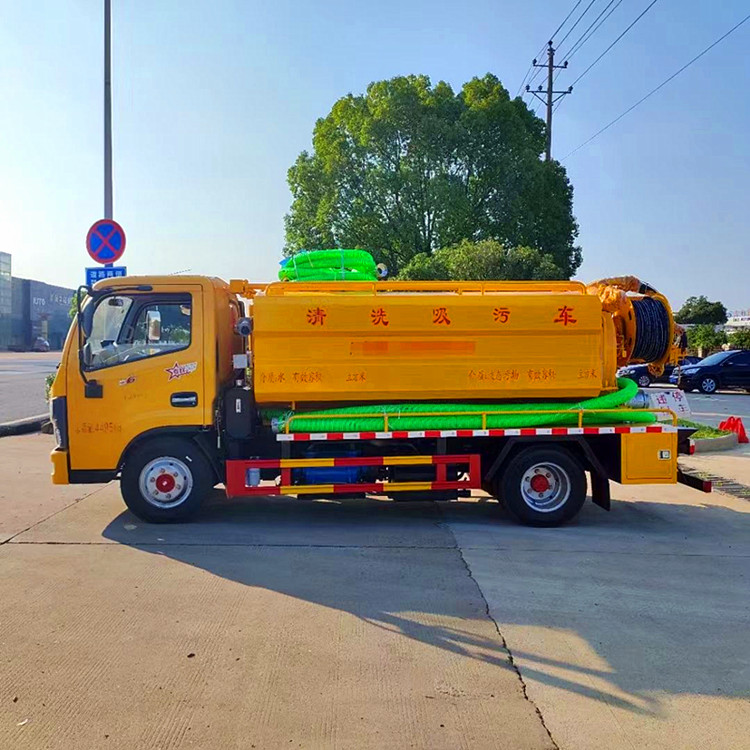

Dongfeng Cleaning and Sewage Suction Truck Introduction

Vehicle Manufacturer

dongfeng

Vehicle Brand/Vehicle Name

 ace

 clean and Sewage Suction Truck

Body Color

 Optional

Engine Brand

yuchai Power

Horsepower

130 horsepower

Type of Fuel

Diesel fuel

Displacement and Power (ml/kw)

 2970

 95

Emission Standards

 Optional

Vehicle Size

5995x2050x2250mm

Tank Volume

 5m³

Number of Leaf Springs (Leaf)

 3/3+2

Number of Tyres

 6

Tire Specifications

7.00R16

Wheelbase (mm)

 3308（Optional）

Number of Axes

2

Form of Steering

 The steering wheel

Total Mass (kg)

 7360

Quality of Equipment (kg)

 5385

Number of Persons Allowed to Ride in the Cab (Person)

3

Maximum Design Speed (km/h)

 90

Configuration of Tank Body Parameters

The water tank adopts the national standard 4mm thick carbon steel plate, the high-pressure cleaning part adopts the new product Fuuv215 flow rate, 20MPa high-pressure pump, 60m diameter 19 high-pressure pipe. The tank is made of national standard 5mm thick carbon steel plate, standard equipped with Shandong SK-9 full-sealed water circulation pump, anti-overflow valve, according to the manure pipe, with an 8m suction pipe with a quick joint of yin and Yang End, the back cover is opened by hydraulic pressure.

Dongfeng Dorika Cleaning Suction Truck Overview

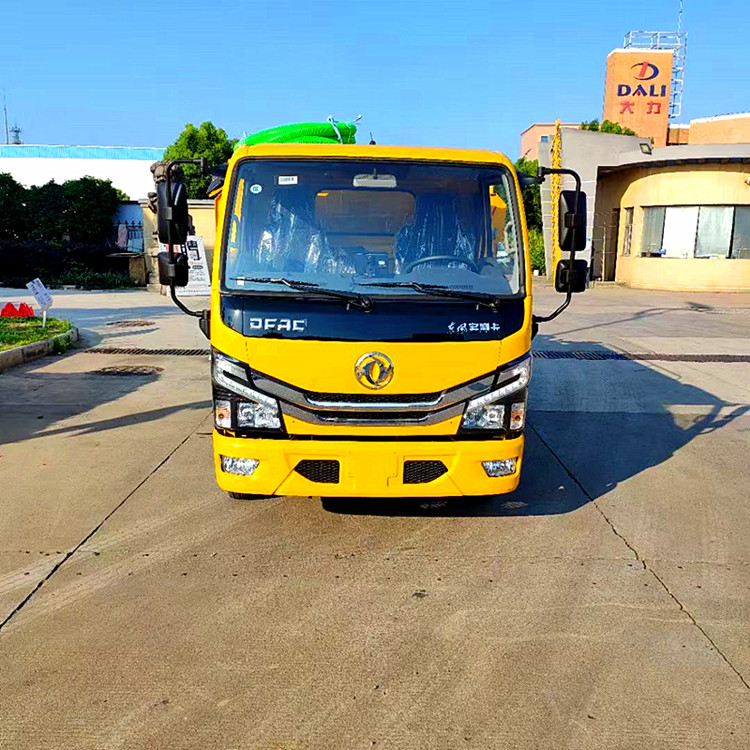

• Appearance Design: The overall size of the vehicle is usually about 5980×2020×2580mm, the body is compact, and the maneuverability is strong when working on urban roads and narrow areas.
• Chassis Configuration: Using the site of Dongfeng Co., LTD., with high performance, strong power, low noise, high chassis strength and durability. Equipped with Dongfeng Chaoyang Chaochai 102 HP diesel engine and other engines to choose from, with 7.50-16 steel tires, with steam/oil brake, 5 speed transmission, 1.5 tons front axle, 3.5 tons rear axle.

Install Vacuum Sewer Truck

• Cleaning Part: The cleaning tank is generally made of 4mm carbon steel, the volume is about 2-4 square meters, the right side of the fire water, the air control push water and with a filter. Equipped with Tianjin Tongjie high pressure cleaning pump, the pressure can reach 24Mpa, the flow rate is about 170L/min, and the standard 60m high pressure pipe with an inner diameter of 19mm and a set of combined nozzle.

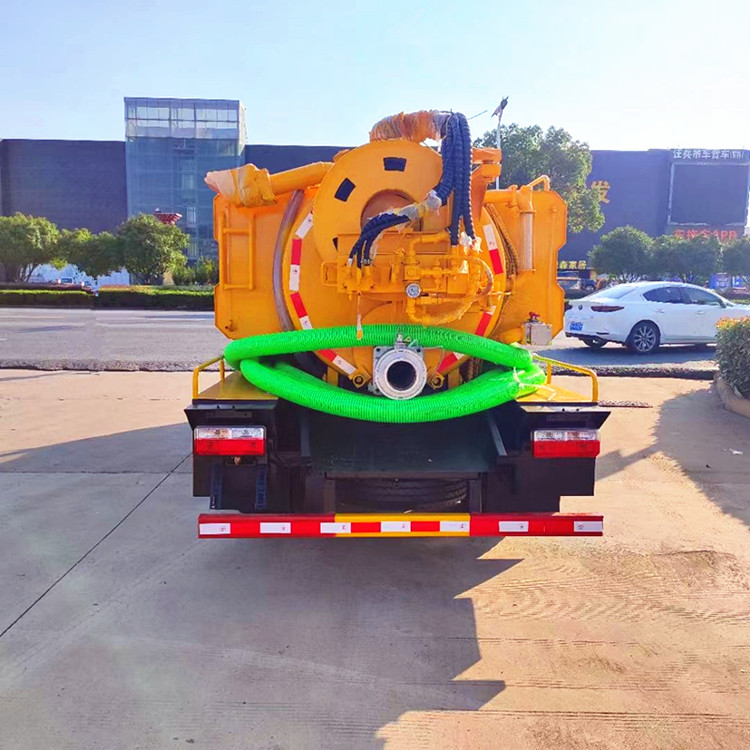

• Suction Part: The suction tank is usually 6mm carbon steel, the volume is about 4-6 square meters, the tank body can be hydraulically lifted, and the back cover can be hydraulically opened for self-unloading. Equipped with SK-9 water circulation pump, air intake pipe with filter screen, overflow valve raised, two 8-meter suction pipe, back cover with 4 clips locked, with rear view of the feces window.

How Sewage Suction Truck Works

• Cleaning Operation: Water is sprayed to the ground or surface by the pump through the high-pressure spray gun, and the strong water impact force will wash away the stain. Some vehicles are equipped with rotary brush head to assist cleaning, enhancing the cleaning effect.
• Suction Operation: The vehicle works through the vacuum suction pump to form negative pressure in the suction tank. Under the action of atmospheric pressure, sewage and debris are sucked into the sewage tank through the suction pipe.

sewer pump truck Performance Advantages

• Multi-functional Integration: Set dredging, washing, suction, mud-water separation, sewage backflow, sewage recycling and other functions in one, can adapt to a variety of complex sanitation operation scenarios.
• Efficient Operation: Rich power reserve, combined with the optional multi-stage water circulation system, can make high-pressure flushing, vacuum suction and sewage circulation system and other functions work at the same time, to achieve uninterrupted continuous operation.

Sewer Septic Truck Application Scenario

Widely used in urban sewers, pipeline sediment cleaning, as well as the dredging of dead corner mud ditch, can also be used to clean industrial drainage pipes, walls, etc., can also be used as sprinkler, water transport and highway, emergency can be used for fire fighting.
