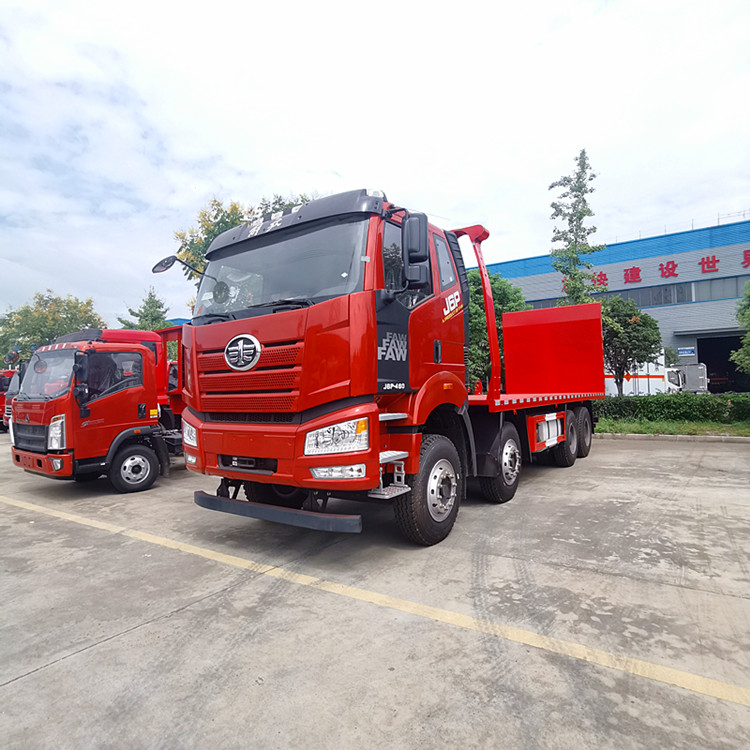

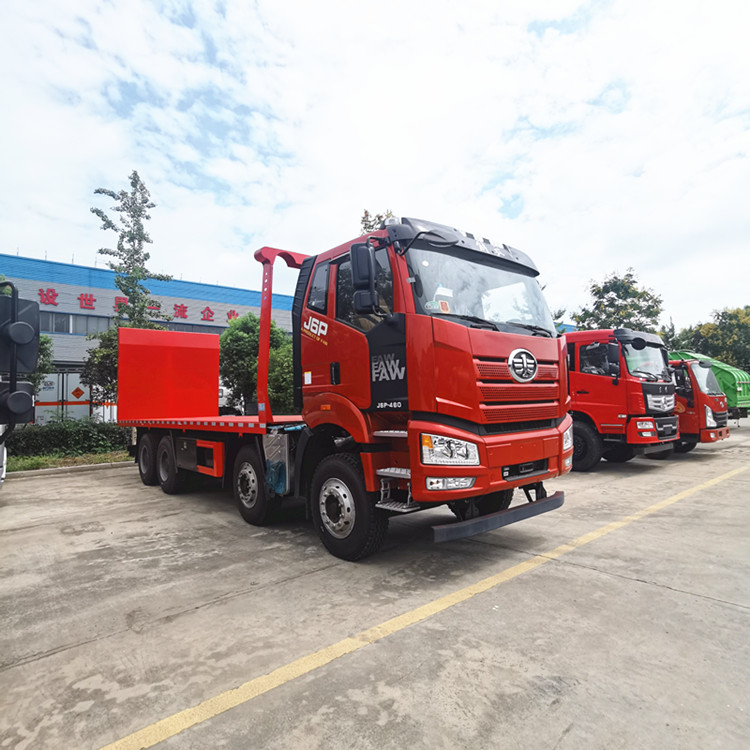

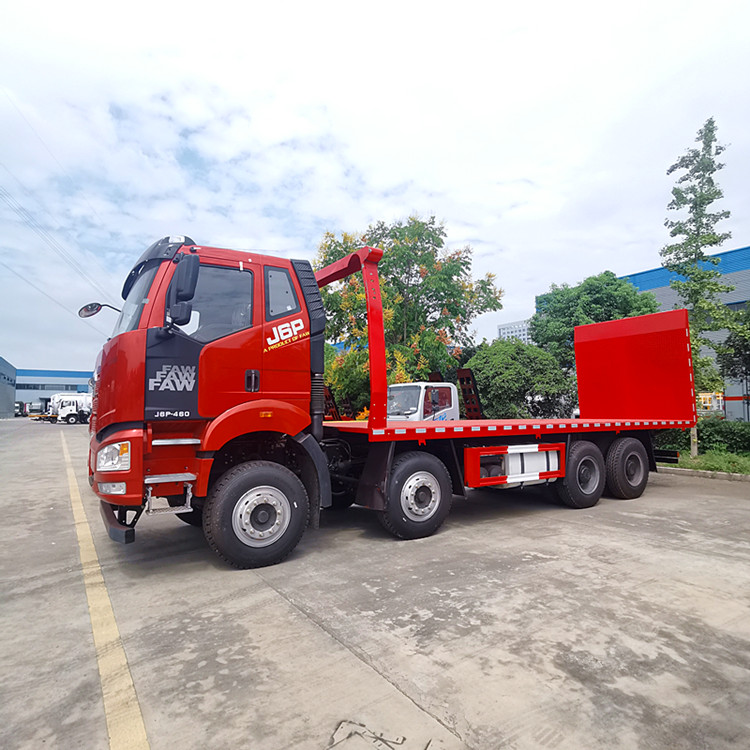

FAW 8x4 Heavy Duty Flatbed Truck Introduction

Cab

Cab with sleeping berth, 3 seater, with air-conditioner

Chassis

• Brand: FAW
• Drive type: 6x4, left hand drive
• Transmission: 12 forward gear, 1 reverse, manual mechanical type
• Braking System: Hydraulic brake
• Tire: 12.00R20, 12+1 (spare)
• Wheelbase: 1950+3350+1350mm
• Front axle/rear axle: 7.5 ton / 13 ton

Engine

• Model: CA6DM2-46E6
• Horse Power: 341kw / 465hp (Euro 6)
• Fuel type: Diesel
• Engine Size: 11050ml

Dimension & Weight

• Overall dimension (L*W*H): Approx 10300*2550*3620mm
• Gross Weight: Approx 42000kg
• Curb weight: Approx 16700kg

Upper Body

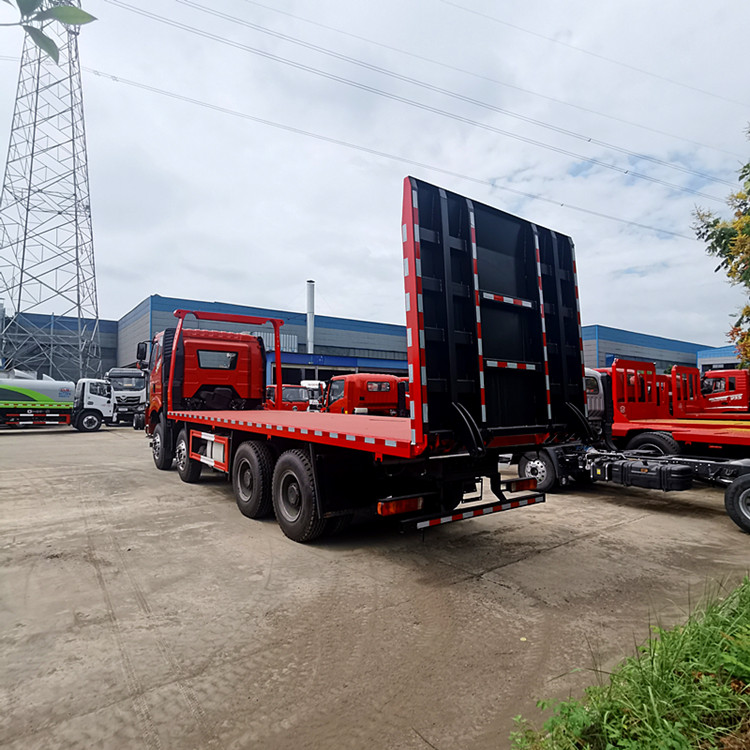

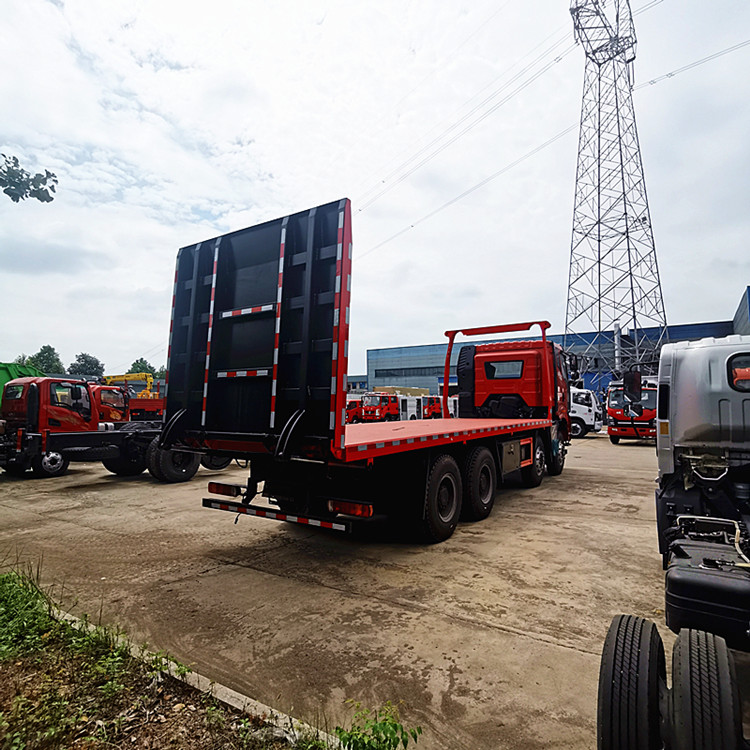

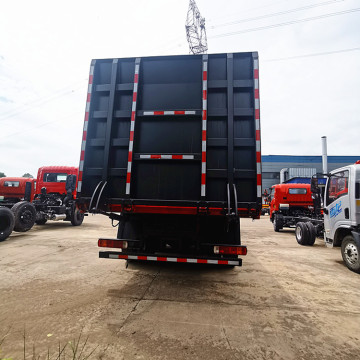

Top configuration: 20 tons flat bed, 6 mm thick pattern plate, imported hydraulic parts, flat sinking, board total length of 8 meters (motherboard 7.3 meters, hydraulic flip tail plate 1.2 meters), 1 set of tire holding device, binding belt, 2 auxiliary gas pipes, warning light

There are many types of FAW J6P wreckers, the following are two common ones:

1. FAW J6P 8x4 25T20D Towing One-Piece Wrecker Truck

• Tow Truck Chassis configuration: New J6P full floating flat top half cab with electric glass lift and electric rearview mirror. The driver's seat is an air damping seat with high comfort. Equipped with Seokchai 420 HP engine and 12 speed transmission, the power is strong. The axle is the Public 300 cast steel wheel reduction bridge, wheelbase 1950+4700+1350mm, also equipped with automatic air conditioning, front and lower protection device, 400L aluminum fuel tank and metal bumper.

• Wrecking Truck Top configuration: 25t20d top, imported hydraulic system, two-section six-sided boom and 25-ton three-section bracket, split compartment design. Equipped with remote control + bilateral linkage operation device, two 10-ton hydraulic hoist, 45 meters wire rope, diameter 18mm. It is also equipped with four sets of steel forks, a set of towing fork, a set of steel plate lug towing fork and a set of tire holding device.

2. FAW 6X4 Flatbed Wrecker Tow Truck

• Flatbed Tow Truck Chassis configuration: Row half cab, tin wood 420 HP, national six emissions, free 12-speed transmission, 300 double girder, 13 tons 457 rear axle, 1950+3350+1350mm wheelbase, 1200r20 wire tires, airbag seats, remote key, automatic air conditioning and spare tire.
• Heavy wrecker truck size: length 10300mm, width 2550mm, height 3620mm.
