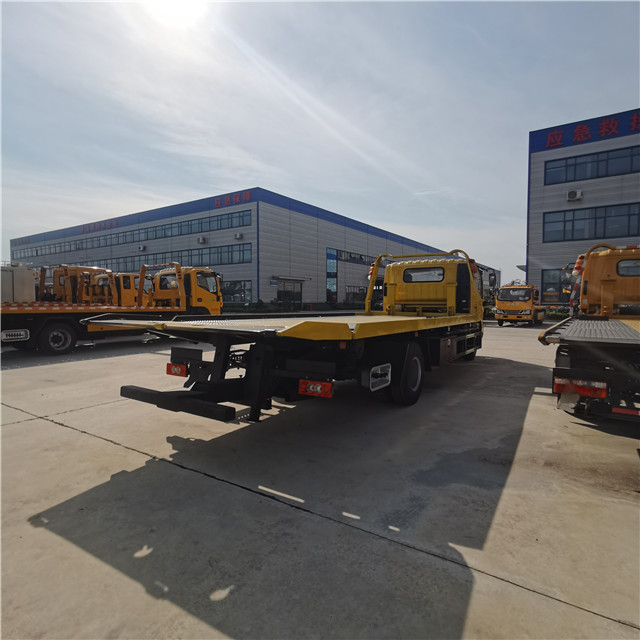

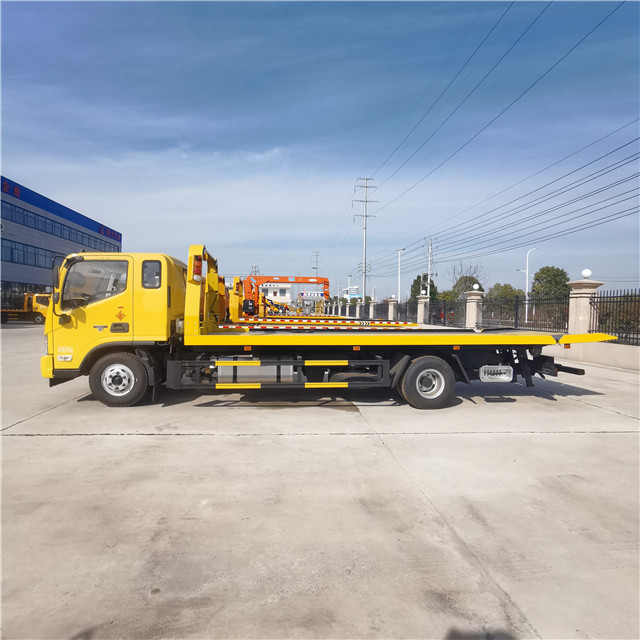

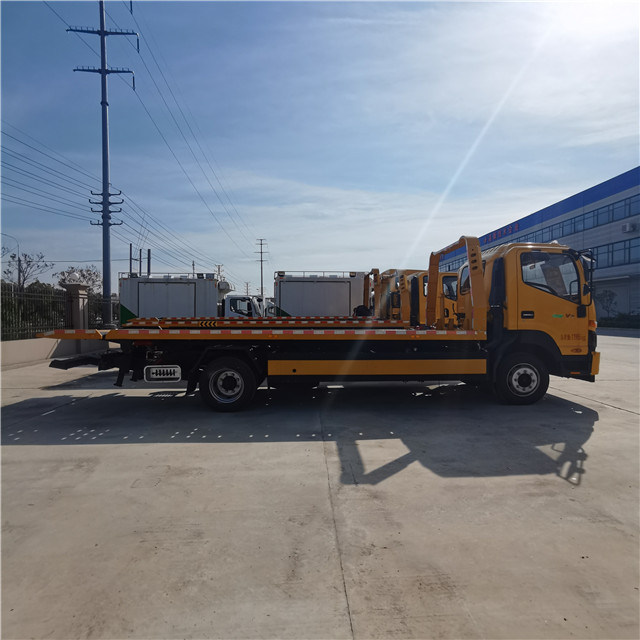

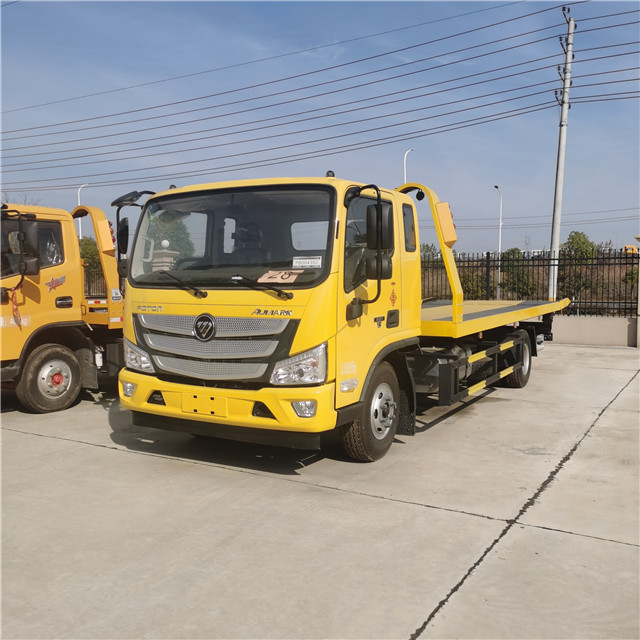

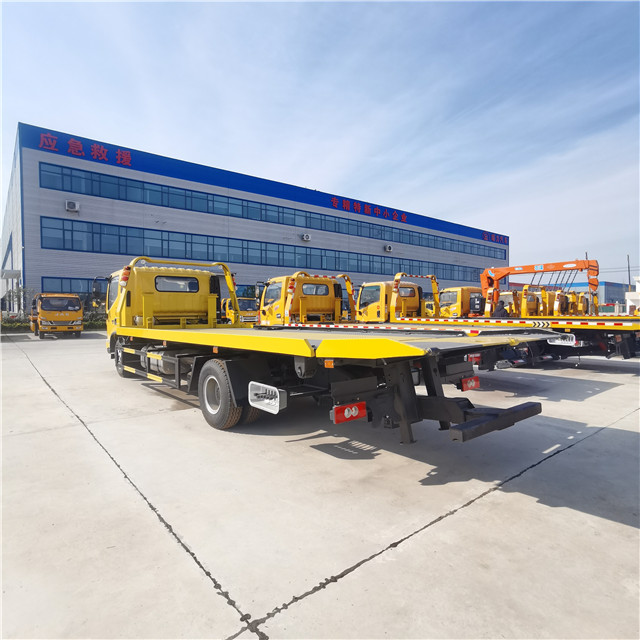

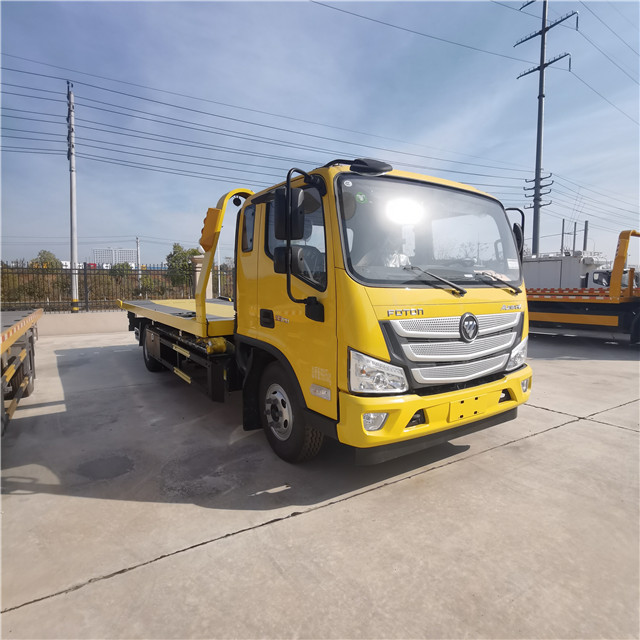

Foton Omark 6-Ton Flatbed Wrecker Truck

Cab

• Cab with sleeping berth, 3 seater, with air-conditioner

Chassis

• Brand: Foton
• Drive type: 4x2, left hand drive
• Transmission: 5 forward gear, 1 reverse, manual mechanical type
• Braking System: Hydraulic brake
• Tire: 7.00R16LT, 6+1 (spare)
• Wheelbase: 3600mm
• Front axle/rear axle: 2.5 ton / 5 ton

Engine

• Model: Cummins
• Horse Power: 96kw / 130hp (Euro 6)
• Fuel type: Diesel
• Engine Size: 2780ml

Dimension & Weight

• Overall dimension (L*W*H): Approx 5995 * 2300 * 3300 mm
• Gross Weight: Approx 4495 kg
• Curb weight: Approx 2800 kg

Upper body

• Flat bed size: 6000 * 2300 mm
• Top configuration: Heavy 5 tons top, 5 mm thick pattern plate, 5 tons winding, 21 meters steel wire rope, wrapped girder, double pair beam, 16 mm thick core frame drilling, flat telescopic cylinder outside diameter 110, inside diameter 90, flat lifting cylinder outside diameter 90, inside diameter 80, bracket variable amplitude cylinder outside diameter 90, inside diameter 80, 8 mm thick slide, beam security. Double side linkage operation, heavy load hydraulic turnover plate 4.1 + 1.4 = 5.5 meters, 2.3 meters wide, a set of auxiliary trolley, four binding belts, a pair of L-type drag fork, a pair of rotating cylinder.

Foton Omalco wrecker has a variety of models, the following are some common models:

1. Foton small wrecker truck
   • Power and handling: Equipped with 160 HP engine, full power output, equipped with Fast 8-speed transmission, smooth shift, flexible operation, can cope with complex road conditions.
   • Size design: The overall size is 5995 × 2300 × 2240 mm, the plate size is 4200 × 5420 × 2350 mm, the wheelbase is 3.6 meters, it is convenient to drive and park in urban roads and narrow spaces, and the plate can accommodate a variety of faulty vehicles.
   • Operation mode and top configuration: Double-side linkage operation, equipped with 6 tons hoist and 20 meters wire rope, strong towing and lifting ability.
   • Driving performance: Maximum speed of 110 km/h, can quickly reach the scene of the accident.
2. Smart Blue ES1 pure electric Wrecker Tow Truck
   • Wrecker Truck Power system: Equipped with Ningde Times 100.46kW·h high energy density power battery pack, the rated torque of permanent magnet synchronous motor is 170N·m, the peak torque is 360N·m, the maximum speed is 90km/h, and the maximum gradient of full load can reach 30%.
   • Battery life and energy saving: Combined with ECO driving mode, braking energy recovery and other energy-saving technologies, as well as the optimization of vehicle flow resistance, energy consumption is significantly reduced, battery life is increased by 10%, and V2V vehicle mutual charging function is also available.
   • Appearance and interior: The vehicle size is 6400x2030x2240mm, the appearance is novel, the cab adopts classic design, the tilting rearview mirror ensures the working field of vision, the headlights are integrated "L" shape, the interior seats are knitted fabric, which is ergonomic, the center control console is simple and generous, and the shift is knob.
3. Heavy duty Flatbed Tow Truck
   • 170 HP model: Equipped with Foton Cummins 170 HP engine, matching Fast 8-speed transmission, mounted for the 6-ton plate produced by Chu Sheng, the board length of 5.6 meters, the board width of 2.5 meters, 5 thick pattern plates, chassis straight through the double 230 girder.
   • 172 horsepower model: Equipped with Cummins 172 horsepower engine, Fast 8 speed transmission, mounted 8 tons, board width made 2.3 meters, board length 5.6 meters, made 6 thick pattern boards.
