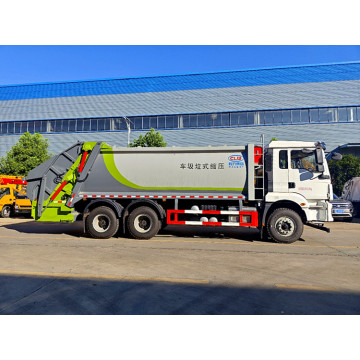

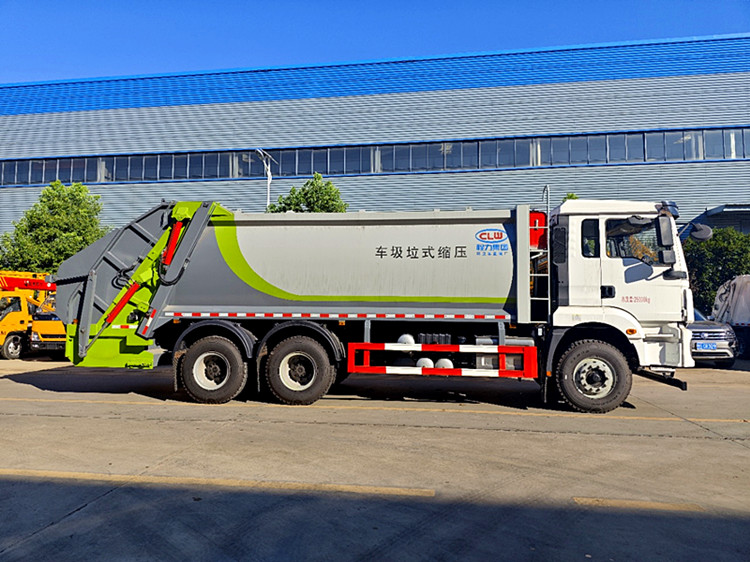

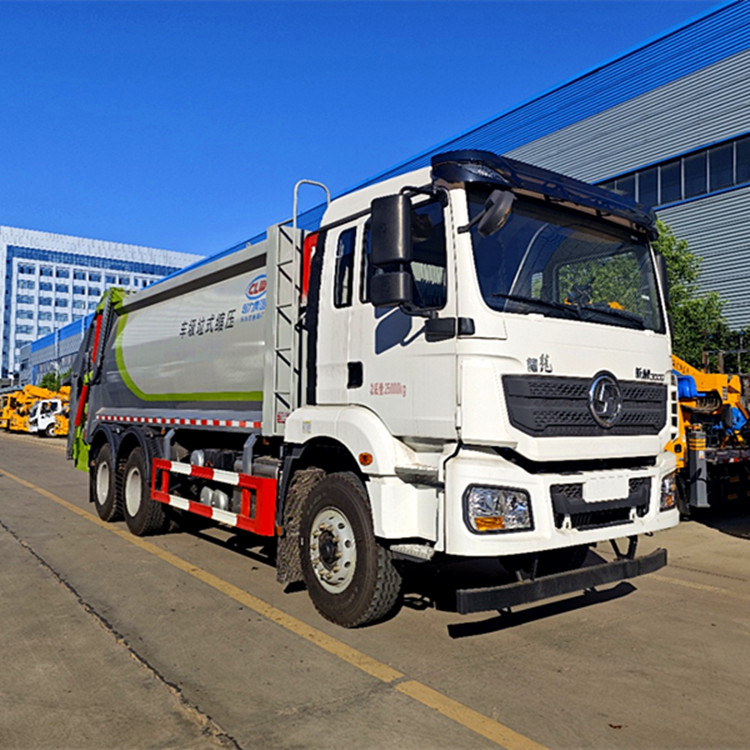

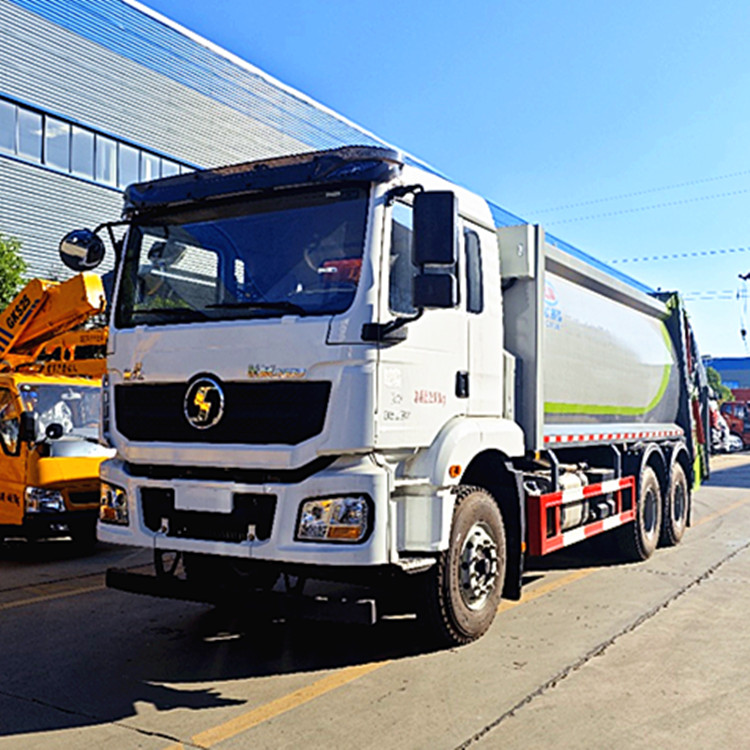

20cbm SHACMAN Compactor Garbage Truck Parameters

SHACMAN Compactor Garbage Truck Parameter Configuration

Chassis Section

• Complete vehicle model: CL5250ZYS6AQC
• Chassis type: SX1259MB4F1C
• Vehicle size: 10120*2550*3400mm
• Total mass: 25000kg
• Load mass: 9370kg
• Curb weight: 15500kg
• Wheelbase: 4375+1400mm
• Displacement: 7800ml
• Horse-power: 350HP
• Number of tires: 11
• Tyre size: 11.00R20

Top Part

• Effective volume of case: 20cbm
• Filling cycle time: ≤25s
• Turnover cycle time: ≤10s
• Type of tilting mechanism: 2 240L plastic buckets (standard) 660L turning mechanism (standard) Semi-sealed bucket

SHACMAN 20cbm Compressed Garbage Truck Features

1. Strong Chassis Performance

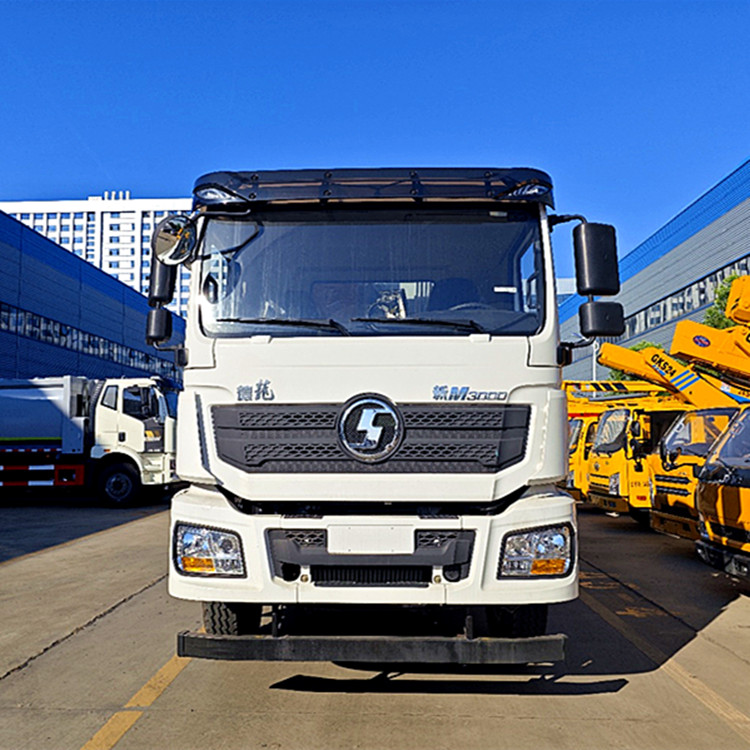

• Shanqi Delong and other series of chassis are often selected, such as Delong new M3000 6*4 compression garbage truck, equipped with Weichai 350 horsepower engine and S10MDQ gearbox, powerful power, can provide reliable power support for vehicle operation and garbage compression, to ensure stable driving and efficient operation of vehicles under various road conditions.
• The bearing capacity of the chassis is strong, which can meet the weight requirements after 20 square meters of garbage loading, and ensure the safety and stability of the vehicle.

2. Reasonable Design of garbage compactor truck Top

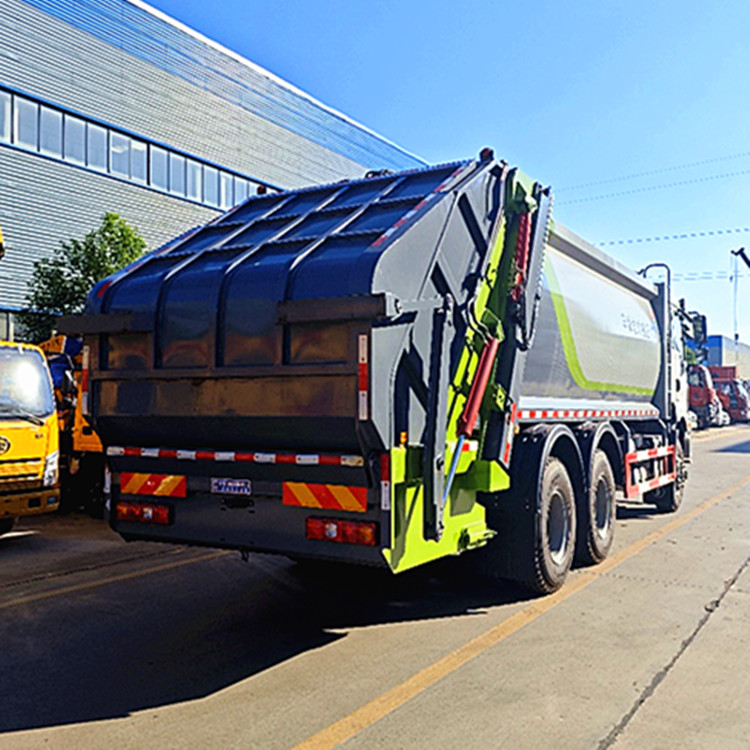

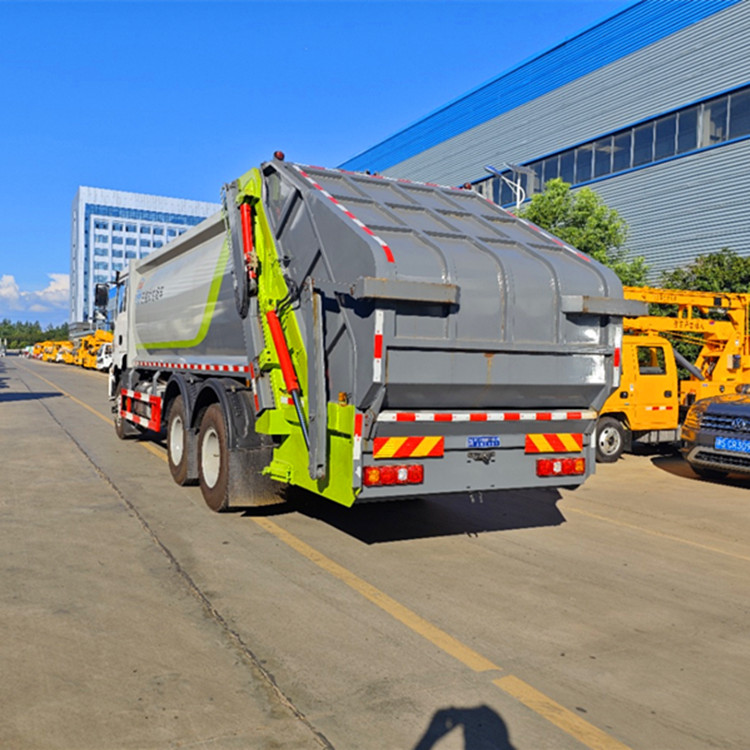

• The garbage compartment is made of high-strength materials, such as Q345 manganese steel, the body is fully welded and equipped with high-quality sealing rings, such as the British DLI sealing ring, to ensure the tightness of the garbage compartment, prevent garbage overflow and sewage leakage, and effectively solve the problem of secondary pollution in garbage transportation.
• Equipped with double pump hydraulic system, high working efficiency, small system impact, scraper slide cycle compression loading capacity is strong, compression cycle time is less than or equal to 25 seconds, can quickly and efficiently compress garbage, improve garbage loading.
• The feed port design is reasonable, the fully sealed garbage bucket can make the feed port completely covered, the feeding operation is automatically completed with a key, fast and no leakage.

3. Convenient Operation and Control of waste compactor truck

• The electrical system is built with modular design ideas, with high integration and stable performance. The single button on the silicone operation panel has long service life and high protection level.
• Optional PLC control system to achieve single-side electronic control operation and equipped with wireless remote control, but also manual hydraulic operation as a backup, convenient operators in different scenarios to control the functions of the garbage truck.

4. Excellent Environmental Performance

• The vehicle is fully sealed, and all the sewage in the compression process enters the sewage compartment, avoiding the pollution of the environment caused by sewage dripping.
• Exhaust emissions meet the corresponding standards, reduce the pollution of the atmospheric environment, and meet the modern environmental protection requirements.

5. Wide Range of Applications of Compression Garbage Truck

• Large capacity design of 20 square meters, suitable for urban sanitation, large factories and mines, garbage disposal sites and other places of garbage collection, transfer operations, can effectively reduce the number of transportation, improve work efficiency.
