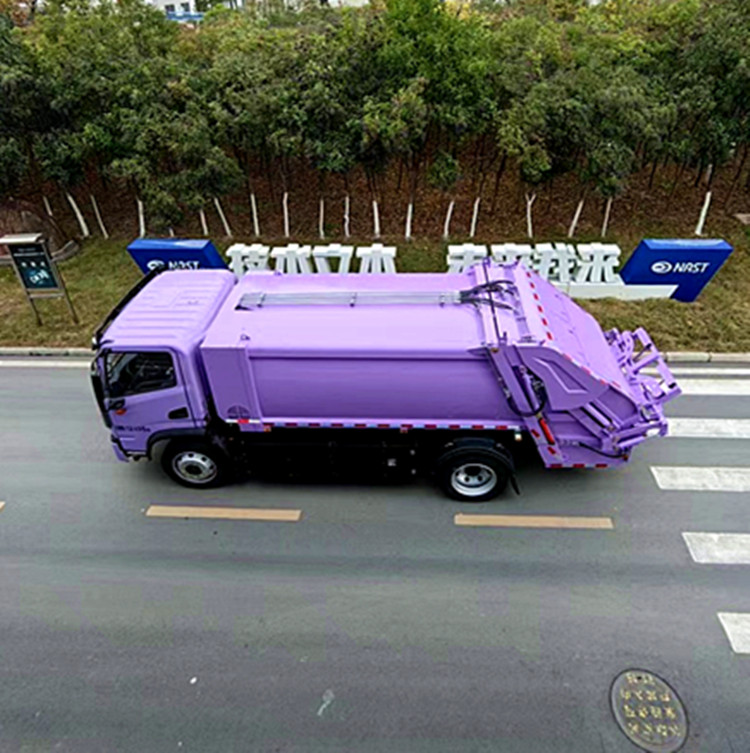

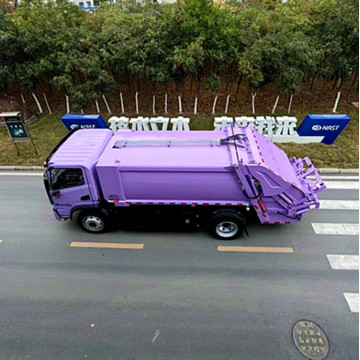

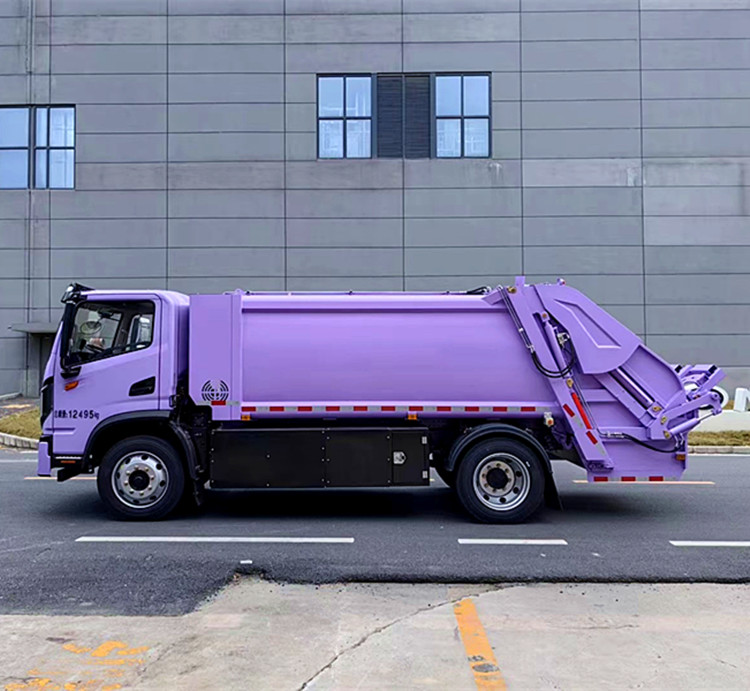

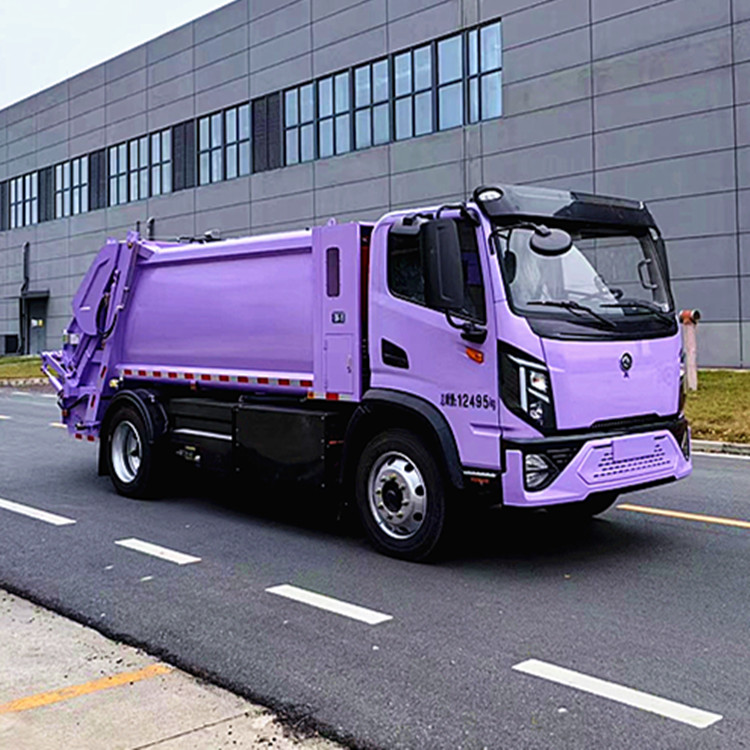

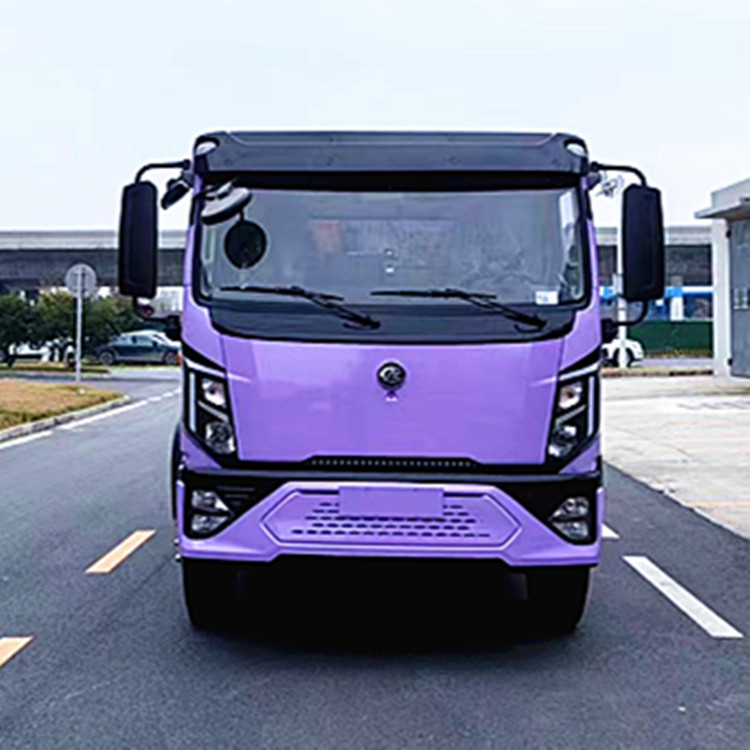

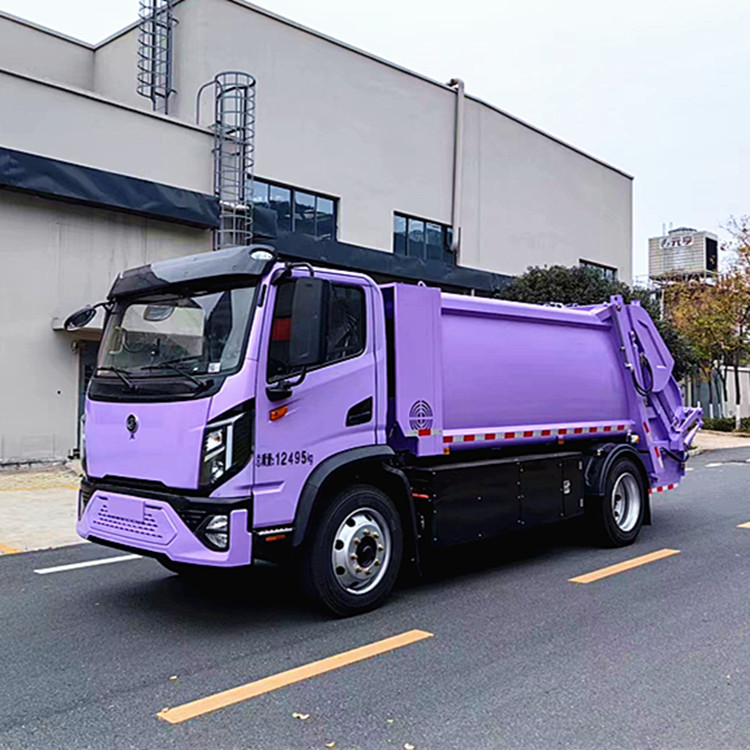

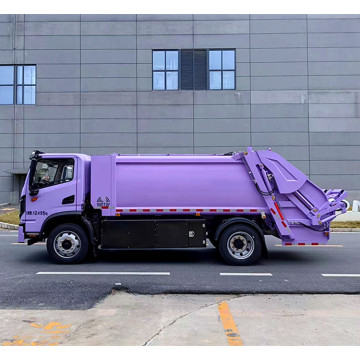

Cheng Li New Energy 8.5cbm Compressed Garbage Truck Parameter Configuration

Electric Compacting Garbage Truck Parameter Configuration

Chassis Section

• Complete Vehicle Model: CL5152ZYSBEV
• Chassis Type: CL1120JBEV
• Vehicle Size: 7680*2430*2630mm
• Total Mass: 12495kg
• Load Mass: 4340kg
• Curb Weight: 7960kg
• Wheelbase: 3800mm
• Battery Capacity: 142.19kWh
• Motor Rating/Peak Power: 120/200kW
• Motor Rating/Peak Torque: 200/500Nm
• Endurance Mileage: 270km

Top Section

• Effective Volume of Case: 8.5cbm
• Filling Cycle Time: ≤25s
• Turnover Cycle Time: ≤10s
• Type of Tilting Mechanism: 2 x 240L plastic buckets (standard), 660L turning mechanism (standard), Semi-sealed bucket (optional)

Cheng Li 9 New Energy Compression Garbage Truck mainly has the following features:

1. Compactor Garbage Truck Chassis and Power

• Variety of Chassis Options: Such as Dayun sanitation truck chassis, with Yunnei 163hp engine, 6-speed transmission, and Dongfeng Co., Ltd. produced EQ1075SJ3CDF Class II truck chassis, strong power, reliable performance.
• New Energy Advantages: Pure electric drive, zero emission, low noise, adapts to national environmental protection policies, driving in urban areas and other areas without restrictions, and exempt from the purchase tax.

2. New Energy garbage compactor truck Installation Configuration

• Large-Capacity Box: The box volume is 9 cubic meters, which can load about 8 tons of domestic waste. It is made of high-quality steel and durable. Through sealing design and sewage collection box setting, it can prevent sewage leakage and odor distribution and avoid secondary pollution.
• Efficient Compression System: Composed of sealed garbage bin, filler, push shovel, hydraulic transmission system and electrical control system, with the help of machine, electricity, hydraulic combined automatic control system, to achieve automatic garbage pouring, crushing or flattening, strong filling, compaction and shifting functions, high compression ratio, can effectively increase the garbage loading.

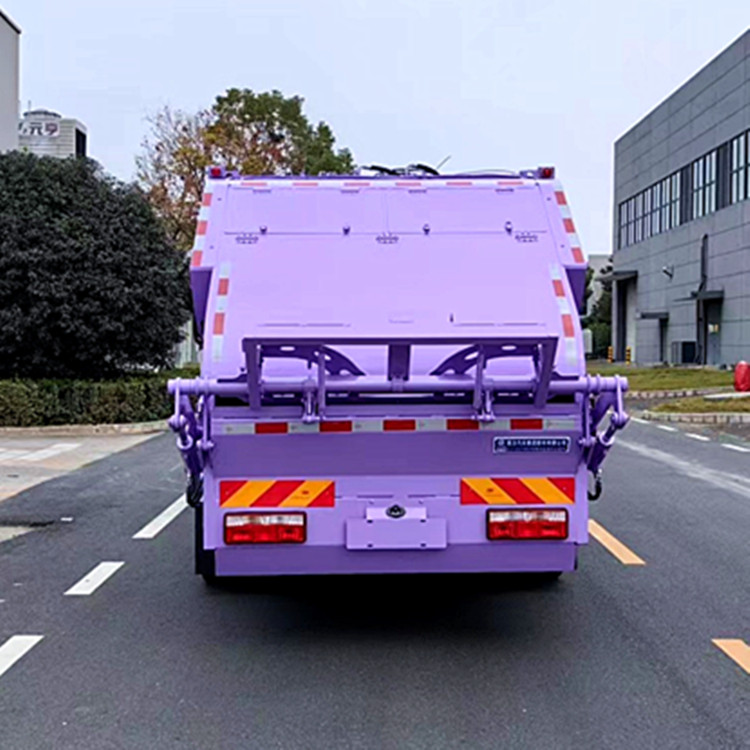

• Various Rear Turning Mechanism: The rear turning mechanism can choose hanging bucket, triangle, fully sealed bucket, swing arm bucket and other devices to meet the needs of different garbage collection scenarios and improve garbage collection efficiency.

3. Body Design and Interior of Electric dumpster compactor truck

• Appearance and Structure: The body mostly adopts streamlined design, novel shape, beautiful, compact structure, split body design is easy to repair and replace parts, reduce maintenance costs.
• Comfortable Interior: The combined interior fabric roof of the electric vehicle adopts a split structure, which can be replaced according to customer preference. The interior material of the ceiling has good heat insulation and heat insulation effect, improving the comfort and safety of the occupants.

4. Operation and Control of New Energy trash compactor truck

• High Degree of Automation: The use of electrical and hydraulic integration technology and computer control system, all filling and discharging operations only need one driver to operate, can be set automatic and semi-automatic operation mode, reduce the labor intensity of sanitation workers, improve the working environment.
• Humanized Control: There are many operation control positions, including electronic control in the cab, manual front end of the box and electrical control on the side of the front end of the box hoist, etc., which can independently control the work of the vehicle, and equipped with intelligent management system, which can monitor the operation of the vehicle in real time, realize fault warning and remote diagnosis, and improve the operation efficiency and management level.

5. Electric Compression Garbage Truck Endurance and Charging

• Long Battery Life: If the 128-degree battery is used, the full battery life can reach 200 kilometers, and the model equipped with 140 degree battery can travel 270 kilometers, which can meet the daily garbage collection and transportation needs.
• Fast Charging: Equipped with national standard fast charging port, easy and fast charging, generally about an hour can be filled, improve the efficiency of vehicle use.
