DONGFENG Heavy
Bulk Feed Truck DONGFENG Heavy bulk feed truck introduction
Name of vehicle
DONGFENG 8x4 bulk feed truck
CLW5312ZSLC5
CLW5312ZSLC5
Vehicle size
12000×2500×3995
Standard volume of material tank
40m³
Load weight
20-21 tons
Total mass
31000Kg
Rated quality
15280Kg
Quality of equipment
15590Kg
Hydraulic system winch
Imported hydraulic components
Electric system winch
Domestic parts/imported parts optional
Number of feed silo
4
Material of tank body
3mm manganese steel plate
Discharge time
32 minutes
Discharge speed
≥500kg/min
Discharge residue rate
≤1％
Maximum elevation of gargoyles
60°
Horizontal maximum transfer distance
7.2 metres
Maximum vertical feed height
9 metres
Discharge rotation angle
360 degrees (180 degrees on one side)
Feed truck chassis parameter configuration
Chassis type
CA1310P63K1L6T4E5
The engine
Big Chai 325 horsepower
Gearbox
Faw 10-speed gearbox
Wheelbase
1950+4550+1350mm
Number of axes
4 axes
Number of tyres
12
Tire specifications
11.00 r steel wire tire
Emission standards
Optional
Optional installation of bulk feed truck
Electric winch can be selected according to the actual situation of users (three-phase electrical supporting place), for the non-three-phase electrical place, electric system winch can also choose three-phase generator or choose hydraulic winch. The whole vehicle has 3 winches driven by 35.5 kw motors, the top winch is lifted by hydraulic control, the electric control part of the electric winch can rotate 180 ° from left to right can be made in China or imported parts, optional wireless remote unloading operation. Hydraulic system winch, all hydraulic system parts, hydraulic pump, hydraulic motor, hydraulic multi-way valve, high-pressure explosion-proof pipe are imported parts, hydraulic pump for vane pump, uniform flow, smooth operation, low noise, more efficient and durable than gear pumps. The whole winch is composed of a horizontal winch, a vertical winch and a lifting winch.

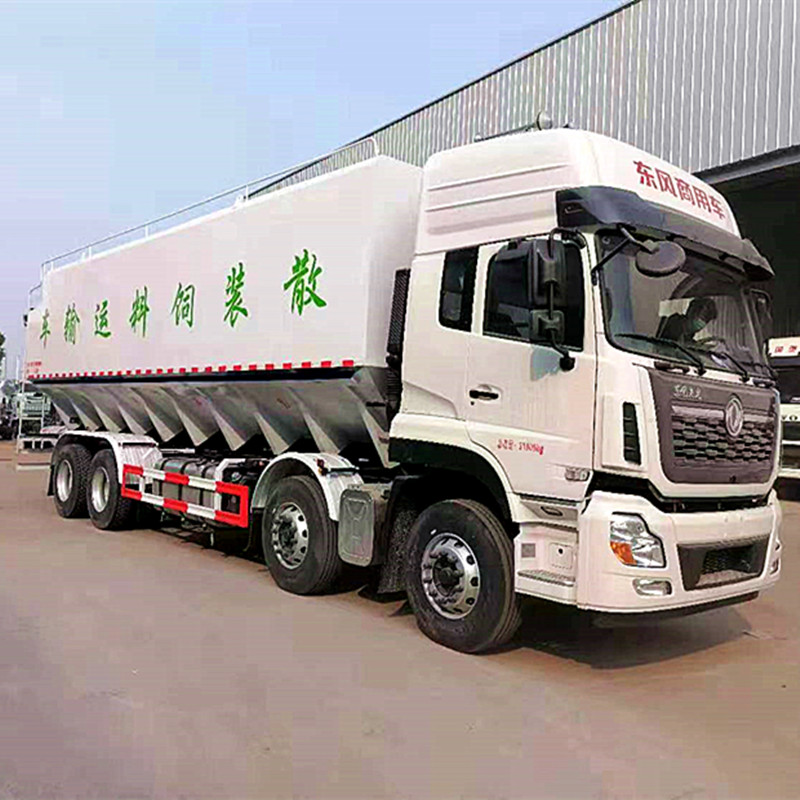

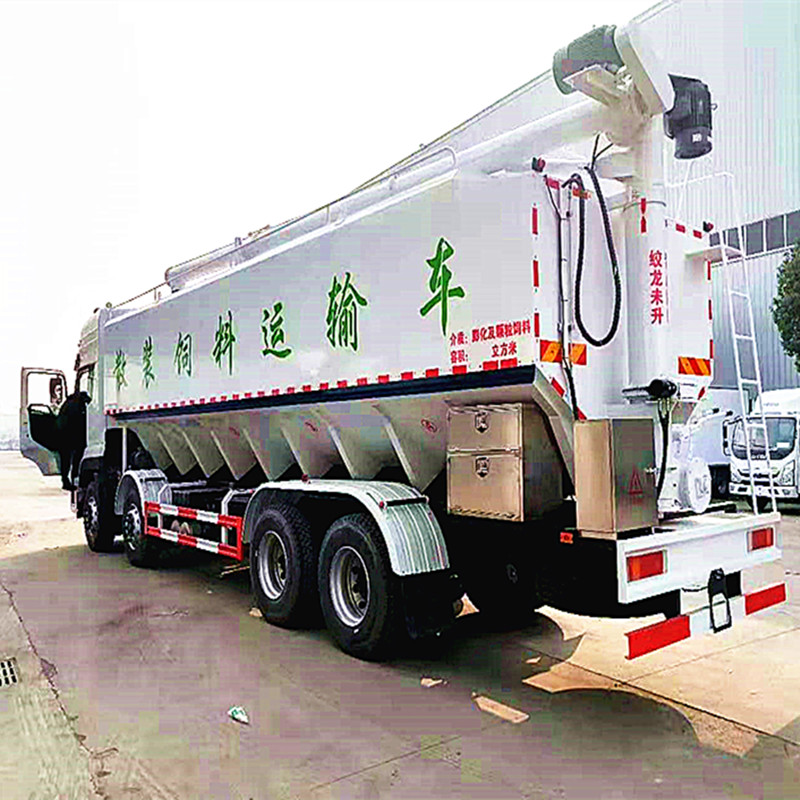

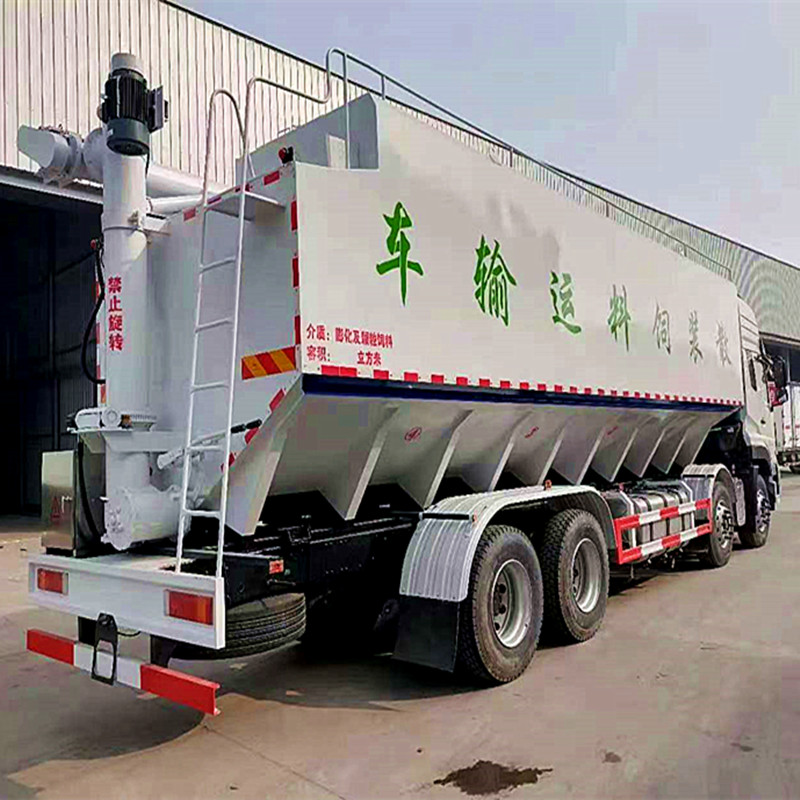

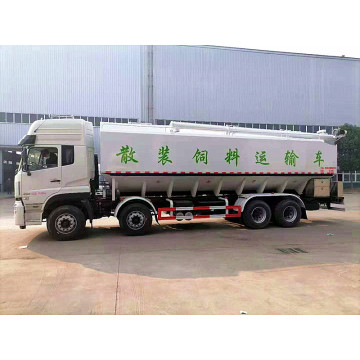

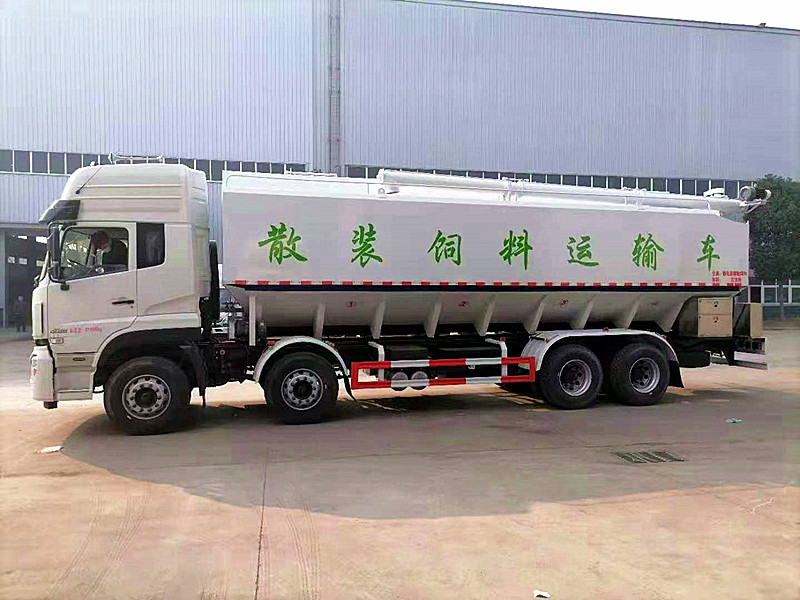

Dongfeng Tianlong 8×4 bulk feed truck is a transport vehicle with excellent performance, the following is your detailed introduction:
- Feed truck chassis configuration

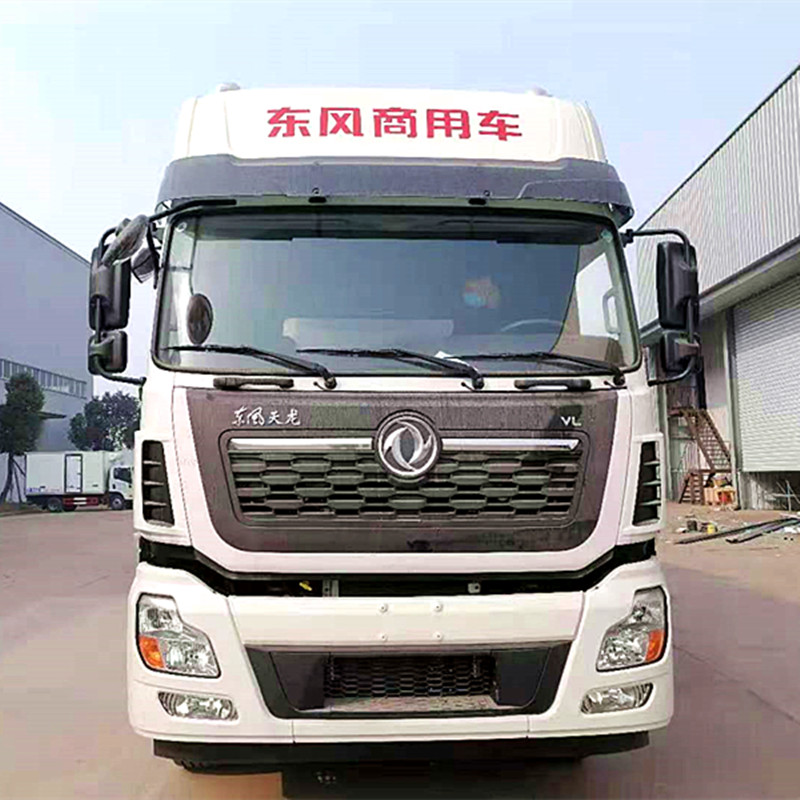

- Cab: Dongfeng Skydragon high-top two-bedroom cab is spacious and comfortable, providing a good rest environment for long-distance driving.
- Power system: Equipped with national 6 emission standard engine, such as L9NS6B360 horsepower engine, powerful, can adapt to various road conditions and transportation needs.
- Transmission: Matched with FAster 12-speed transmission, smooth shift, high transmission efficiency, providing good power output and fuel economy for the vehicle.
- Tires: Equipped with 295 vacuum tires, strong grip, stable driving, while having good wear resistance and fuel economy.
- Other configuration: Original air conditioning, remote control key, electric glass, air bag seat and other comfort configuration are available to improve the convenience and comfort of driving.
- Feed Tank Truck mounting configuration
- Tank: The volume of the tank is about 45 cubic meters, made of high-strength steel plate, and the standard is equipped with 4 silo, which can transport a variety of different kinds of feed at the same time.

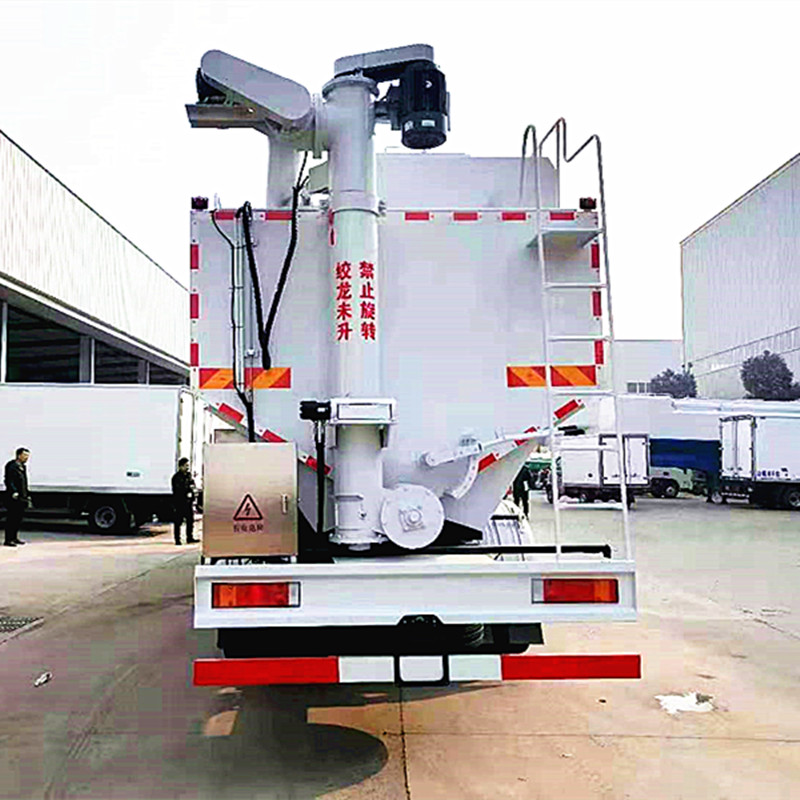

- Conveying system: consists of horizontal discharge system, vertical discharge system and mobile discharge system. A gate is arranged at the bottom of the tank, under which a horizontal screw conveyor is installed. The force extractor obtains power from the automobile transmission to drive the high-pressure oil pump, and then drives the hydraulic system. The hydraulic motor drives the blade shaft and blade rotation of the horizontal screw conveyor, and the feed is output through the active conveyor system.
- Hydraulic system
- The high-pressure oil pump is connected with the distribution valve through the pipeline, and the three output ends of the distribution valve are respectively connected with the Angle hydraulic motor, the lifting cylinder and the horizontal discharge, vertical discharge and movable discharge hydraulic motor connected in series to provide power support for the discharge and tank operation.
- Electric system
- Winch motor mainly adopts domestic high-quality motor, but also can be imported Siemens or ABB winch motor. Electric control system mostly uses Delixi electric appliances, electric control box with under phase, under voltage, anti-reverse and other electronic control interlock protection to prevent misoperation.
- Pneumatic bin division mechanism
- can achieve independent control of each bin feed, easy to load and unload different kinds of feed.
- Advantages of feed truck
- Efficient transportation: The volume of the tank is large, which can transport a large amount of feed at one time, improve transportation efficiency and reduce transportation costs. Multiple silo design can transport a variety of feeds at the same time to meet different breeding needs and reduce the number of transportation.
- Material protection: Bulk feed is delivered sealed in the tank, reducing the risk of loss, contamination and deterioration of feed during transportation and ensuring feed quality.
- Easy operation: automatic hydraulic or electric discharge system, easy to operate, reduce labor intensity. A control device is provided in the cab or at the rear of the tank, and the screw is driven by the power output shaft and the reducer under the car to complete the discharge.
- Widely adapted: suitable for feed mills, livestock farms and livestock farms of all sizes, whether it is long-distance transportation or short-distance distribution, it can be competent. At the same time, according to different use scenarios and customer needs, different configurations can be selected, such as remote control operation, on-board generators, etc., to enhance the adaptability of the vehicle.
