Home > Products > Special Purpose Vehicle > Bulk Feed Truck > 65 CBM Bulk Feed Trailer by Cheng Li

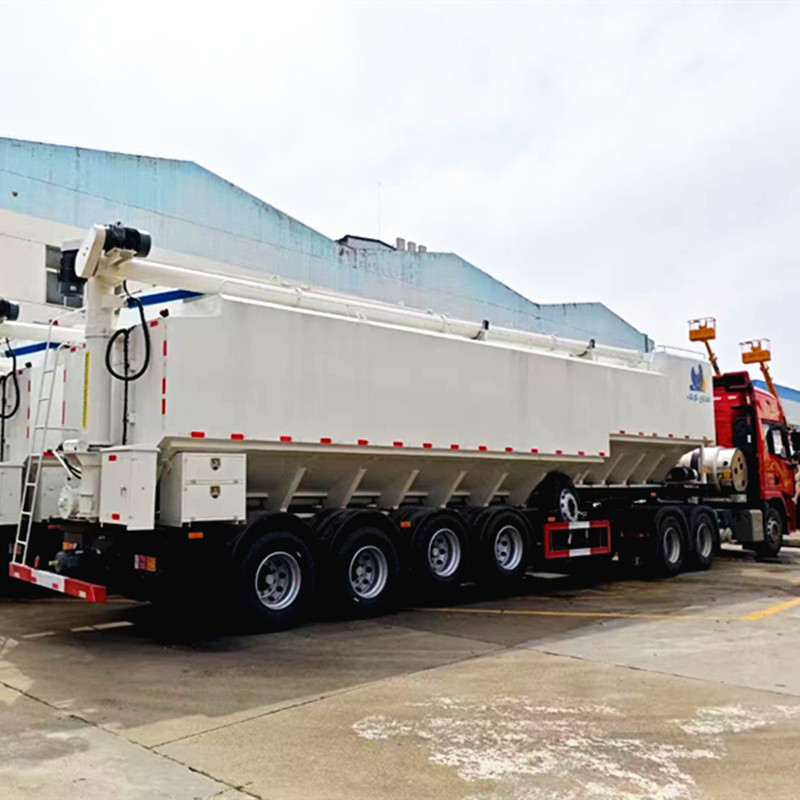

65 CBM Bulk Feed Trailer by Cheng Li
65 CBM Bulk Feed Trailer by Cheng Li
65 CBM Bulk Feed Trailer by Cheng Li
65 CBM Bulk Feed Trailer by Cheng Li
65 CBM Bulk Feed Trailer by Cheng Li
65 CBM Bulk Feed Trailer by Cheng Li
  • 65 CBM Bulk Feed Trailer by Cheng Li
  • 65 CBM Bulk Feed Trailer by Cheng Li
  • 65 CBM Bulk Feed Trailer by Cheng Li
  • 65 CBM Bulk Feed Trailer by Cheng Li
  • 65 CBM Bulk Feed Trailer by Cheng Li
  • 65 CBM Bulk Feed Trailer by Cheng Li

65 CBM Bulk Feed Trailer by Cheng Li

    Unit Price: USD 40800 - 41300 / Piece/Pieces
    Payment Type: L/C,T/T
    Incoterm: FOB,CIF,EXW

Basic Info

Brandclw

Old And NewNew

Gearbox TypeManual

FuelDiesel

Place Of OriginChina

Vehicle Size11000×2550×3995mm

Box Volume65cbm

Total Mass40000kg

Curb Weight10610kg

Wheelbase5380+1310+1310mm

Number Of Tires12

Tyre Size12R22.5

Brake SystemAir brake

Additional Info

Productivity30unit/month

TransportationOcean,Land

Place of Originchina

Supply Ability30unit/month

Certificate3c

PortTianjin,shanghai,qingdao

Payment TypeL/C,T/T

IncotermFOB,CIF,EXW

Product Description

Cheng Li 65 cbm bulk feed Trailer
              Cheng Li 65 cbm bulk feed trailer parameters configuration Bulk feed truck

Technical parameters of 65cbm bulk feed trailer

Vehicle size 11600×2550×3995
Standard volume of material tank 65m³
Load weight 30 tons
Total mass 40000Kg
Rated quality 29390Kg
Quality of equipment 10610Kg
Hydraulic system winch Imported hydraulic components
Electric system winch Domestic parts/imported parts optional
Number of feed silo 4
Material of tank body 3mm manganese steel plate
Discharge time 40-60 minutes
Discharge speed ≥500kg/min
Discharge residue rate ≤1%
Maximum elevation of gargoyles 60°
Horizontal maximum transfer distance 7.2 metres
Maximum vertical feed height 9 metres
Discharge rotation angle 360 degrees (180 degrees on one side)

Feed truck chassis parameter configuration

13 tons Guangdong Fuhua Bridge, 28 tons of legs, 90 traction pins, 16 tons of brake pads, 12R22.5 tires, Vehicle size: 11600×2550×3995mm

Optional installation of Bulk Feed Truck

Electric winch can be selected according to the actual situation of users (three-phase electrical supporting place), for the non-three-phase electrical place, electric system winch can also choose three-phase generator or choose hydraulic winch. The whole vehicle has 3 winches driven by 35.5 kw motors, the top winch is lifted by hydraulic control, the electric control part of the electric winch can rotate 180 ° from left to right can be made in China or imported parts, optional wireless remote unloading operation. Hydraulic system winch, all hydraulic system parts, hydraulic pump, hydraulic motor, hydraulic multi-way valve, high-pressure explosion-proof pipe are imported parts, hydraulic pump for vane pump, uniform flow, smooth operation, low noise, more efficient and durable than gear pumps. The whole winch is composed of a horizontal winch, a vertical winch and a lifting winch.

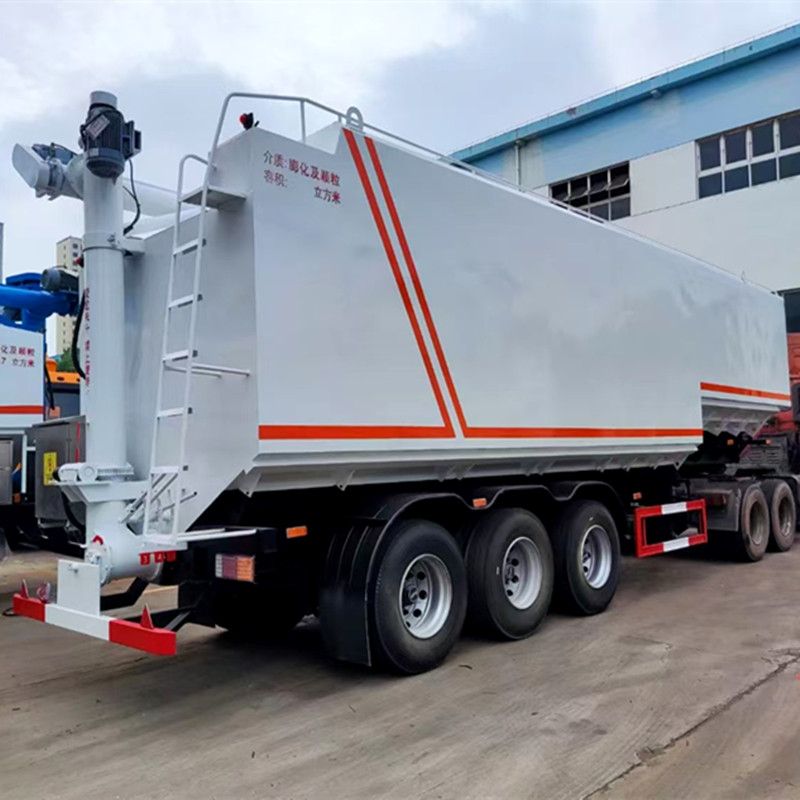

Feed trailer

Cheng Li 65cbm bulk feed trailer related information

  • Bulk feed trailer configuration: The walking part is equipped with three-axis high-low semi-hanging skeleton, wheelbase 7080+1310+1310mm, girder front wing plate web 8mm under 10mm(double layer) 8mm, rear wing plate height 480mm, W high-strength bending type/straight beam, 90# traction pin, 28 tons of legs, 13 tons of Guangdong Fuhua Bridge, axle / 3 axis, 16 tons of brake pads, Fengshen 12R22.5 tire, ABS, 13x8 plate spring, 1500mm tool box, spare tire frame, four big and two small air chamber.
  • Feed trailer tank and top: The top tank body is made of 4mm thick steel plate, and the tank body is divided into six silos, which can independently control the unloading sequence and speed of each silo. The whole vehicle has four winch dragons, driven by four 5.5kW Siemens motor 380V external power supply, the top winch can be operated by wireless remote control, the top winch can be hydraulically controlled to lift, and can rotate 180°.
  • Vehicle size: length 13750mm, width 2550mm, height 4000mm.

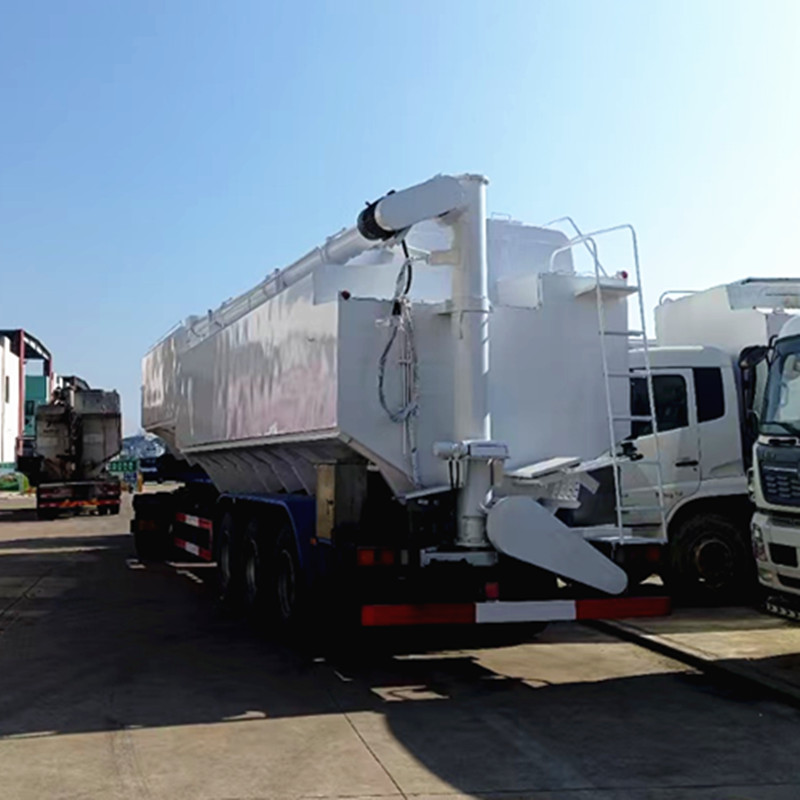

65 cbm feed truck

The advantages of Cheng Li 65cbm feed trailer

Transportation cost

  • Large loading capacity: such as Chengli 65 square bulk feed trailer, can accommodate a large amount of feed, compared with small transport vehicles, a single transport significantly increased, in the transport of the same total amount of feed, can reduce the number of transport, reduce transportation costs, like large farms need a lot of feed, the use of feed trailer can significantly save transportation costs.
  • Low packaging cost: bulk transportation does not require feed packaging bags, which can save a lot of packaging costs per ton per car per year, especially for large-scale feed transportation enterprises, which is a considerable cost savings in the long run.

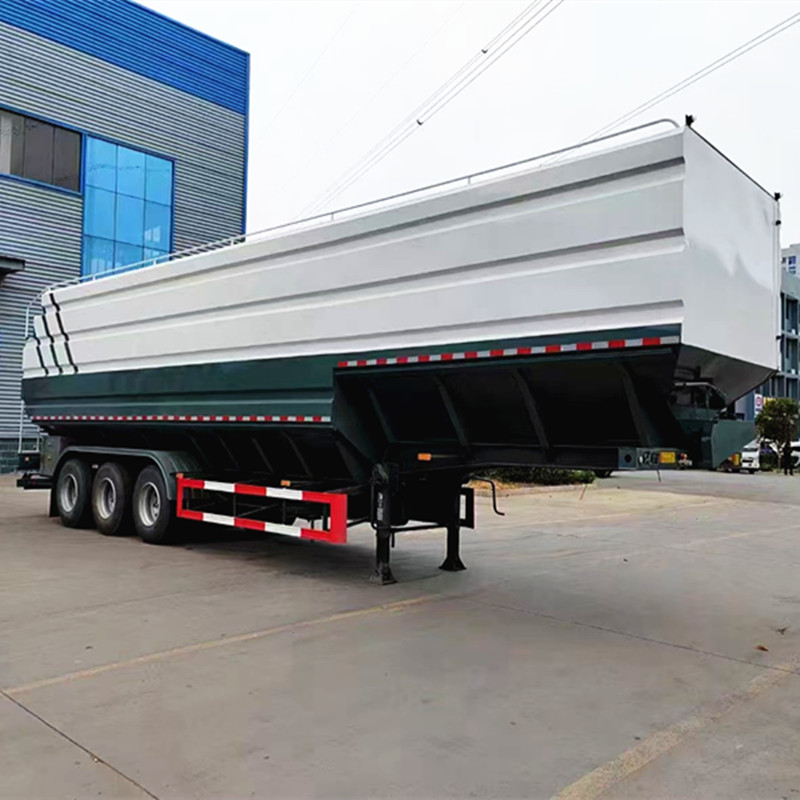

Animal feed truck

Safety performance

  • Structural stability: The integrated structure of the tank and frame ensures the stability and balance of the vehicle, reducing the risk of rollover and rollover; The low center of gravity design makes the vehicle more stable and reduces the risk of rolling at high speeds or sharp turns.
  • Reliable components: the blade of the cutter is made of wear-resistant material, which has high durability and reliability; Maintenance-free graphite bearing structure is adopted for the middle support of the winch, which reduces the daily maintenance work and improves the service life. The conveyor winch is equipped with a sequential opening and closing mechanism to effectively prevent misoperation and accidents.

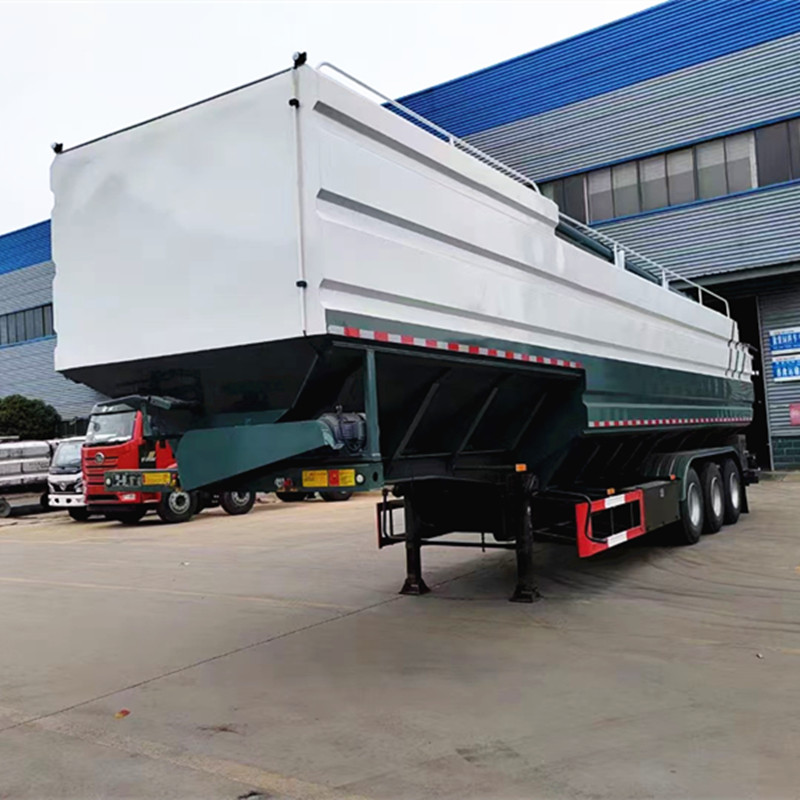

Chicken feed truck

Product Categories : Special Purpose Vehicle > Bulk Feed Truck
