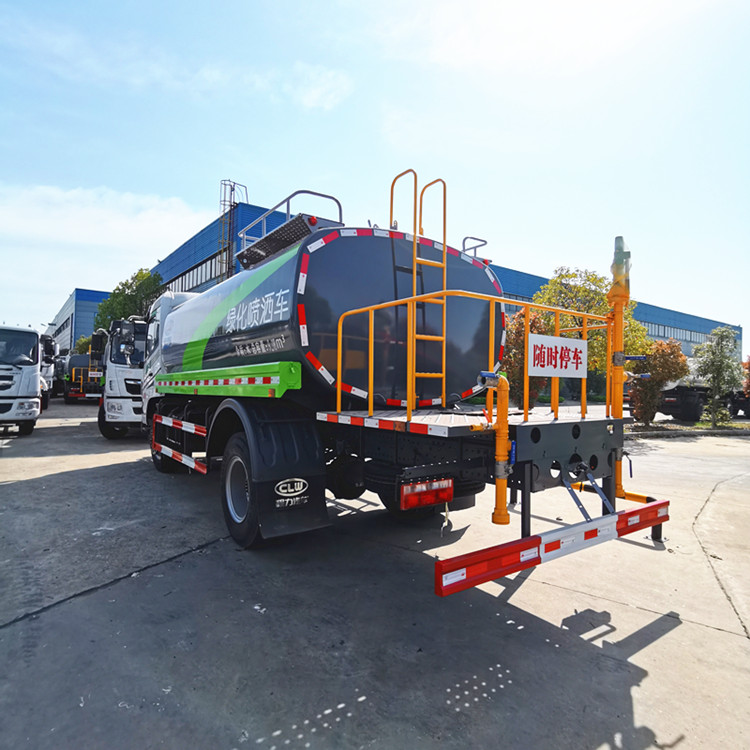

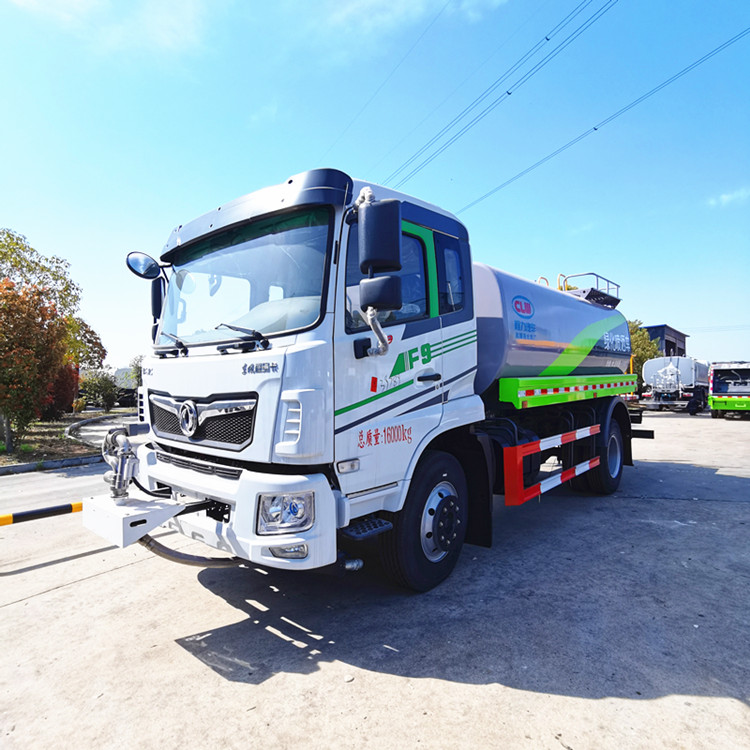

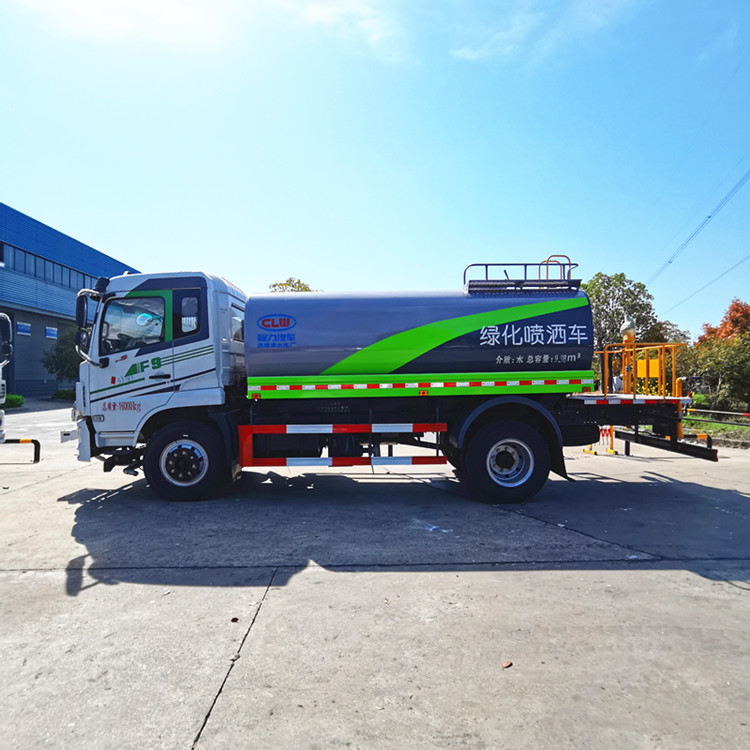

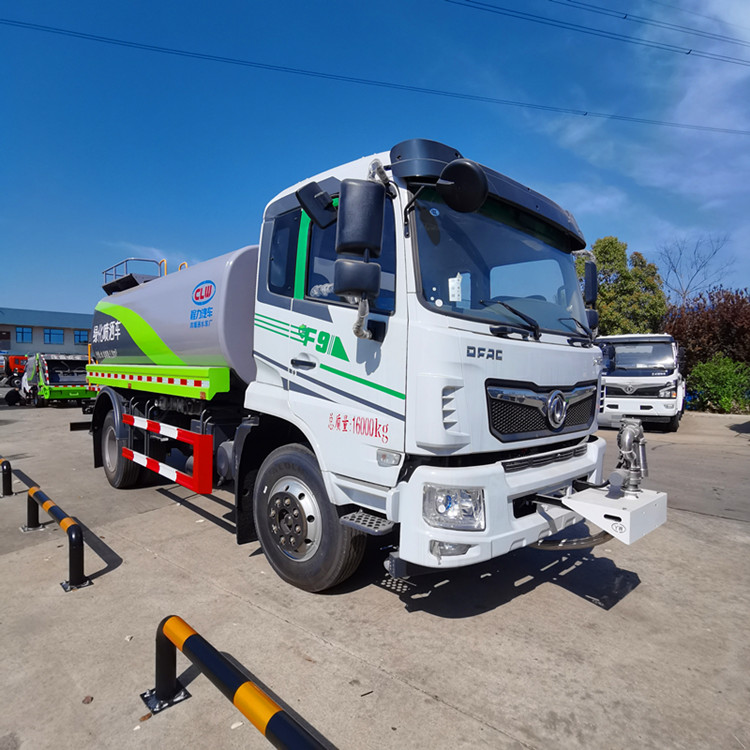

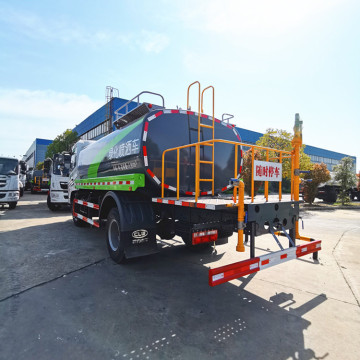

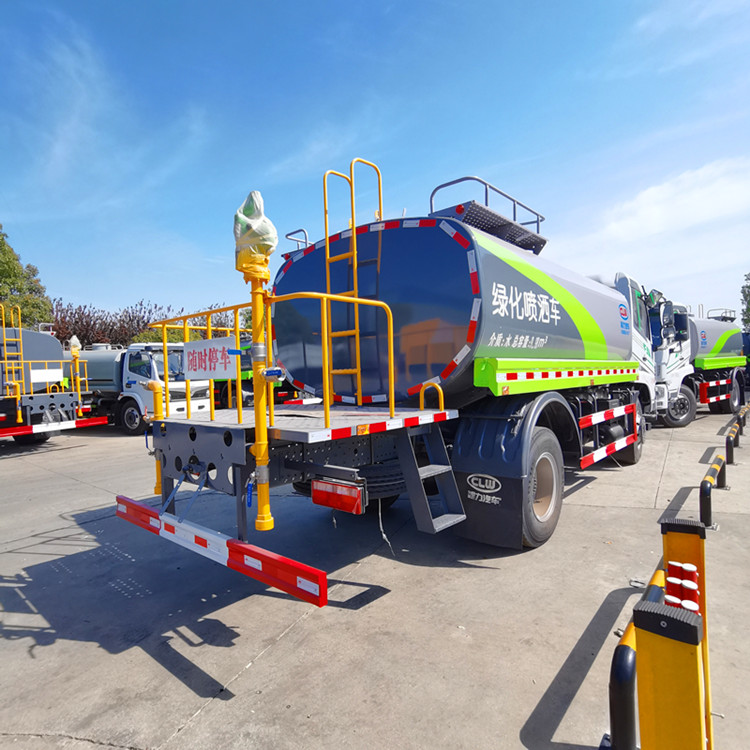

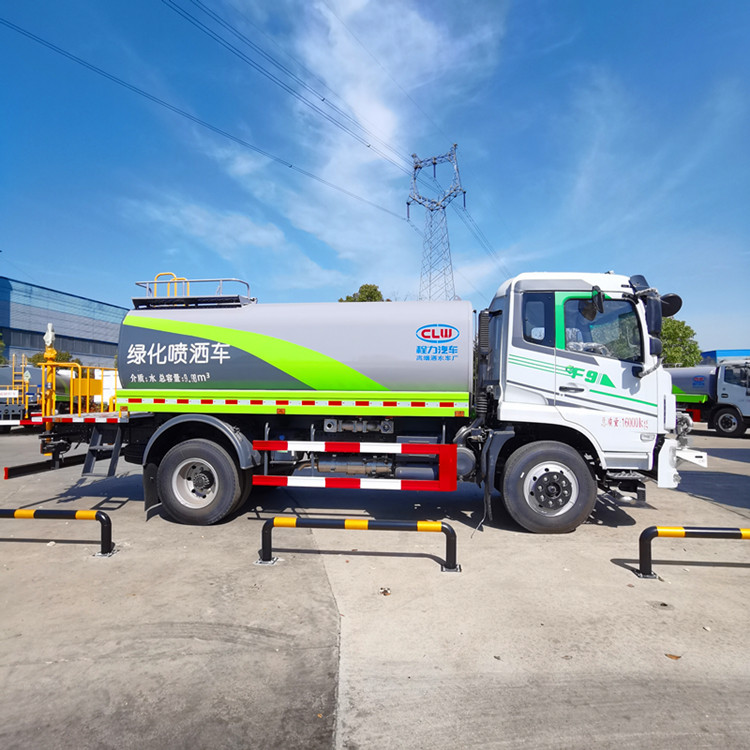

Dongfeng 10CBM Water Tank Sprinkler Truck Introduction

Sprinklers, also known as green spraying trucks and water tankers, are mainly used in construction sites, squares and roads for sprinkling, flushing, spraying, cooling and other operations, and can also be used as long-distance water and fire trucks. The following is the specific introduction:

1. Water Tank Truck Brief history of development

• Early prototype: As early as the Han Dynasty (around 186 AD), China has appeared the prototype of the sprinkler "rollover thirsty Wu".
• Modern development: China's first modern sprinkler appeared in 1967, by the Ministry of Communications, the first highway Engineering Bureau repair factory with CA10B Jiefang car refit.

2. water tanker basic structure

• Tank assembly: usually made of steel plate, including tank body, tank support leg, manhole cover, tank manhole and silo separation device, etc.
• Transmission assembly: generally includes water pump, power unit, deceleration or acceleration device and drive shaft.
• Water pipe assembly: including suction pipe, sprinkler pipe, five-way reversing valve. The suction pipe is composed of rubber hose and hard pipe, and the sprinkler pipe is composed of hard pipe and nozzle.
• Control system assembly: including the power box shift control and water absorption and sprinkling control of two parts, the main control methods are air control and hand control.
• Gas path system: The gas source comes from the air source of the chassis, which is composed of the gas pipe, gas control box, etc. The gas control box is integrated with the filter, pressure regulator, oil feeder and other air source processing components.
• Chassis: A standard chassis, usually provided by the automobile manufacturer, on which water storage tanks and other equipment are mounted.

3. How does the spraying truck work

When the sprinkler works, part of the engine drives the vehicle, and the other part drives the pump through the force box and the belt deceleration device. The sprinkler has two working states: parking water and driving water.

4. Water tanker main classification

• According to the sprinkler position: front spray, rear spray, front spray after spray.
• According to the size of the water tank: large sprinkler and light sprinkler.

5. Functional use of sprinkler truck

With water, dust, high and low spraying, pesticide spraying, guardrail washing and other functions, suitable for all kinds of road flushing, trees, green belt, lawn greening, roads, factories and mining enterprises construction, high-altitude building washing.
