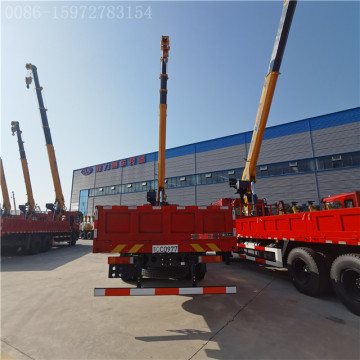

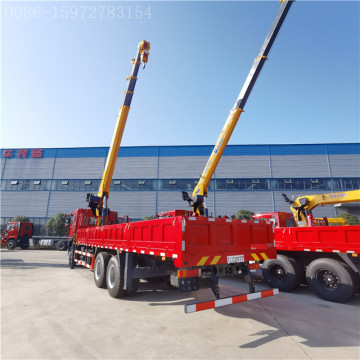

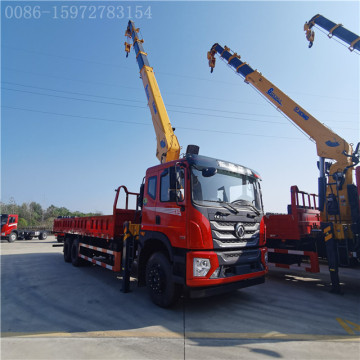

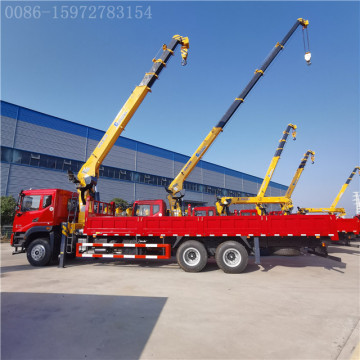

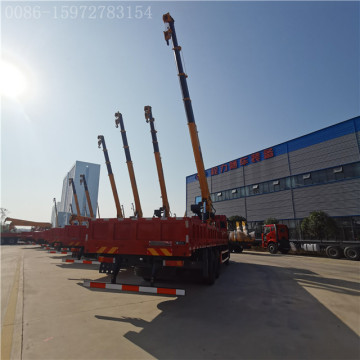

DONGFENG 6x4 14 Tons Truck Mounted Crane Parameter Settings

Truck With Crane Chassis Configuration

Dongfenghuashen T5 new cab (new chassis), cab with sleeping berth, Yuchai 270 horsepower rear eight wheels, 9 speed change, direction power, heating and cooling air conditioning, air brake, 300mm straight through three layer girder, 11.00R20 steel wire tire.

Telescoping Boom Truck Mounted Crane Configuration

Equipped with Xugong's latest G-series 14 tons five-section straight arm crane GSQS350-5, double pump, arm length 19.6 meters, lifting height 21.6 meters, front leg for composite leg span 7.6 meters, standard radiator, one-click start and stop.

Lifting Capacity

Generally speaking, the lifting capacity of Dongfeng eight-wheel on-board crane is about 10 tons to 16 tons. Of course, some models can carry larger tonnage cranes, but need to be selected according to the bearing capacity of the chassis and relevant regulations. The lifting height of the crane is high, and the operation range is large, which can meet the needs of most engineering operations.

Container Arrangement

Dongfeng original electrophoretic cold riveting fully folded steel inverted box, through the secondary beam!!
Size: 8400*2450* 550, 140 high double cross through secondary beam, beam fully folded steel, side plate 3MM field grid, four doors, bottom plate 5MM pattern plate, tail 4 Steyer hinge, wide tail beam, all uprights widened, hook plate increased, handrail, handwashing box.

Application Scenario

Dongfeng rear eight-wheel truck crane is widely used in power construction, municipal construction, infrastructure engineering, steel structure construction, equipment installation, forestry logging, landscaping and other industries.
