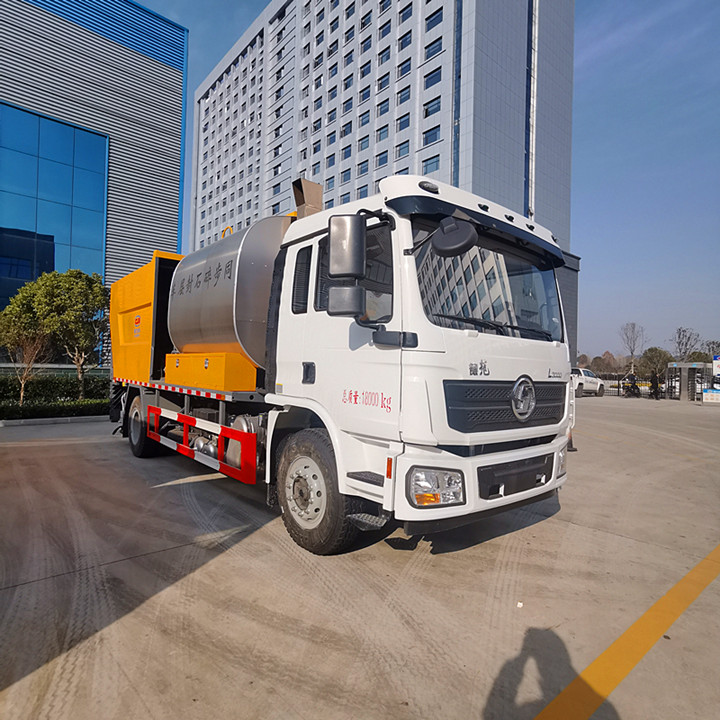

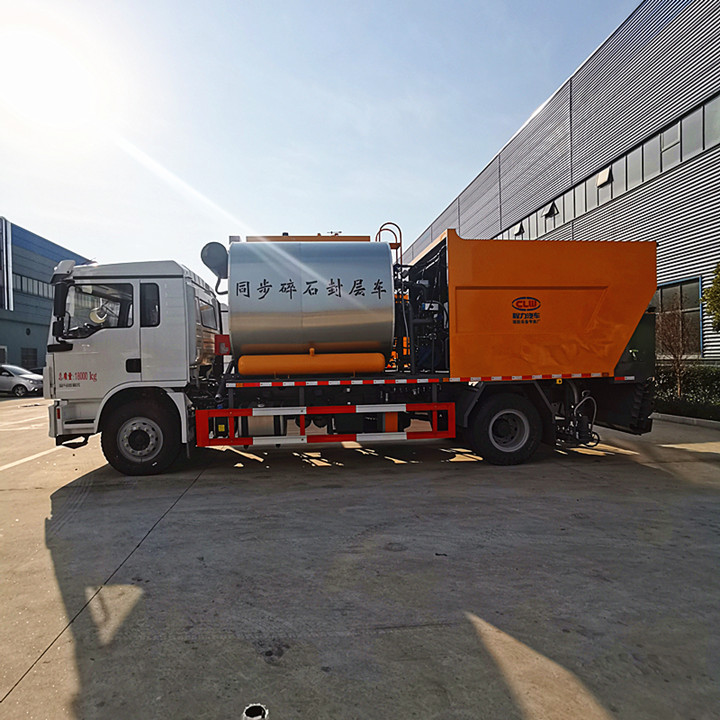

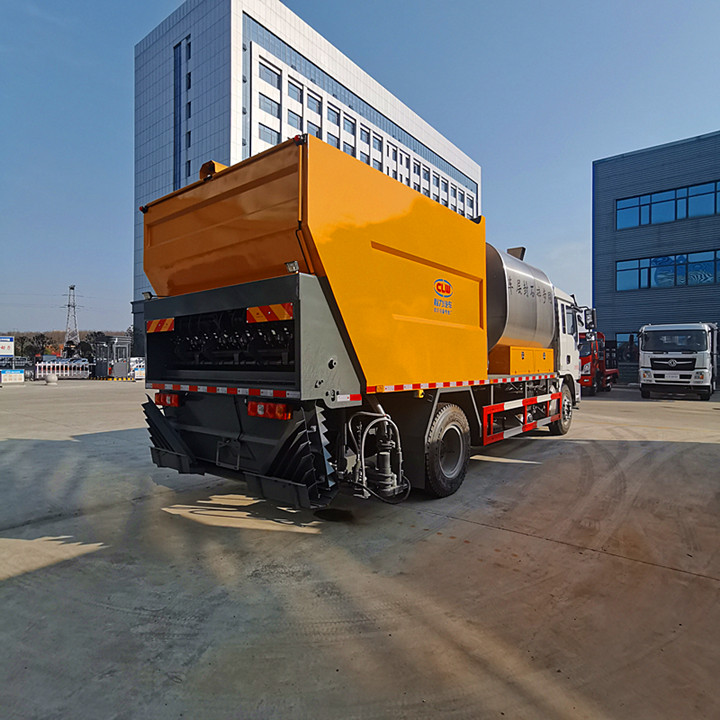

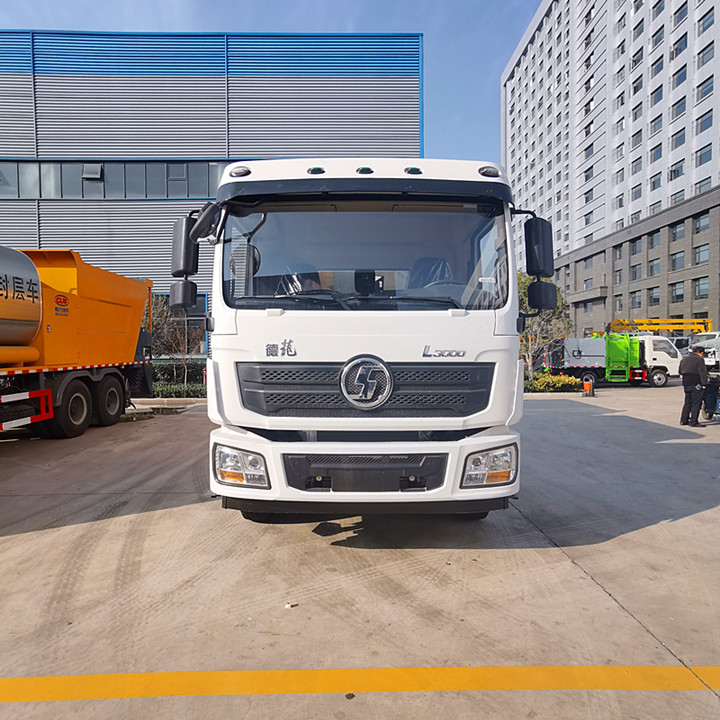

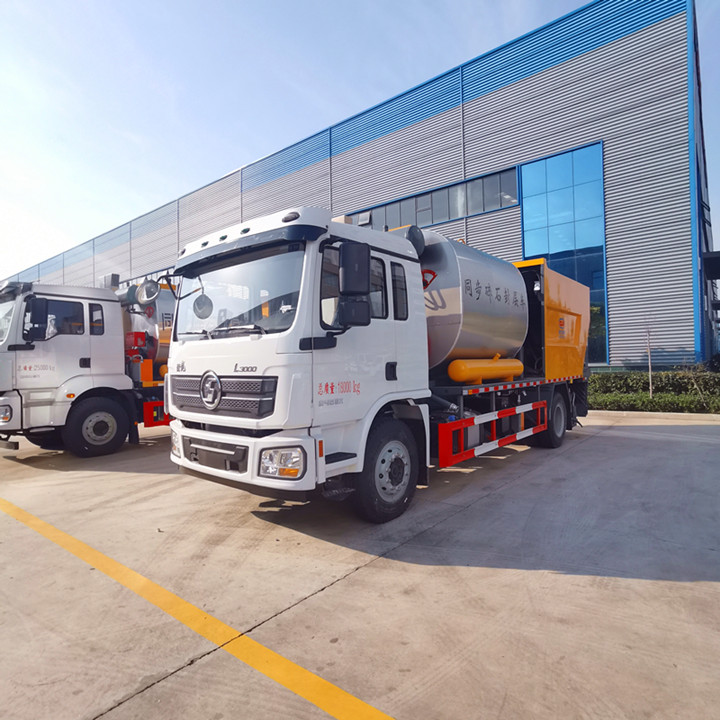

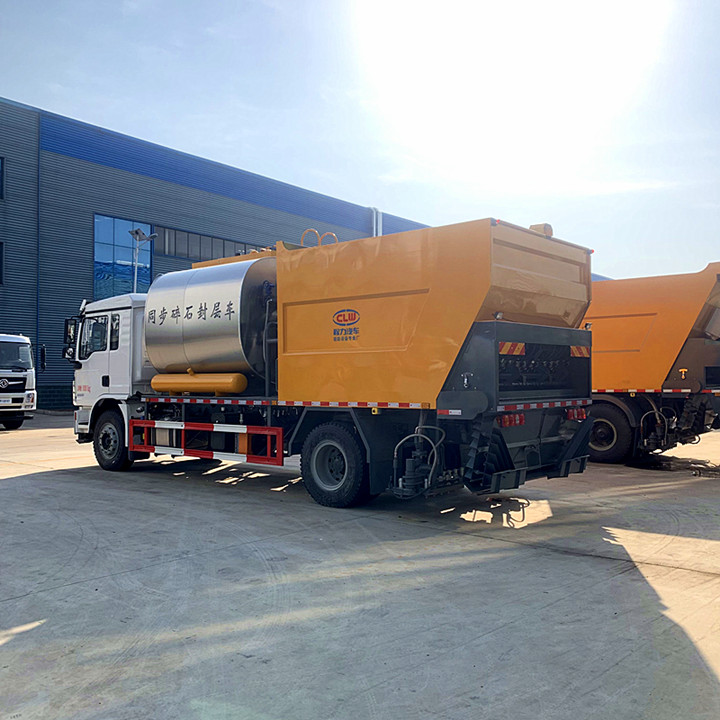

SHACMAN Synchronous Gravel Sealing Truck

Configure parameters for the SHACMAN synchronous gravel sealing truck

Serial number name Model and specification Owning system remark 1 automotive chassis sx automotive chassis shacman 2 engine CA4DK1-22E6 Big Chai 220 horsepower, 3 wheelbase 5300mm 4 Asphalt tank capacity 6cbm Inner tank volume 5 Stone bin 8cbm V-hopper (gravity flow) 6 Thickness of insulation layer 50mm Rock wool insulation 7 Outer stainless steel 1.2m 1.2 thick stainless steel plates 8 Power stripper For sealing cars Source of working power 9 Double gear pump 05-130-BD31 Hydraulic system Made in Tianjin 10 Proportional valve EFRD-G03-160-5-31 Made in Taiwan 11 Asphalt pump motor 05-130-BD31 Made in Tianjin

Parameter configuration of Shaanxi Qi Delong partial synchronous gravel seal truck:

• Chassis: Wheelbase 4000mm, equipped with 1000 steel tires, Cummins 240 engine, 8 gear box, original factory air conditioning, multi-functional steering wheel, air bag seat.
• Tank and silo: The volume of the tank is 15 square meters, which refers to the tank of the sprinkler, not the volume of the asphalt tank of the synchronous gravel sealing vehicle.

Shaanxi Qi Delong single bridge Synchronous Chip Sealer Truck produced by Chengli Special Automobile Co., LTD:

• Asphalt tank and stone warehouse: asphalt tank volume of 10 square, stone warehouse capacity of 14 square.
• Stone size: 5-20mm.
• Nozzle spacing: 125mm.
• Spreading width: 4000mm.
• Asphalt spread: 0.3-4.0L/m².
• Heating method: Riyal diesel burner + thermal oil heating automatically.
• Spraying medium: hot asphalt, SBS modified asphalt, emulsified asphalt, modified emulsion asphalt, rubber modified asphalt.
• Control system: cab intelligent operation, automatic computer control, full computer touch screen operation, equipped with video surveillance system.
• Drive mode: full hydraulic drive.
• Heating method: heat conduction oil circulation heating.
• Others: The use of internal lifting hopper can achieve stone sprinkling work, more convenient culvert construction, bridge construction and bend construction; The Angle meter is used to control the material door to improve the cutting accuracy of the equipment.

The working principle of synchronous gravel sealing truck is as follows:

The vehicle mainly has asphalt supply system, stone supply system and spraying/spreading system. When working, the asphalt supply system delivers the asphalt to the nozzle. The system heats the asphalt (in the case of hot asphalt) to the right spray temperature and viscosity, and delivers the asphalt through pipes and pumps to a spray rod located at the back of the vehicle.

At the same time, the stone feed system delivers the stone to the spreader. The stone is usually stored in the silo and transported to the spreader by means of a conveyer (such as a conveyor belt or a screw conveyor). In the process of vehicle driving, the spray rod will evenly spray the asphalt on the road surface, and the spreader will synchronously spread the stone on the road surface just sprayed with asphalt. In this way, asphalt and stone can be instantly combined on the road surface to achieve the gravel sealing layer. Moreover, the control system can precisely adjust the amount of asphalt spraying and the amount of stone spreading, but also control the width of the spraying and spreading parameters to adapt to different road conditions and construction requirements.
