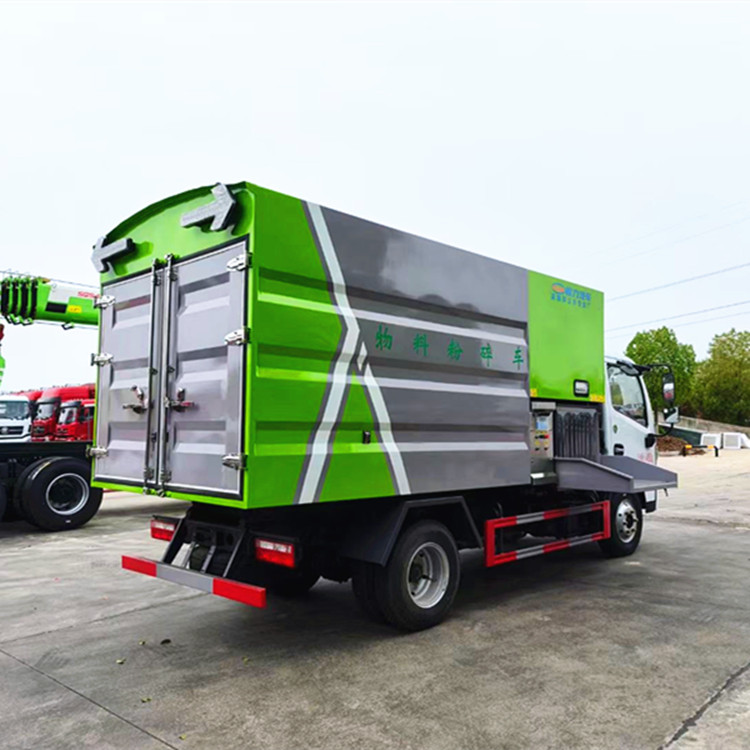

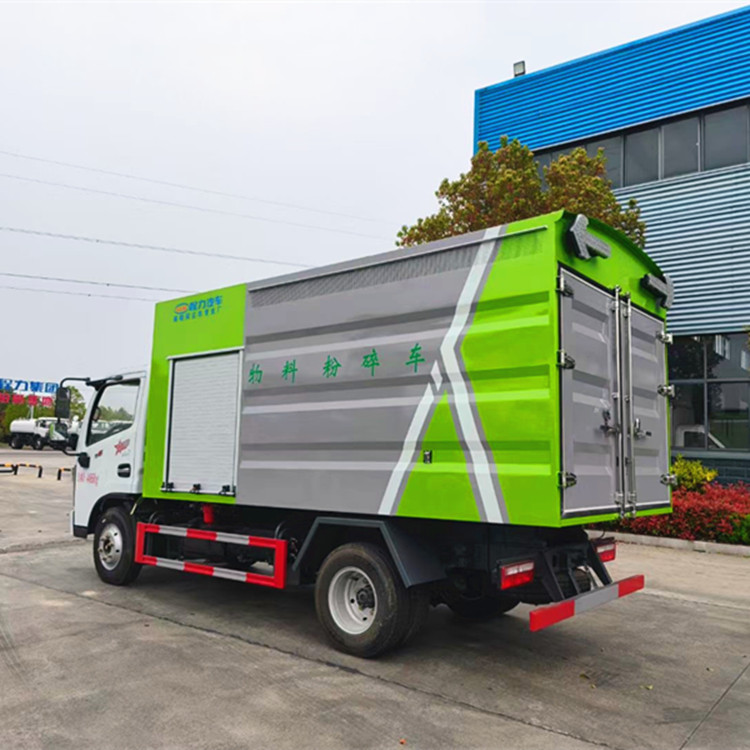

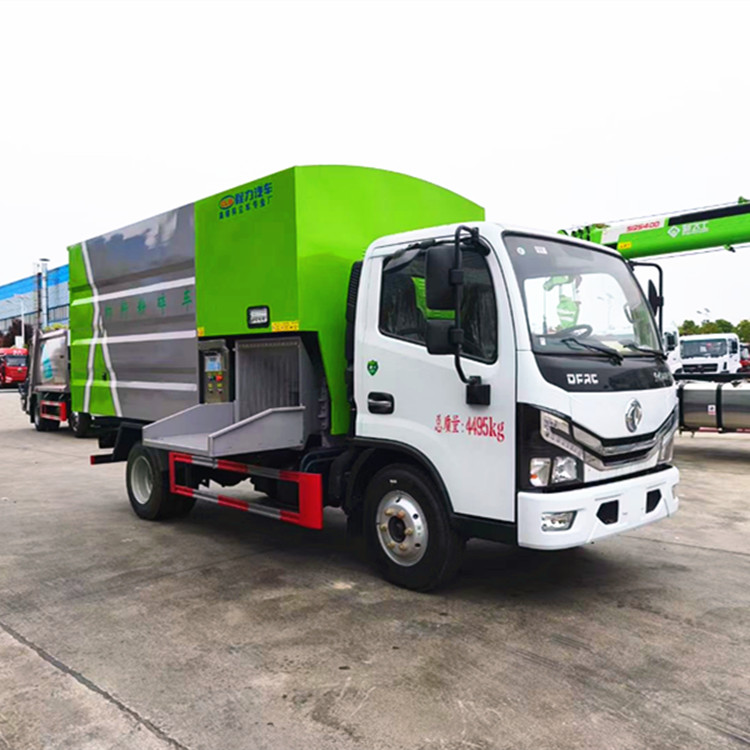

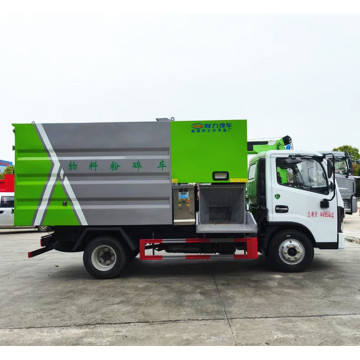

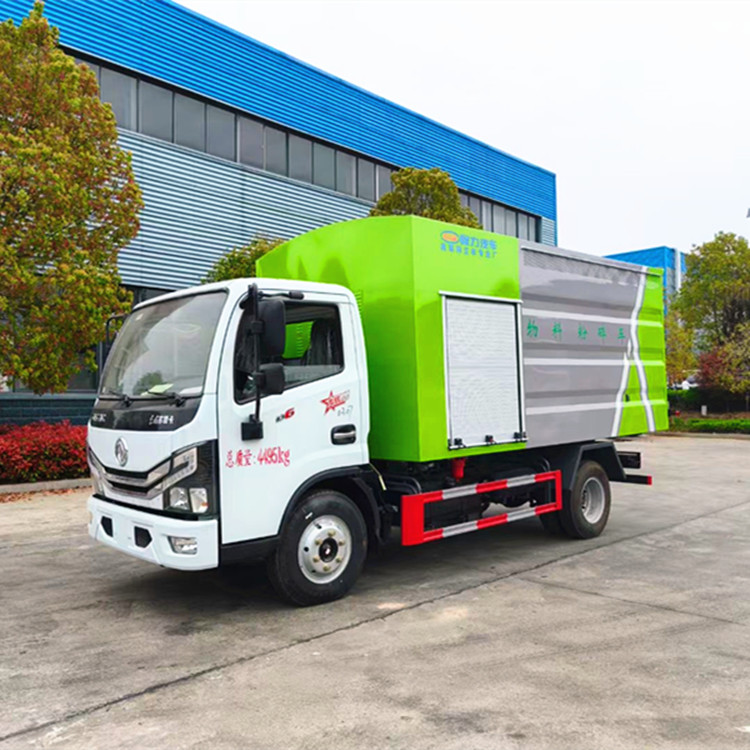

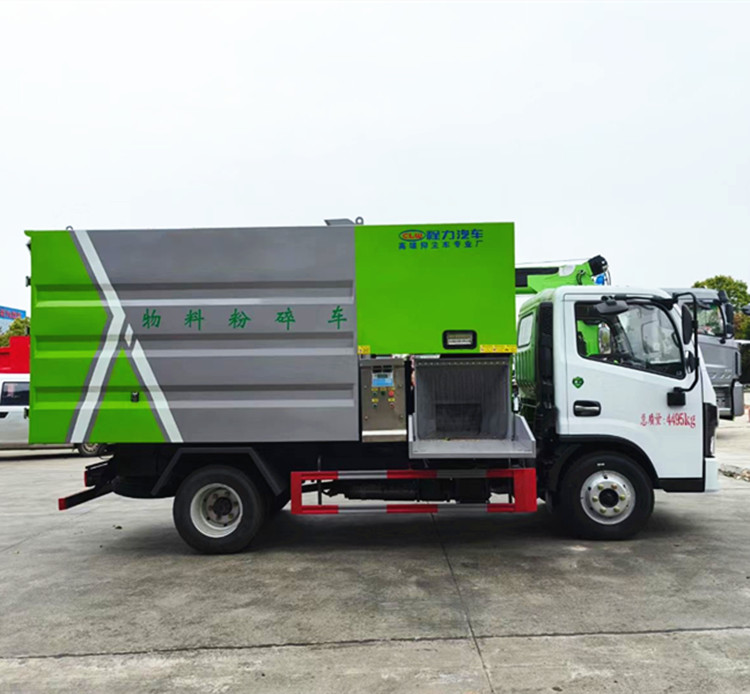

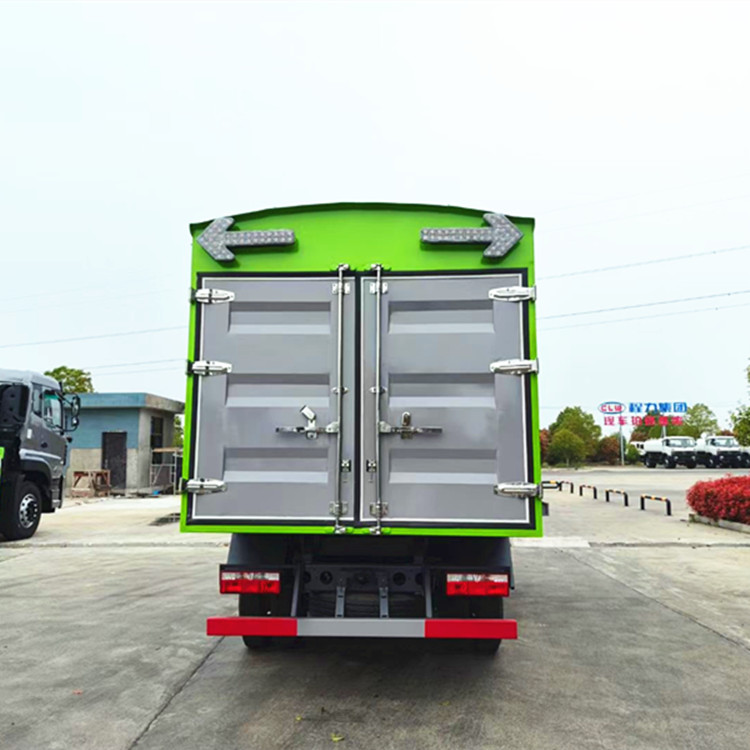

Dongfeng Material Crushing Truck

Vehicle basic parameter configuration

Top configuration

Bin volume :10.5m, maximum crushing diameter :200mm, maximum crushing amount :5T/h, crusher model :ZX6500 drum double-sided cutter, hydraulic tank volume 36L, driving power: host force (no auxiliary) hydraulic, full warning: full bin alarm unloading method: tipping unloading, loading platform height :900mm

Feed throat size :400*300mm, feed roller height: adjustable within 200, feed roller; Single feed roller hydraulic drive

Full hydraulic design: automatic adjustment of feed speed, no card material, high efficiency, easier maintenance, longer service life.

Dongfeng material crushing truck is a collection, crushing, transportation in one of the special vehicles, the following is its relevant introduction:

1. Basic parameters
   • Chassis model: EQ1045SJ3CDF, wheelbase 3308mm.
   • Engine: More than 136 HP diesel engine is used, which is powerful and can meet the needs of material crushing operation.
   • Bin volume: generally about 10.5-11 cubic meters, can accommodate more crushed materials.
2. Top configuration
   • Crushing machine: equipped with professional crushing machine such as ZX-6500 drum double-sided cutter, hydraulic control, feed port size of 400×300mm, maximum crushing diameter of 200mm, high crushing efficiency, good effect.
   • Feeding platform: the height is about 900mm, which is convenient for the operator to send the material to the crushing truck for crushing.
3. Material crushing truck features
   • Functional integration: one-stop operation of material collection, crushing and transportation is realized, which improves work efficiency and saves labor and time costs.
   • Blue plate advantage: The vehicle meets the blue plate standard, and the C license can be driven, which expands the driver's choice range and is easy to work in various scenarios such as urban roads.
   • Environmental protection and energy saving: In the crushing process, the volume of the material is effectively reduced, which is convenient for subsequent treatment and transportation, and also reduces the pollution to the environment.
4. Application scenario of material crushing truck
   • Mainly applicable to urban gardens, highways, power departments, etc., can crush branches, wooden crop straws, etc., and convert them into materials that are easy to handle and reuse, helping to reduce garbage accumulation and resource recycling.
