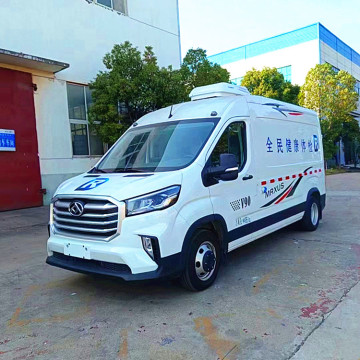

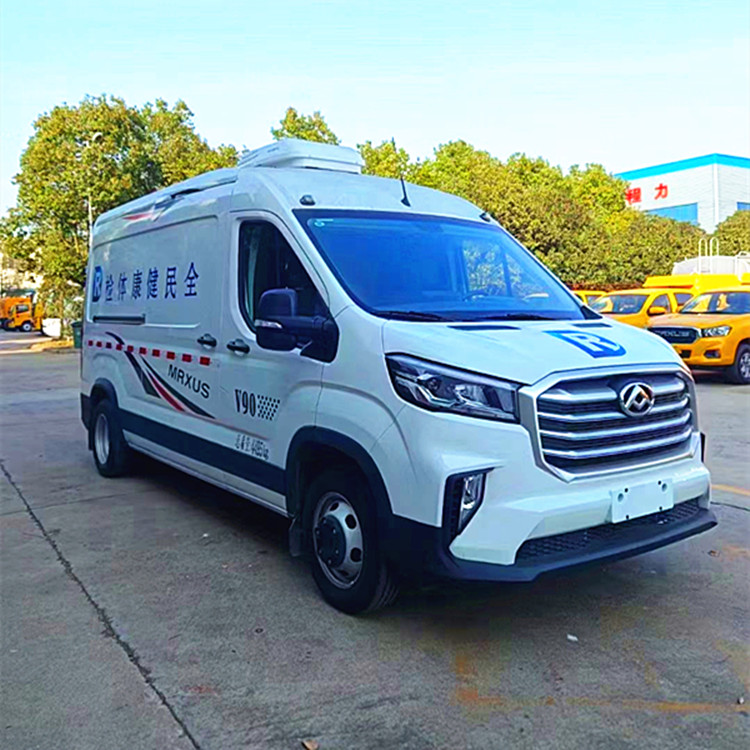

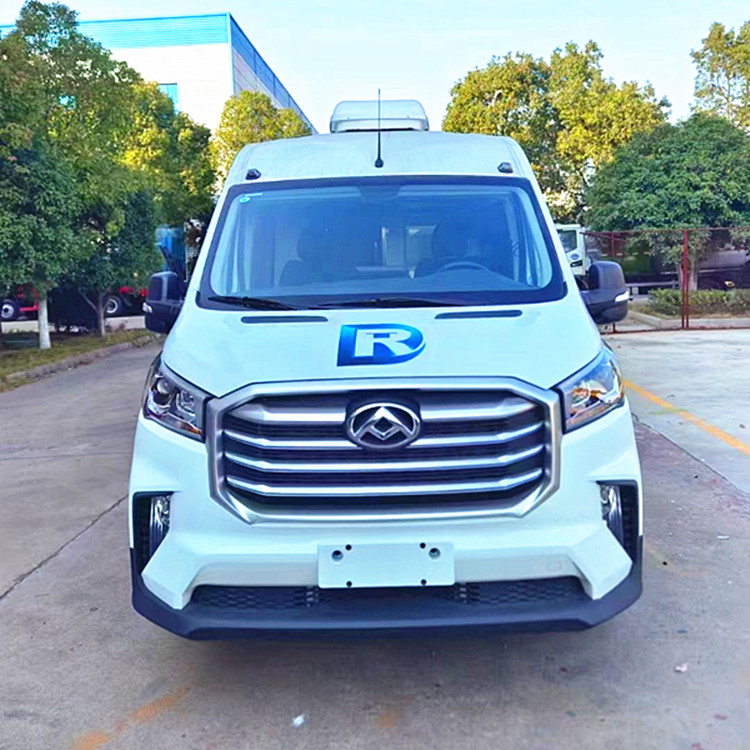

SAIC Datong DR Physical Examination Car Parameter Configuration

Vehicle Technical Parameters

• Vehicle size (mm): 5940x2110x2750mm
• Wheelbase (mm): 3760
• Gross mass (kg): 4495
• Quality of service (kg): 4100
• Suspension system: Front McPherson independent suspension, rear non-independent suspension with 3 springs
• Front track (mm): 1740
• Rear track (mm): 1654, 1765
• Fuel type: Diesel oil
• Tank volume (L): 80
• Engine type: SC20M150Q6
• Working mode: Turbocharging
• Displacement: 2.0T
• Power/Horsepower: 110(KW)/149.6HP
• Axle load (kg): 1750/2745
• Emission standard: Euro 6
• Driving mode: Rear-wheel drive
• Transmission: 6AT
• Top speed (km/h): 150
• Tyre type: 195/75R16LT
• Front/Rear overhang: 1020/1160
• Seating: 3
• ABS anti-lock + EBD braking force distribution
• Brake assist and body stability control
• Power front doors and windows
• Multi-functional steering wheel
• Driver's seat airbag
• Remote key, central lock
• Cab original cooling and heating system

1. Configure Performance of Medical Examination Car

• Engine: 2.0T turbodiesel, such as SC20M150Q6, with a maximum power of 110kW and a maximum torque of 375 Nm.
• Transmission: Matching 6-speed manual transmission or 6-speed automatic, 8-speed automatic, 9-speed automatic transmission.

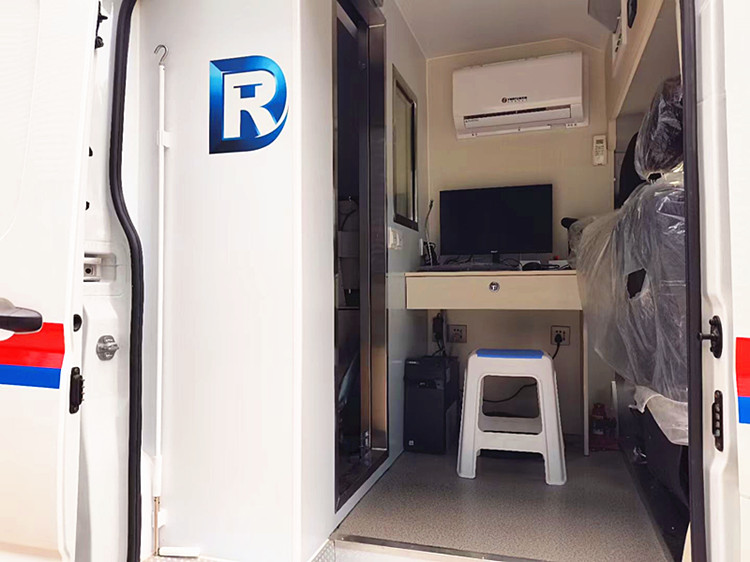

2. Layout and Facilities Inside the Medical Vehicle

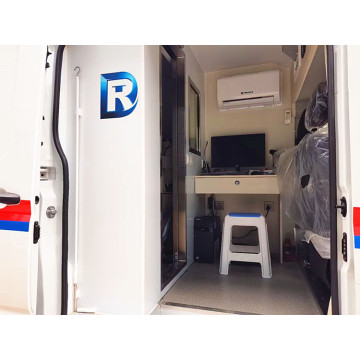

• Physical examination work area: Equipped with physical examination workbench, biochemical analyzer, blood analyzer, urine analyzer, and other conventional physical examination equipment, as well as doctor's workbench, computer testing table, swivel chair, etc.

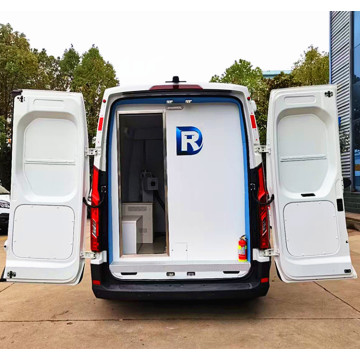

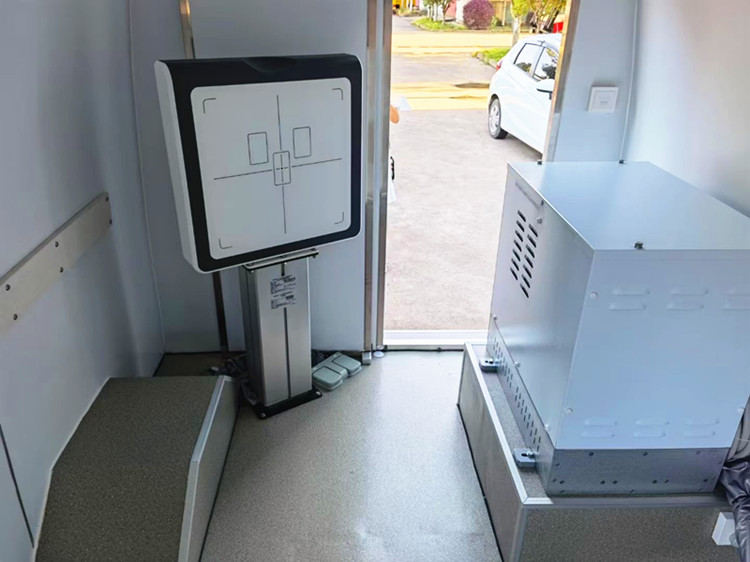

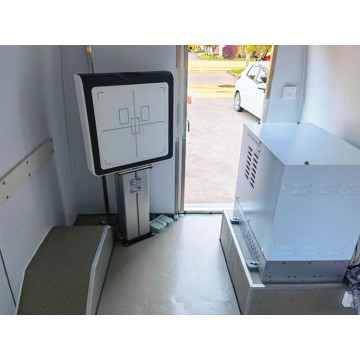

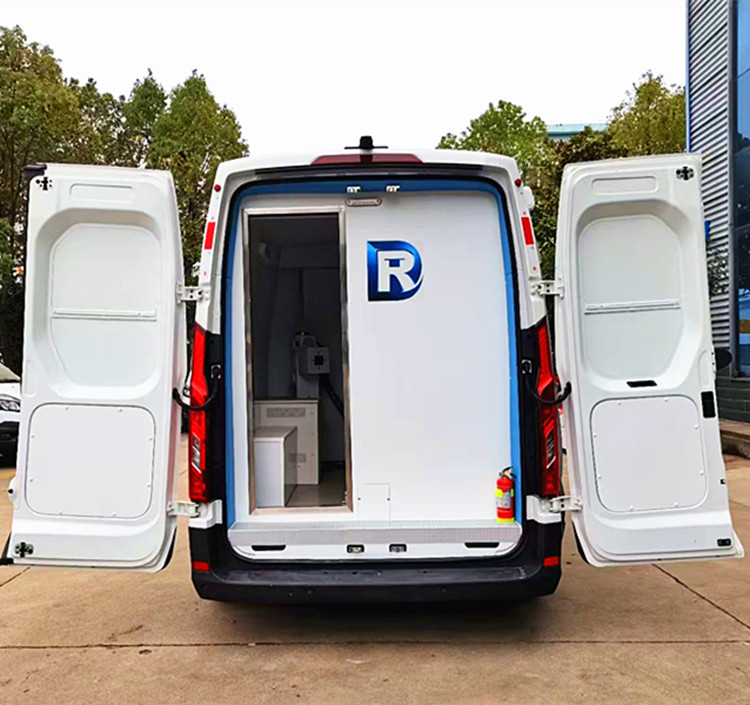

• DR Inspection area: Lead protection inspection room, 6 sides are installed with lead plate protection. The entrance and exit are electric lead doors, inlaid with lead glass. Equipped with high-resolution flat panel detector. The ball tube and detector have intelligent sensing devices, which can automatically track.
• Other facilities: The car roof is equipped with overhead air conditioning, exhaust fan, UPS emergency power supply, medical refrigerator, physical examination bed, three-person seats, and a test bench on the left side of the vehicle.

3. Application Scenario of Medical Examination Car

• Community medical service: It can be opened to the community regularly to provide residents with convenient physical examination services, such as chest X-ray, ECG, B-ultrasound, biochemical test, etc.
• Enterprise employee physical examination: Such as oil companies, coal companies, chemical companies, etc., can be purchased for employees to do occupational health examinations regularly.
• School physical examination: Can go to the school to conduct routine physical examinations for students, including height, weight, vision, chest X-ray, and other items.
