SHACMAN 20CBM Fuel Tank Truck Parameter Settings

SHACMAN 20CBM Oil Tank Truck Description:

1. Tank Truck Chassis Configuration
   • Shaanxi Automobile Delong new M3000: 6X4 drive, equipped with Weichai WP9H336E50 engine, powerful power, matching Shaanxi gear nine or twelve gear transmission, smooth shift, high transmission efficiency, front axle 5.5 tons or 7.5 tons, rear axle 11.5 tons or 16 tons, strong bearing capacity, equipped with 12R22.5 tires, good stability.

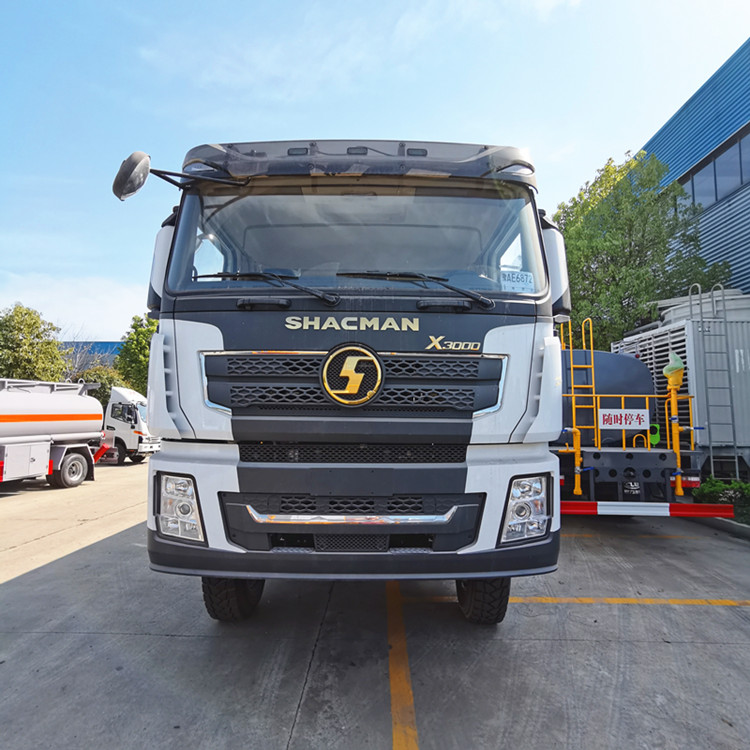

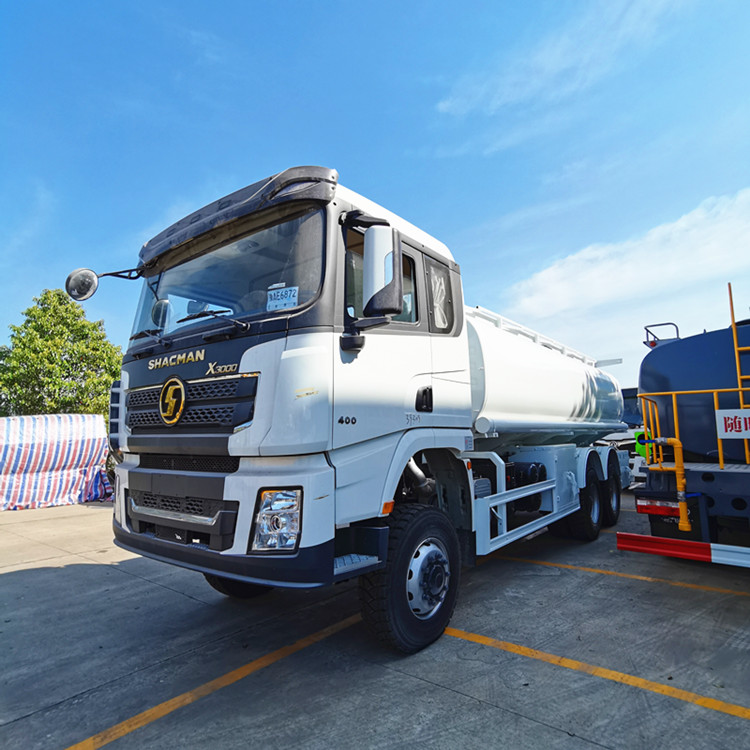

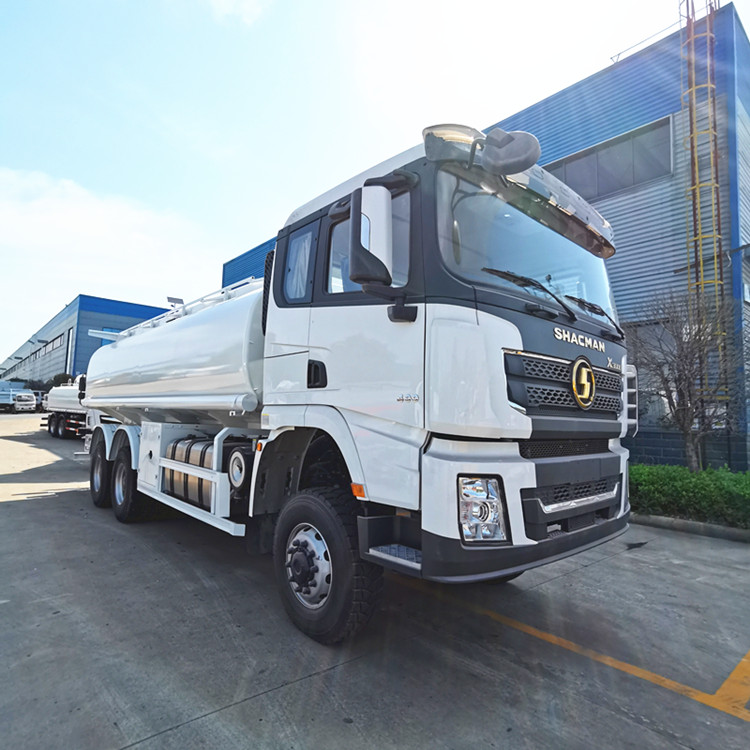

   • Shaanxi Qi Delong X3000: equipped with Weichai 336 HP diesel engine, eight-speed box, 11.00-r20 steel wire tires, air brake, rotary, clutch power, ABS, front disc brake and other complete configurations, also with urea tank and exhaust gas purification system in line with National Five emission standards.

oil truck Installation Configuration

• Tank Material: Carbon steel, stainless steel, aluminum alloy and other materials to choose from. Aluminum alloy material tank is lightweight, corrosion-resistant, and high strength.

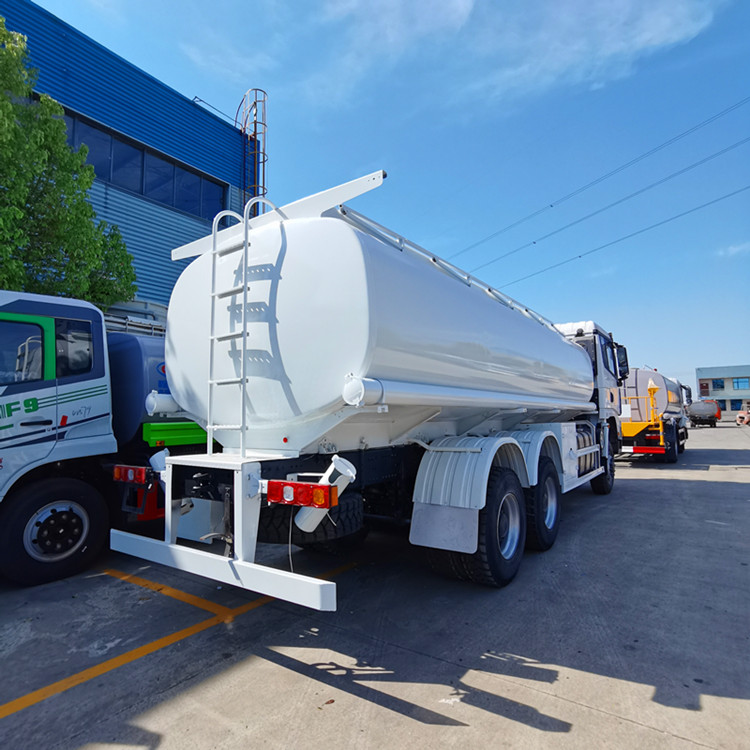

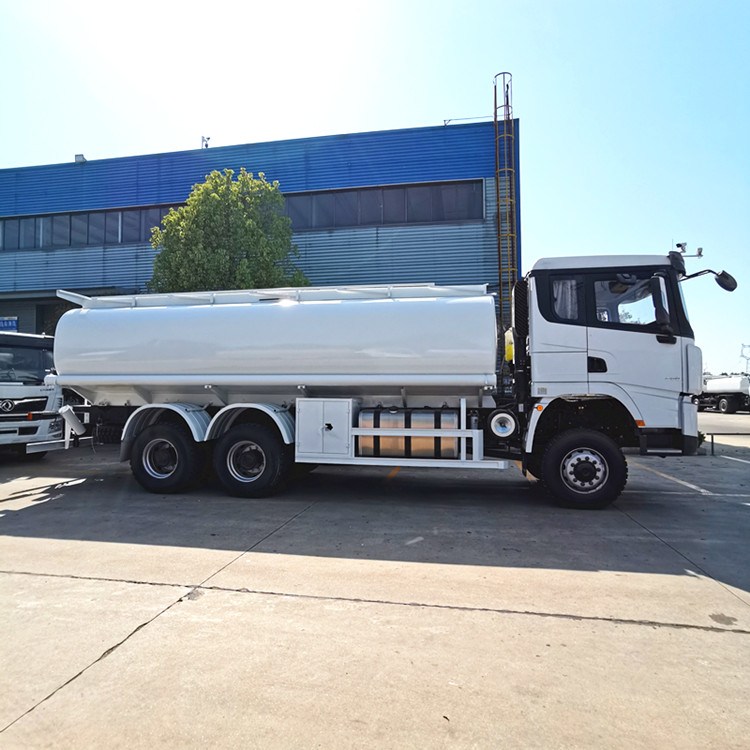

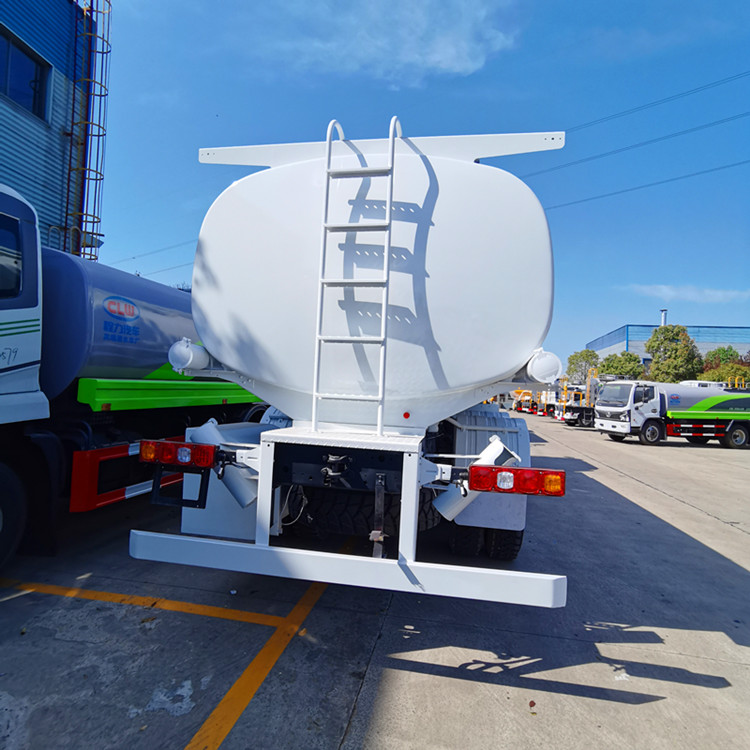

• Tank Volume: Generally about 20-30 cubic meters, such as the national five Shaanxi Automobile Delong M after eight tank truck CSC5310GYYS5 type oil truck tank volume of 28.5 cubic meters. Tank structure: mostly square, oval or round. The interior is installed every 2 meters or so a corrugated wave board to reduce the impact of the tank on the car body when braking. The top of the tank has an anti-slip net, guardrail on both sides, but also equipped with European standard tank mouth, submarine valve, flow valve, oil and gas recovery system.

Tank Car Safety Configuration

• Braking System: Equipped with ABS anti-lock system, front disc braking, etc., good braking performance, can effectively shorten the braking distance. Some models also with exhaust braking, hydraulic retarder and other auxiliary braking devices, reduce the use of service braking frequency, improve the reliability of the braking system.
• Fire and Explosion Prevention: Equipped with two or more fire extinguishers, two pipelines with the same length as the tank, fire caps, grounding wires, etc. The surface of the tank will also be sprayed with flammable liquid stickers, reflective signs, safety notices, etc., to improve vehicle identification and safety.

Vehicle Performance

• Speed Limiting Device: In order to ensure transportation safety, the vehicle is equipped with speed limiting device, the speed limit is 80km/h, in accordance with the relevant regulations of dangerous goods transport vehicles.
• Environmental Performance: National 5, national 6 emission standards of the model. The engine adopts advanced combustion technology and exhaust treatment device, effectively reduce pollutant emissions, reduce environmental pollution.
• Comfort: Some models are equipped with airbag seats, automatic thermostatic air conditioning, power Windows with central control lock, multi-functional steering wheel, LCD instrument panel and other configurations to improve driving comfort.
