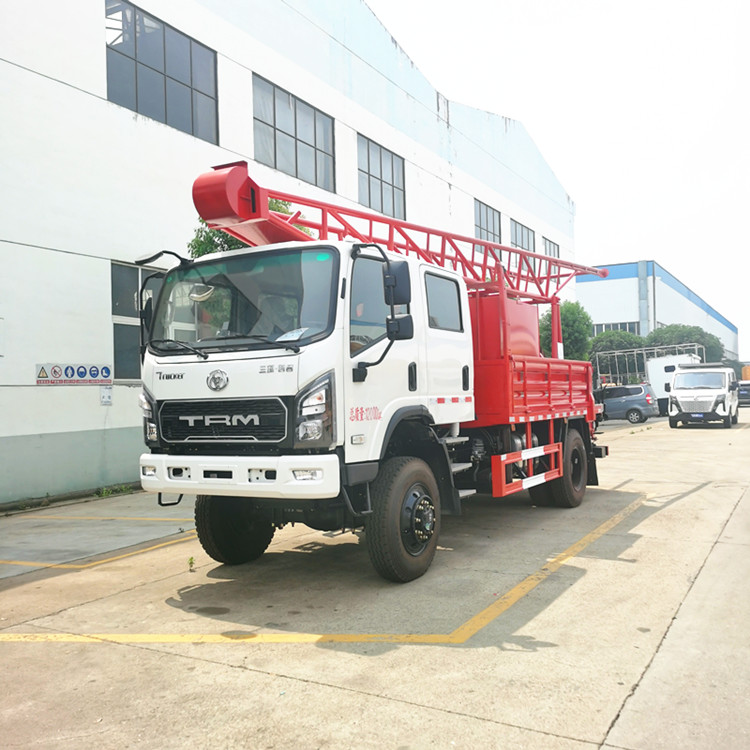

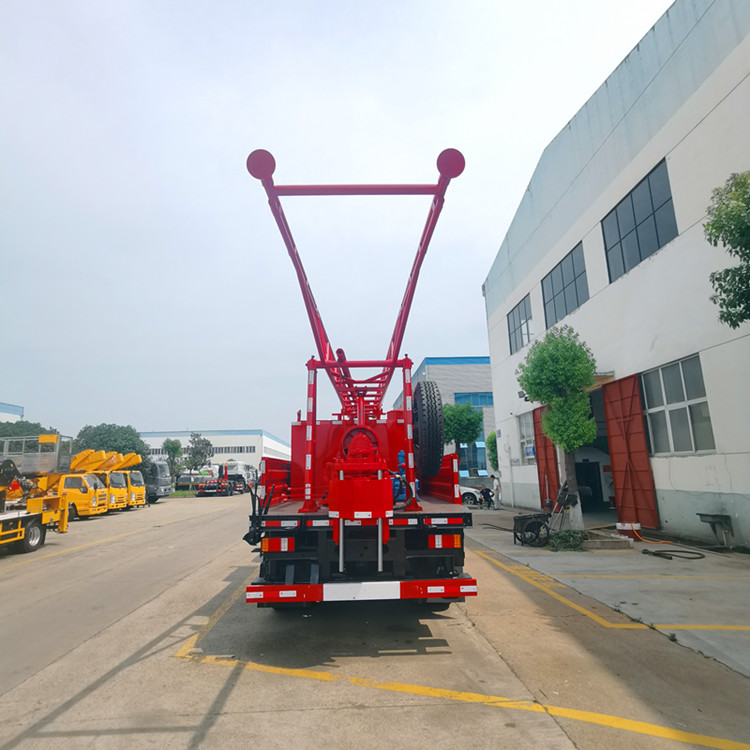

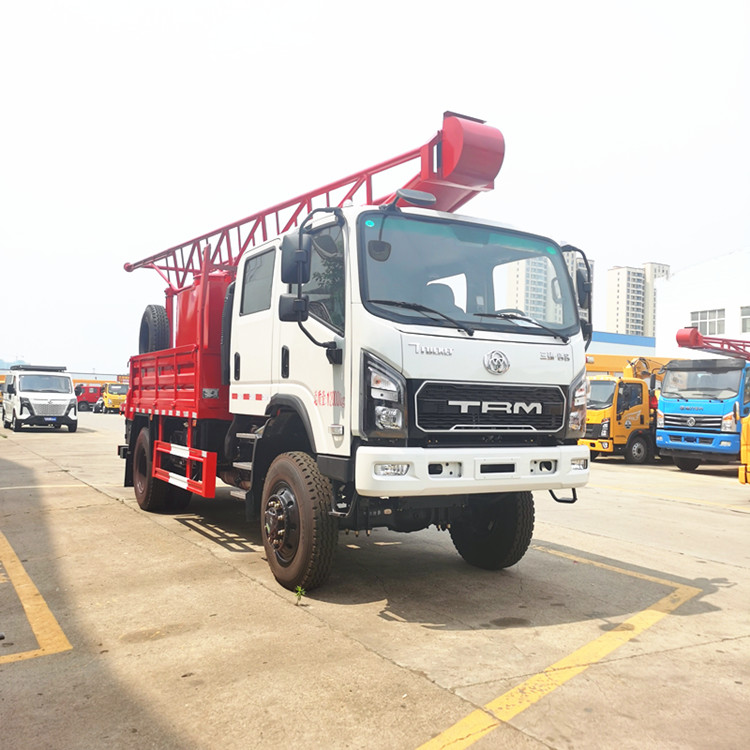

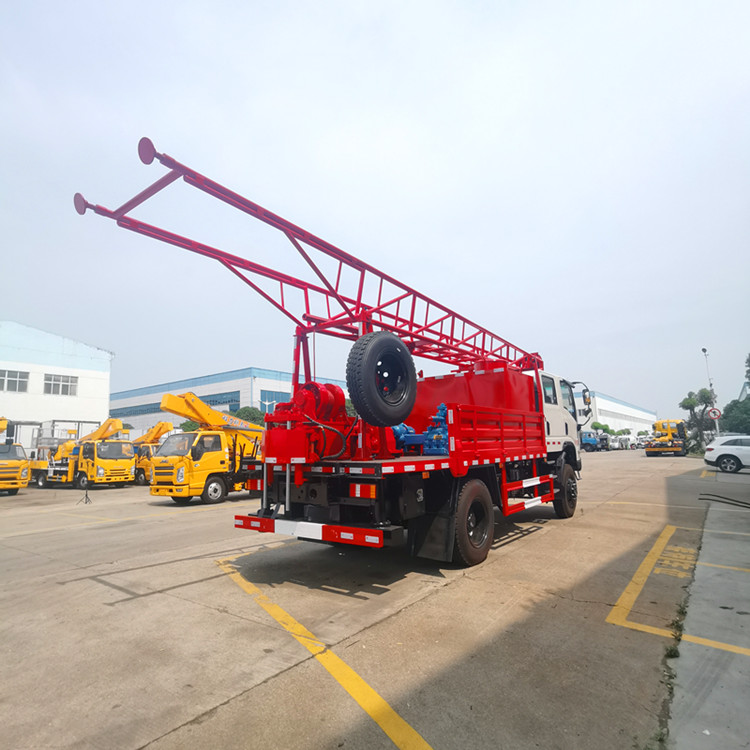

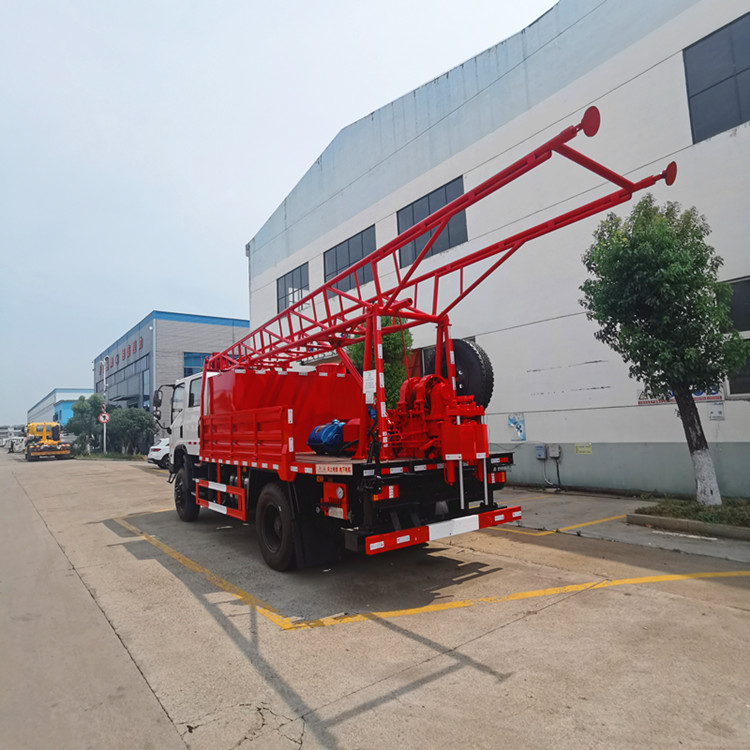

Cheng Li Brand Drill Locomotive Parameter Configuration

Product Information

Top Configuration

The square box is made of 4mm thick Q345 carbon steel, Hefei Anhui liquid pump, Zhongmeidou valve, Boli cylinder, push plate unloading without lifting and unloading, hydraulic tailgate with hydraulic lock, 240 liter drawbar barrel lifting machine, electric control operation inside and outside the cab, can be installed with pile device, weight recording device.

Common Models of Cheng Li Drill Locomotive

1. Cheng Li HQG5132TJZFD3 water drilling truck
   • Chassis and Appearance: With a variety of chassis options, the car girder is a double 232 (6+5) mm equal section girder, with two anti-torsion beams at the tail. The exterior color of the vehicle is blue, the outline size is 9255×2470×3300mm, the wheelbase is not explicitly mentioned, the total mass is medium (6 tons < total mass ≤14 tons), and the maintenance mass is 7800kg.
   • Power System: Engine model YC140-31, drive form is two-wheel/four-wheel drive.
   • Drilling System: Drilling diameter φ200mm depth 70m, drilling diameter φ150mm depth 100m, drill pipe diameter 50mm. Rotary forward speed 57, 96, 169r/min, reverse speed 38r/min. Feed force 30kN, pull force 50kN, feed process 450mm. Hoisting single rope lifting force 12.5kN, mud pump working pressure 2Mpa, displacement 450l/min, hydraulic system pressure 8Mpa.
2. CLW5080TZJ6 well drilling truck of Cheng Liwei Brand
   • Chassis and Appearance: Chassis model eq1125sj8cdc, wheelbase 3800, 3950, 4050, 4100, 4400, 3600mm optional, overall size 9100×2370×3180mm, repair mass 7605kg, total mass 7800kg.
   • Power System: Various engine models such as d4.0ns6b170, d4.0ns6b185, etc., fuel type is diesel, maximum speed of 103km/h, axle number 2, tire specifications 245/70r19.5, 8.25r20.
3. Cheng Liwei CLW5310TZJAYY well digging truck
   • Chassis and Appearance: Wheelbase of 1995+2700+1350 and other combinations, number of axes 4, overall dimensions 12580, 12230, 11780, 11380×2550×3950mm, repair mass 30870kg, total mass 31000kg.
   • Power System: Fuel type is diesel, maximum speed is 90km/h, tire specifications are 11.00r20 18pr, 12.00r20 18pr, etc., the number of tires is 12.
   • Other Configuration: Equipped with ABS system, approach Angle 22°, departure Angle 10°, front suspension 1440, 1500mm, rear suspension 1515, 1455mm.
4. Cheng Liwei CLW5160TZJAGC water well drilling truck
   • Chassis and Appearance: Chassis model dfh1180ex8, wheelbase 3800, 3950, 4200 and other options, overall size 10790×2550×3850mm, repair mass 15670, 15605kg, total mass 15800kg.
   • Power System: The engine can be d4.5ns6b190, d6.7ns6b230, etc., displacement 4500ml, 6700ml, etc., power 140/190kW, 169/229kW, etc., fuel type is diesel, the maximum speed is 89, 98km/h, Tire specifications 10.00r20 18pr, 275/80r22.5 18pr.
   • Other Configuration: Equipped with ABS system, approach Angle 17°, departure Angle 12°, 10°, front suspension 1400mm, rear suspension 2390, 2590mm.
