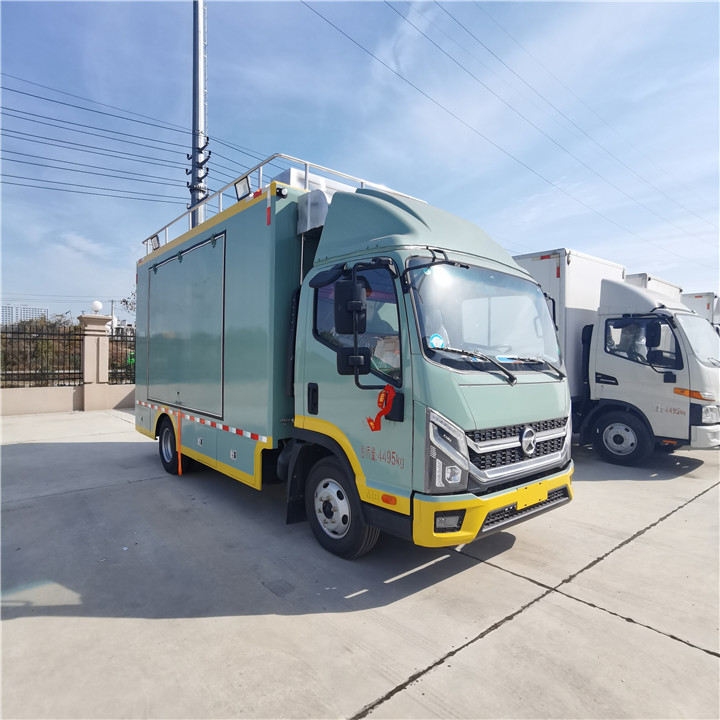

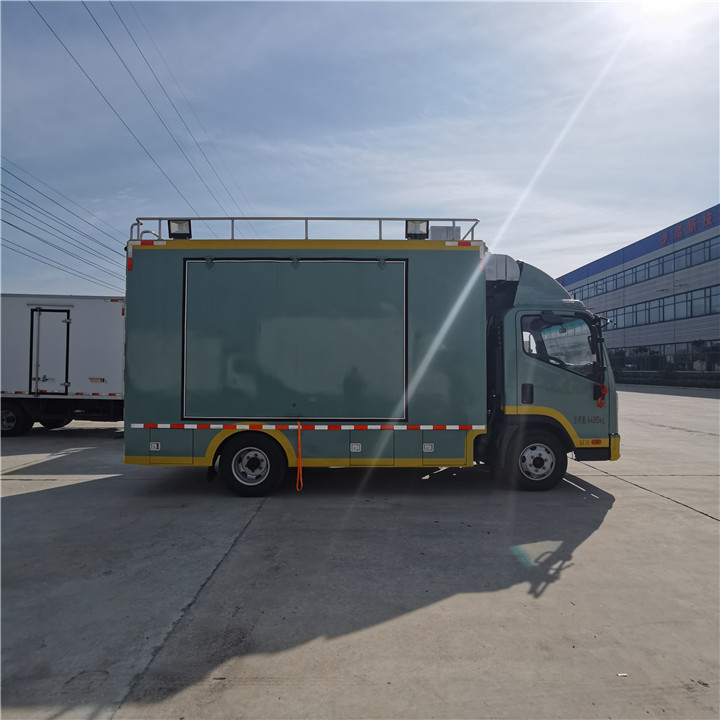

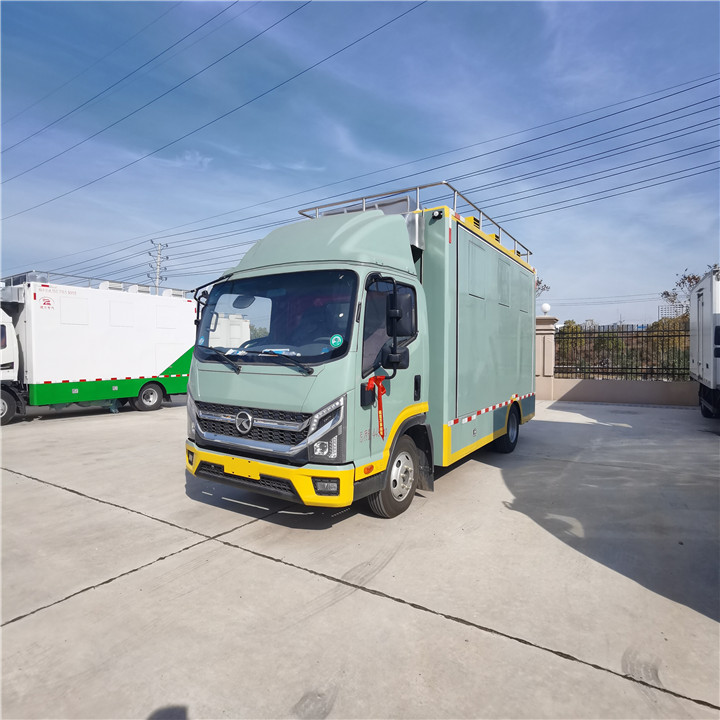

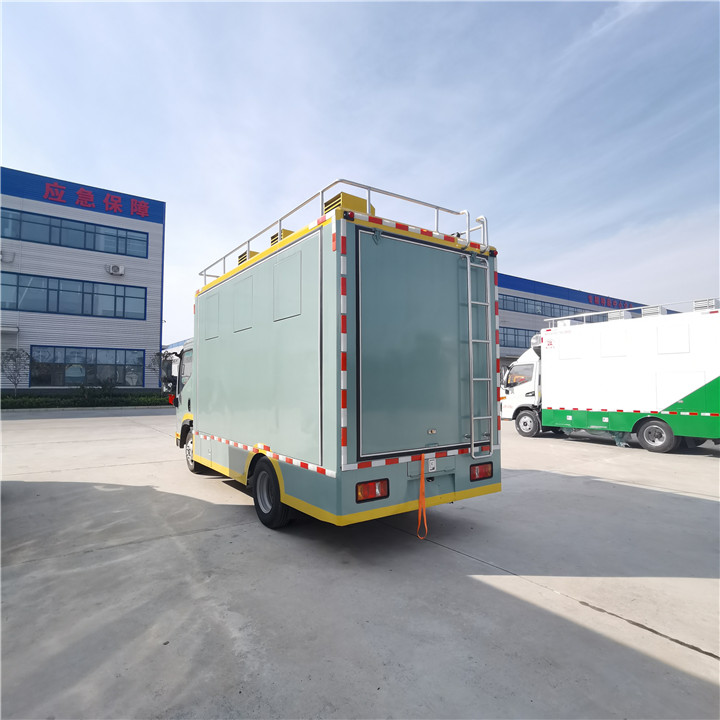

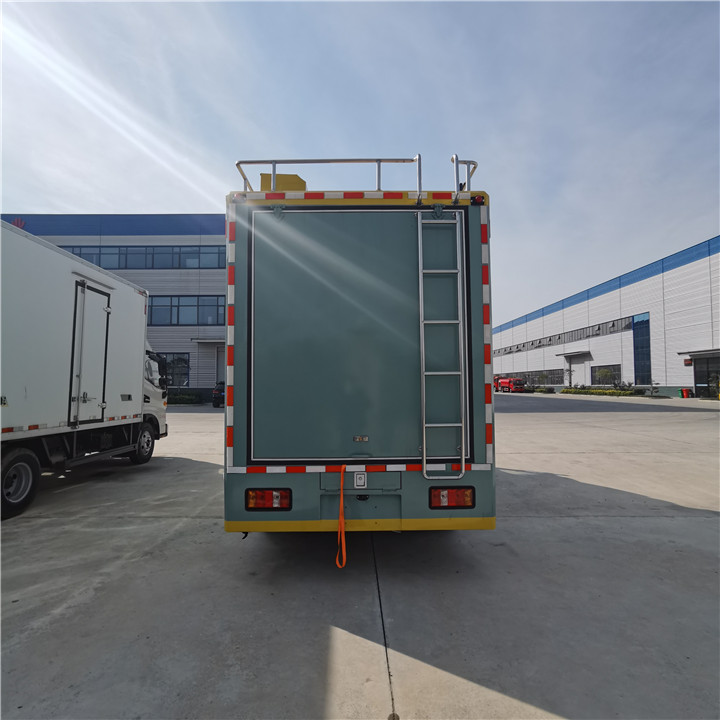

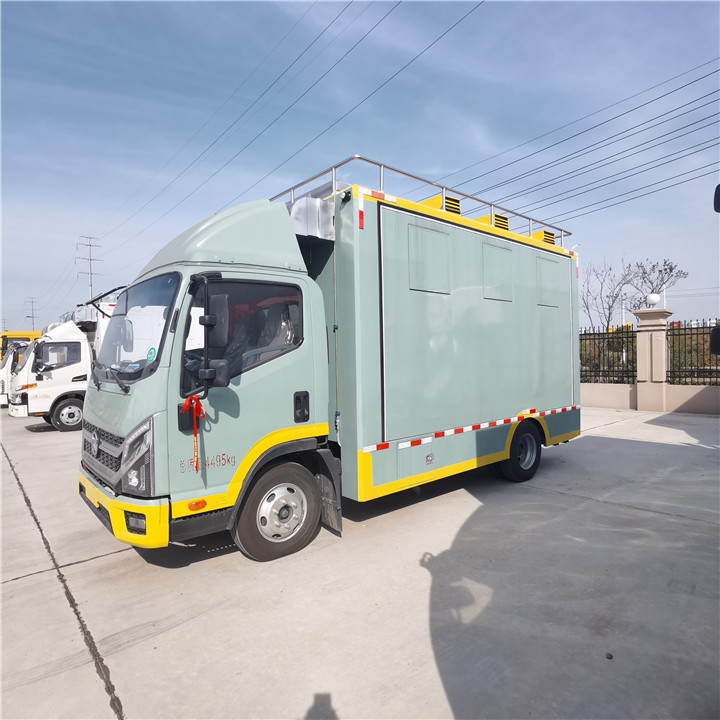

Saic Yuejin outdoor cooking truck
Saic Yuejin outdoor cooking truck Parameter Settings
Vehicle brand / vehicle name
ace
Mobile cooking truck
Body color
Optional
Engine brand
Yunnei Power
Horsepower
115 horsepower
Type of fuel
Diesel fuel
Displacement and power (ml/kw)
2500 / 105
Emission standards
Optional
Vehicle size
5995x2240x3500mm
Dimensions of cargo compartment
4200x2300x2300mm
Number of leaf springs (leaf)
11/11+9
Number of tyres
6
Tire specifications
7.00R16
Wheelbase (front/back)(mm)
1055 / 1632
Wheelbase（mm）
3300（Optional）
Axle load(kg)
1600/2895
Number of axes
2
Form of steering
The steering wheel
Total mass (kg)
4495
Quality of equipment(kg)
4365
Number of persons allowed to ride in the cab (person)
3
Maximum design speed (km/h)
90
Yuejin Cooking Truck Features:
1. Cooking truck appearance and size
- Body size: 4.2 m long, 1.8 m wide, 1.85 m high.
- Overall design: The body is made of FRP outside and stainless steel inside, with heat insulation and fire insulation layer in the middle, and the bottom plate is aluminum pattern plate.
- One side of the wall panel is equipped with 3 breathable windows, the other side is a sales window and sunshade, the rear door is extended upward, the size is 1.7*0.8 meters.
- The side of the car is wrapped in aluminum or stainless steel, but also equipped with ladder, guardrail, skylight and other parts, the skirt board of the car has a large enclosure, toolbox and storage box.
2. Kitchen Truck performance and configuration
- Strong mobility: Based on the jump chassis, the power is sufficient, can adapt to different road conditions, and can flexibly shuttle through urban streets, rural roads and various activity places.
- Well-equipped: The car is equipped with kitchen equipment such as stove, rice steamer, refrigerator, vegetable basin, smoke exhauster, etc. The circuit and waterway system are perfect, and some are also equipped with batteries, inverters and external power lines.
3. Mobile Food Truck application scenario
- Commercial operation: It can sell snacks, fast food and other food in crowded places such as commercial streets, pedestrian streets and fairs.
- Outdoor activities: Suitable for schools, units outdoor picnic, play, gatherings and other activities, to provide on-site catering services.
- Red and white wedding events: Can be used in rural red and white wedding events catering, providing catering production and delivery services.
4. Yuejin Kitchen truck warranty service
- Vehicle warranty: There is usually a certain period of vehicle warranty, during the warranty period, the engine, chassis and other key components of the vehicle quality problems can enjoy free maintenance or replacement services. For example, if the engine has a failure caused by non-human factors, the manufacturer will be responsible for maintenance.
- Special equipment warranty: The kitchen equipment in the dining car, such as the stove, steamer, refrigerator, etc., also has a corresponding warranty period. If the equipment fails during normal use, it will be repaired, replaced with parts or replaced with the whole machine according to the warranty terms.
