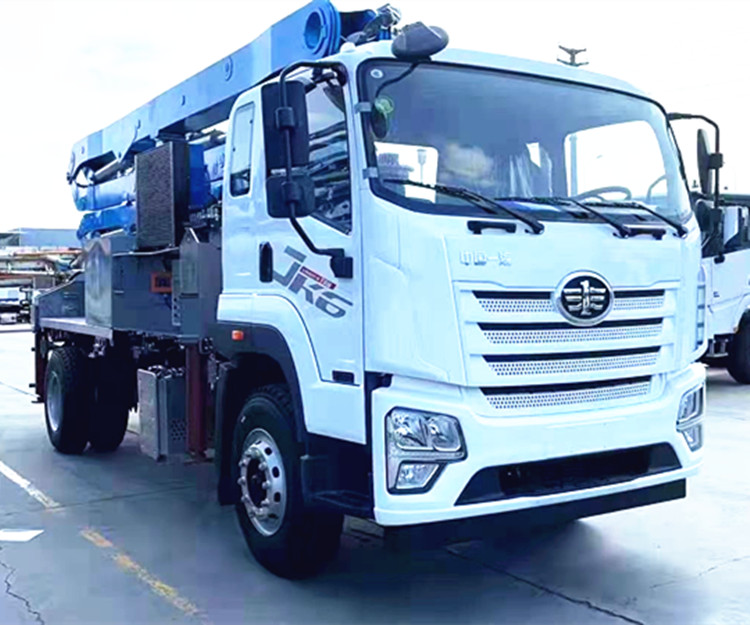

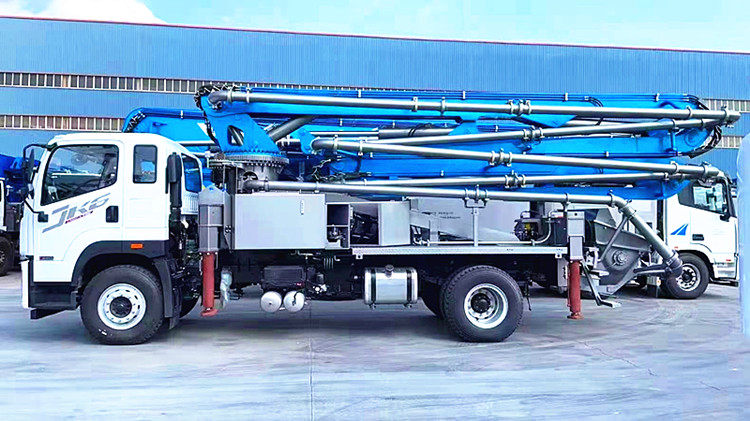

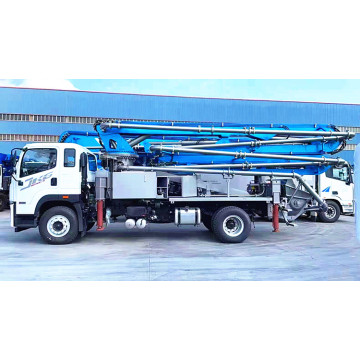

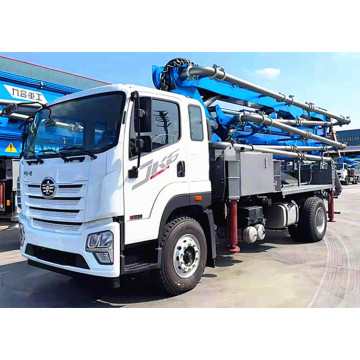

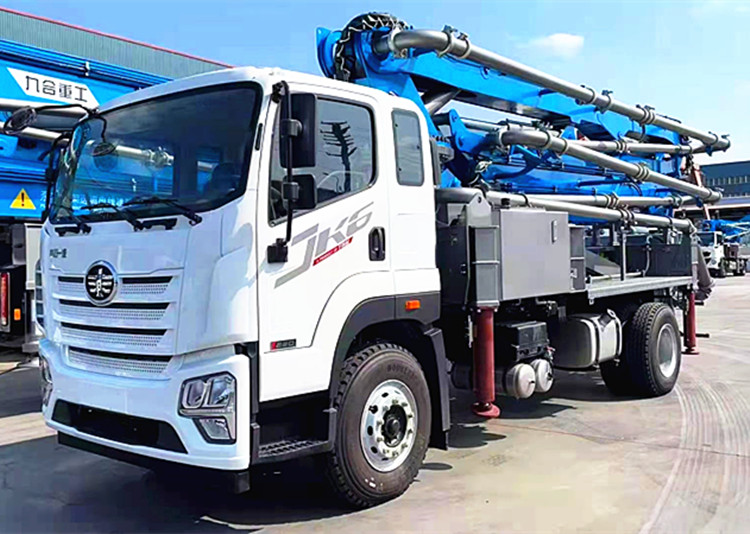

30-Meter Concrete Pump Truck by Cheng Li

Cheng Li 30 meters Concrete Pump Truck

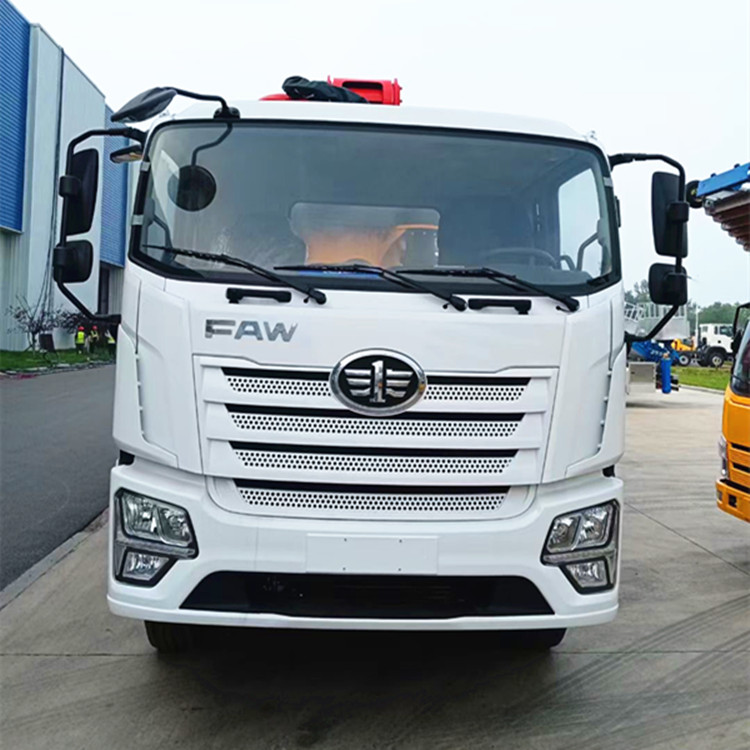

           Cheng Li 30 meters concrete pump truck introduction                                                      30 m concrete pump truck JHZ5200THBJF 1、CHASSIS chassis FAW Emission standard Euro 6 engine Sitchai Engine power/RPM 2000rpm wheelbase 4800mm Maximum travel speed 90km/h Vehicle approach/away Angle 24.6°/15.6° Tyre specification 10.00R20 18 2、BOOM SYSTEM Maximum vertical height of boom 29.5m Horizontal fabric radius of boom 25.9m Fabric depth 18.8m Rotation Angle of each arm 90/180/360/540 Boom control mode Load sensitive proportional control Number of boom 4 Folding mode M type Turret rotation Angle 540° Front leg across distance 5840 Back leg across distance 4050 Longitudinal distance of front and rear legs(MM) 6300 Leg opening mode X-H Length of tail hose 3000mm Concrete pipe diameter mm 125 3、Electrical control system Control power supply 24v Control module PWM Operating voltage 24 Intermediate electrical apparatus Omron or LS Wireless remote control HBC or OHM 4、Hydraulic transmission system 液压系统类型/Hydraulic system type Open type System operating pressure 31.5Mpa Main hydraulic oil pump Rexroth or Push Main oil pump model A11VO190，K3V180 Main oil pump displacement 190，180 Suction and return oil filter element LEEMIN Boom multiway valve KEMAI or WALVOIL Boom balance valve Italy NEM or HBS Leg multiple valve Italy Valvoil or Taiwan Ealy Cylinder hydraulic seal American Parker Hydraulic tank volume 450 Hydraulic oil cooling method Air cooling Master cylinder XIELI Transfer box JIE or STIEBEL Hose connection EATON   The following is the introduction of Cheng Li 30 meters concrete pump truck: 1. Chassis configuration of concrete pump truck • Power system: Generally equipped with reliable performance engines, such as Weichai, Yuchai and other brand engines, strong power output to meet the needs of pump truck operations. • Driving system: The use of high-quality chassis, wheelbase design is reasonable, equipped with high-strength tires, can adapt to different road conditions, to ensure the driving stability and passability of the pump truck. 2. Concrete pump truck installation configuration • Boom system: Four-section boom design, boom material is high strength alloy steel, light weight, high strength, boom height up to 30 meters, can flexibly transport concrete to the designated position. • Pumping system: Equipped with large-caliber cylinders and high-performance concrete pistons, the theoretical capacity can reach 90-130 cubic meters per hour, which can meet the concrete pumping needs of most projects. • Hydraulic system: Using well-known brands of hydraulic components, such as Kawasaki, Rexroth, etc., the system pressure is stable, and can provide powerful power support for the extension, contraction and pumping action of the boom. • Electrical control system: Equipped with advanced electrical control system, remote control of the pump truck can be achieved, easy and accurate operation, improve construction efficiency and safety. 3. Concrete pump truck performance characteristics • High efficiency: the height of the 30m boom can cover a large construction area, reducing the number of movement of the pump truck. At the same time, the high throughput pumping system can quickly transport concrete to the construction site, greatly improving the construction efficiency. • Stability: The boom adopts advanced structural design and vibration reduction technology, which can effectively reduce vibration during the pumping process and ensure the stability of the pump truck. • Safety: Equipped with a variety of safety protection devices, such as anti-tipping device, overload protection device, etc., can effectively prevent safety accidents during the operation of the pump truck. • Applicability: It can be adapted to different types of concrete construction projects, such as concrete pouring operations of high-rise buildings, Bridges, roads and other projects.
