IVECO 4x2 Electric Ambulance Specifications

Iveco 4x2 electric Ambulance
        Iveco electric ambulance introduction
2. Product introduction:
Iveco Poly Star pure electric monitoring ambulance adopts the Poly Star long-axis model launched by Nanjing IVeco.
Drive motor rated 70KW / peak 150KW, with traffic congestion assistance and cruise control,
equipped with anti-lock braking system: ESP + EBA + HHC, Automatic emergency braking,
Lane departure warning with lane keeping assist system, Blind Area Monitoring system (BSD + BOW),
fatigue driving monitoring and warning system, automatic sensing headlights, LED rear lights, daytime running lights;
Adopting the integrated, cage frame structure of the load-bearing body, European safety collision design standards,
high-strength stretched steel and PHS thermoformed steel lightweight body design;
The overall body center of gravity is low and more stable, effectively ensuring the safety of the driver;
The space of the medical cabin is large and the design is reasonable.
The whole vehicle adopts the domestic leading Medical Vehicle modification technology,
suitable for all kinds of hospitals and emergency centers, especially suitable for patient transfer and city emergency.
3. Vehicle parameters and standard configuration
Maximum total mass
3495kg
Number of passengers
7-8（Number of stretchers included）
wheelbase
3366mm
Body size: length × width × height
5364mm×2030mm×2540mm
Medical cabin dimensions: length × width × height
2710mm×1730mm×1710mm
Approach/departure Angle
18°/21°
Maximum speed
130km/h
Motor type
TZ202XSSQC
Rated power/horsepower
Rated 70KW / Peak 150KW / 204PS
Battery type
Lithium iron acid battery (battery capacity 88.8kwh)
Battery thermal management
hydrothermal
Charging mode
Dc + AC
Charger power
11kw charger
Driving type
Motor front-facing front-wheel drive
Minimum ground clearance
170mm
Suspension type
Front independent suspension, rear non-independent suspension (2 springs)
Brake type
Front and rear disc brakes
tyre
215/75R16RT（(Aluminum alloy rim), tire pressure monitoring
Appearance of medical warning
Steel reinforced frame structure design, safe and reliable.

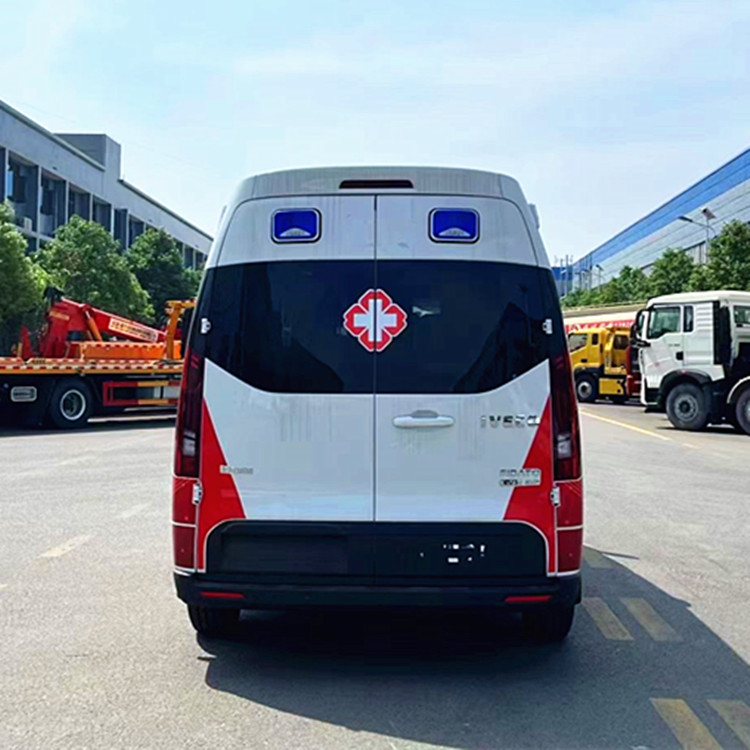

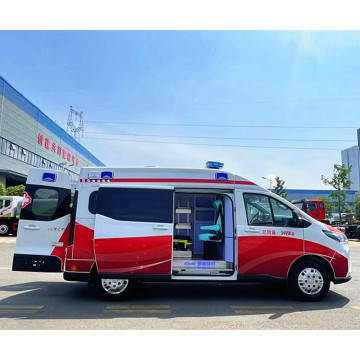

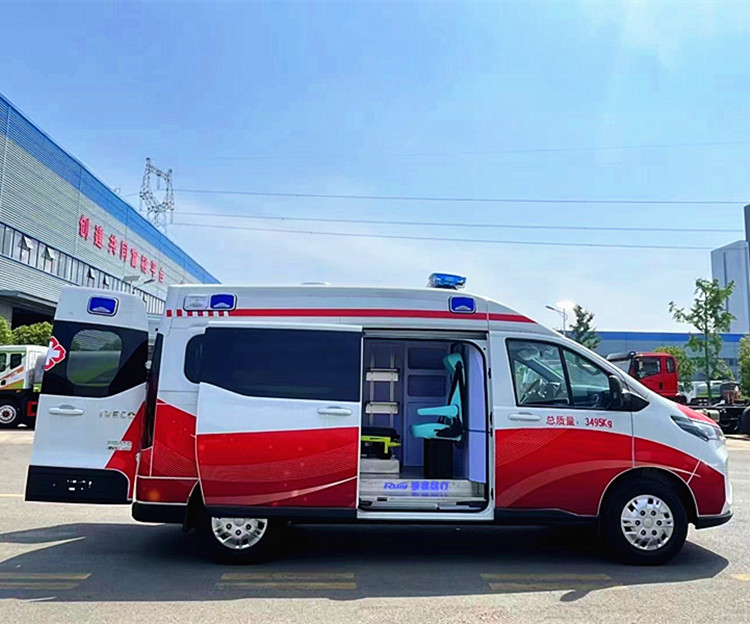

The right side of the car body is equipped with a sliding door, and the rear end adopts a double-open tail door structure with large opening width, which is convenient for doctors and patients and stretchers.
Vehicle appearance

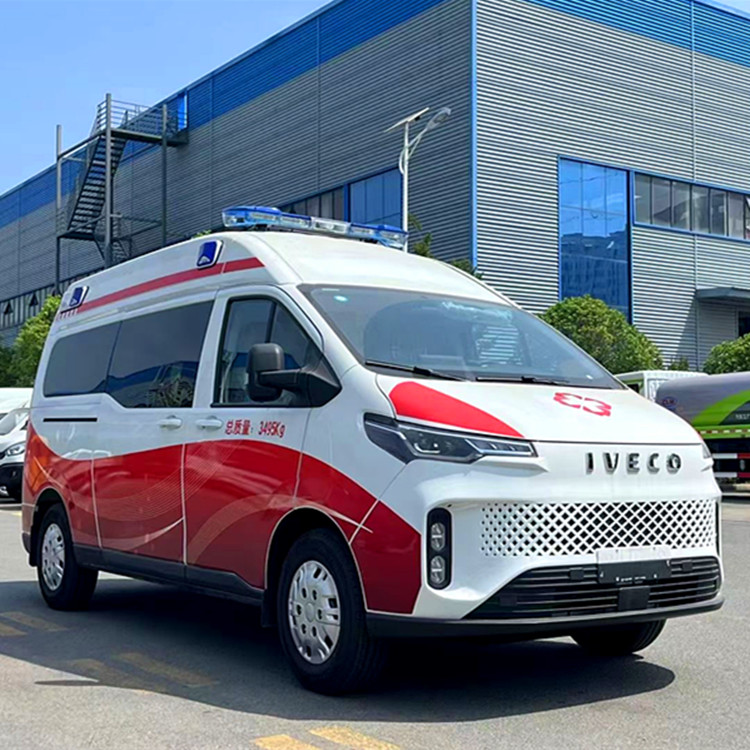

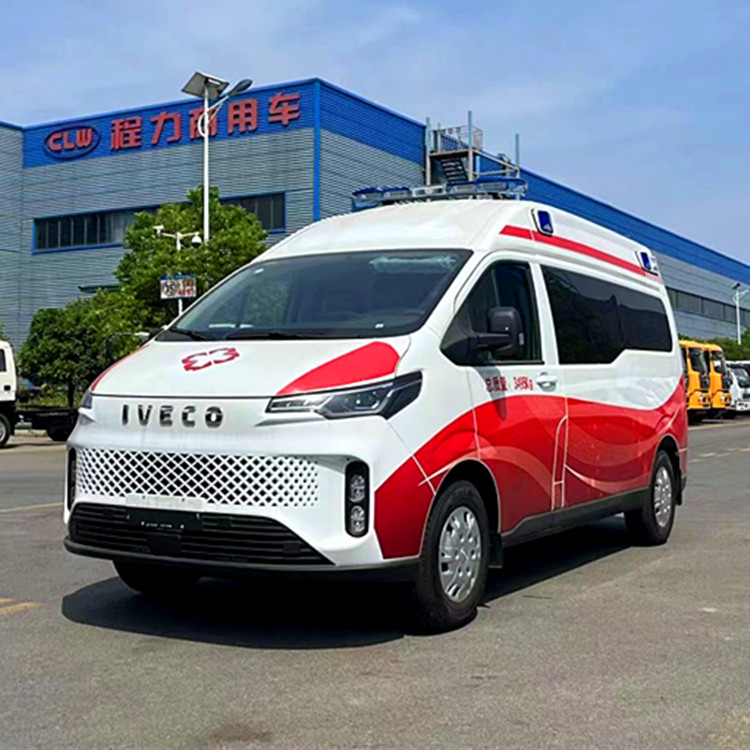

The whole body is white, the front, both sides of the body and the rear door are affixed with the Red Cross logo, and the body color strips are affixed all around, which are bright and eye-catching and effective warning.
Medical cabin glass is covered with 2/3 frosted cellophane to effectively protect patient privacy
Warning luminaire

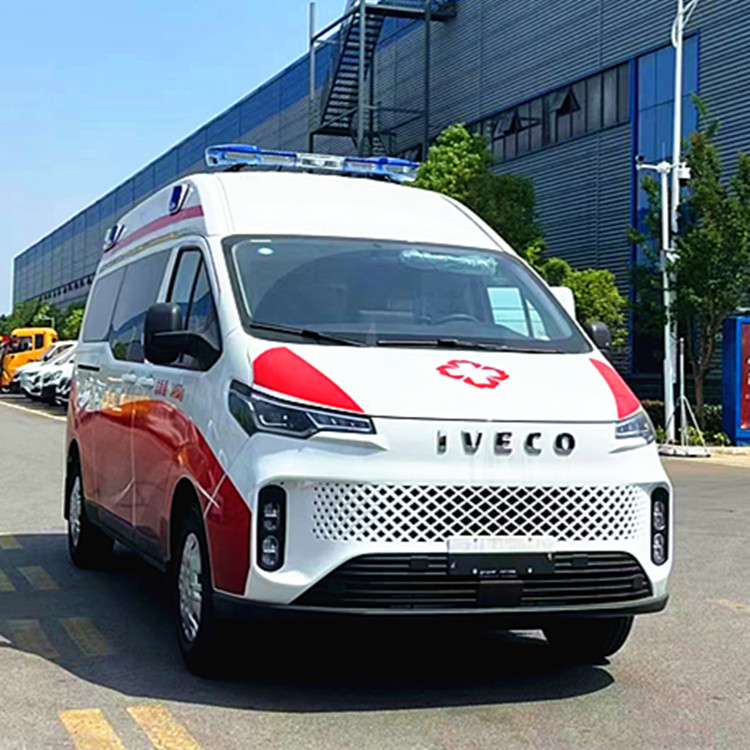

The front is equipped with I-type alarm light, one shape, beautiful and generous.
Horn power 100W.
Blue and white flash lights are installed on both sides and at the tail for effective warning.
Medical electrical system
floodlight
4 12V cabin lights, stable light source, large irradiation surface, 2 infusion spotlights.
inverter
Vehicle-mounted sine wave 1000W, stable frequency, stable voltage, stable output power, providing power supply for the equipment on the vehicle; 2 sets of 220V/12V multi-functional sockets (can be connected to two/three holes, AC/DC dual).
Sterilizing lamp
1 intelligent timed ultraviolet disinfection, to ensure the health and safety of the cabin.
Air circulation system
Air conditioning/heating
1set of rear air conditioning and rear heating device, independent control of heating and cooling, according to the need to reasonably regulate the cabin temperature.
ventilator
A set of DC12V multi-functional ventilation fan with suction and exhaust is installed on the roof of the car, which can effectively ensure the efficient circulation of air in the medical cabin.

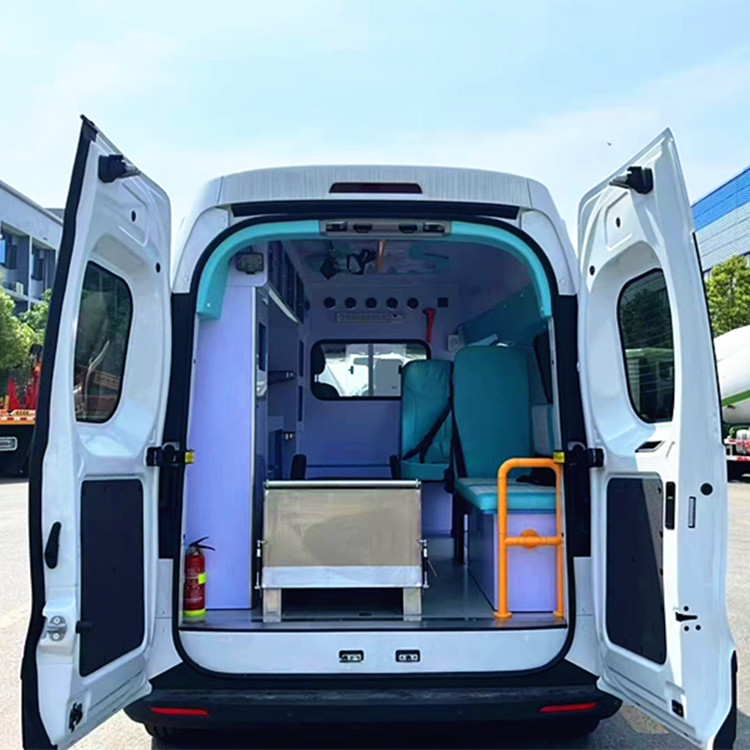

Medical cabin cabinet interior configuration
Medical cabin cabinet/interior configuration
Center partition wall assy
Between the cab and the medical cabin, a set of new environmental protection materials are installed in the middle partition wall, and a glass observation window is set on the middle partition wall to facilitate the front and rear cabin observation and communication.
Cabinet assembly
Install a set of new environment-friendly materials made of long strip equipment cabinet, cabinet body is provided with drawers, space cabinet and other storage space;
Install a set of new environment-friendly materials made of oxygen cylinder cabinet, cabinet body can accommodate 2 10L oxygen cylinders; Install a set of new environmental protection materials made of hanging cabinet, hanging cabinet adopts sliding door structure, easy to open the door;
Install a set of long seat cabinet, including cushion, backrest, two-point safety belt.
Medical cabin trim
Medical cabin decoration: made of new lightweight materials, waterproof, mildew proof, antibacterial, easy to clean.
Medical cabin floor: made of medical floor leather material, non-slip, waterproof, mildew proof, antibacterial, easy to clean.
Auxiliary equipment
Side door sliding window

 Flat sliding glass window
walkie-talkie
One hands-free microphone is installed in the cockpit and one in the medical cabin to facilitate communication and exchange between the front and rear cabin personnel.
extinguisher
The medical cabin is equipped with a 1kg dry powder fire extinguisher.
Contaminant bucket
The medical cabin is equipped with a covered foot-operated dirt bucket.
Safety handrail
Install a long handrail at the top of the medical module.
Emergency hammer
Install an emergency hammer in the medical bay.
